HSD-OD-10KW

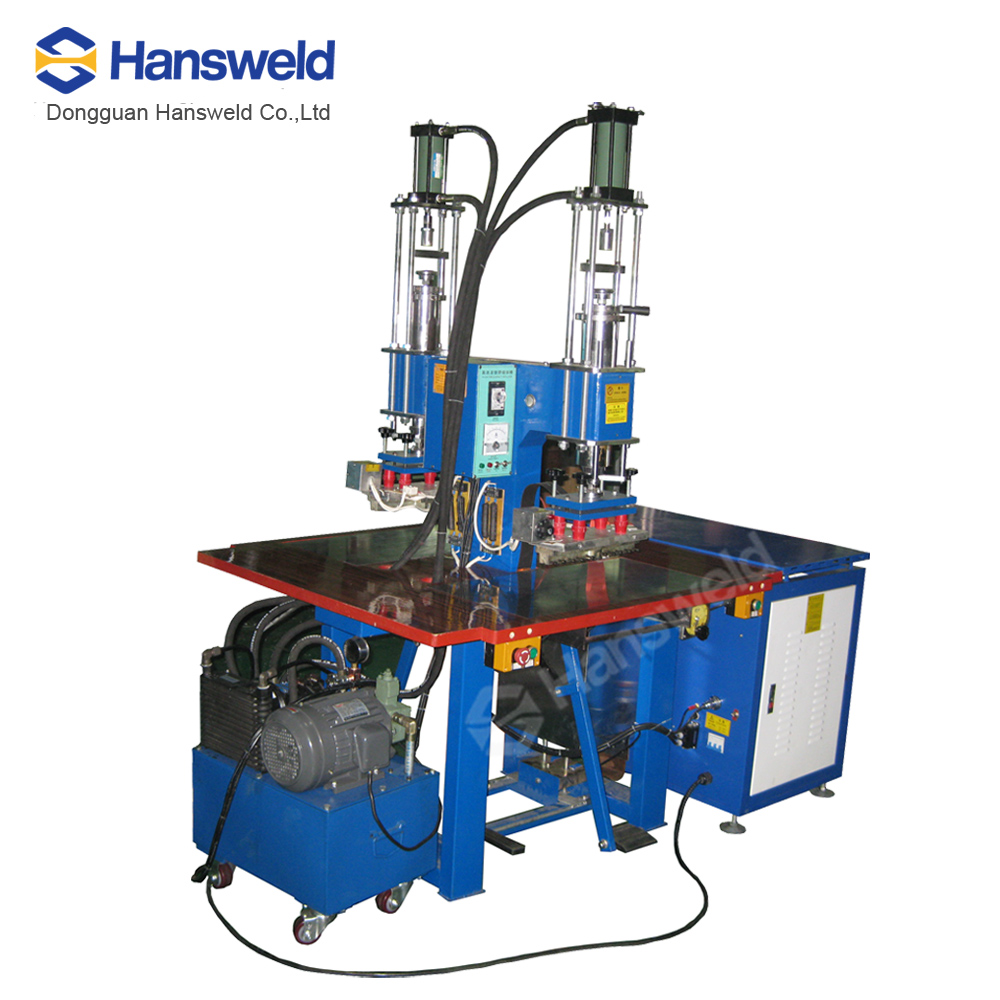

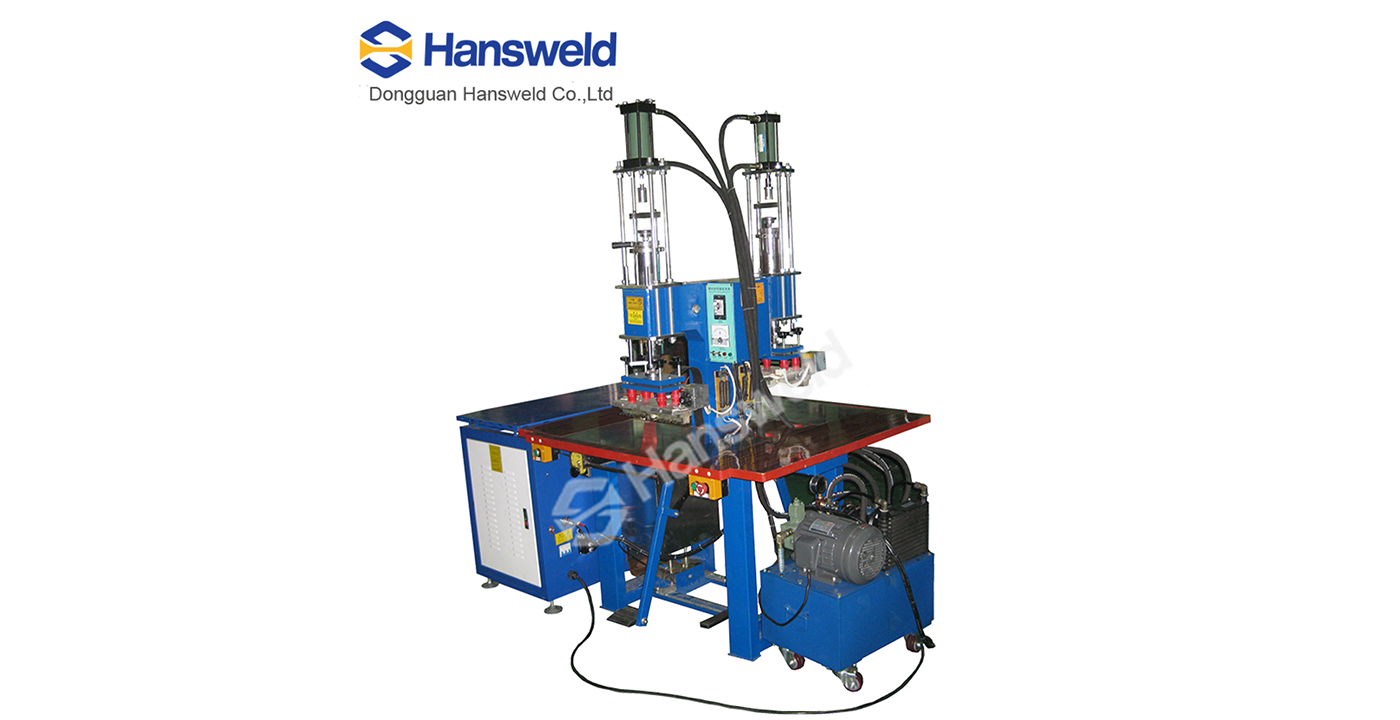

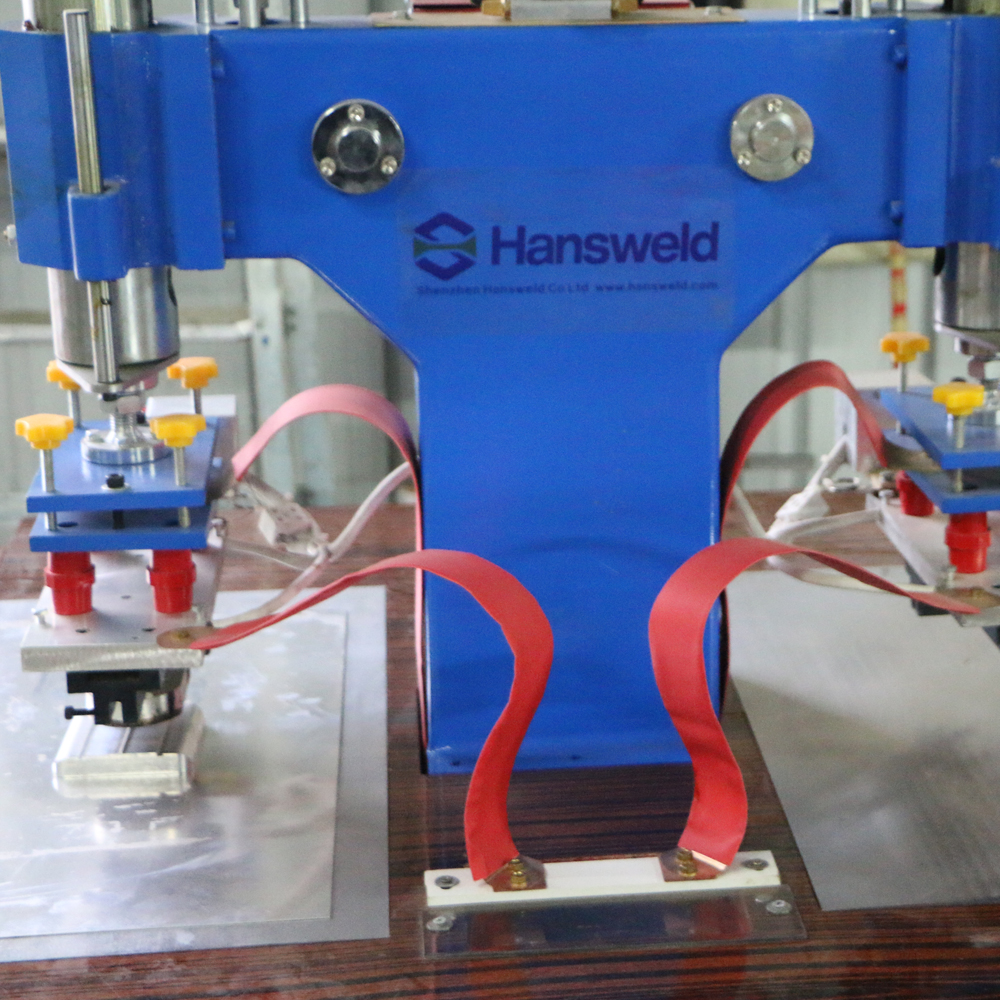

Double-head hydraulic HF welding machine
HSD-OD-10KW
Double-head hydraulic HF welding machine
HSD-OD-10KW
Double-head hydraulic HF welding machine

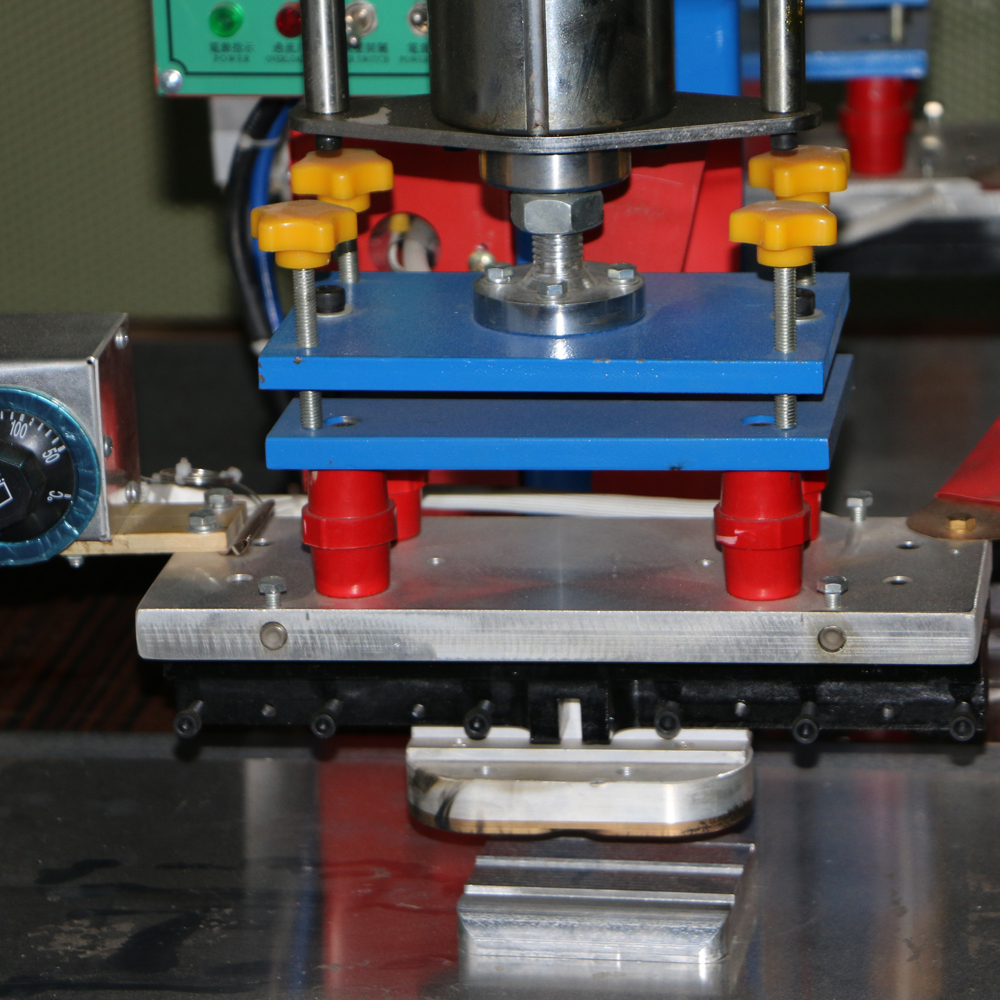

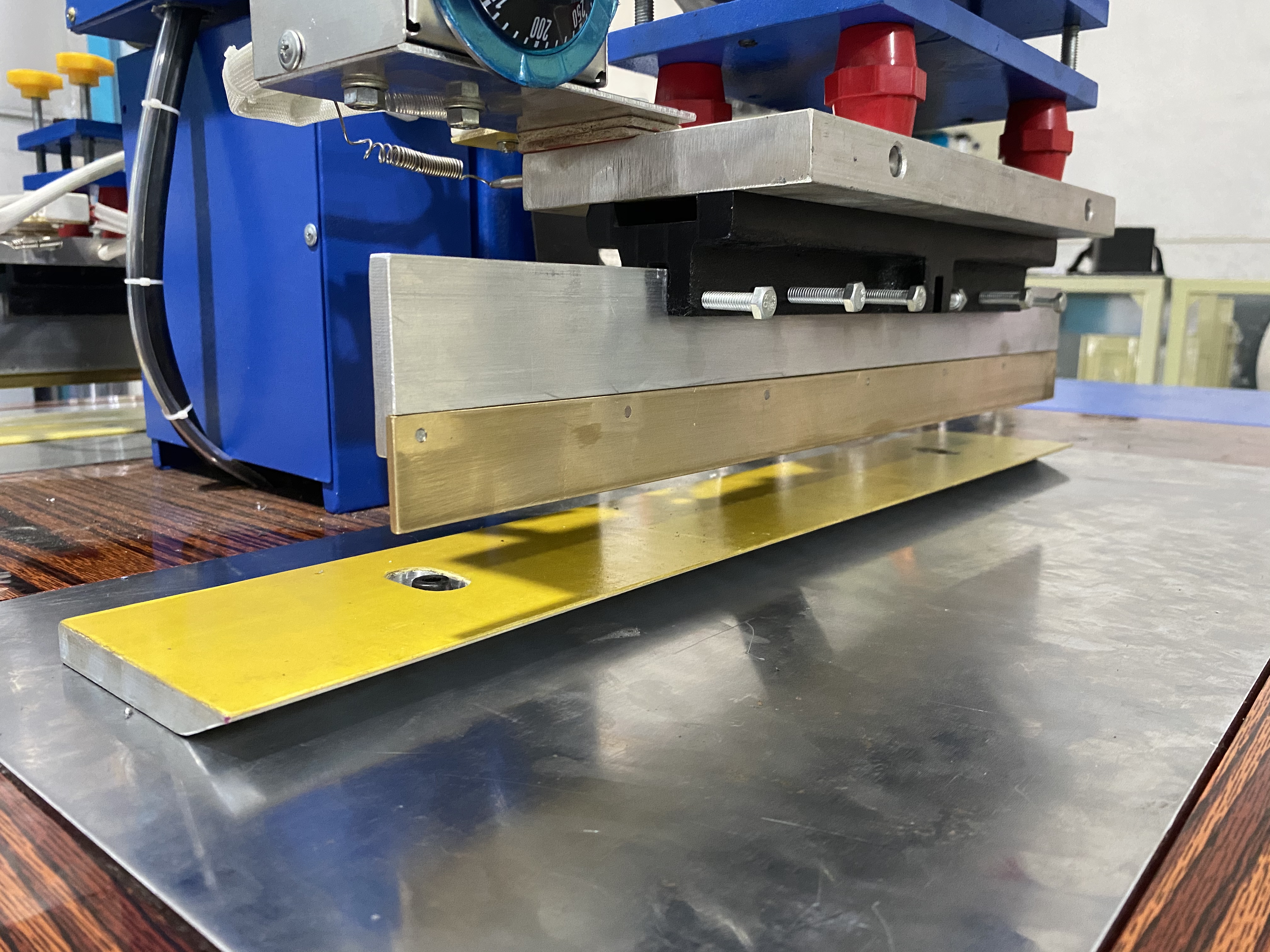

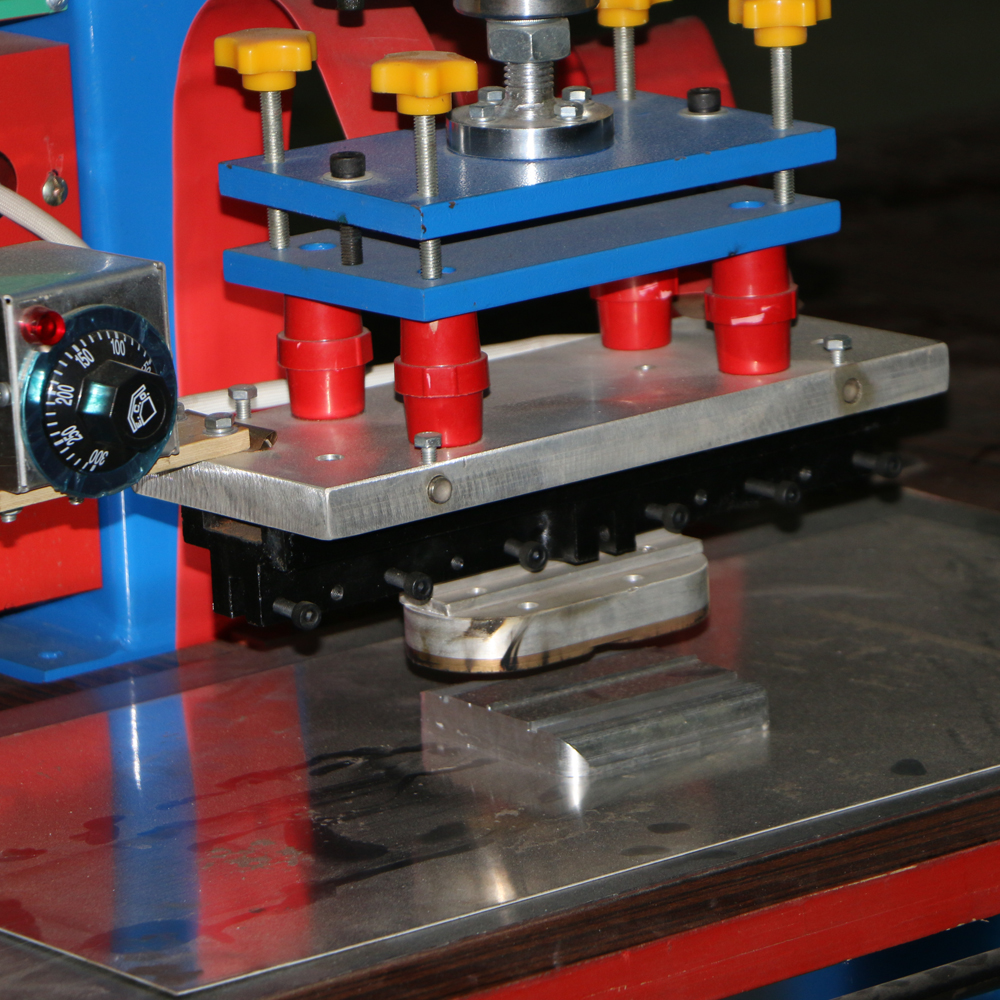

The high frequency principle is that the electron tube self-excited oscillator generates a high frequency electromagnetic field. The object to be processed is pressed between the upper and lower electrodes with high frequency electromagnetic fields, and its internal molecules are excited and move at high speed, rubbing against each other to generate heat and melt, achieving the purpose of welding or embossing under the pressure of the mold.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Mainly suitable for: PVC products or containing more than 30% PVC material welding;Soft plastic products: PVC soft plastic bag, waterproof bag, waterproof bag, inflatable products, raincoat and rain shoes, PVC folder, photo album, coin collection book, smallpox soft film/light box, etc.


Blister packaging: PVC double-sided blister packaging, paper card blister packaging, PVC sheet welding;


Other: wire hot piece, inflatable mouth, inflatable mark, sand hairpin and other accessories, leather press logo, ribbon embossing and embossing, TPU product welding, PU earphone holster, protein ear muffs, eye mask, Tesla mesh cloth beach chair and other pressing edge welding.


(1) Strong output, high performance, using a low-loss coaxial oscillator, which can make the output stronger, reduce the welding time, and increase the production volume.

(2) Electronic time controller can accurately control the welding time, adjust the setting time range from zero to ten seconds, and is easy to use.

(3) Equipped with a high-end 5557 spark protection device. When sparks are generated, the electronic circuit can automatically cut off the high-frequency output, effectively preventing mold damage.

(4) When the current exceeds the limit value, the load current relay automatically protects the oscillation tube and rectifier.

(5) High efficiency, high stability and simple operation.

(6) Install high-frequency frequency shielding and anti-interference devices to prevent interference with other electronic products and damage to your own electronic products.

(7) High-precision temperature control to ensure welding consistency.










ModelHSD-OD-10KW
Power10KW
Input power15KVA
Power Supply380V 3P 50HZ
Frequency27.12MHz
RectifierSilicon Diode
Oscillation tubeE3069
Drive MovePneumatic
Arc Suppressor SuitableHigh Sensibility NL-5557
MaterialPVC or any fabric contents PVC
Cylinder Working Stroke150mm(customization offered)
Suitable Welding Area200cm
Weight600KG
Welding time0-30s
