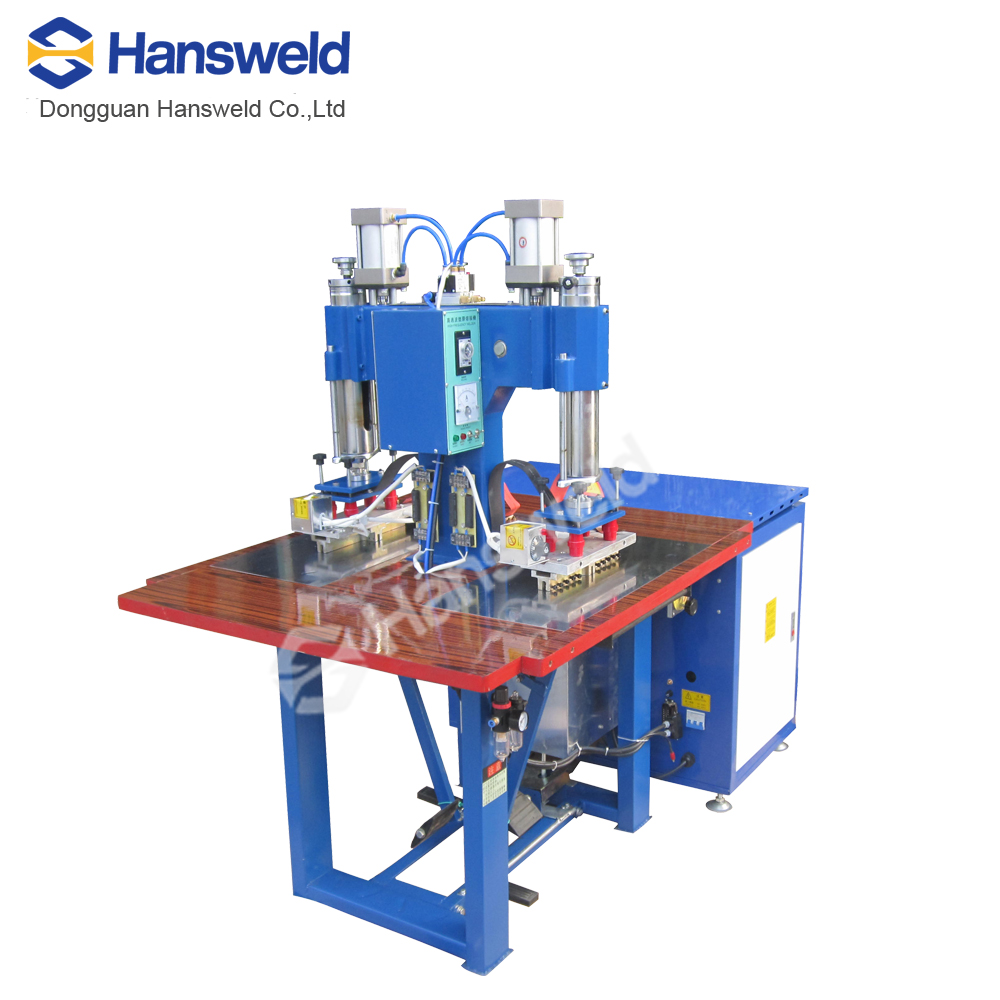

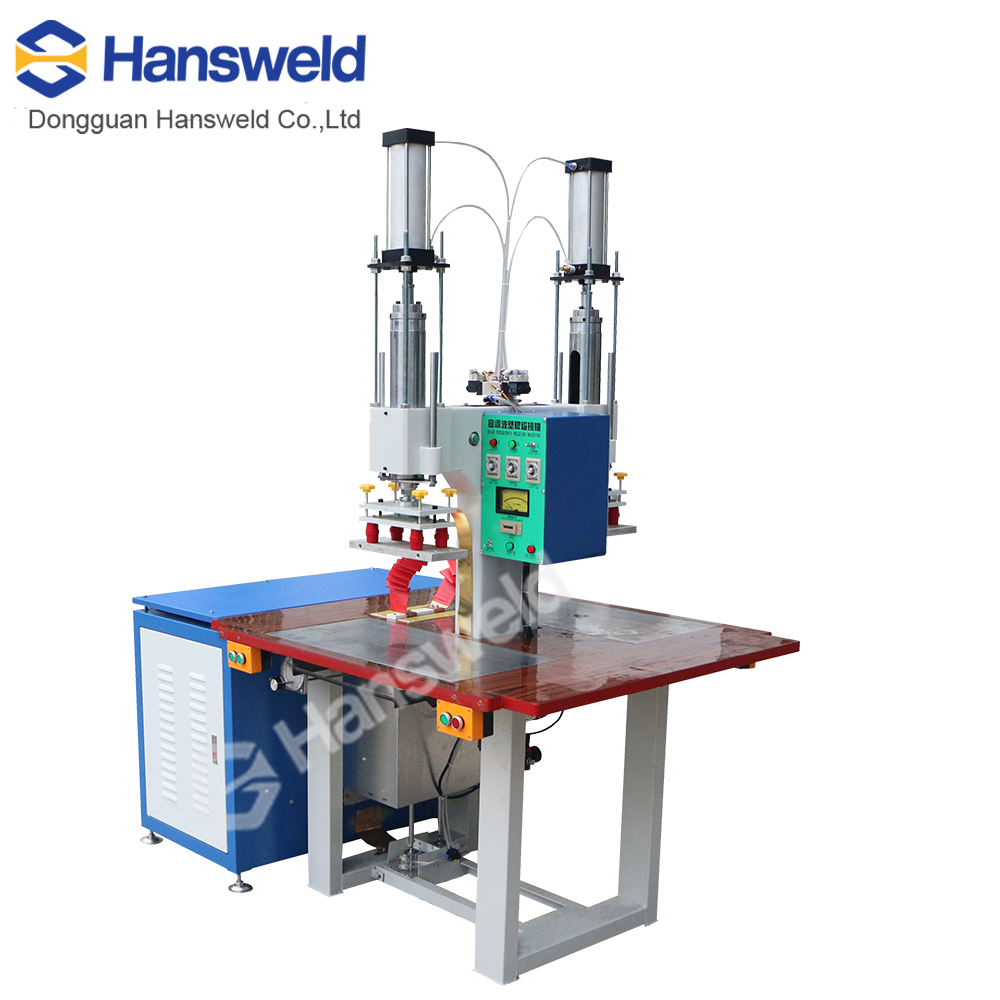

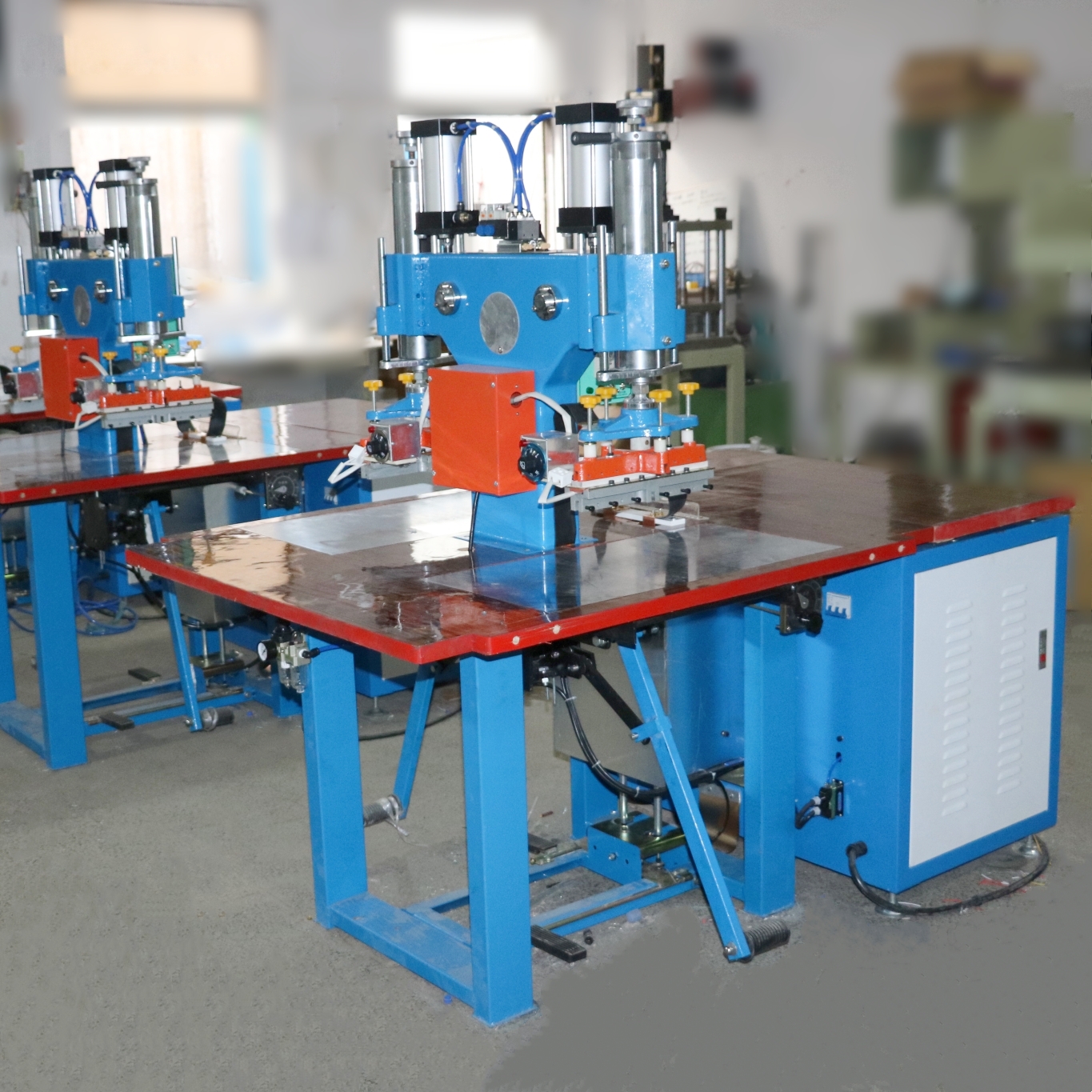

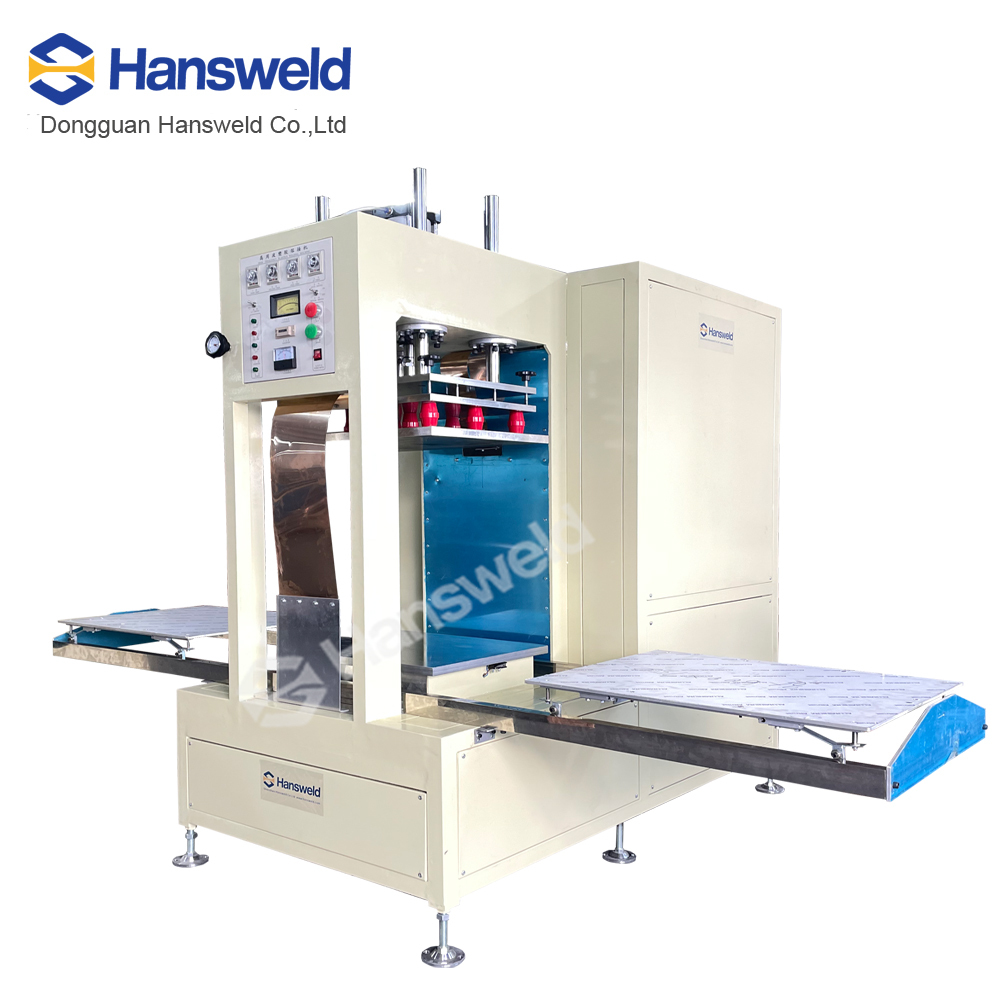

Dual-5KW

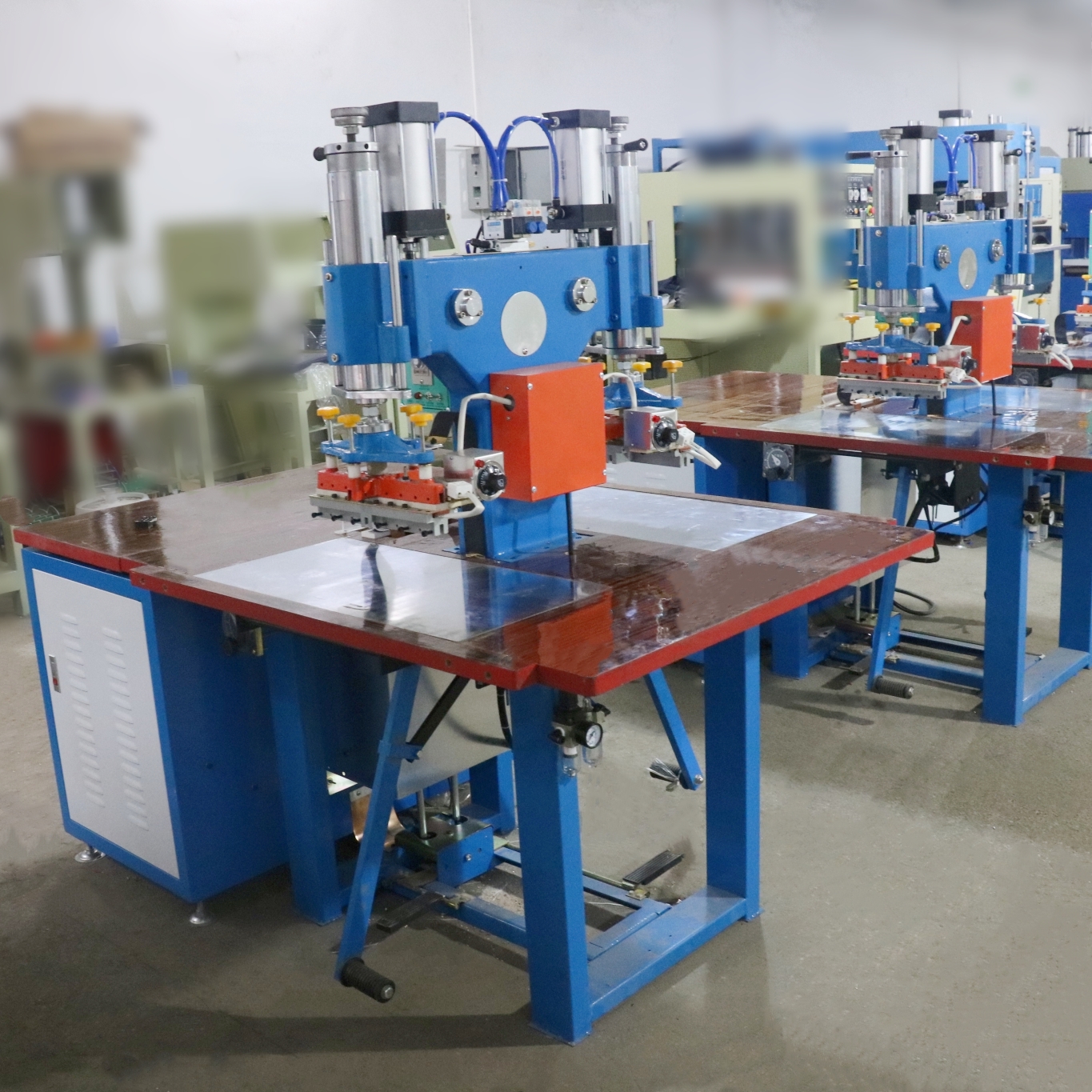

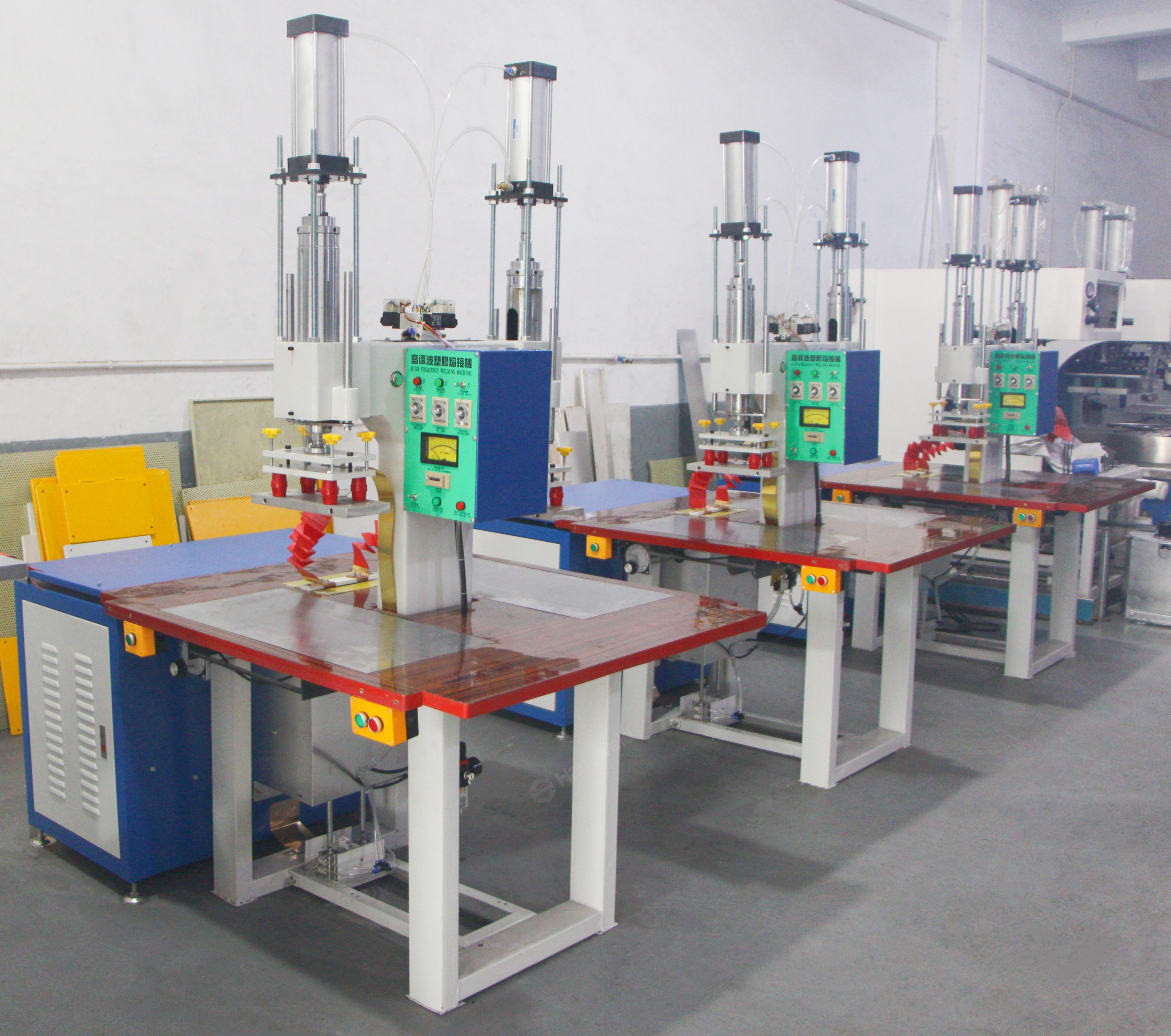

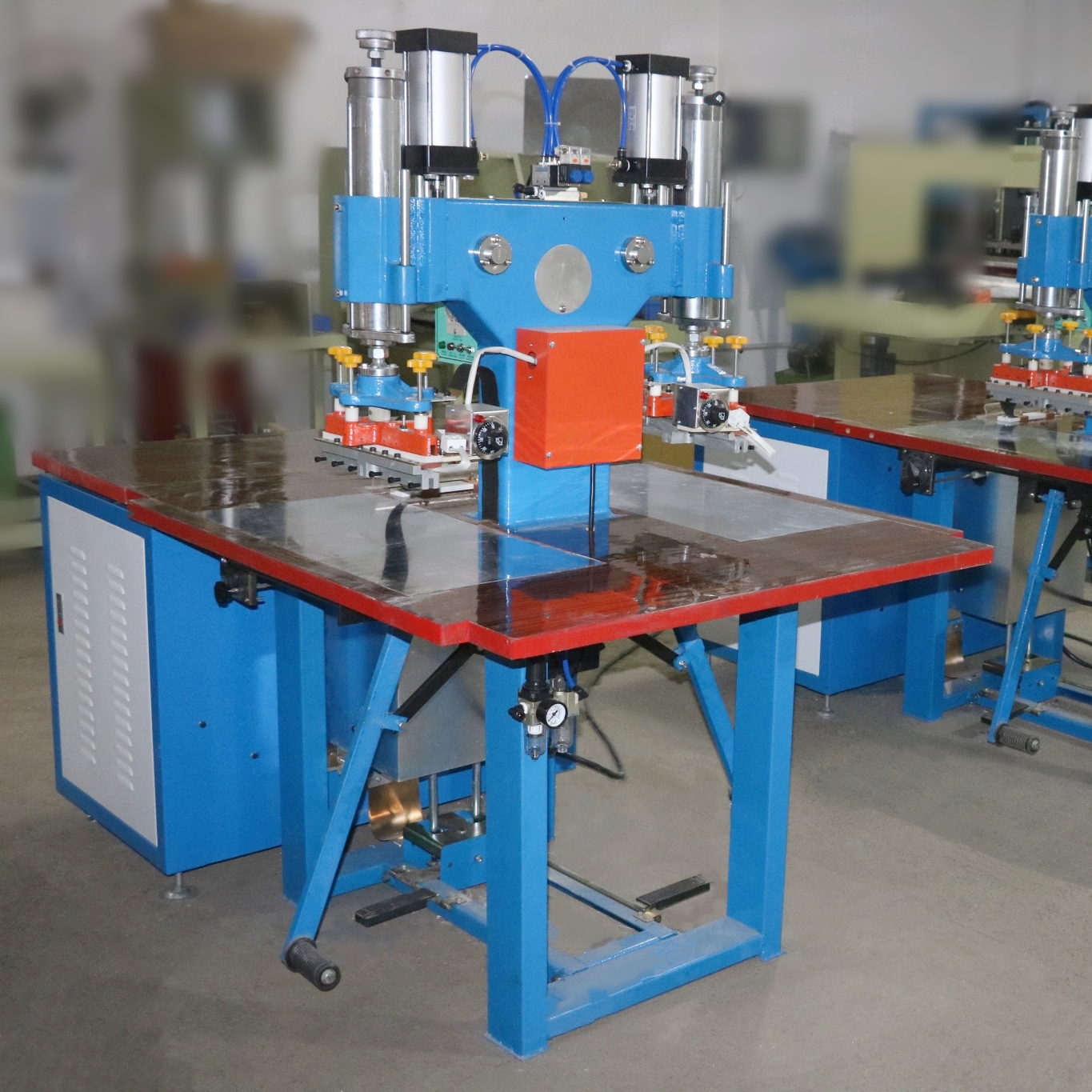

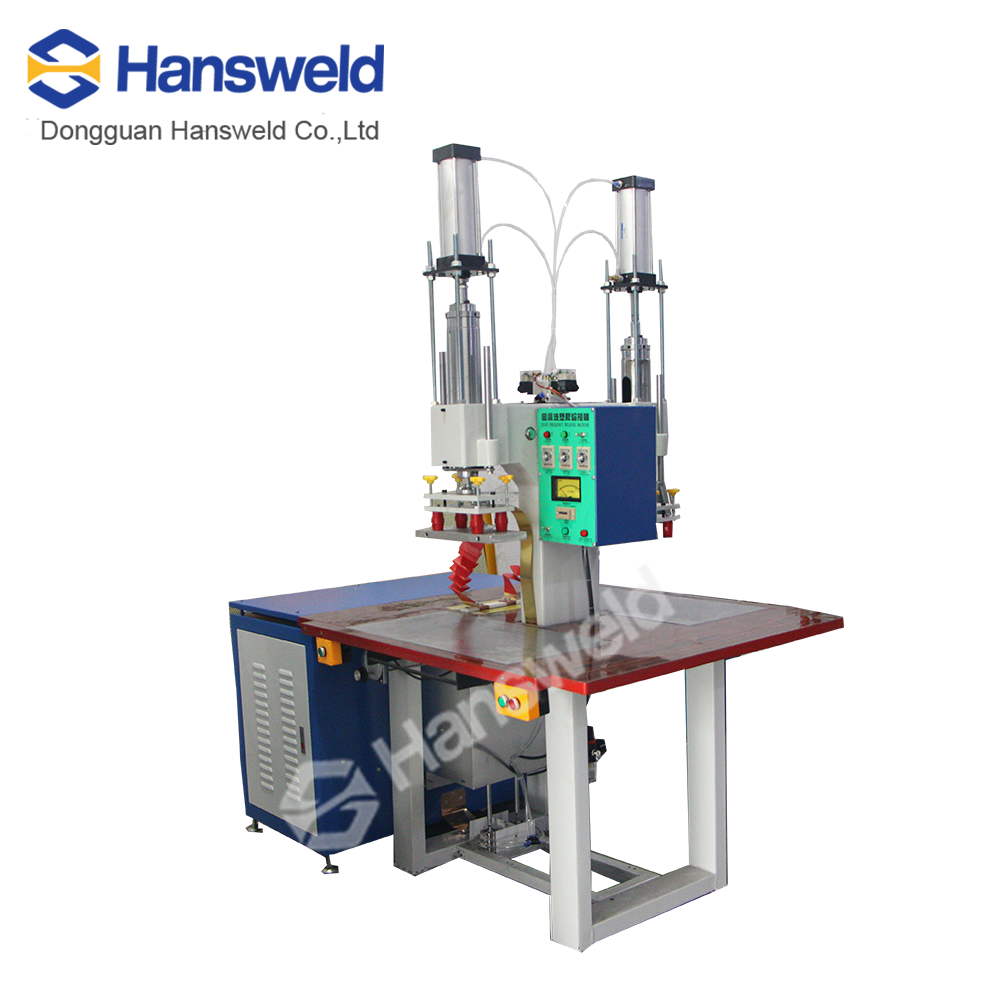

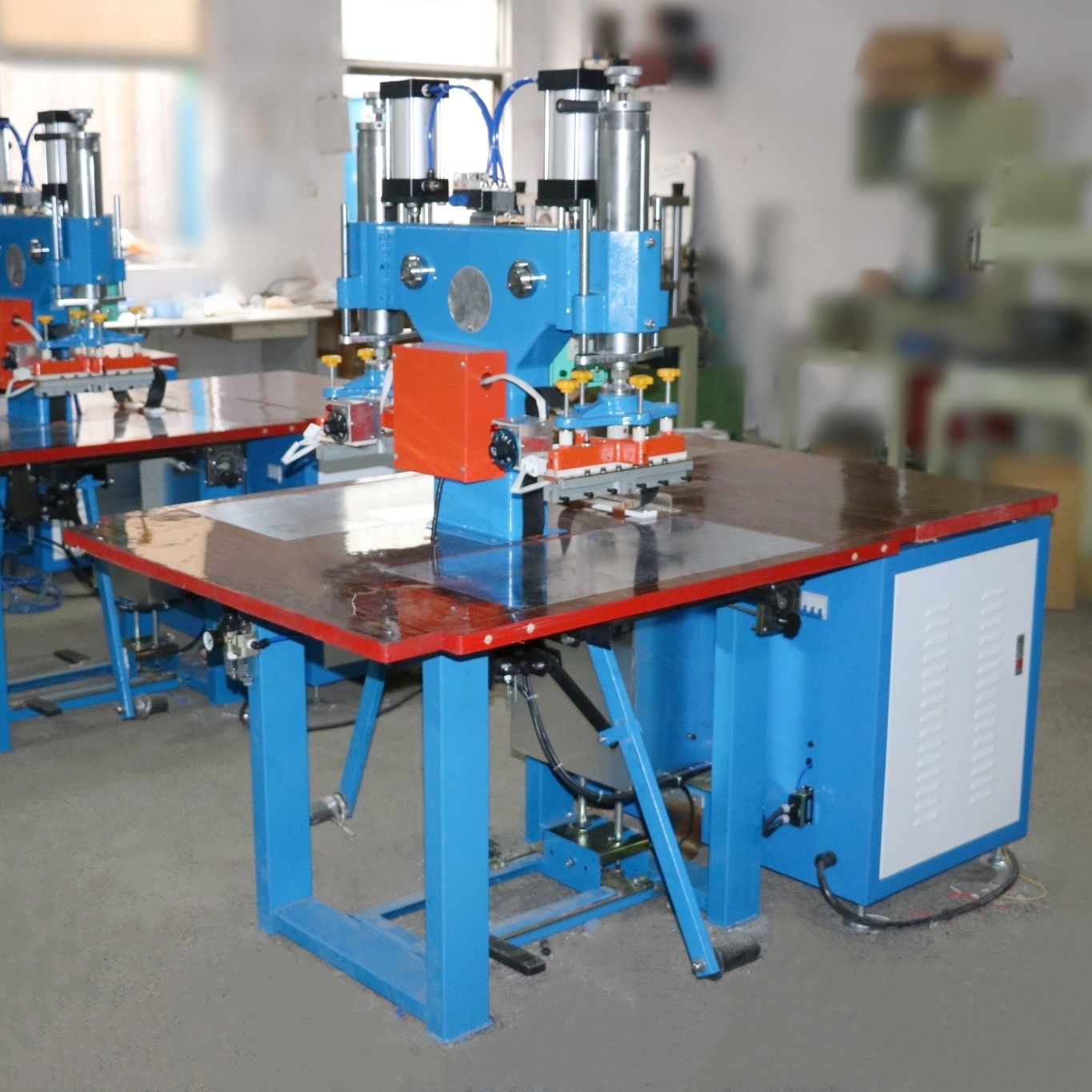

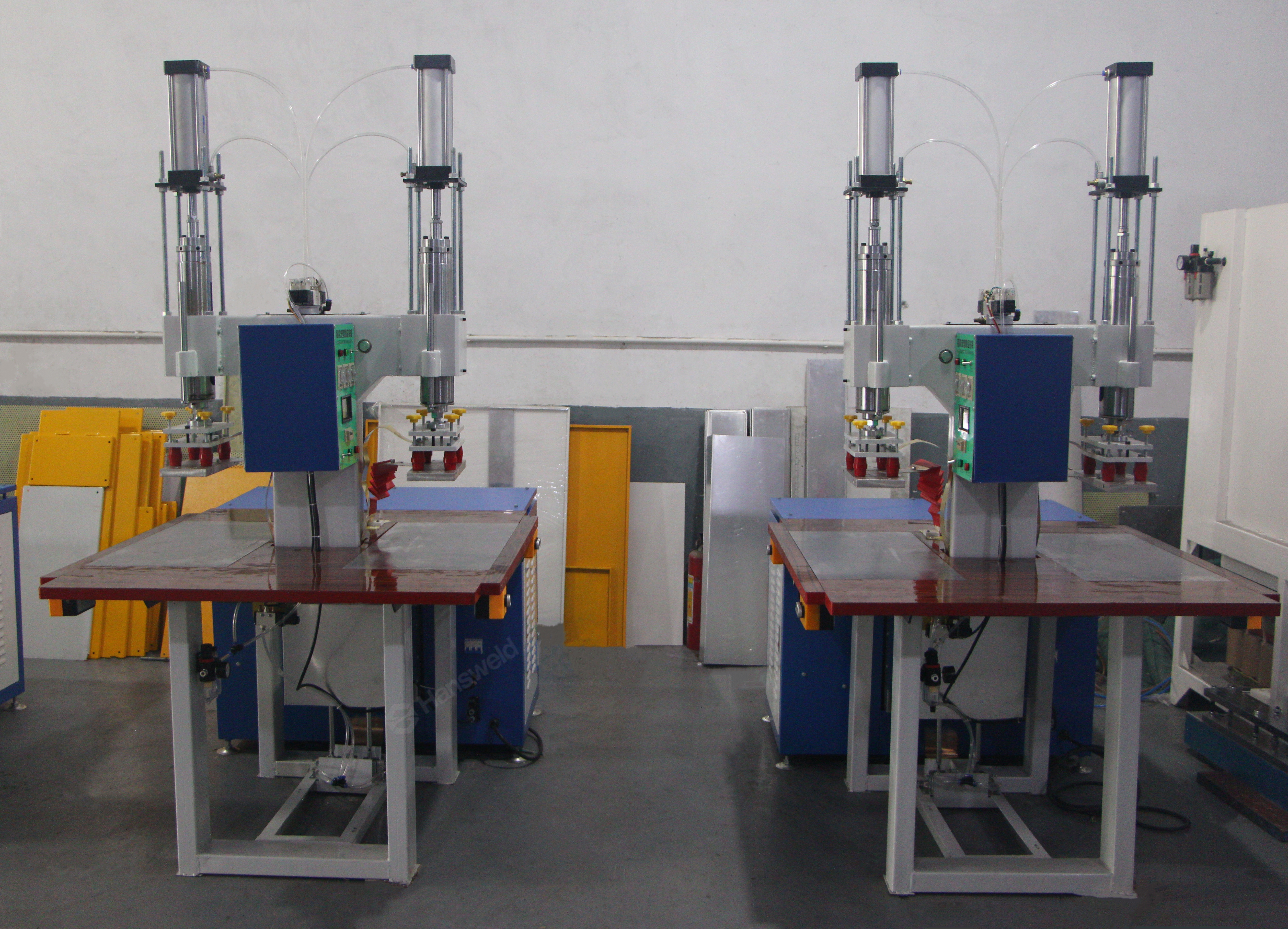

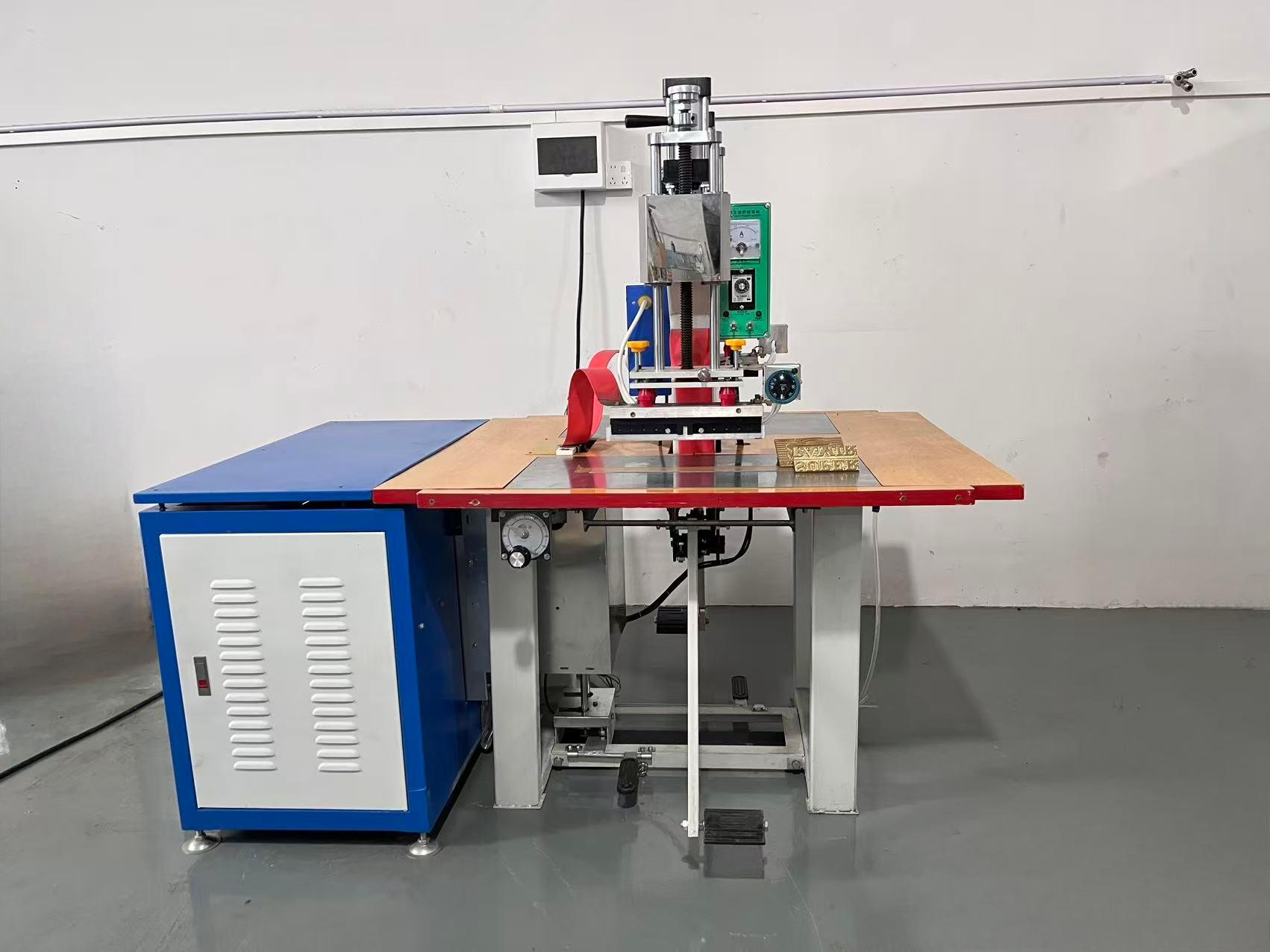

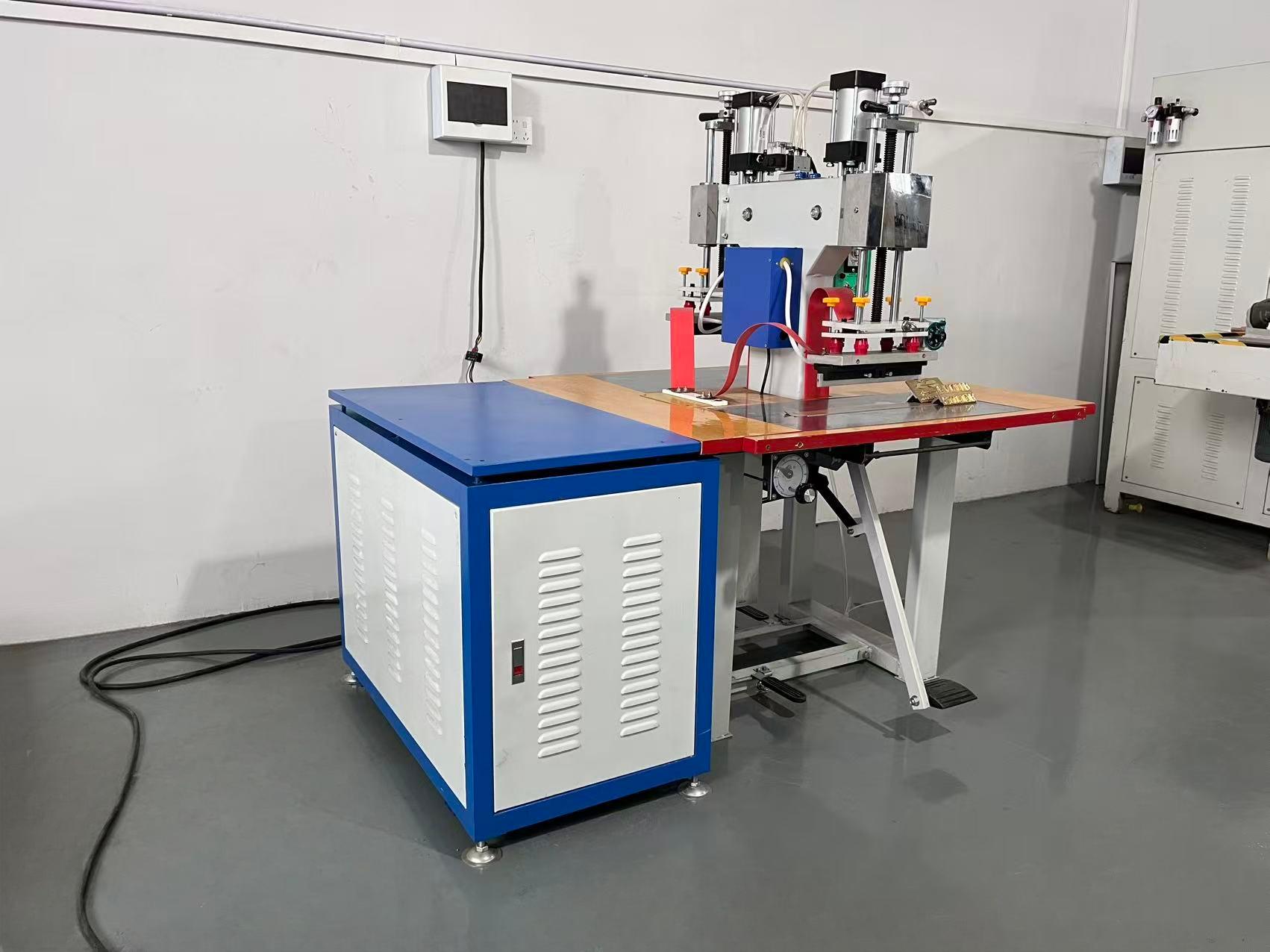

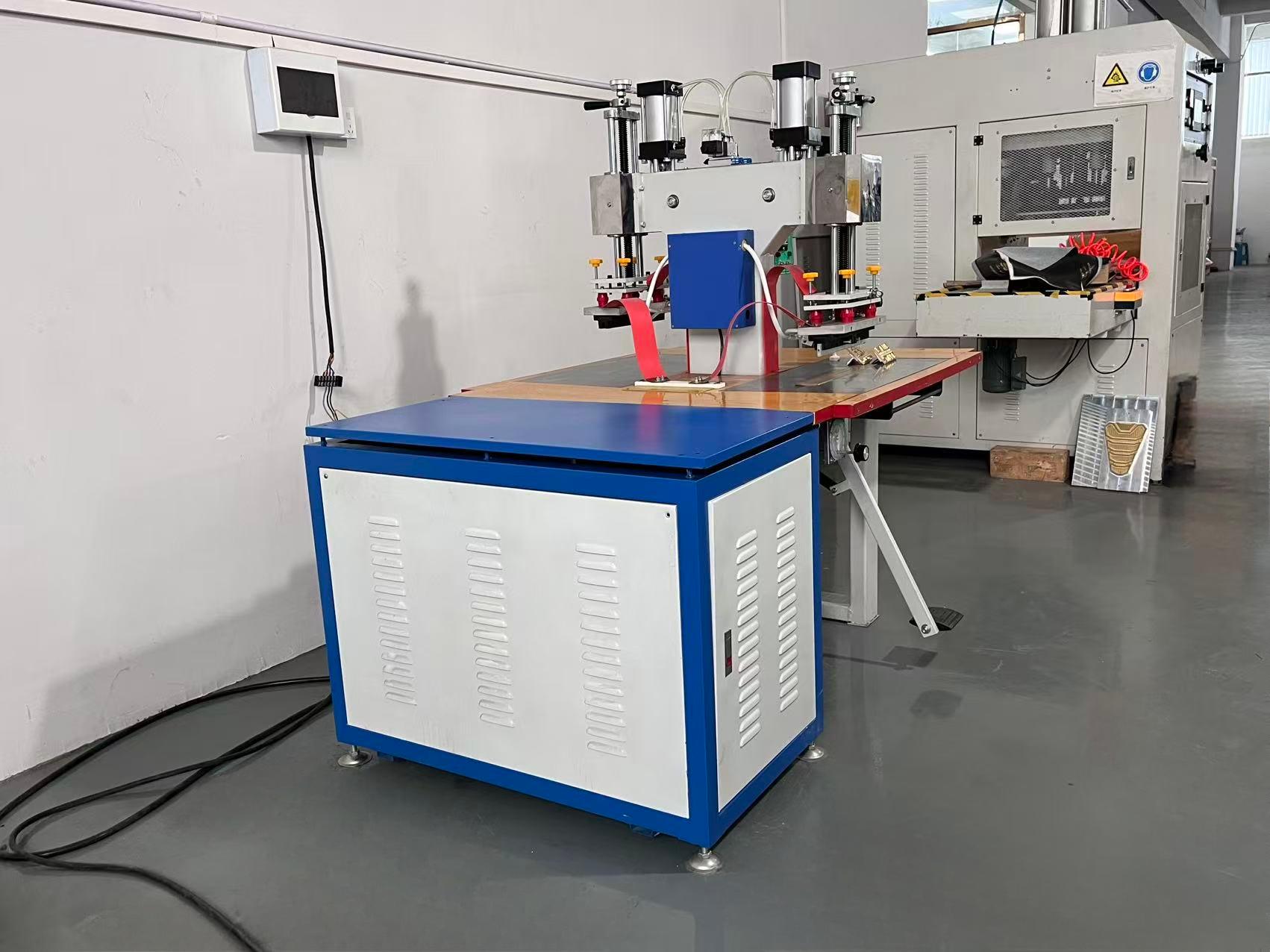

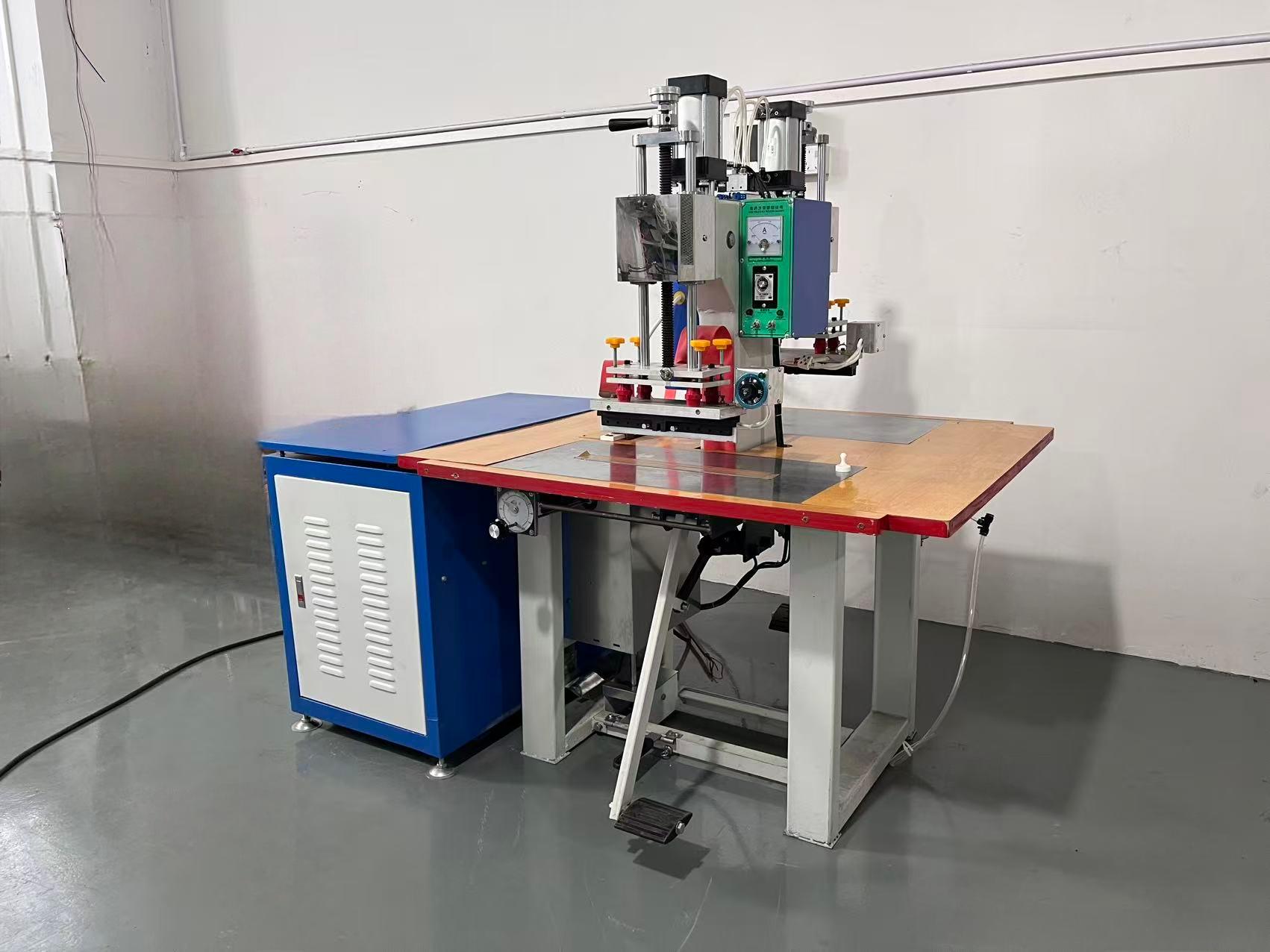

Double Heads High Frequency Welding Machine for PVC Embossing
Dual-5KW
Double Heads High Frequency Welding Machine for PVC Embossing
Dual-5KW
Double Heads High Frequency Welding Machine for PVC Embossing
The high-frequency welding machine generates a high-frequency electromagnetic field by the self-excited oscillator of the electron tube. Under the action of the high-frequency electromagnetic field, the objects being processed rub against each other to generate heat, causing the material to melt.

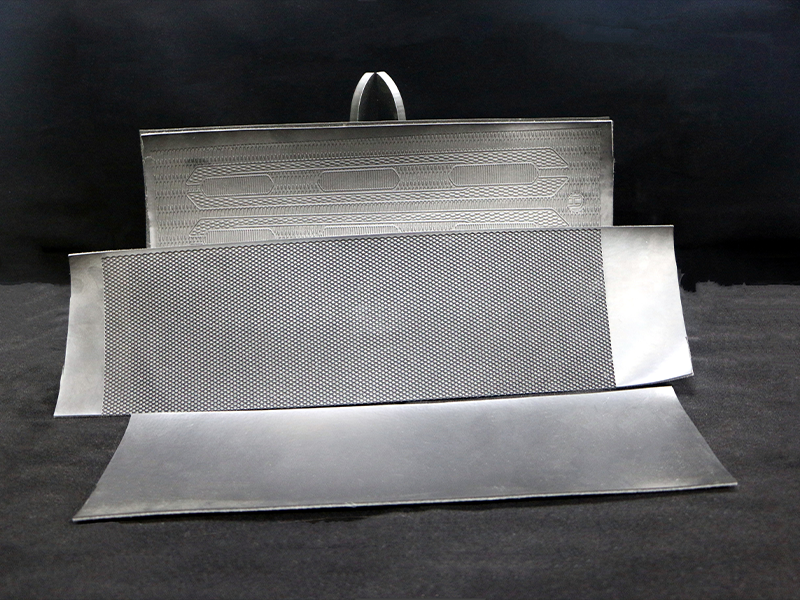

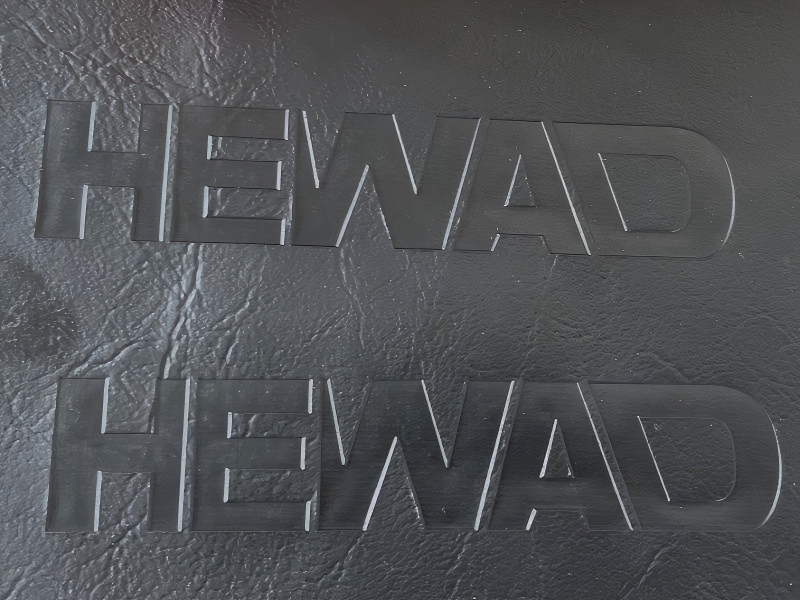

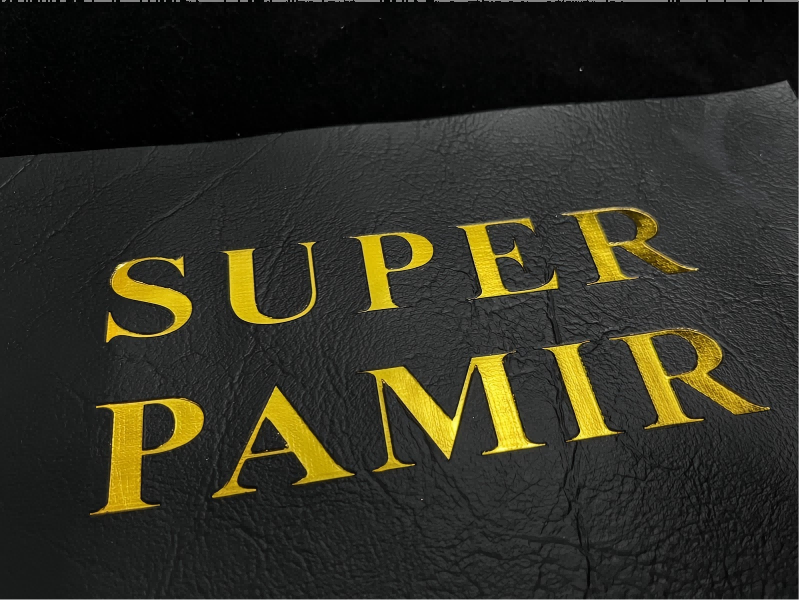

Under the pressure of the mold, the molten material forms a weld point or embossing effect between the upper and lower electrodes.
The machine is usually equipped with a spark protection device, which automatically protects the oscillator tube and rectifier when overcurrent or overload current is detected.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

The main uses of high-frequency machines are:

PVC, PU, TPU, EVA, PE, PET,  and any other soft and hard rubber materials, as well as special purpose processing or vacuum packaging sealing of leather or woolen fabrics, are widely used.


Scope of use:

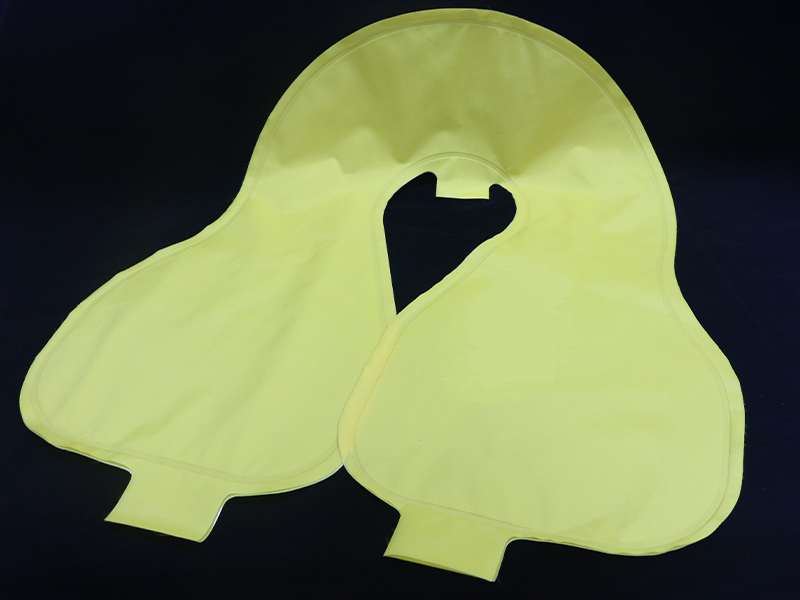

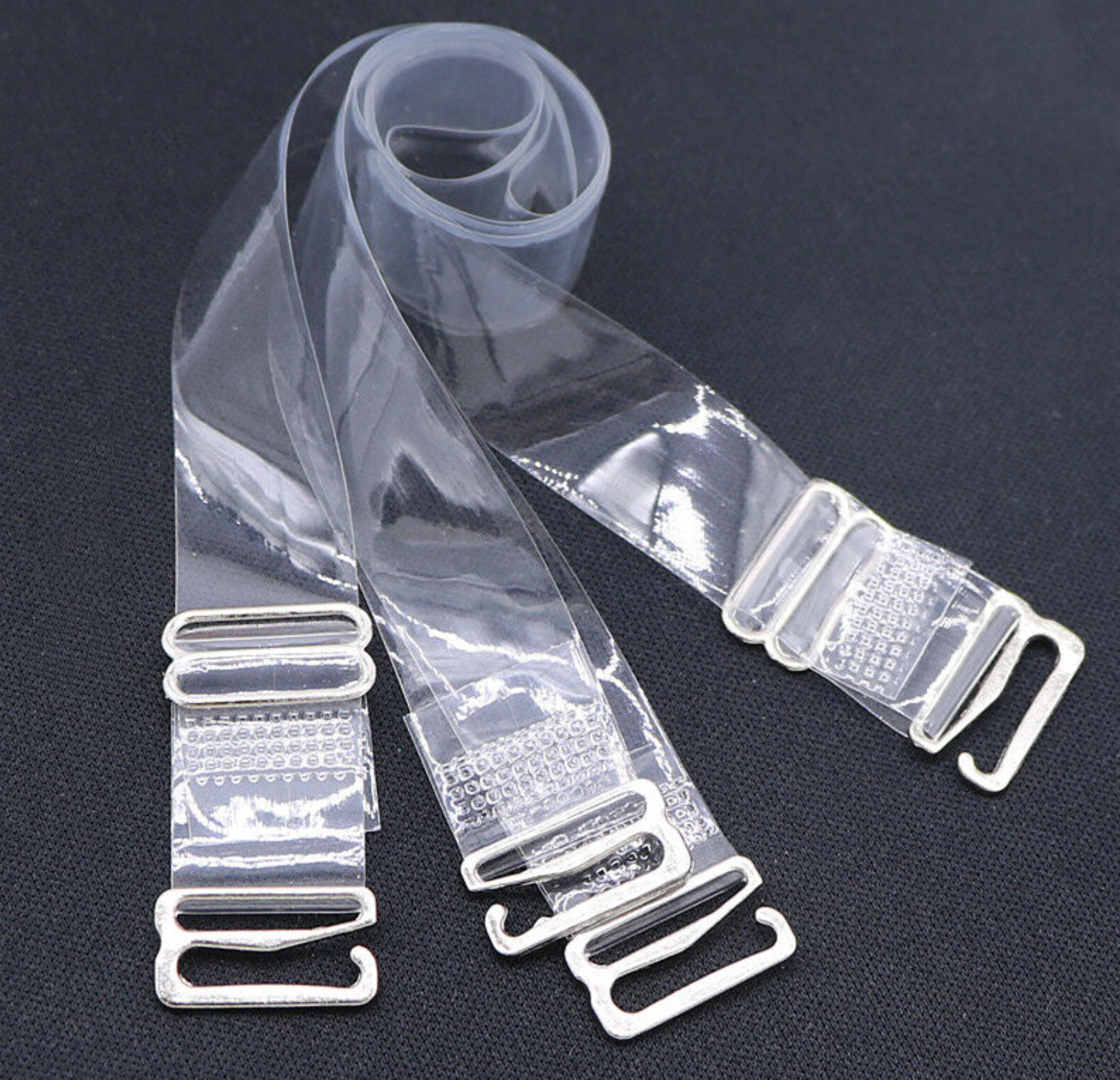

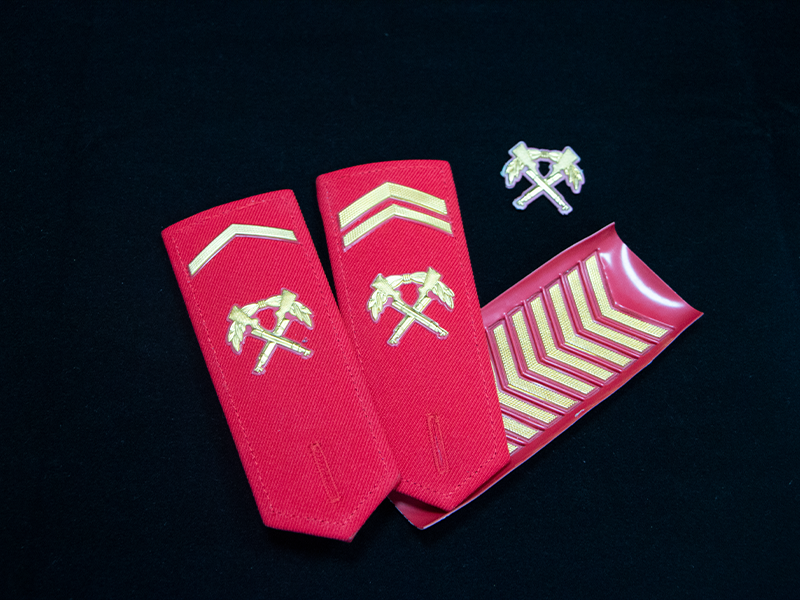

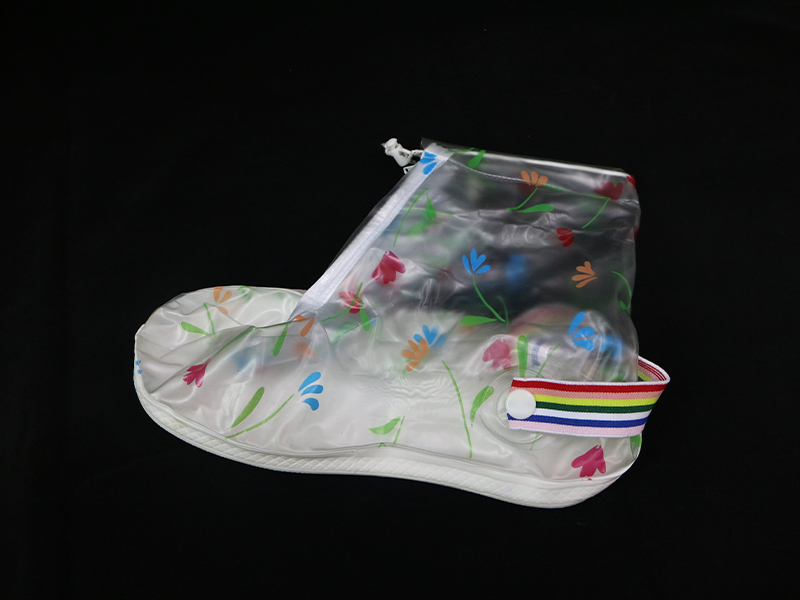

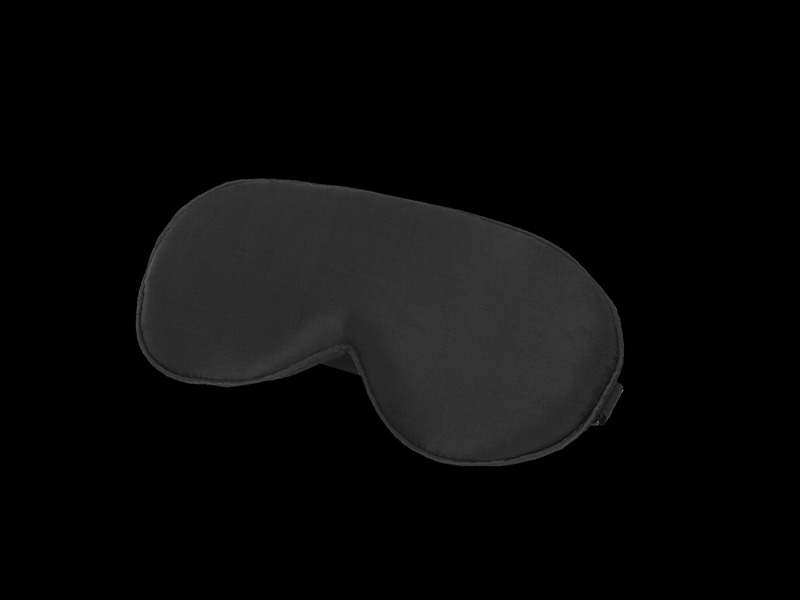

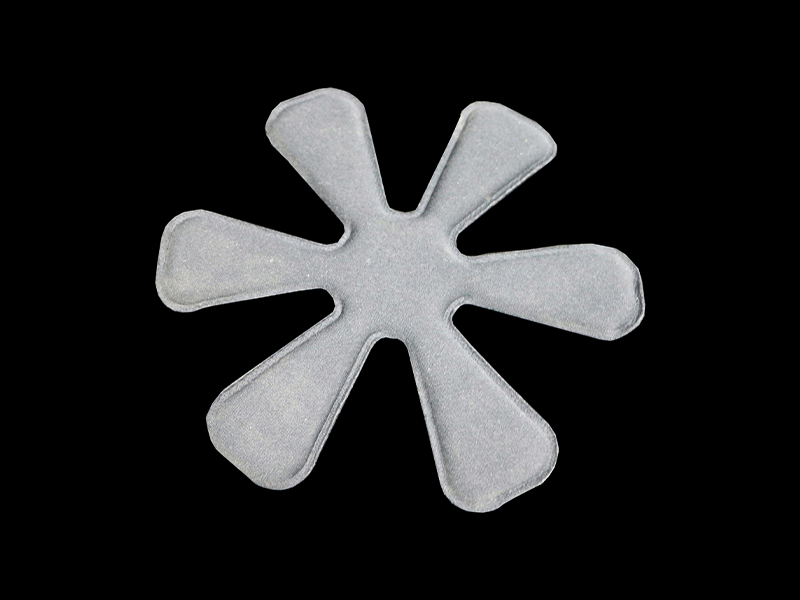

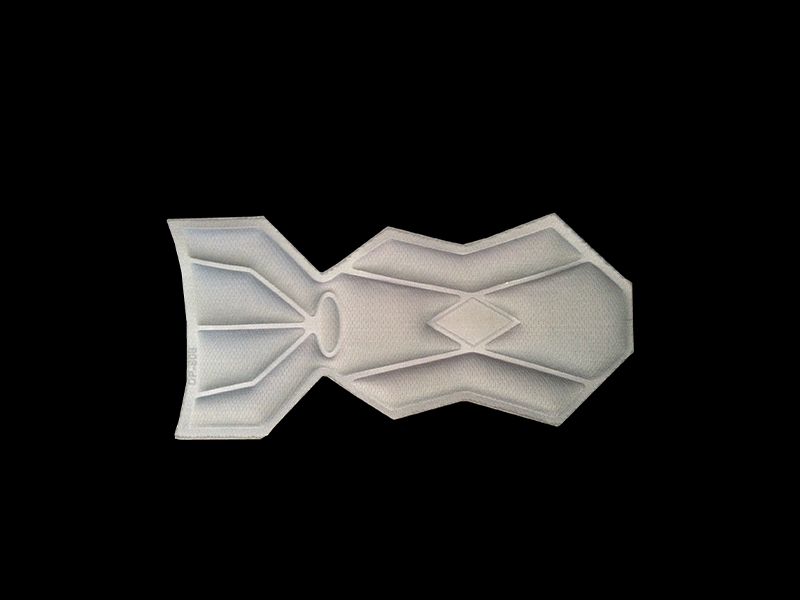

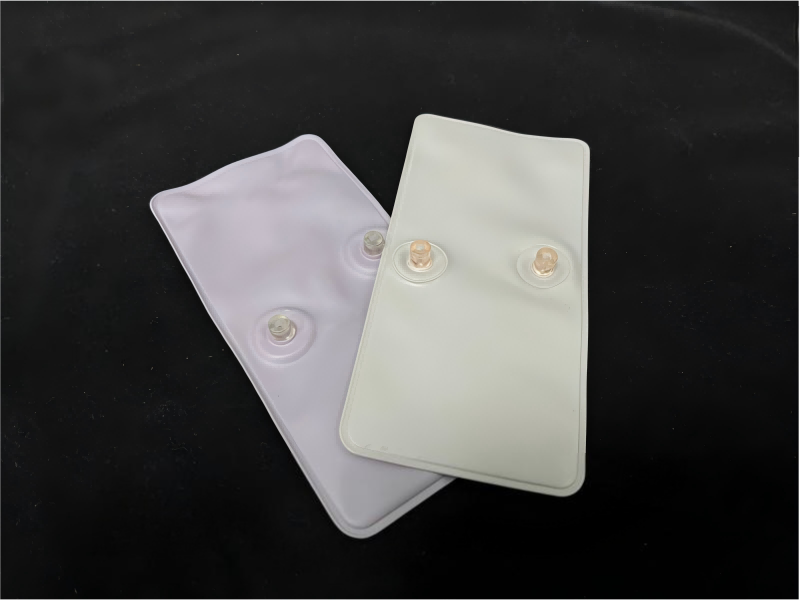

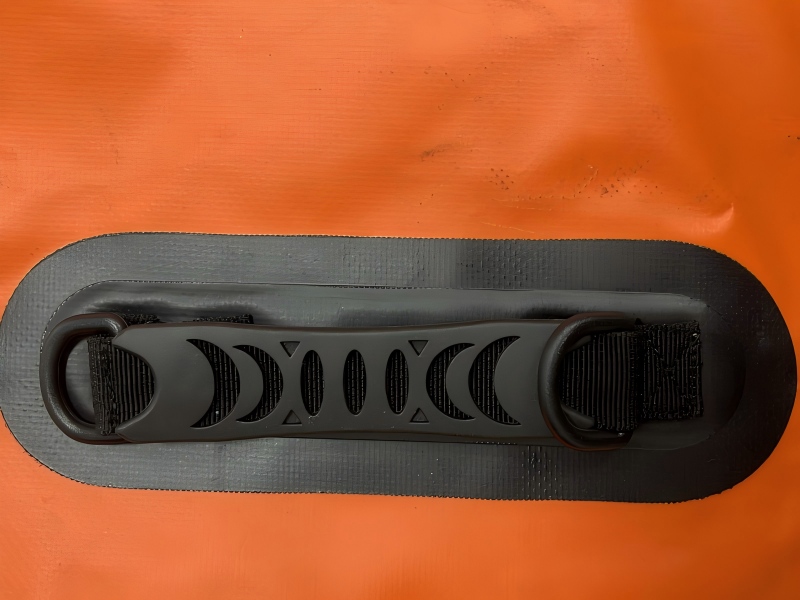

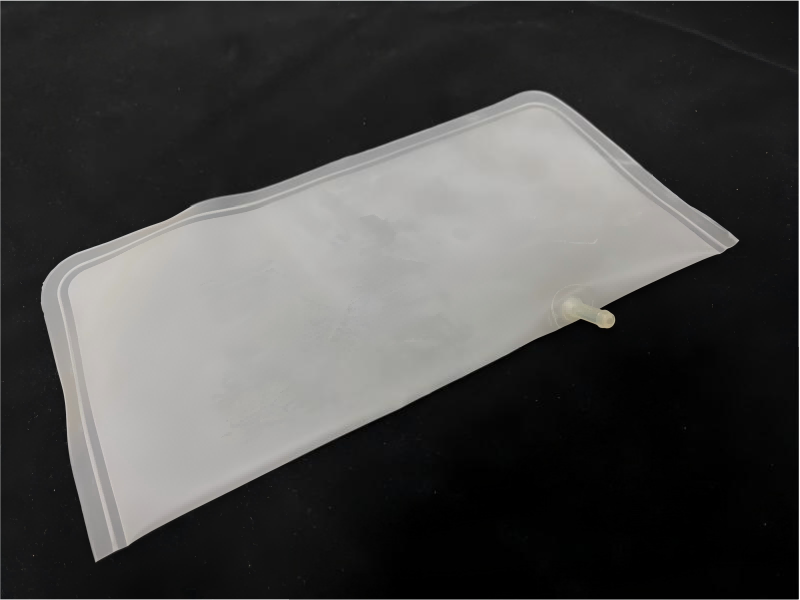

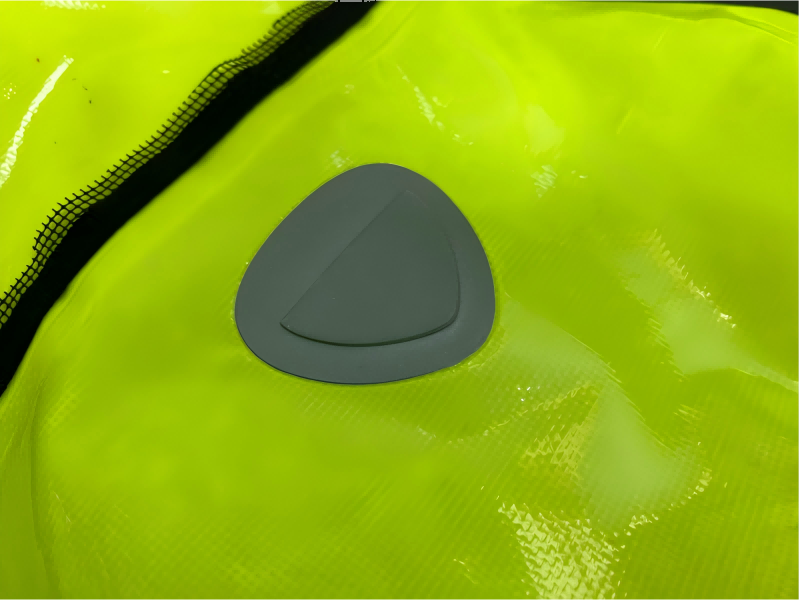

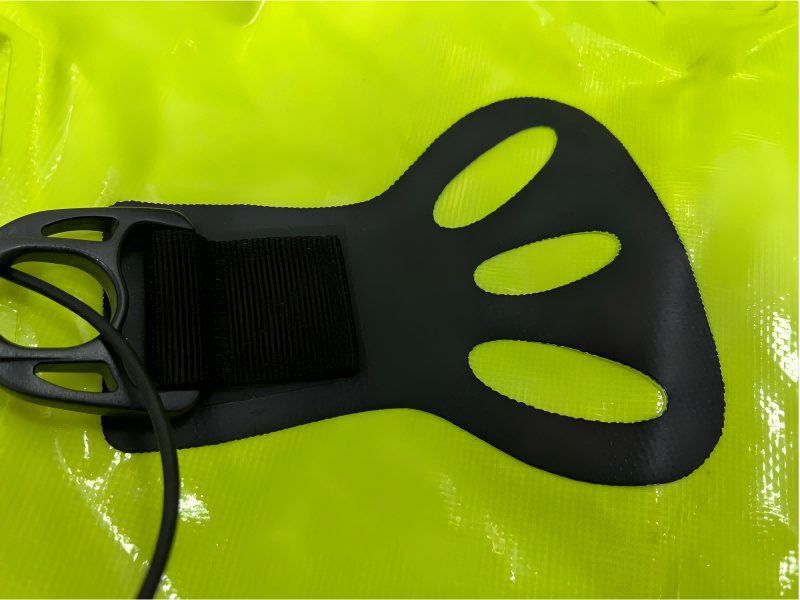

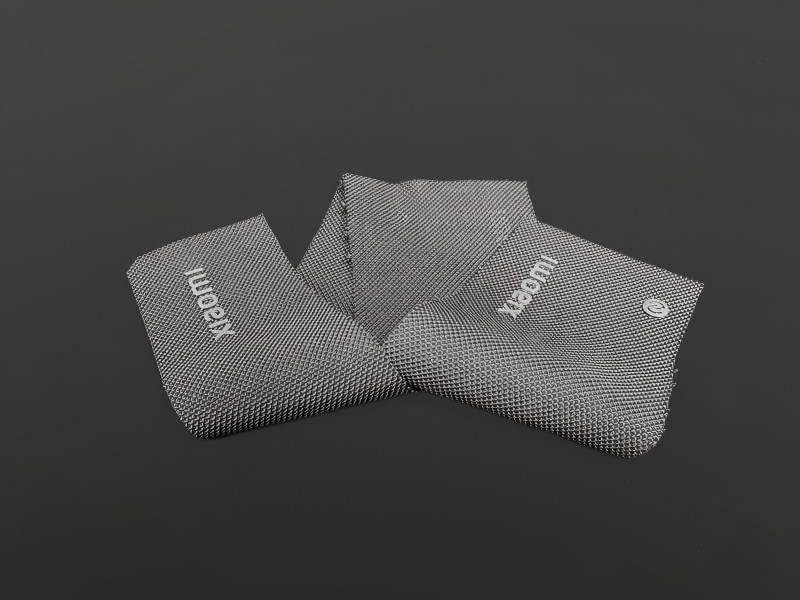

Such as embossed shoes, hats, clothing, craft accessories, inflatable toys, air cushion beds, car sunshades, foot cushions, cushions, car oil pots, and various automotive products, trademarks, bags, shower curtains, carpets, packaging bags, hot water bags, medical equipment, stationery, photo albums, albums, sports products, PVC folding boxes, eyeglass boxes, tents, motorcycle cushions, vacuum packaging and sealing of tools, electronics, and electrical appliances.


Double-head pneumatic high-frequency anti-radio interference device:

The high-frequency stabilizer and high-frequency magnetic field shielding system device minimize the high-frequency interference of the PVC plastic heat-sealing machine, effectively solving the impact of the high-frequency interference of the PVC plastic heat-sealing machine on other machines.

Double-head pneumatic high frequency and stable frequency:

Adopting the international industrial band 27.12MHZ, the output cycle rate is stable and complies with the international industrial band standard.

Double-head pneumatic type with strong high-frequency output and reliable performance:

Low-loss coaxial oscillator, coherent tuner, and high-frequency heat sealing machine have strong output, shorten welding time, and increase output.

Double-head pneumatic high-frequency high-sensitivity spark arrester:

NL-5557 spark arrester, detects excessive current in the machine.

Double-head pneumatic high-frequency safety performance:

When the machine is working or stationary, whether it encounters a sudden power outage or gas outage, or when it is powered on or ventilated, the machine is in a stationary state and maintains itsoriginal position without sudden rise or fall; greatly improving the safety of workers' operations.

Double-head pneumatic high-frequency heating device:

The stepless heating and temperature adjustment device can adjust the temperature according to the production needs of different products, making the machine more efficient.


ModelDual-5kw
Power Range 5KW
Input Power 8KVA
Suitable Welding Area100cm
Oscillation Tube 7T85RB
Standard Working Table350mm*700mm
Power Supply3P*380V*50Hz&3P*220V*60Hz
Working Frequency 27.12Mhz
RectiferSilicon Diode
Drive Move

Pneumatic

Arc Suppressor SuitableHigh Sensibility NL-5557
MaterialPVC or any fabric contents PVC
Cylinder Working Stroke150mm(customization offered)
Welding Time

0-30S adjustable

 (customization offered)
