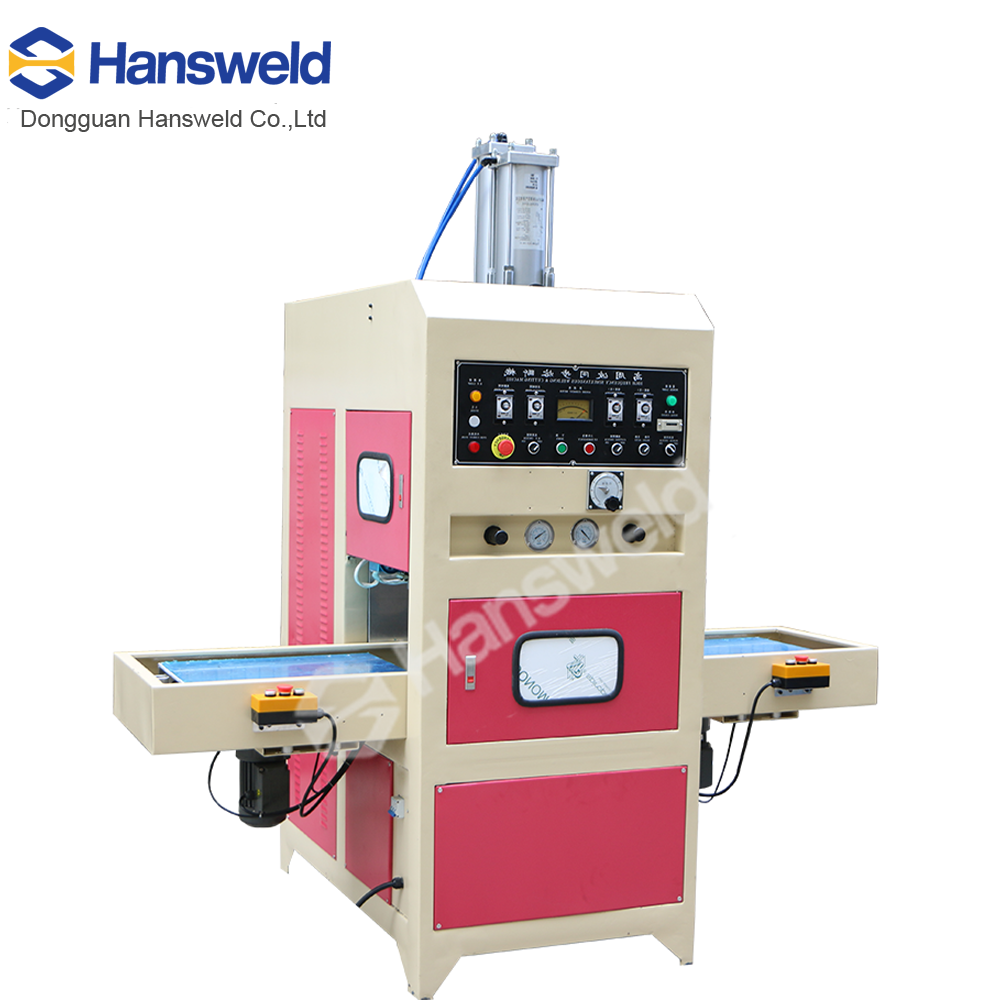

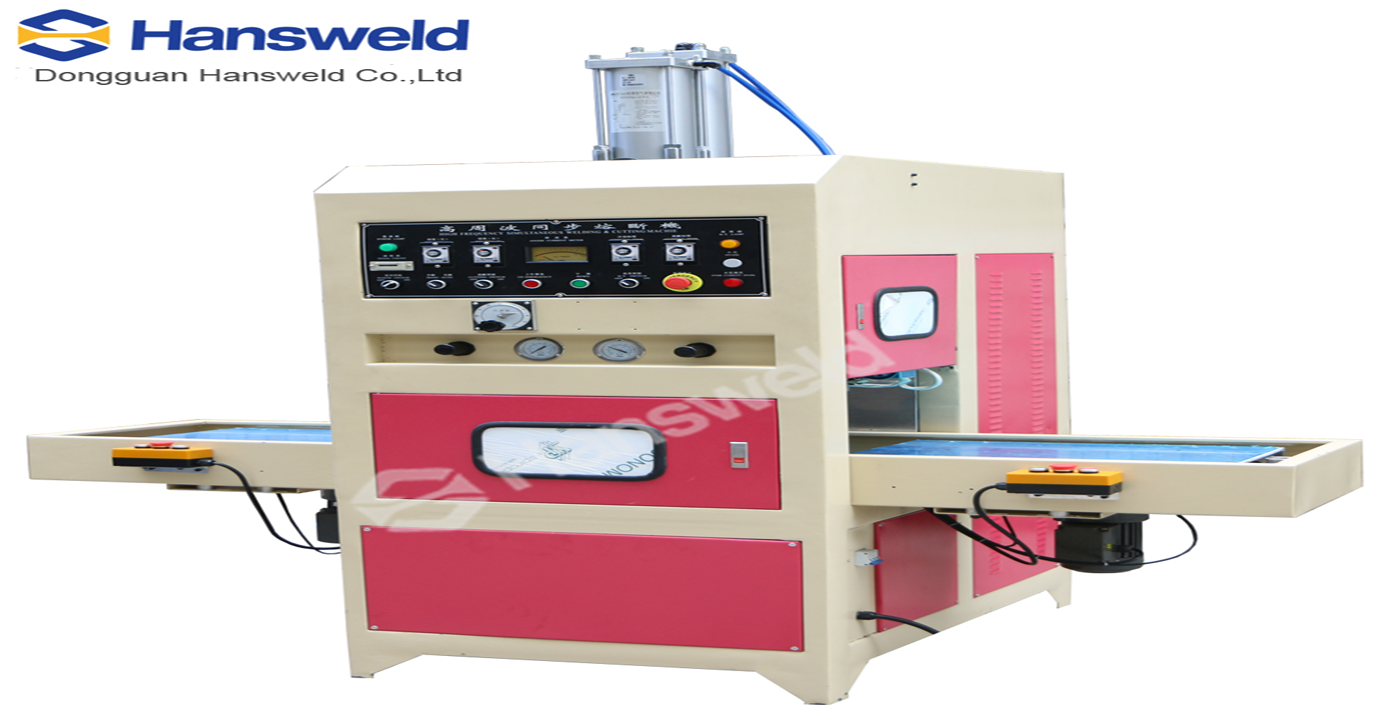

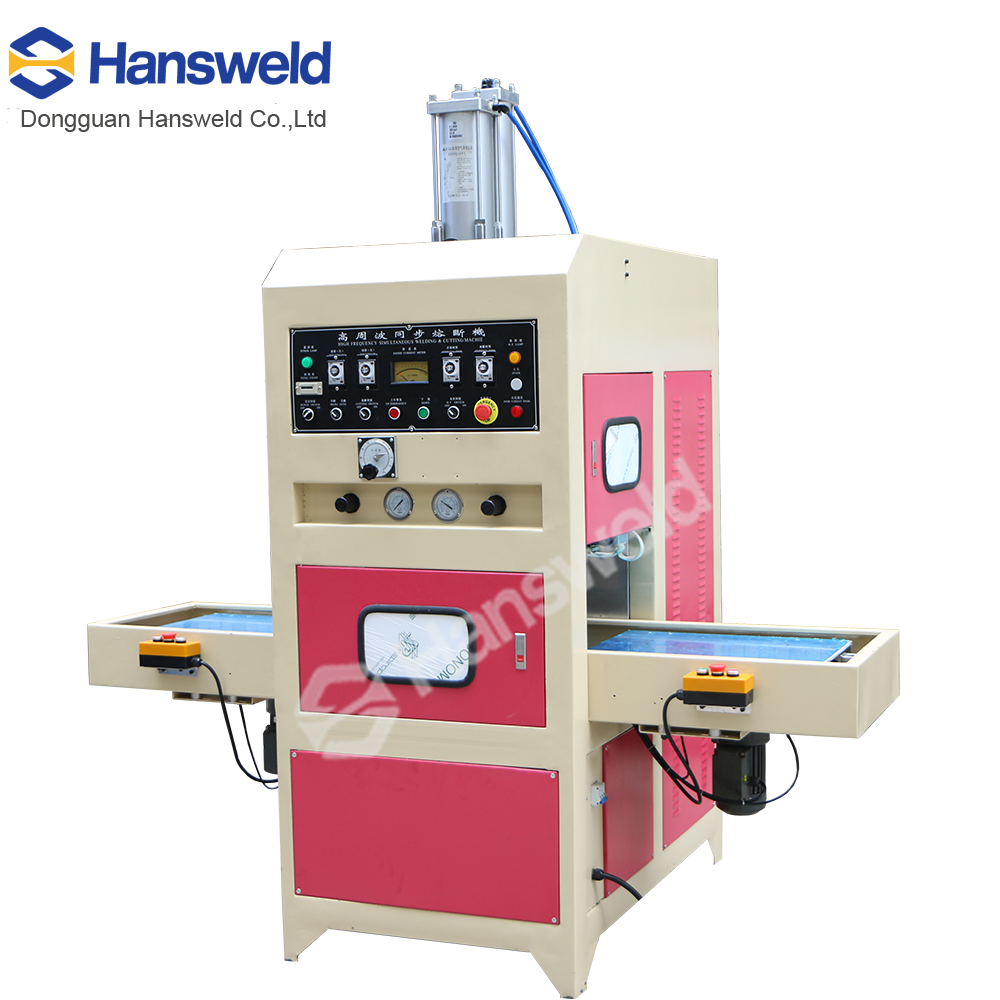

HSD-5KW-15T Pvc Blister Card Sealing Machine
HSD-5KW-15T Pvc Blister Card Sealing Machine
HSD-5KW-15T Pvc Blister Card Sealing Machine

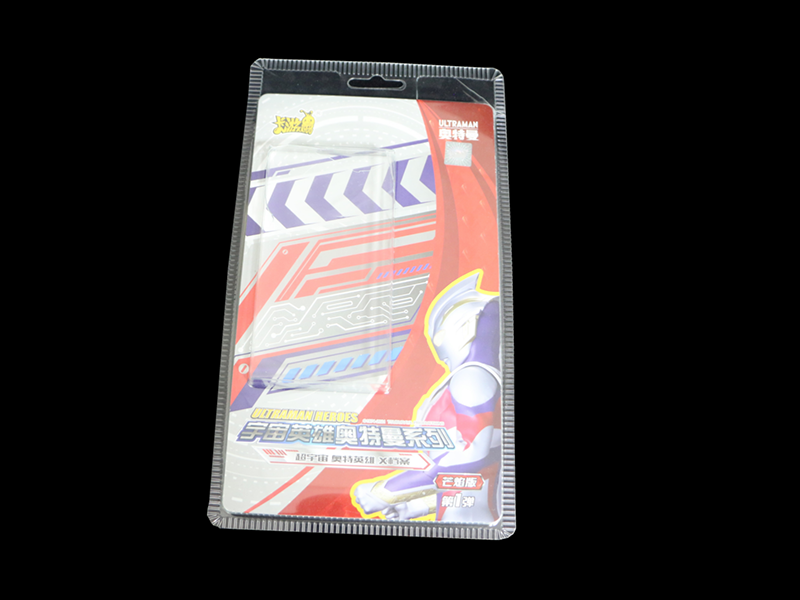

Blister packaging thermal sealing

(including PVC upper and lower bubble shell thermal sealing, paper card and bubble shell thermal sealing); Trademarks, stationery, plastic covers, blow toys, footwear products, raincoats, leather goods, portable soft bags

And other pure PVC, TPU, EVA or containing more than 10% PVC products thermal processing;All kinds of concave and convex shape of the pattern pattern, alphabet text pressing.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

This machine belongs to high frequency equipment, which is generated by electronic tube self - excited oscillator.


The processed object is pressed between the upper and lower electrodes with high frequency electromagnetic field


And the internal molecules are intensified and the high speed motion friction with each other generates heat and melts, so as to achieve the purpose of welding or embossing under the pressure of the mold




>High Q value Oscillator



>Stable and reliable in sealing power output


>High Sensitive Arc-Suppresso



>Prevent the mould from damage


>CE rated and High Quality components are adopted



MODEL:HSD-5KW-15T
POWER:5KW
POWER SUPPLY:220V/380V 3P 50/60HZ
INPUT POWER8KVA
OSCILLATION FREQUENCY27.12MHZ
MAXIMUM PRESSURE10TON
UPPER AND LOWER ELECTRODE SPACING200MM
UPPER MOULD SIZE350*450MM
MACHINE SIZE2200*1450*2300mm
MACHINE WEIGHT1000KG
