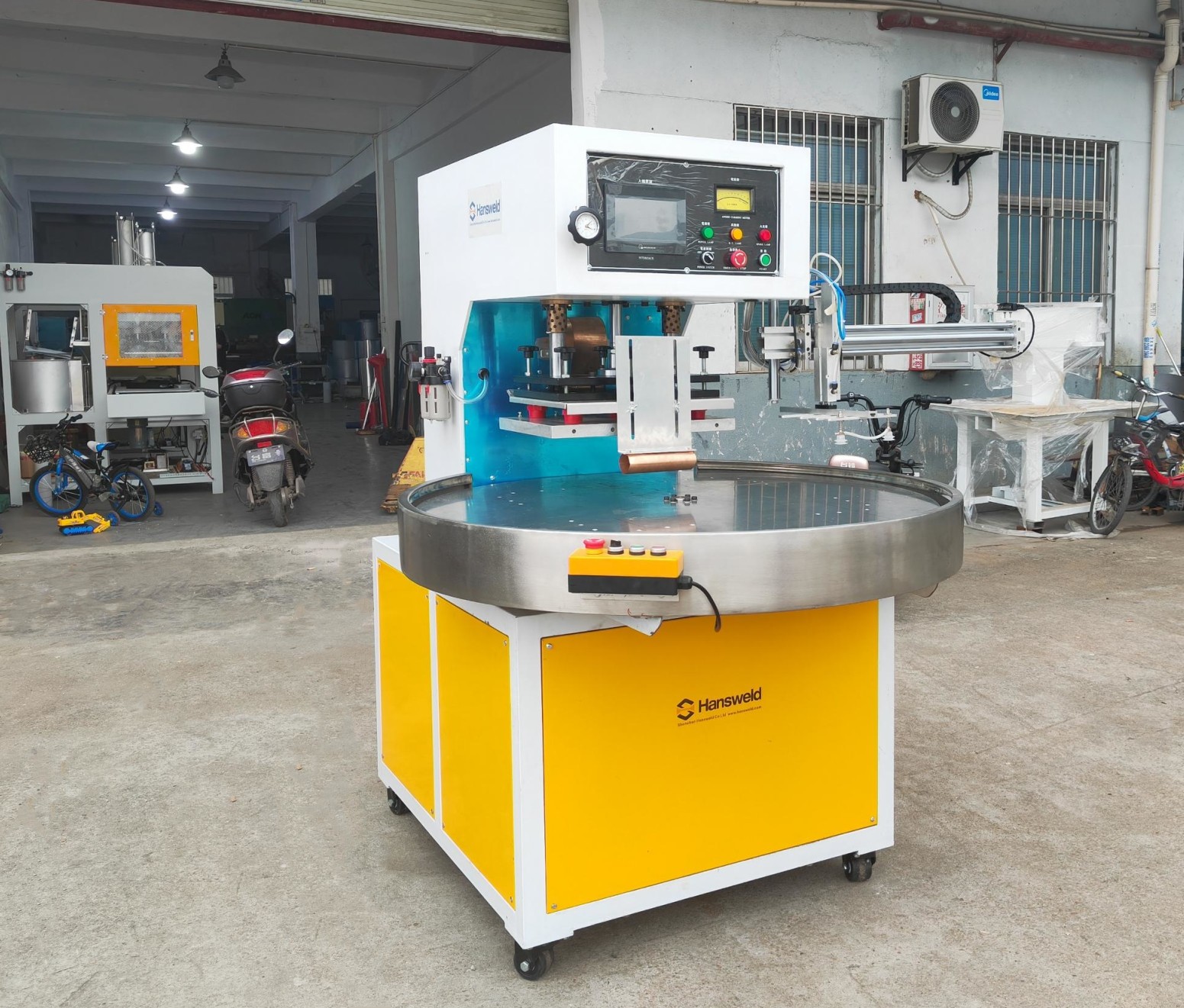

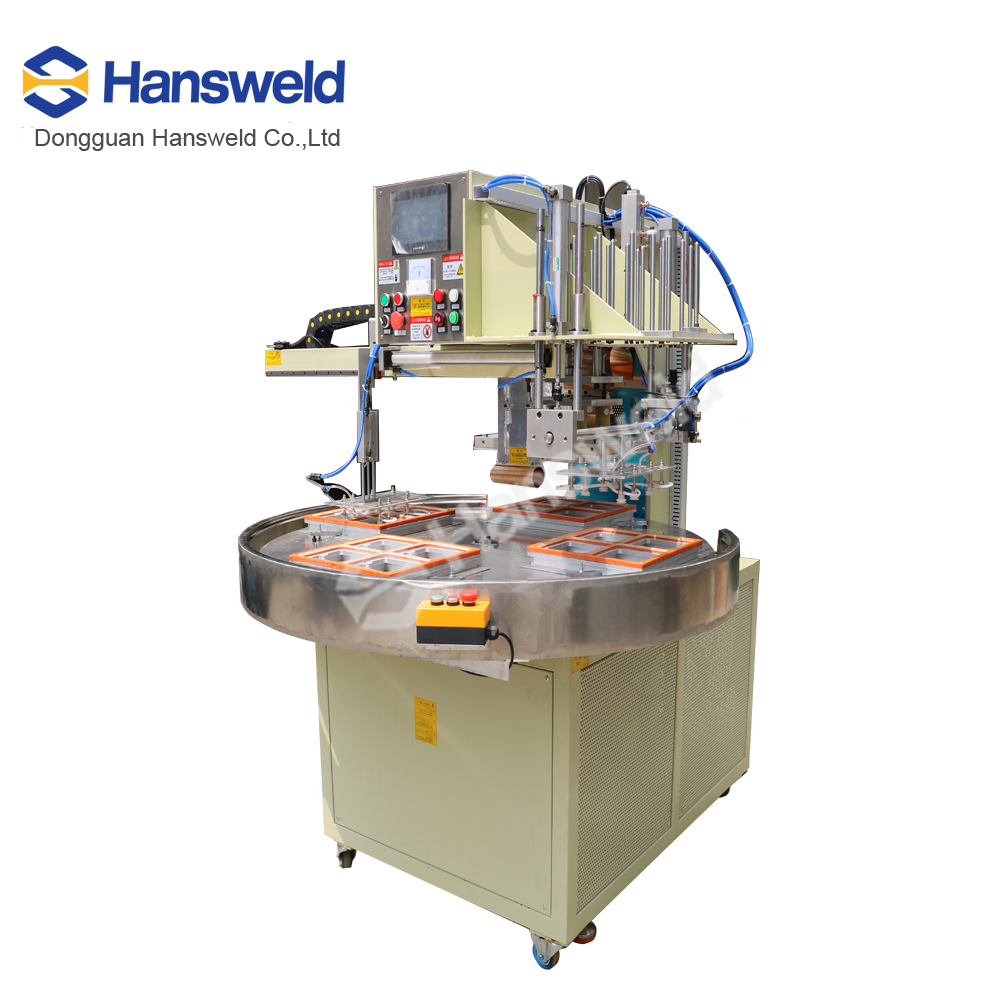

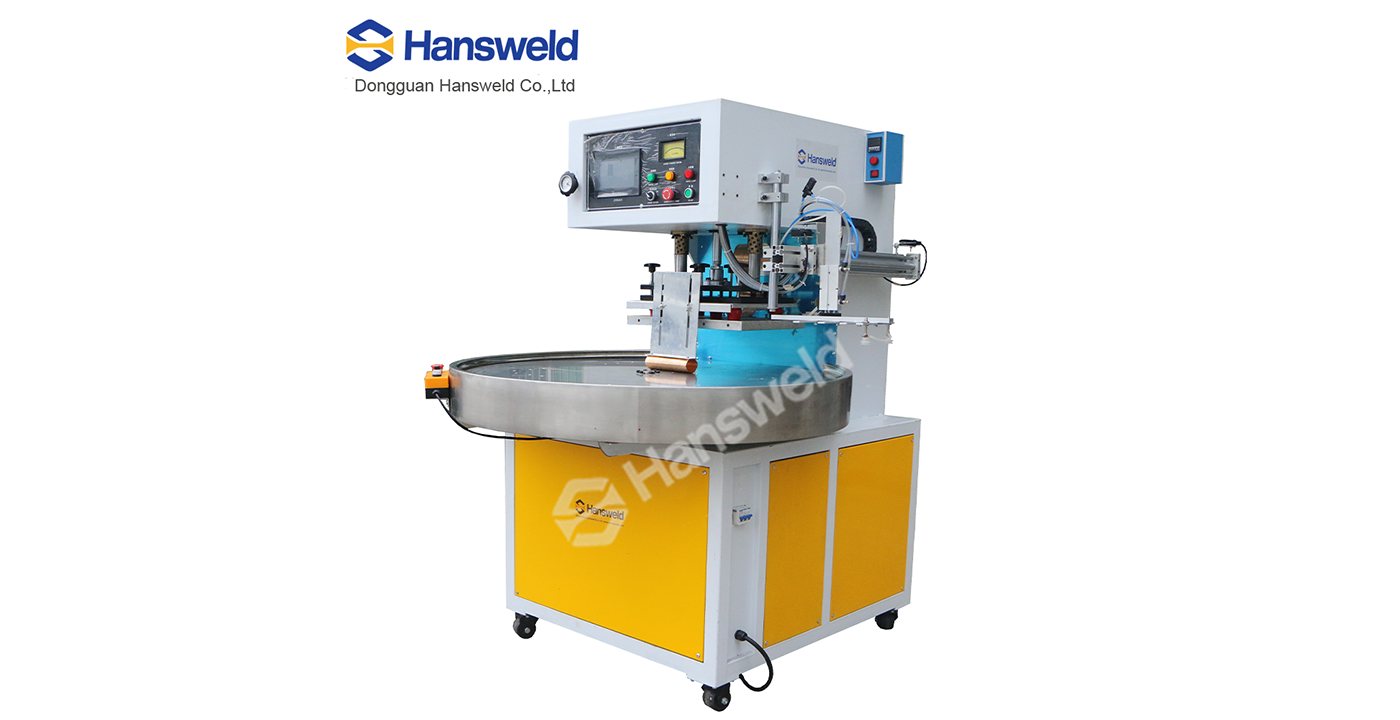

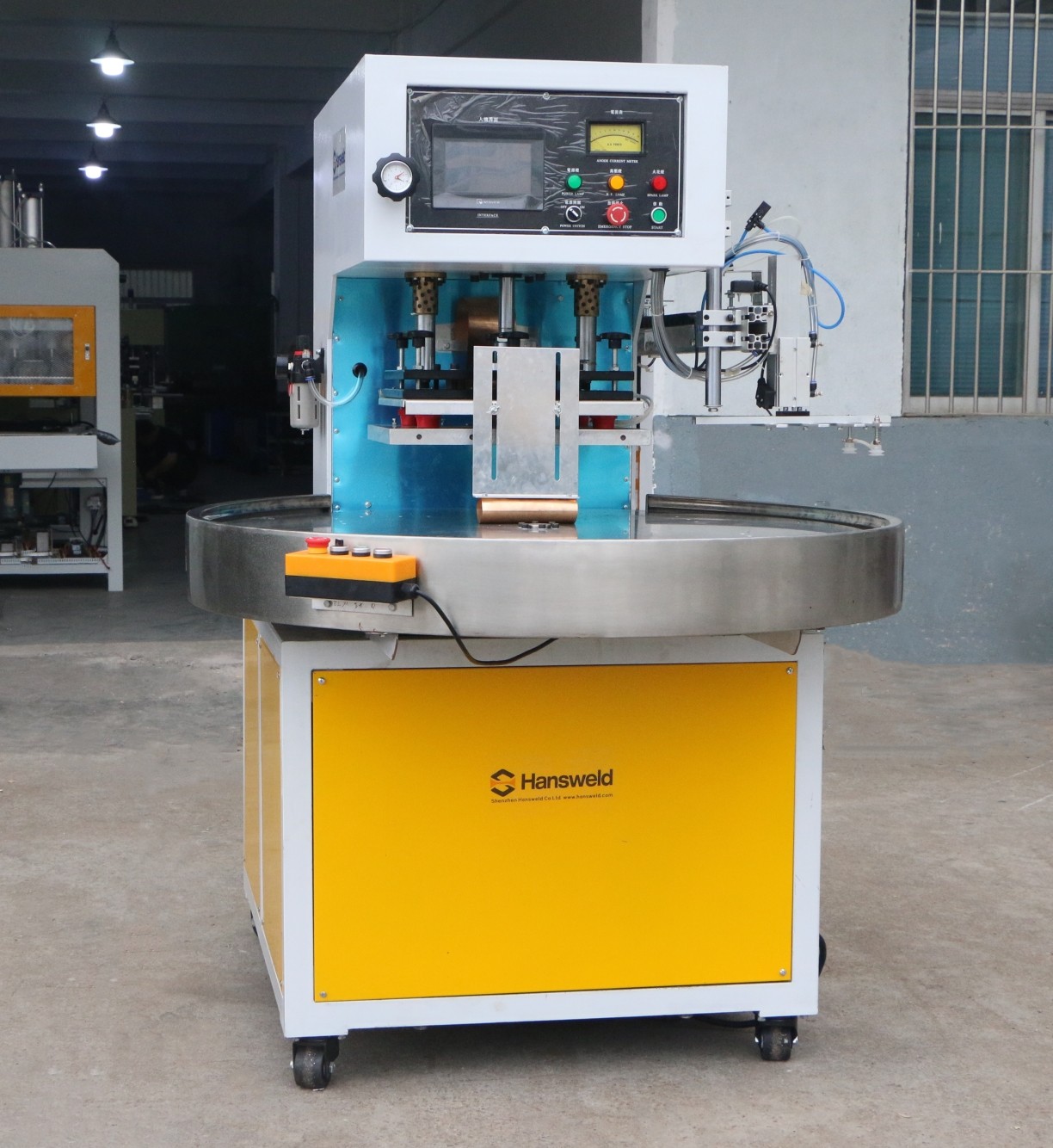

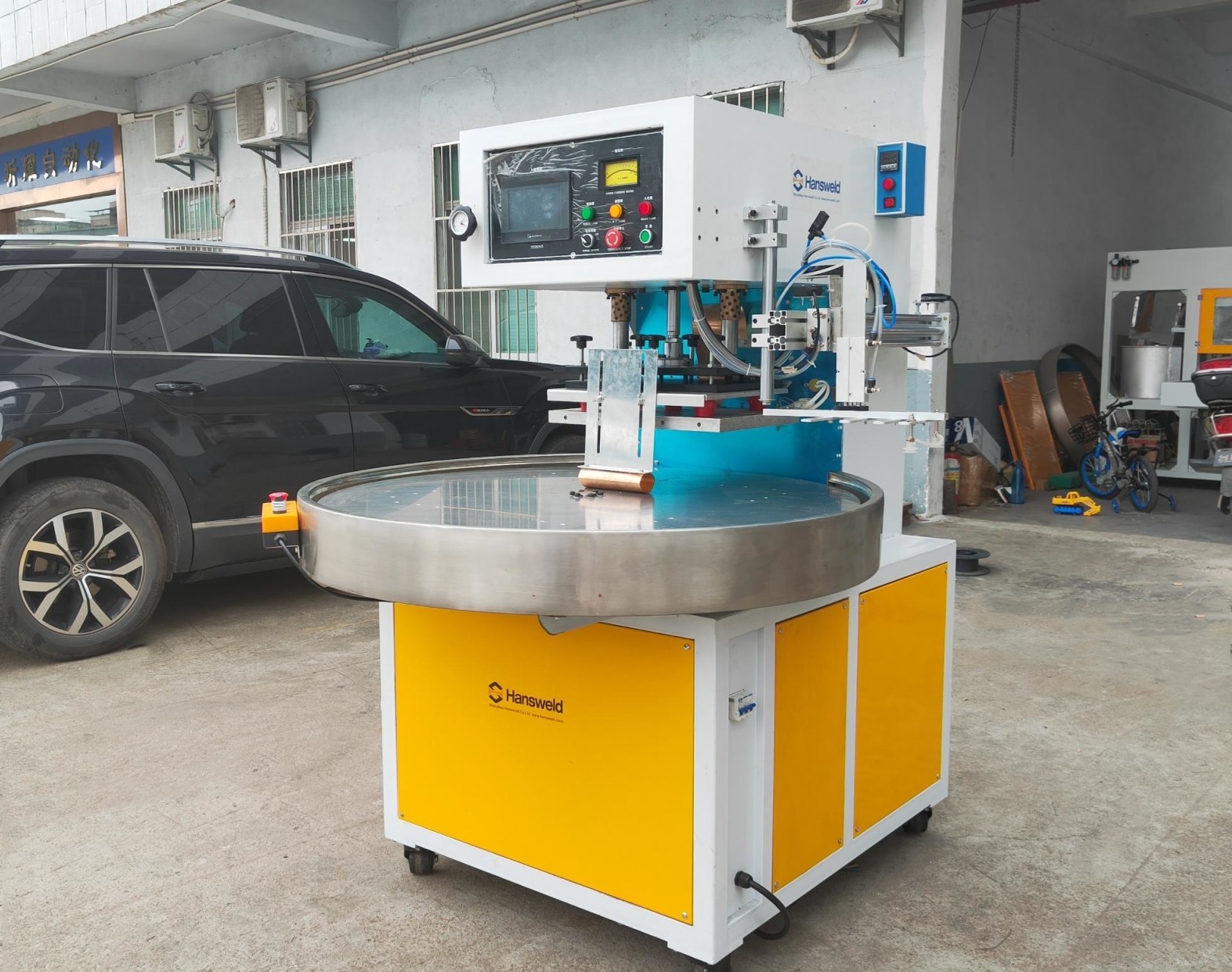

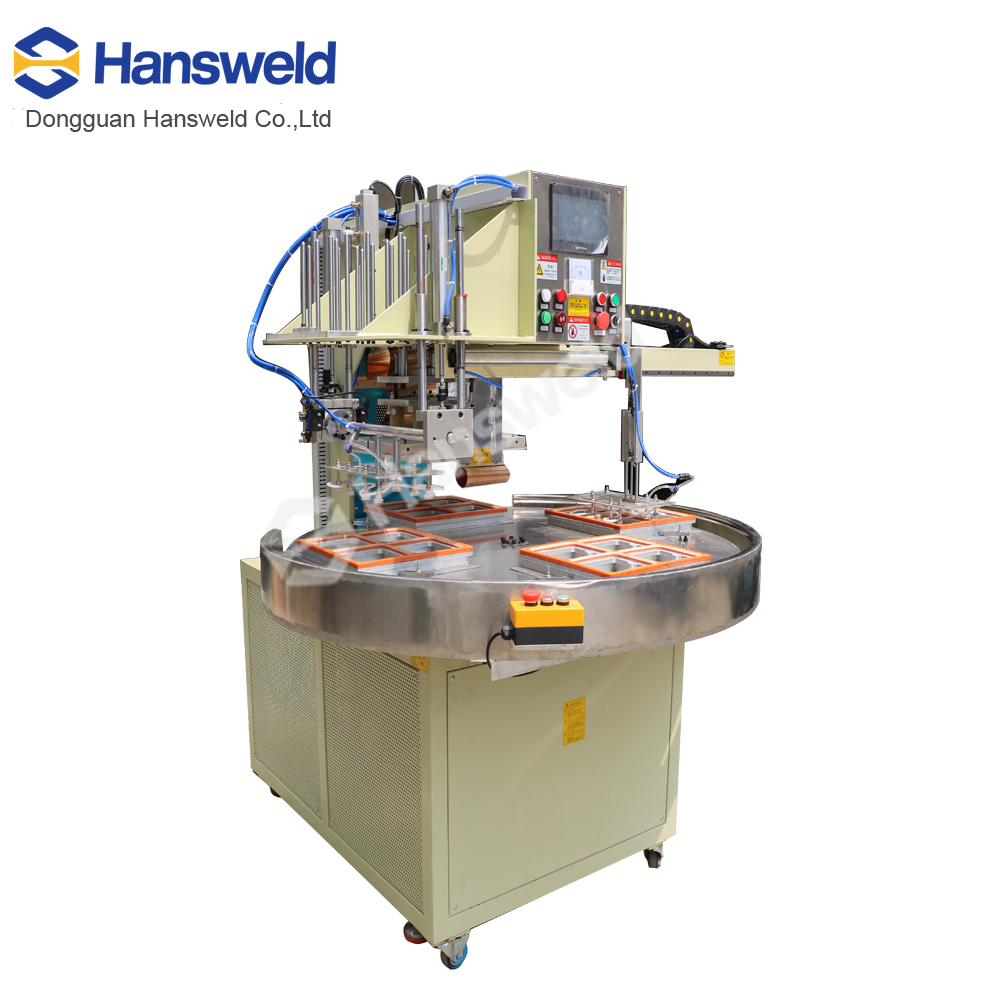

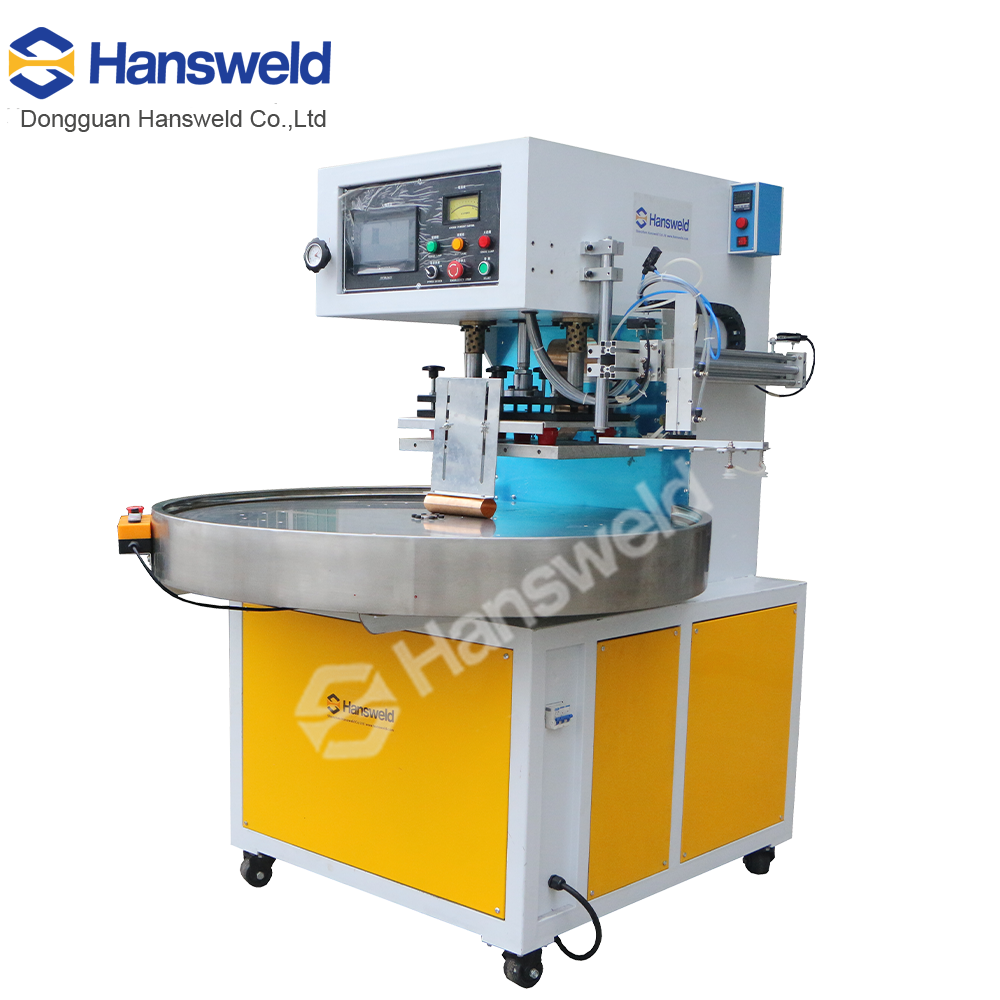

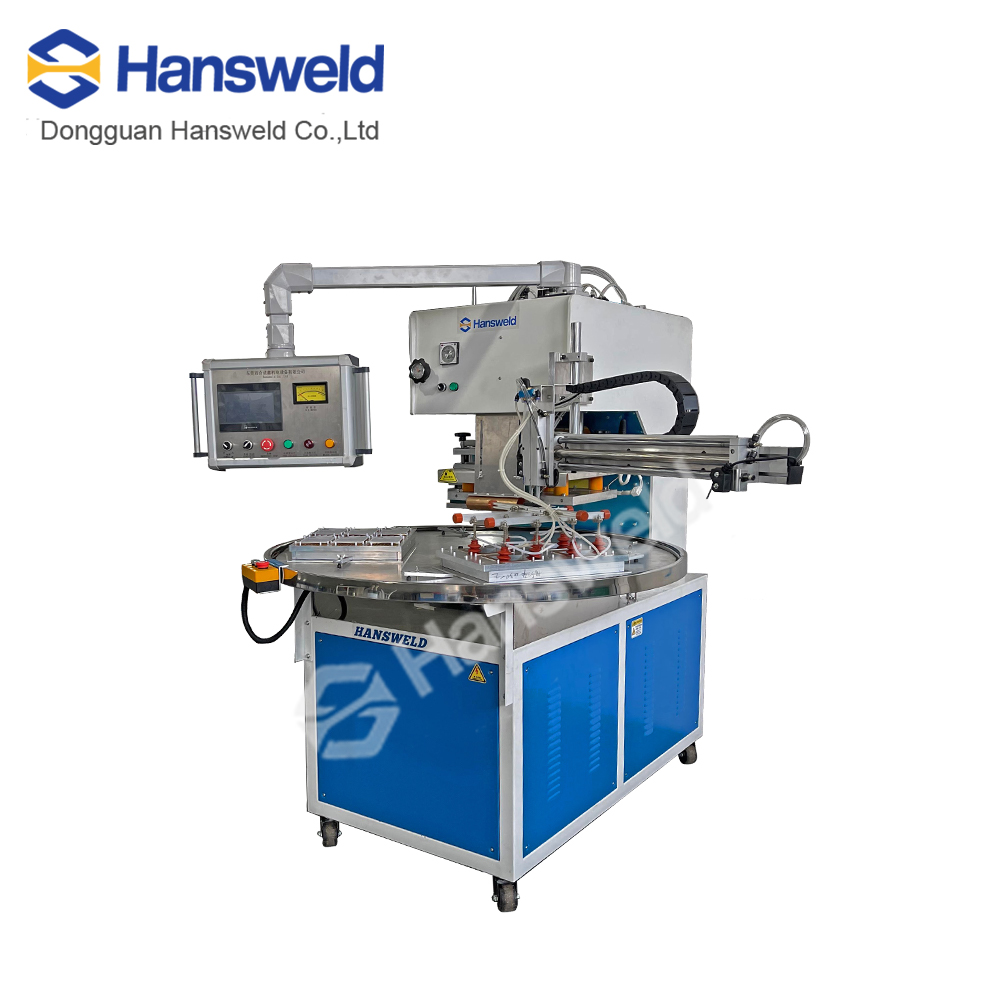

HSD-ET-5KW 8KW 10KW High-speed rotating plastic packaging Blister sealing machine
HSD-ET-5KW 8KW 10KW High-speed rotating plastic packaging Blister sealing machine
HSD-ET-5KW 8KW 10KW High-speed rotating plastic packaging Blister sealing machine
Blister packaging thermal sealing

(including PVC upper and lower bubble shell thermal sealing, paper card and bubble shell thermal sealing); Trademarks, stationery, plastic covers, blow toys, footwear products, raincoats, leather goods, portable soft bags

And other pure PVC, TPU, EVA or containing more than 10% PVC products thermal processing;All kinds of concave and convex shape of the pattern pattern, alphabet text pressing.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

This machine can shape various plastic sheets into different shapes of suction caps



Widely used in:


Toyshardwareelectronicsfood and other industries, for small and medium-sized blister molding products of choice.



Simple design                   >Fine craftsmanship


>Stable performance         >Machine styles are optional


>Automatic die loading     >Heating temperature evenly heated


Easy operation                  Improve work efficiency






ModelHSD-ET-8KW
Power8KW
Voltage3P*380V*50Hz
Input power15KVA
Frequency27.12Mhz
RectifierSilicon diode
Upper platen size350*500mm
Bottom mold size350*500mm
Oscillating tube7T69RB
Maximum pressure800Kg
Disc size1200mm
Temperature range30-200°C adjustable
Welding time0-10S adjustable
