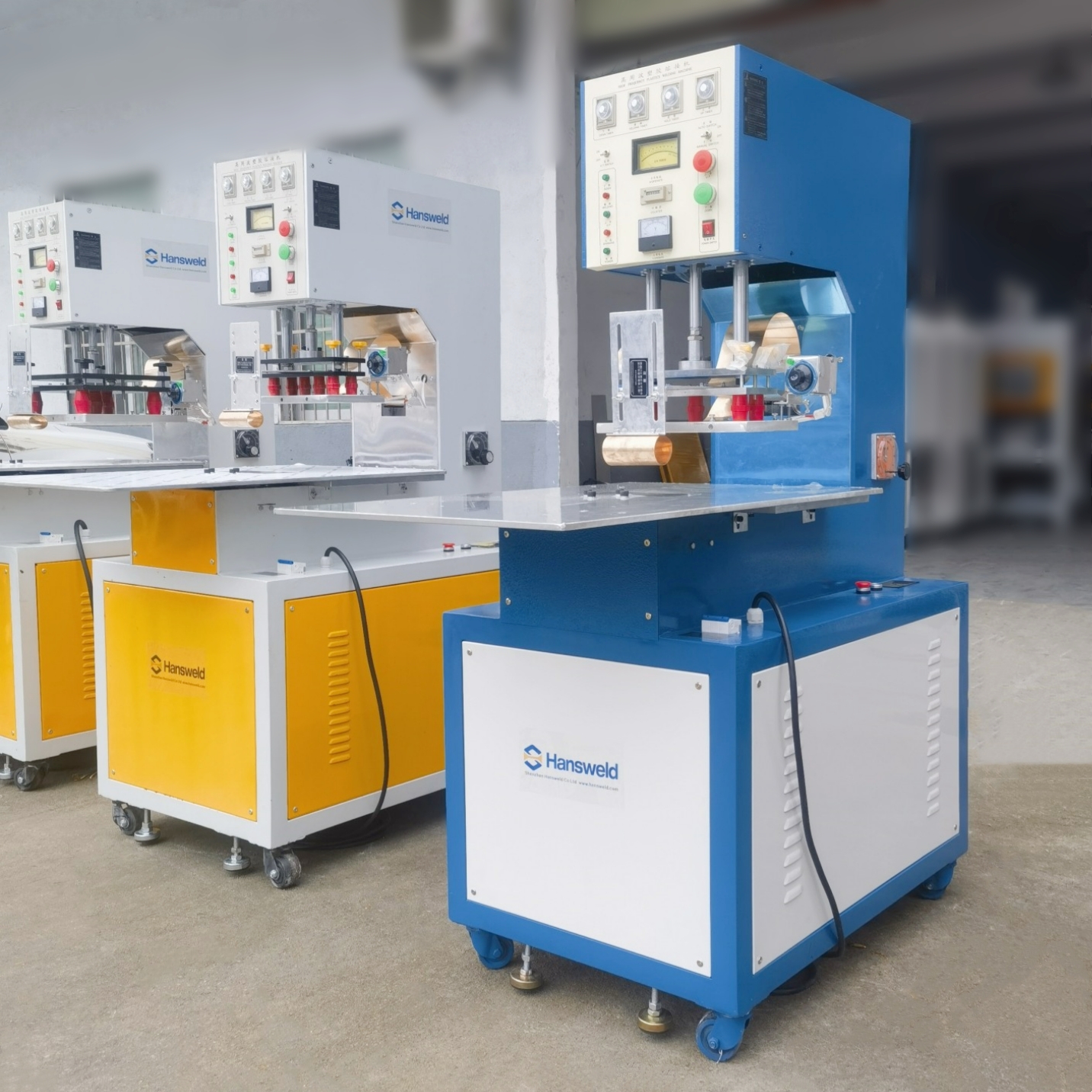

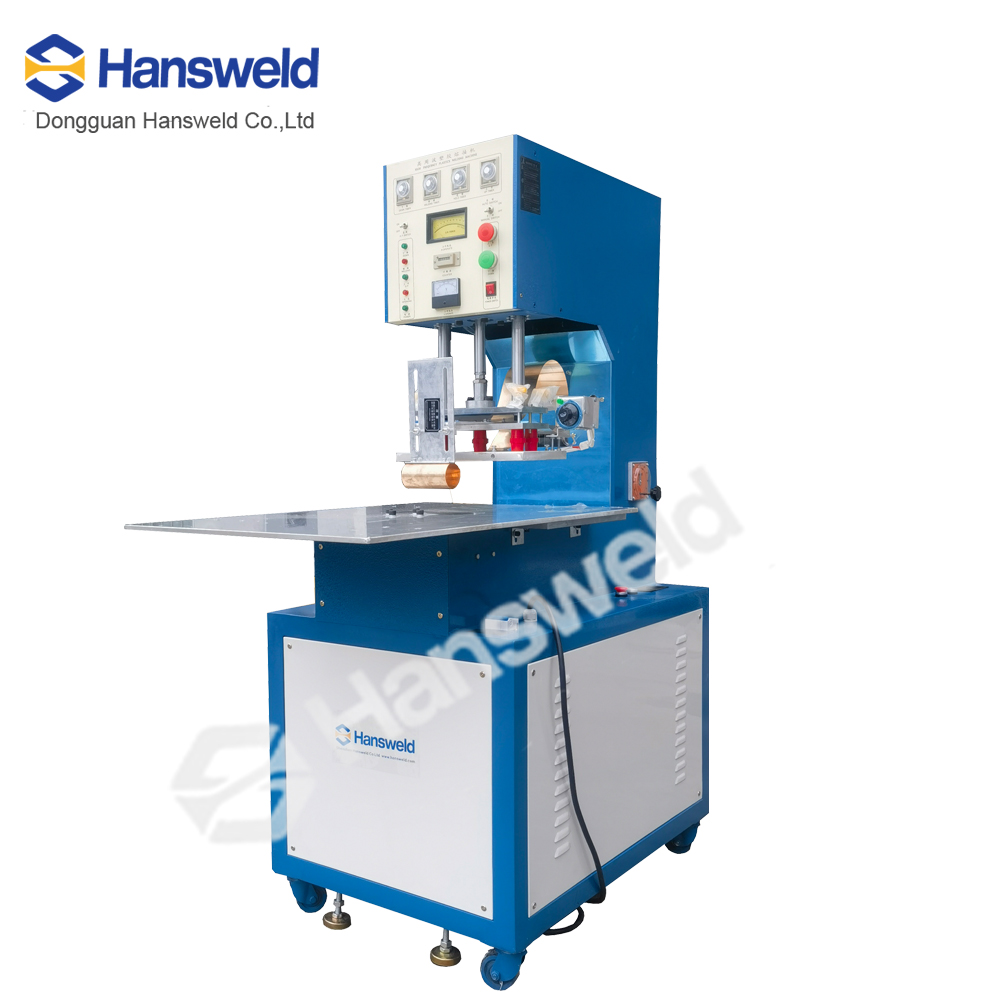

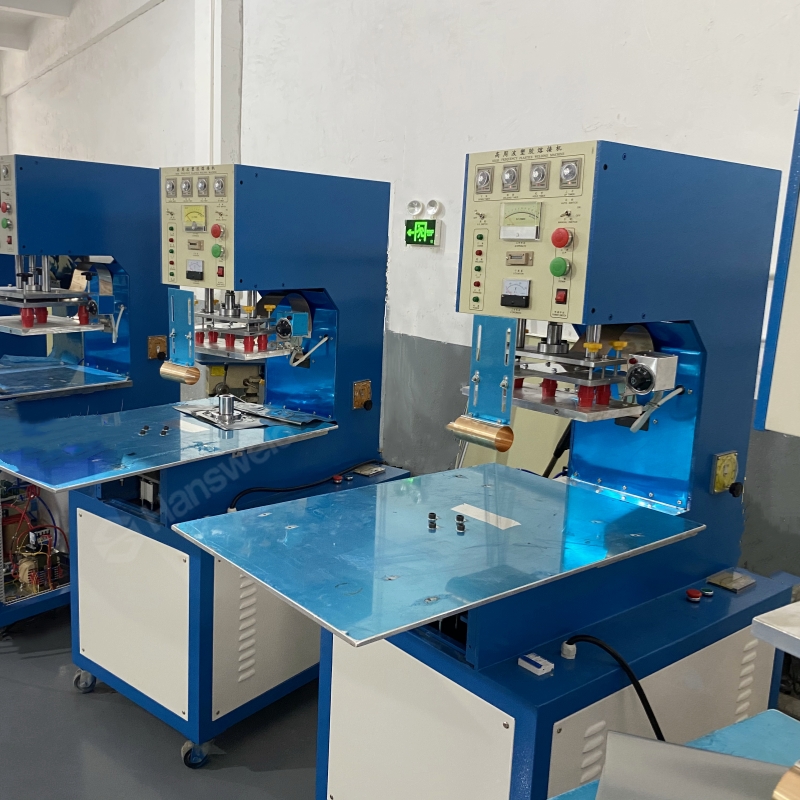

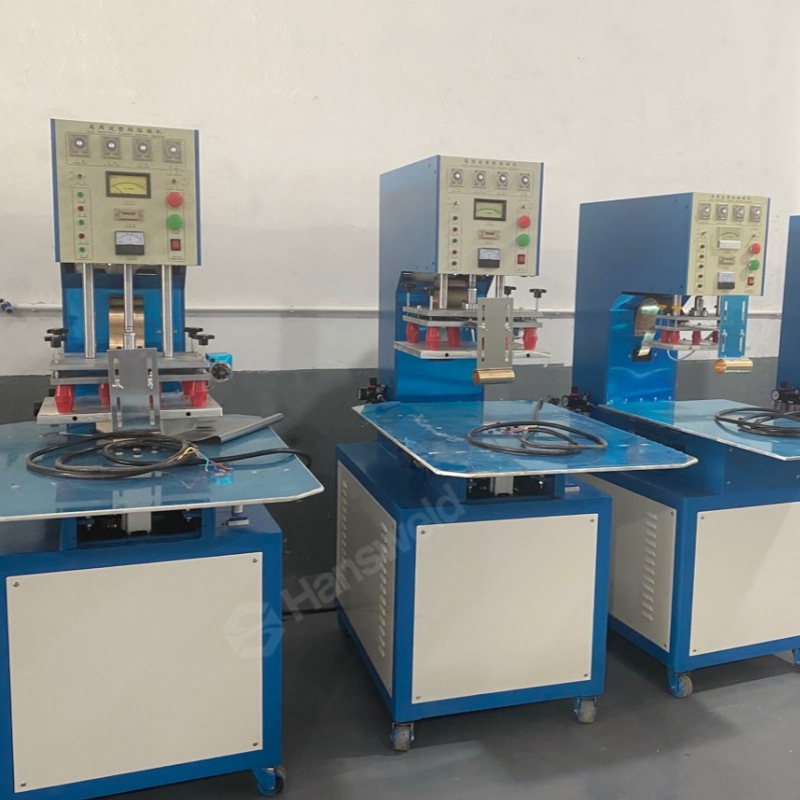

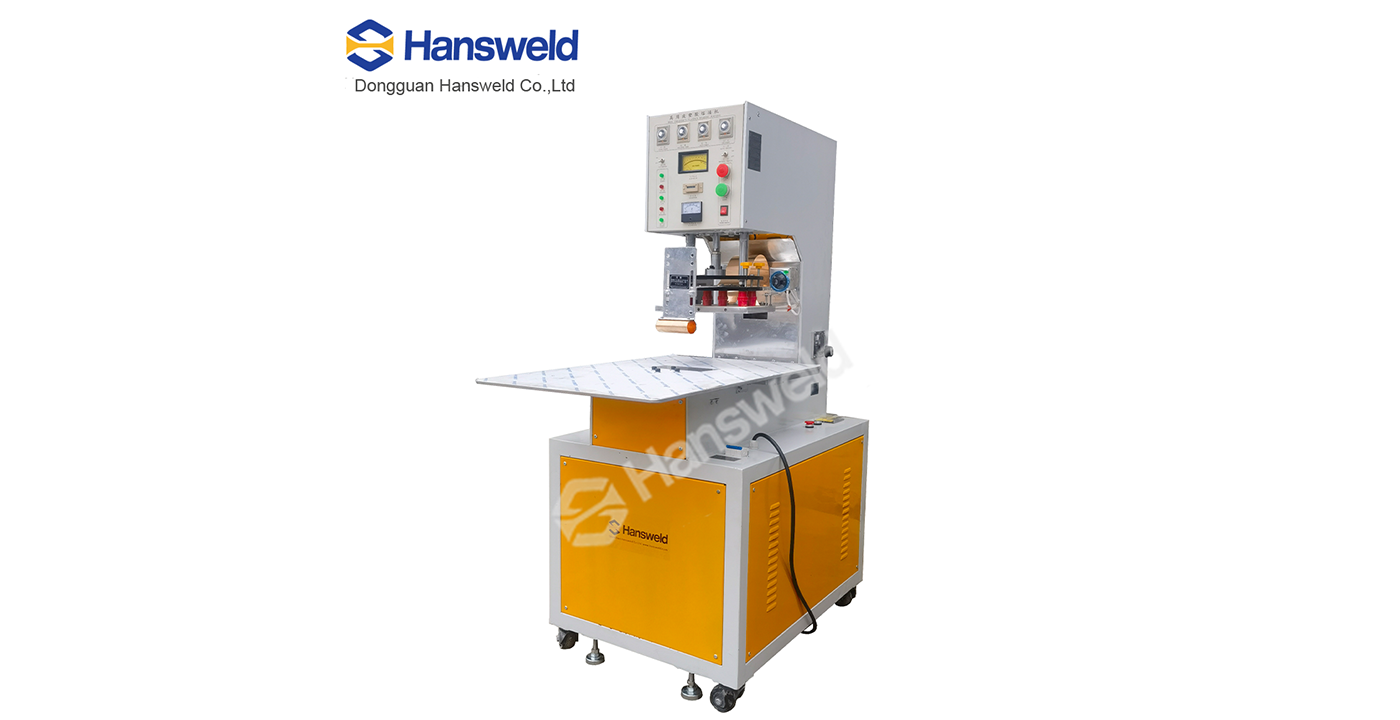

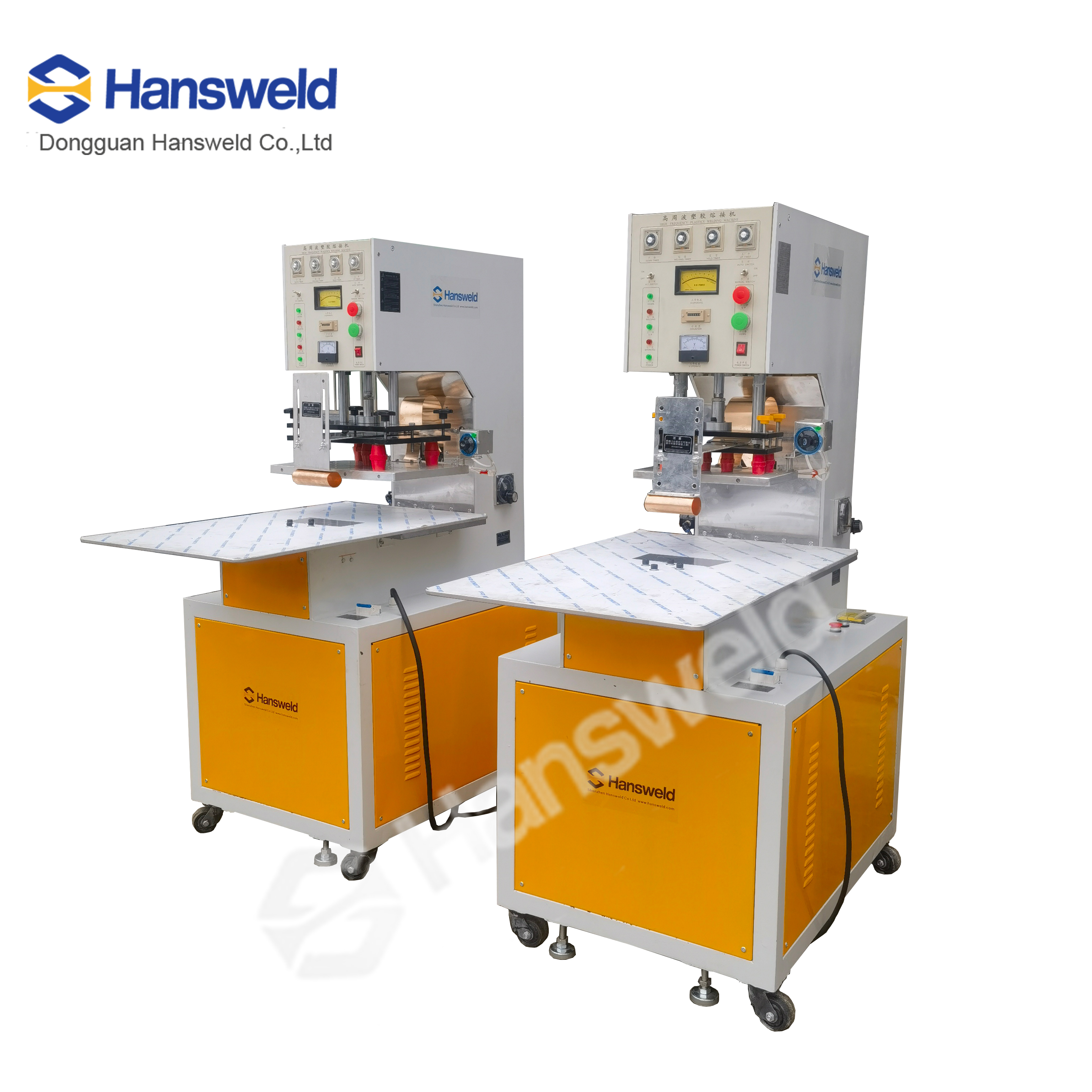

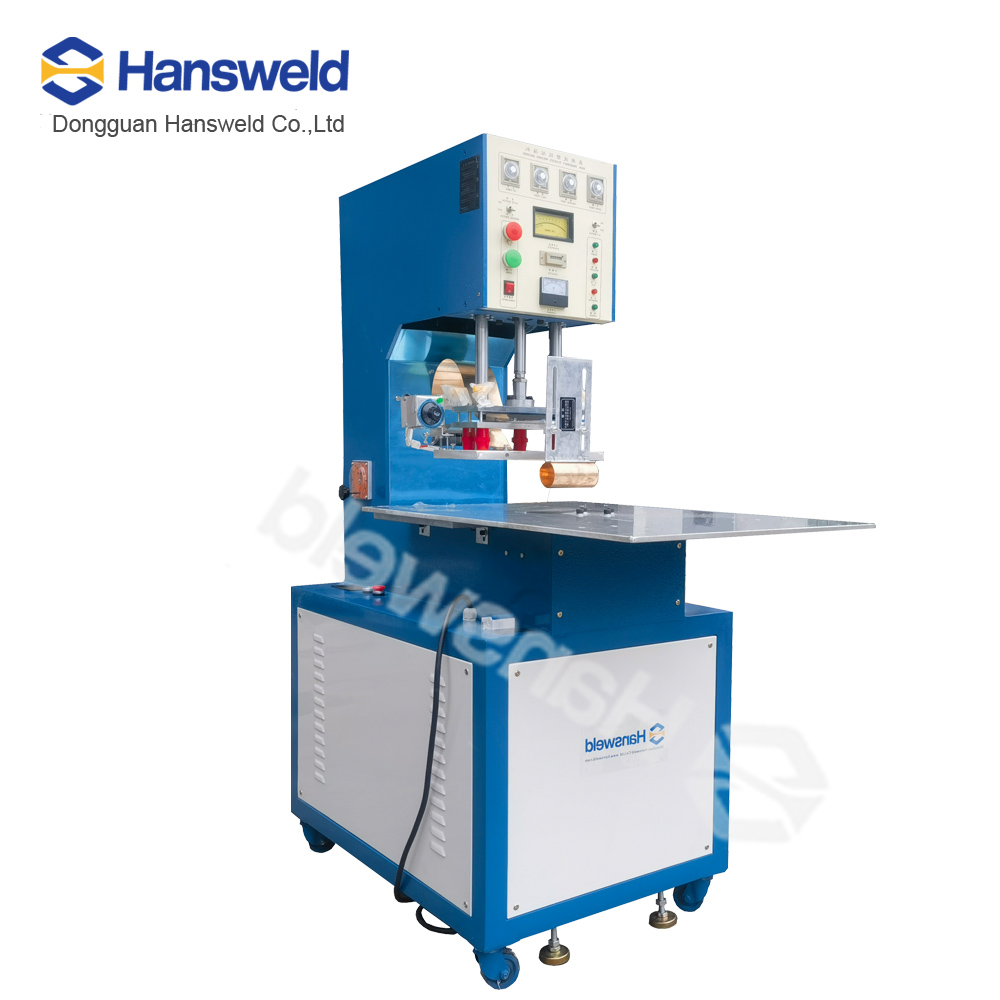

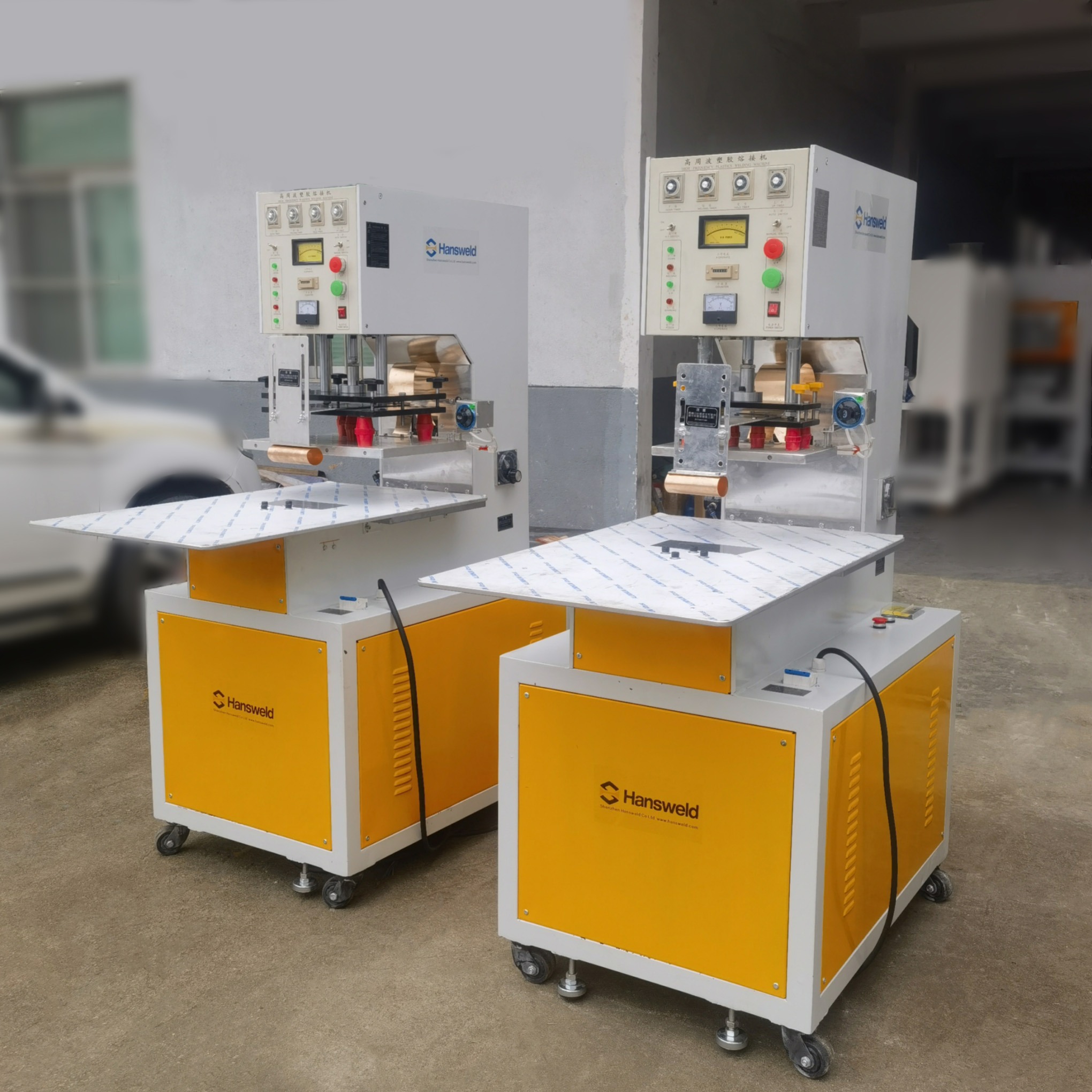

This machine can shape various plastic sheets into different shapes of suction caps
Widely used in:
Toys, hardware, electronics, food and other industries, for small and medium-sized blister molding products of choice.
>Widely used >Fine craftsmanship
>Stable performance >Machine styles are optional
>Automatic die loading >Heating temperature evenly heated
>Easy operation >Improve work efficiency
| Model | HSD-5000S | HSD-8000S |
| Power | 5000W | 8000W |
| Power Supply | 380V 3P 50HZ | 380V 3P 50HZ |
| Frequency | 27.12MHz | 27.12MHz |
| Input power | 8KVA | 15KVA |
| Rectifier | SILICON DIODE | SILICON DIODE |
| Oscillation tube | 7T85RB | 7T69RB |
| Max pressure | 500KG | 500KG |
| Gap of electrodes | 200MM | 200MM |
| Cylinder Stroke | 100MM | 100MM |
| Size of upper electrode | 250*350MM | 350*450MM |
| Size of bottom electrode | 250*350MM | 350*450MM |
| Max Welding surface each work cycle | 100c㎡ | 200c㎡ |
| Welding time | 0~10S Adjustable | 0~10S Adjustable |
