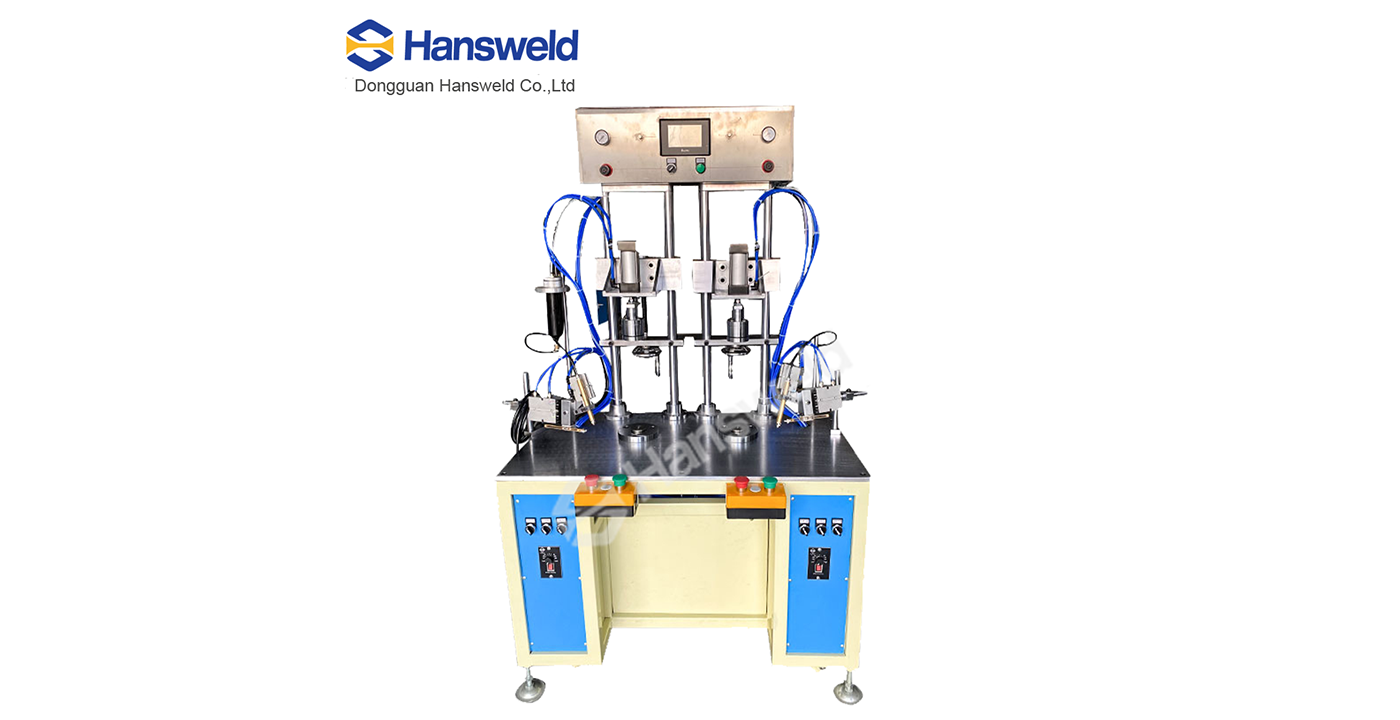

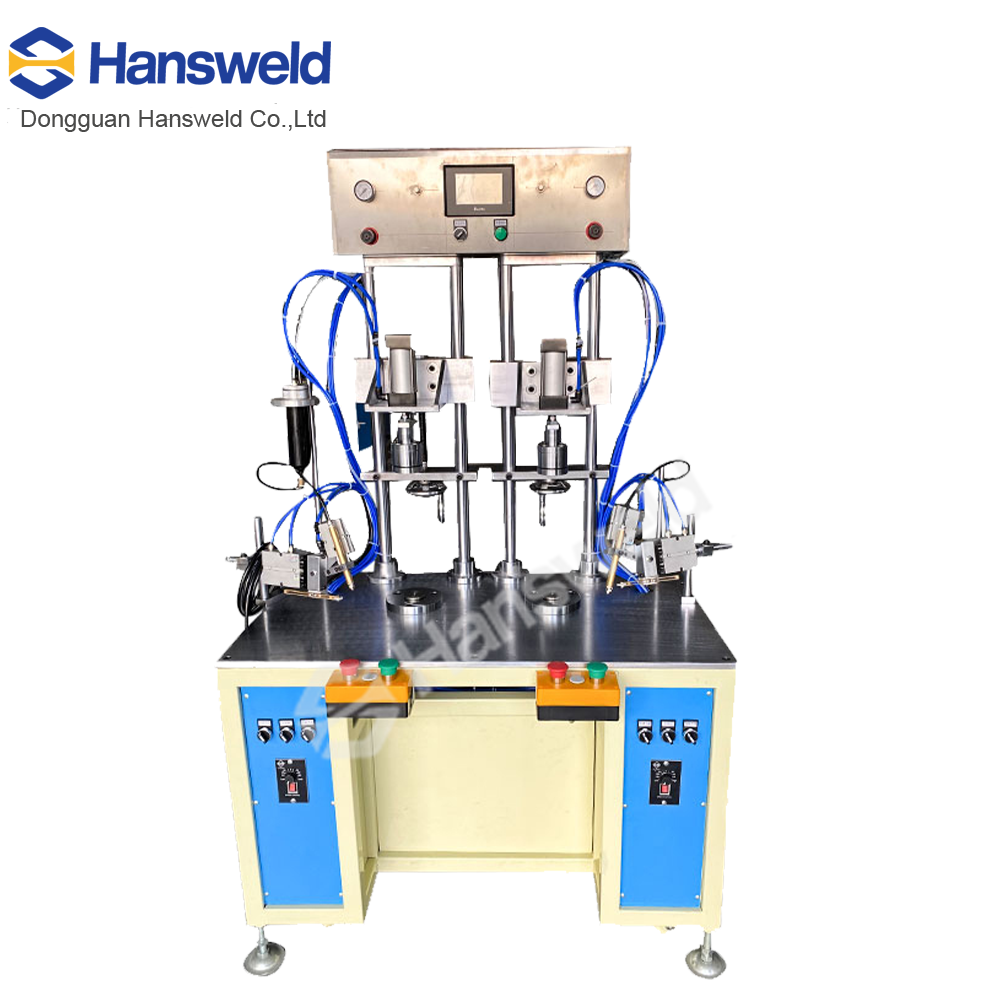

HSD-2G
PVC Cylinder Plastic Tube Bottom lid sealing Machine
HSD-2G
PVC Cylinder Plastic Tube Bottom lid sealing Machine
HSD-2G
PVC Cylinder Plastic Tube Bottom lid sealing Machine
It is mainly used for gluing the bottom cover of plastic cylinders. The main difference lies in the direction of glue gluing and the placement operation steps. This machine has a very high speed, which depends on the worker's operating speed. The fastest speed can reach 1.5/s for one finished product.
The machine seals the bottom instead of traditional manual operation, solving the problems of high scrap rate, uneven glue, fingerprints on the bonding part, etc. It is a relatively simple mechanical product derived from the packaging machinery industry in response to customer needs and development.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Daily chemical industry: Applicable to the packaging and sealing of hair care products, cosmetics, cleaning and washing products, etc.


Gift and craft industry: Applicable to the cylindrical packaging of various gifts and crafts.


Toy industry: Applicable to the cylindrical packaging and sealing of toys.


Hardware and machinery industry: Applicable to the cylindrical packaging and sealing of hardware and mechanical products



High efficiency: The speed is extremely high, depending on the worker's operating speed. According to feedback records, the speed record of gluing the bottom cover of the cylinder is kept at 1.5s/piece.


Accuracy: The German Siemens microcomputer PLC control system is adopted to improve system stability and reduce machine failure rate, which is convenient for operation and adjustment.


Automation: Automatic gluing, forward and backward functions, etc., eliminate the shortcomings of traditional hand-dipping glue.


High quality: Replace traditional manual operation, solve the problems of high scrap rate of manual operation, uneven glue, fingerprints on the bonding part, etc.



ModelHSD-2G
Power  supply3*P220v 2KW
StationTwo workstations
Bottom cover diameter40-200MM
Thickness0.15-0.6MM
Production speed400-500pieces/hour
Adhesion accuracy≤±0.03PLC control, 8-position precise divider positioning
bonding processBlister cover
Applicable materialsPVC,PETG,APET
Cylinder length20mm-500mm
Cylinder dia40-200mm (adjustable)
Machine weight180kg
Machine dimensions700mm*650mm*1650mm (L*W*H)
