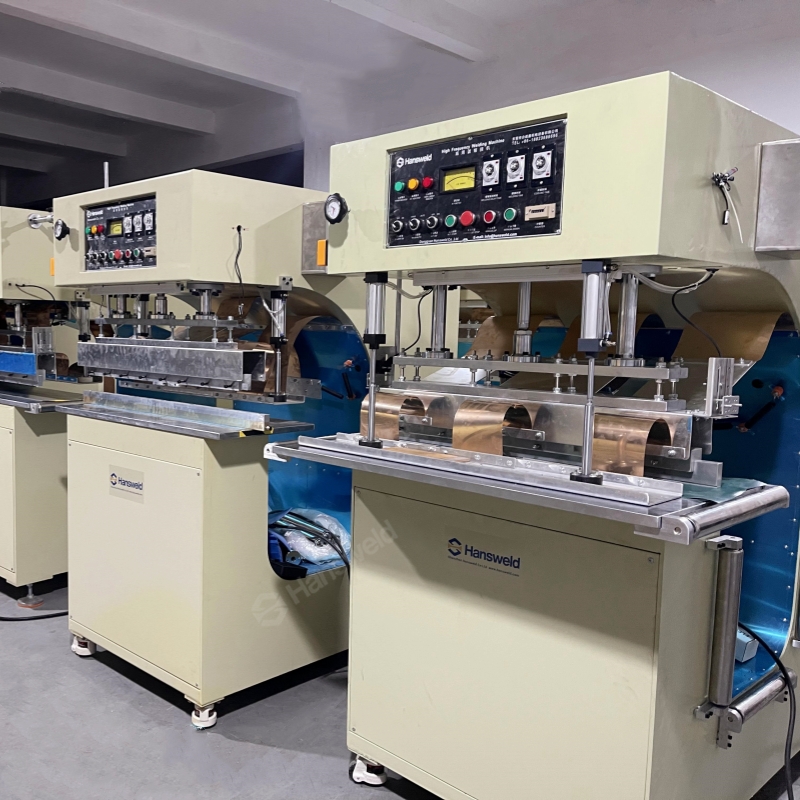

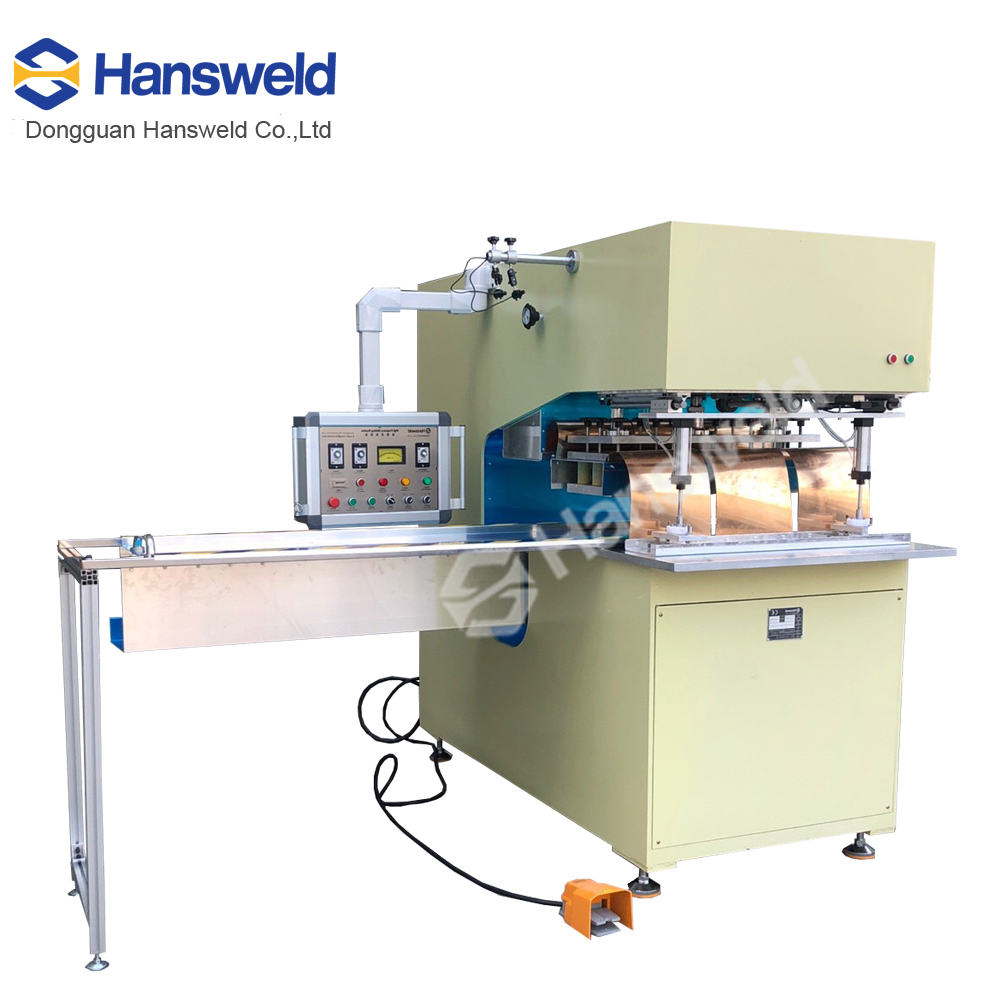

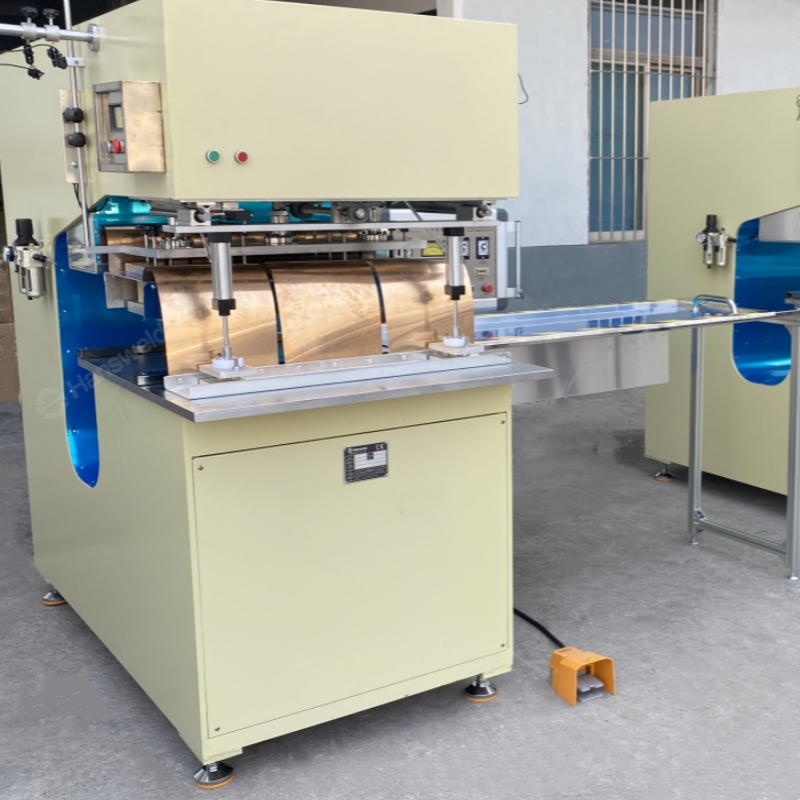

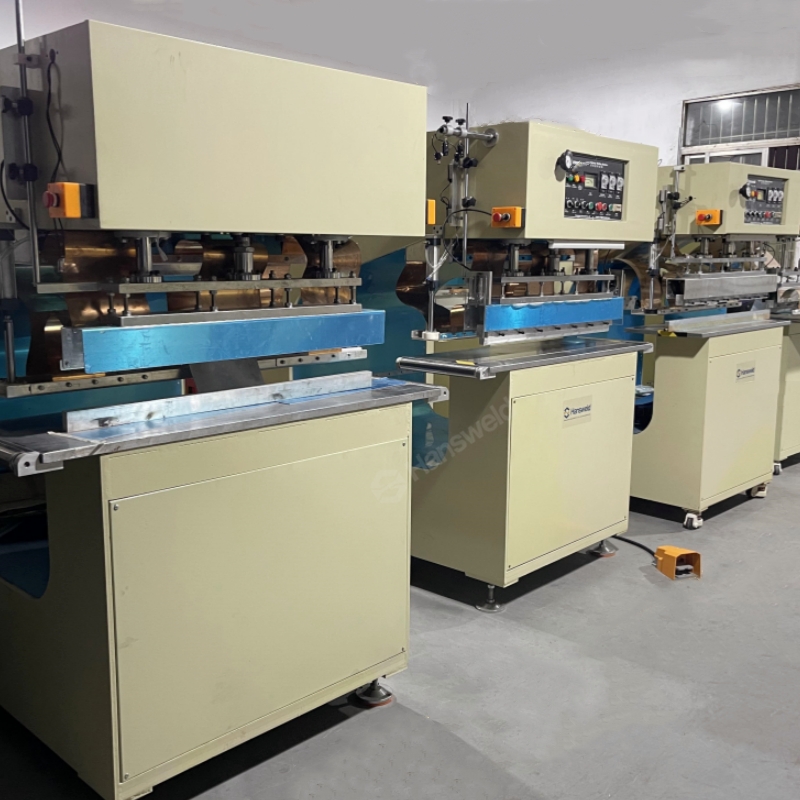

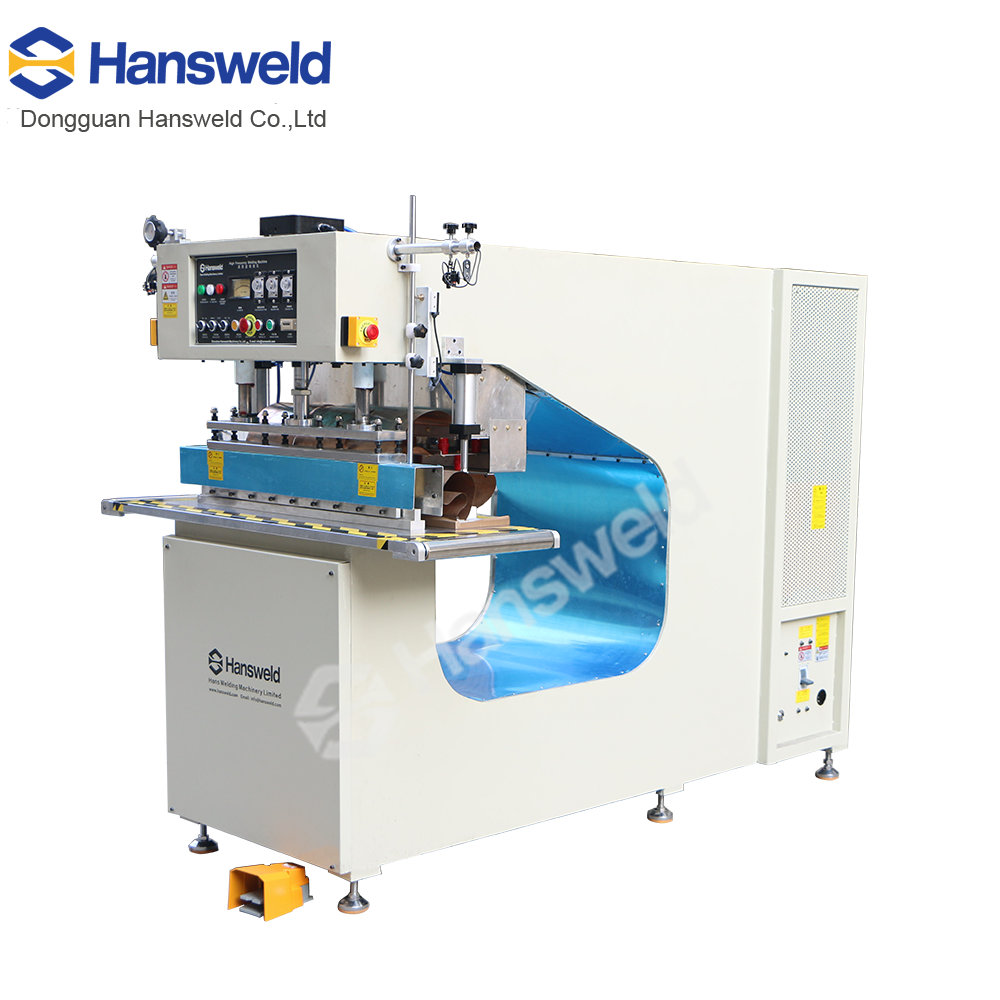

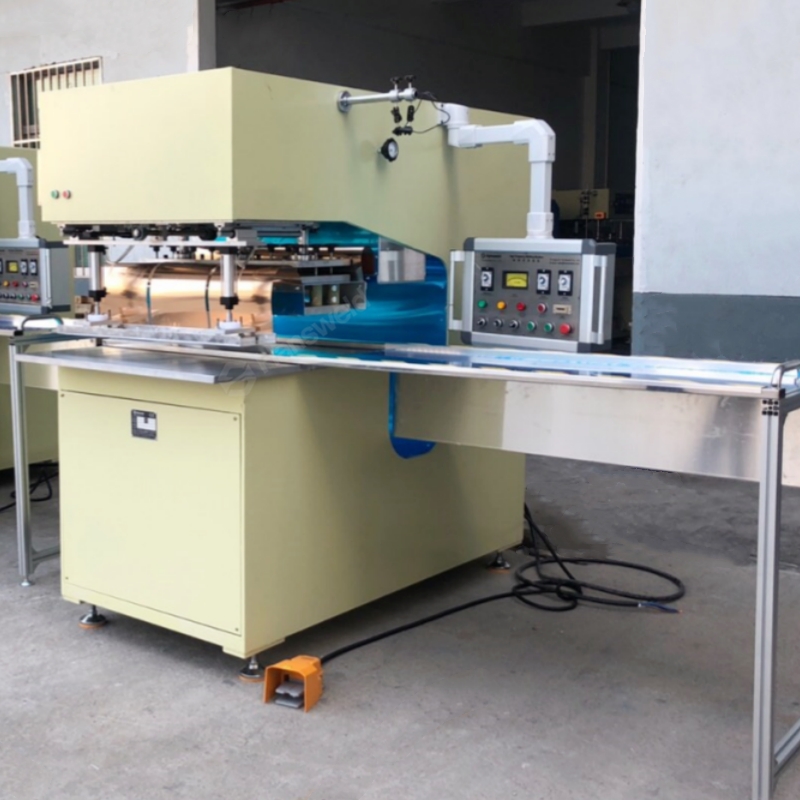

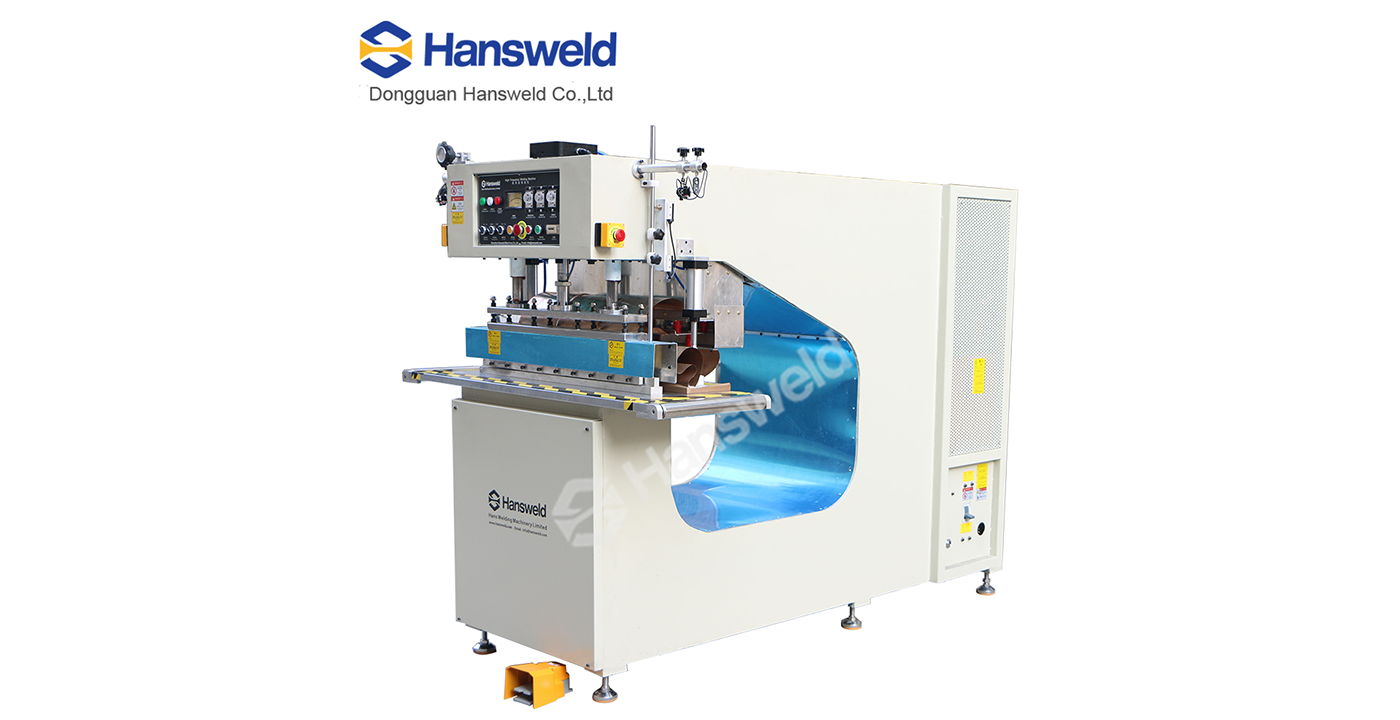

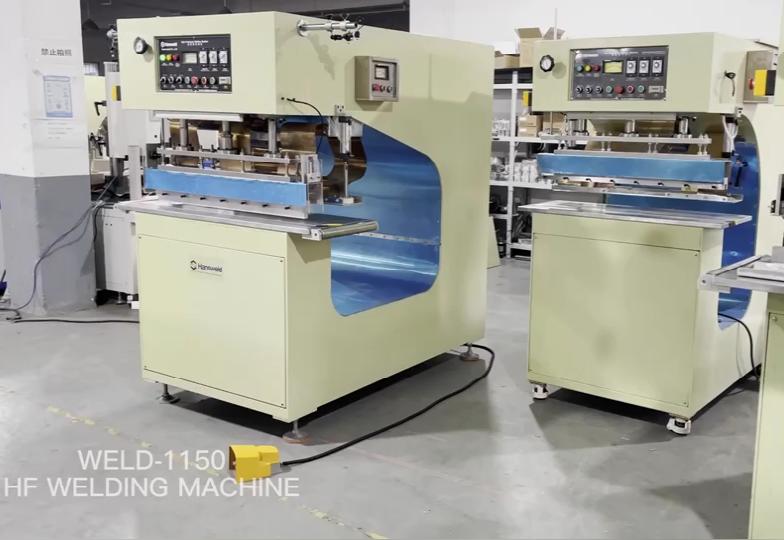

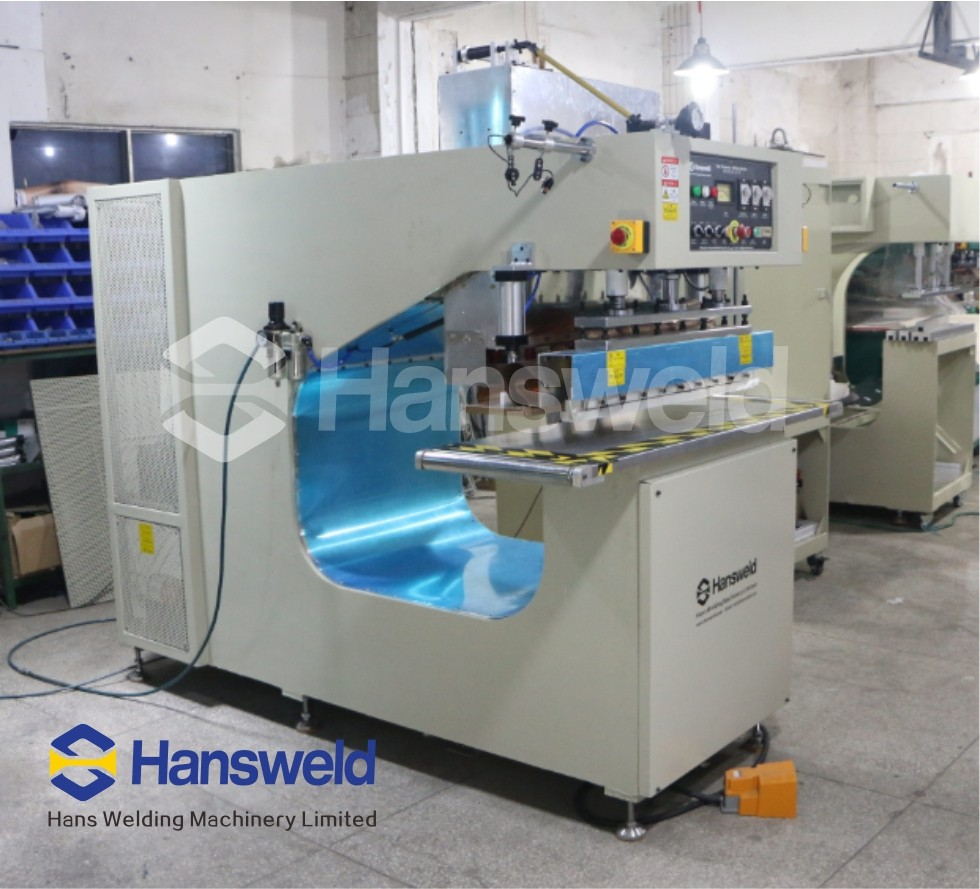

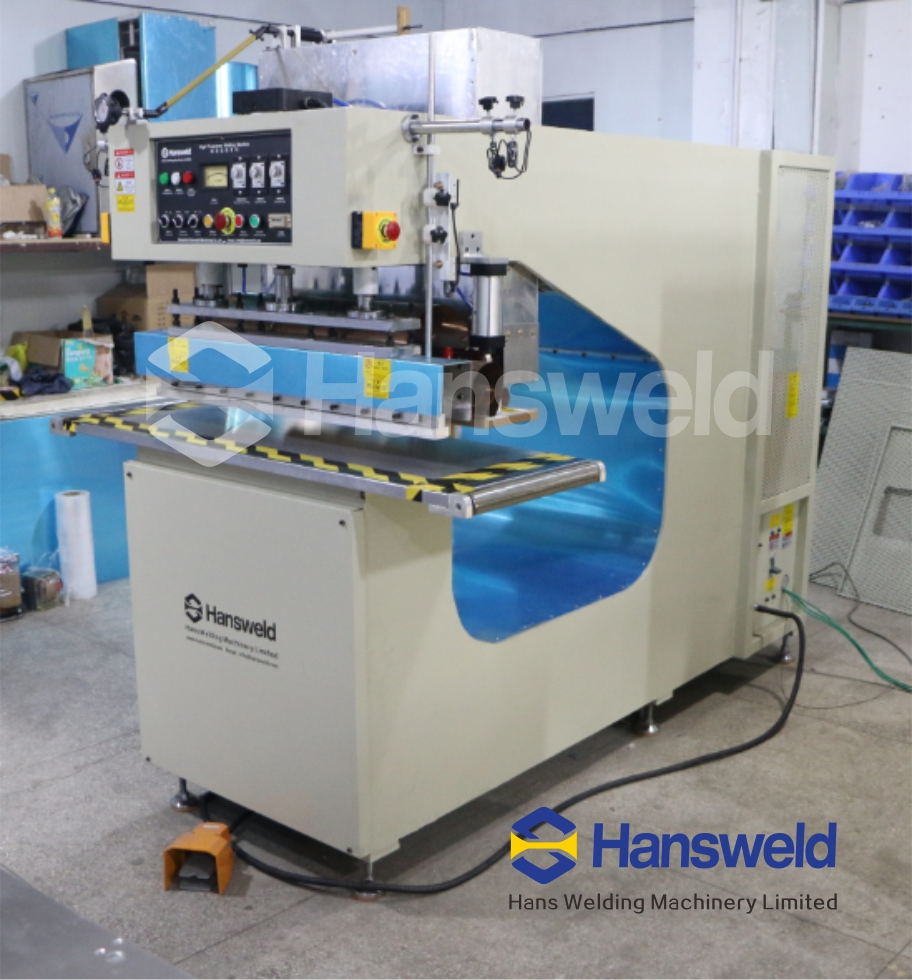

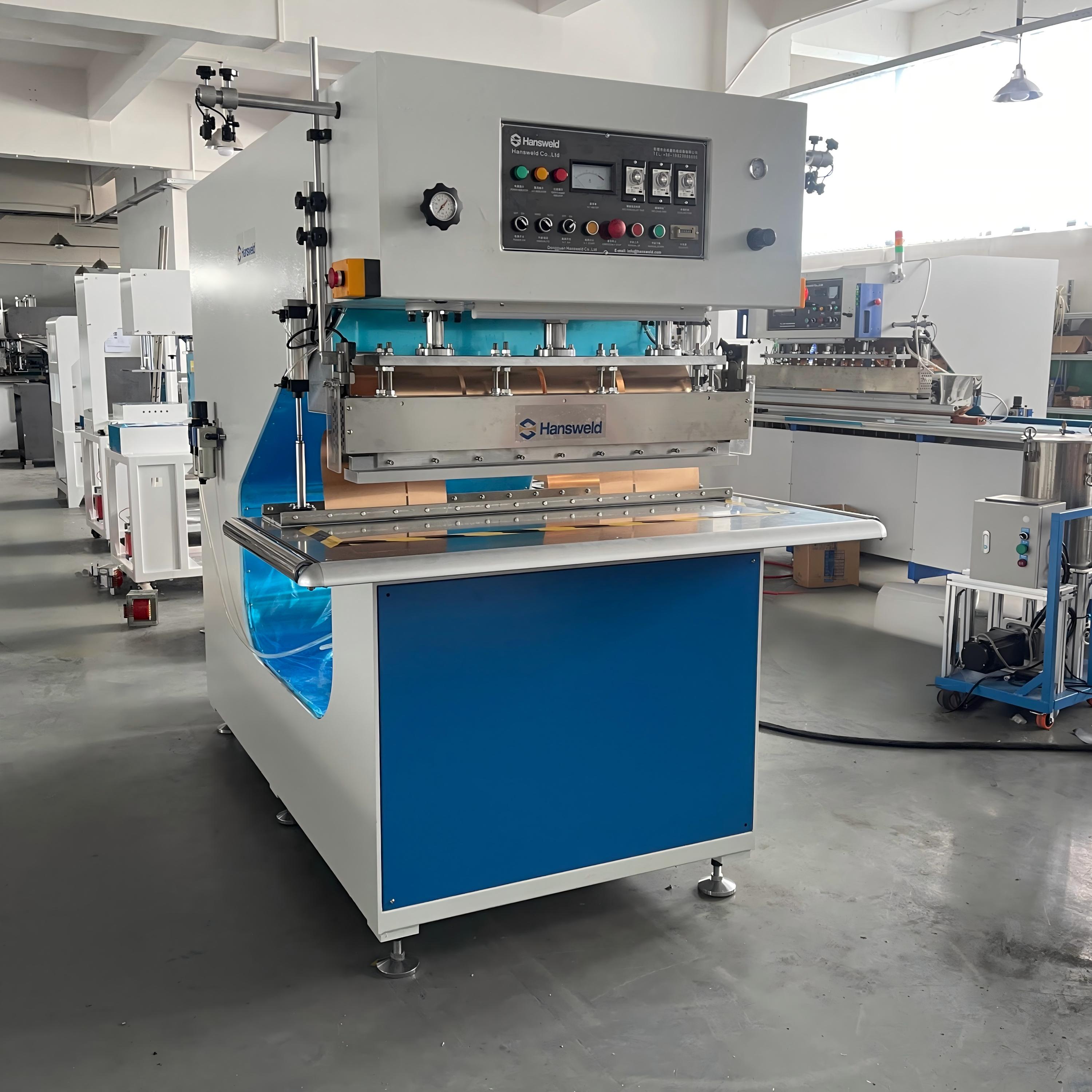

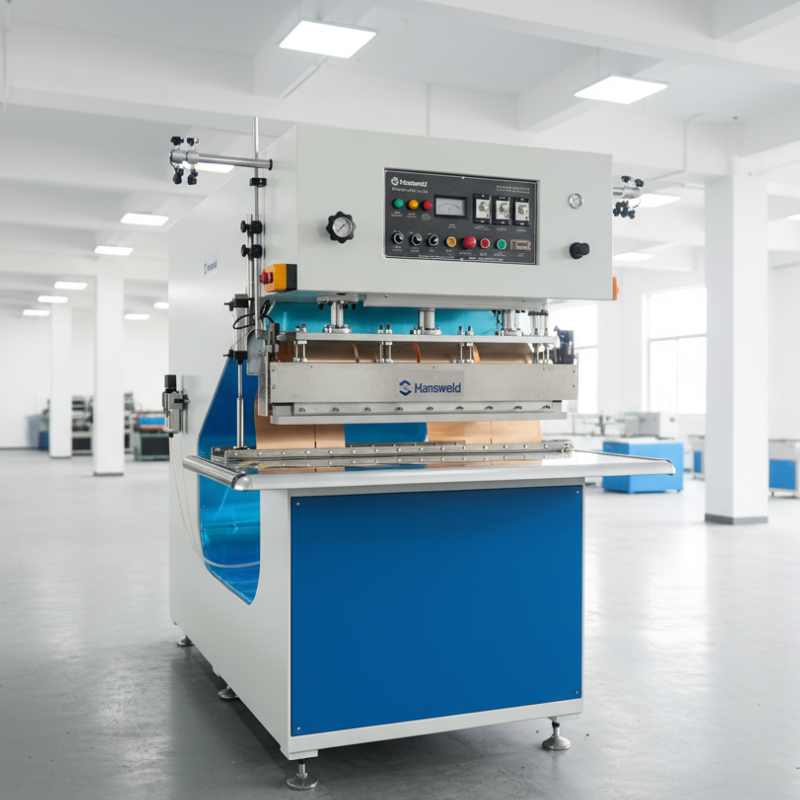

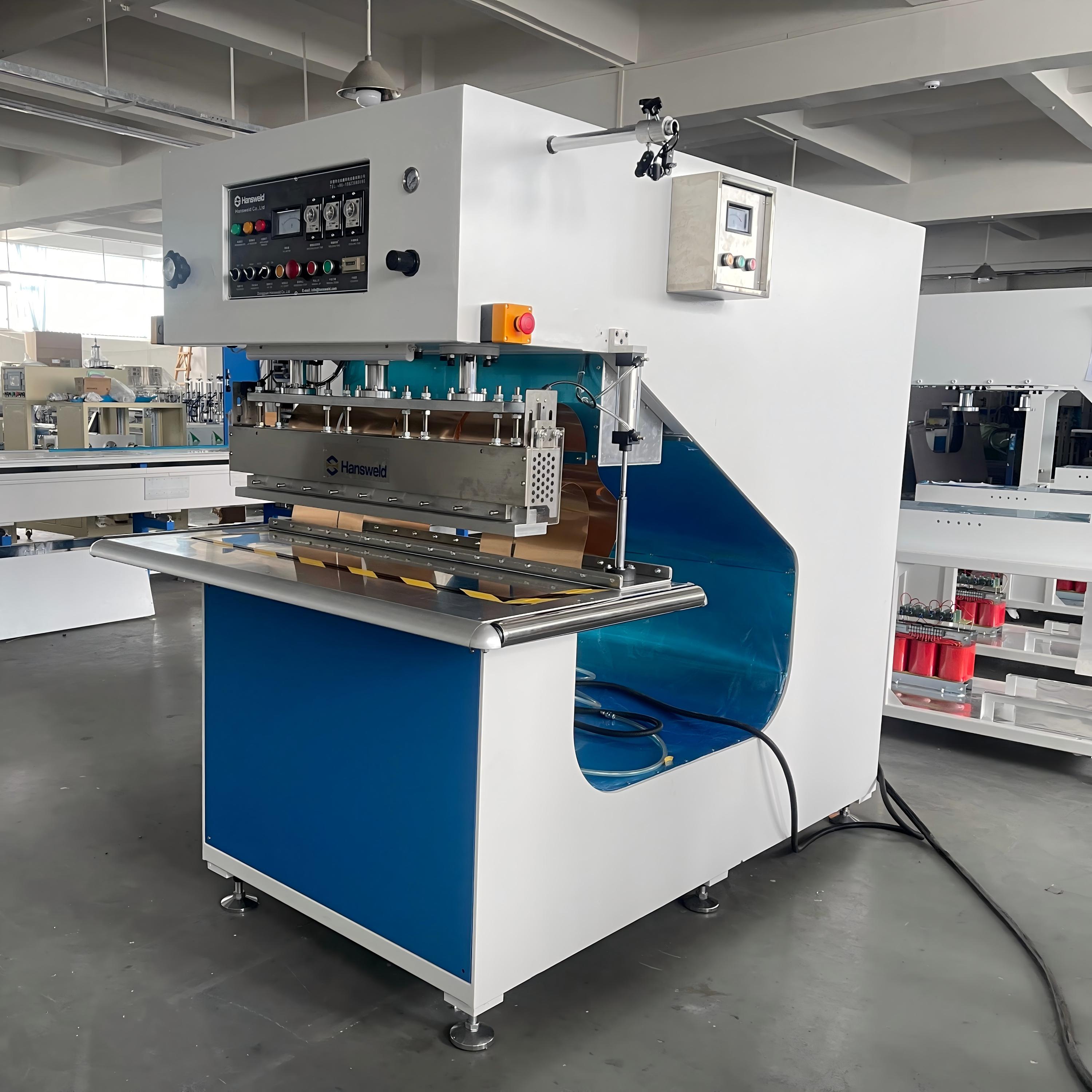

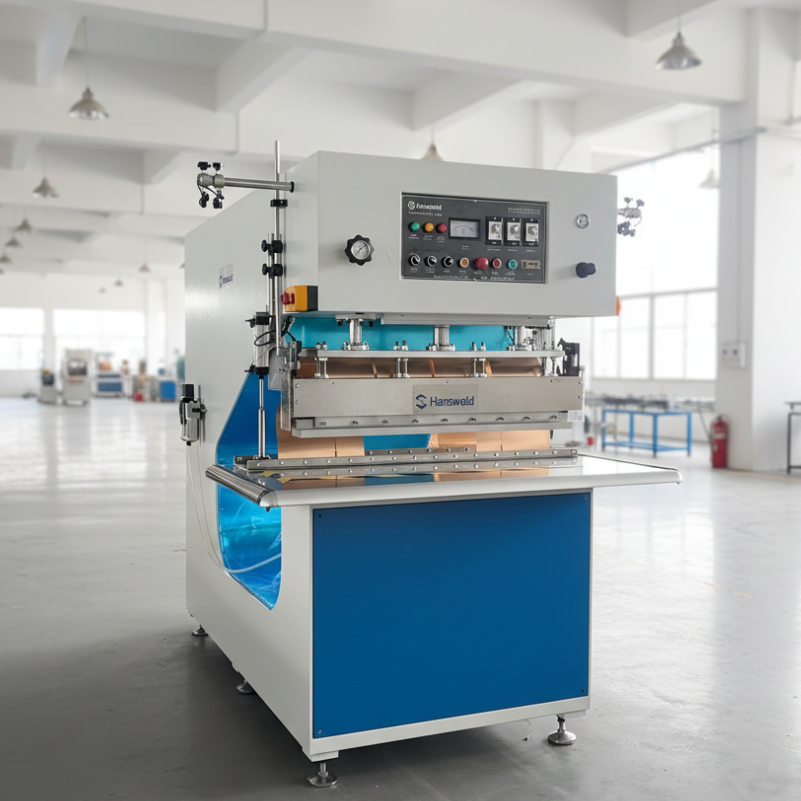

Tarpaulin Welding Machine WELD-1150 (15-25KW Optional )
Tarpaulin Welding Machine WELD-1150 (15-25KW Optional )
Tarpaulin Welding Machine WELD-1150 (15-25KW Optional )
Through the principle of high frequency wave welding machine, used to do high frequency wave PVC biogas pool welding, PVC reservoir welding, PVC children swimming pool welding.

Can also be used to make high frequency auto tarpaulin canvas welding, high frequency tent cloth welding, high frequency film curtain welding,high frequency outdoor sunshade cloth welding, high frequency advertising printing cloth welding, high frequency PVC cloth welding or any material containing PVC components of soft plastic plastic high frequency wave welding splicing.

Through the action of high frequency wave, the material is fused by high frequency, the surface is smooth and smooth and beautiful and firm.
Control Panel
Control Panel

All Machines

                      are adopted with European Design Square sytle HF generator,which is stable in power output

And With High Sensitive Arc Surpressor that protect the material and welding tools Application:PVC tarpaulin,

Advertisement BannerPVC tents , tensile membrane construction , PVC ceiling,oil boom,swimming pool ,etc .

Suitable Material: PVC or TPU (Any material contents PVC or TPU.

1.It can choose machines with different high-freauency powers accordind to the needs of users, The lenath. curvoture and width of weldindmaterials can be changed each time. and the size, enoth and width of hiah-freauency molds con be chanaed to meet the needs of flmstructure welding.

2.The high-frequency oscillation system is a European-style square coaxial structure, and the high-frequency output power is stable andpowerful.

3.The high-frequency 5557 spark protection system is installed in the high-frequency welding machine to prevent damage to the high-requency welding mold.

4.The welding time can be set freely according to the thickness of the material, and the high-frequency power output can be preciselyadjusted. welds firmly, and the thickness of the material can be satisfied. The deep and wide feeding tank of the machine is convenient for large-area continuous connection. The machine can be rotated for continuous crimping and welding, and the round-trip length can be customizedreely.



POWER Range


Input Power


Suitable Welding Area


Oscillation Tube


Standard working table


Power Supply

3P * 380V * 50Hz & 3P * 220V * 60Hz

Working Frequency



Silicon Diode

Drive Mode


Arc suppressor

High Sensibility  PL-5557

Suitable Material

 PVC or any fabric contents PVC .

Cylinder working stroke

150mm ( customization offered )

Welding Time

0-30 S adjustable  ( customization offered )
