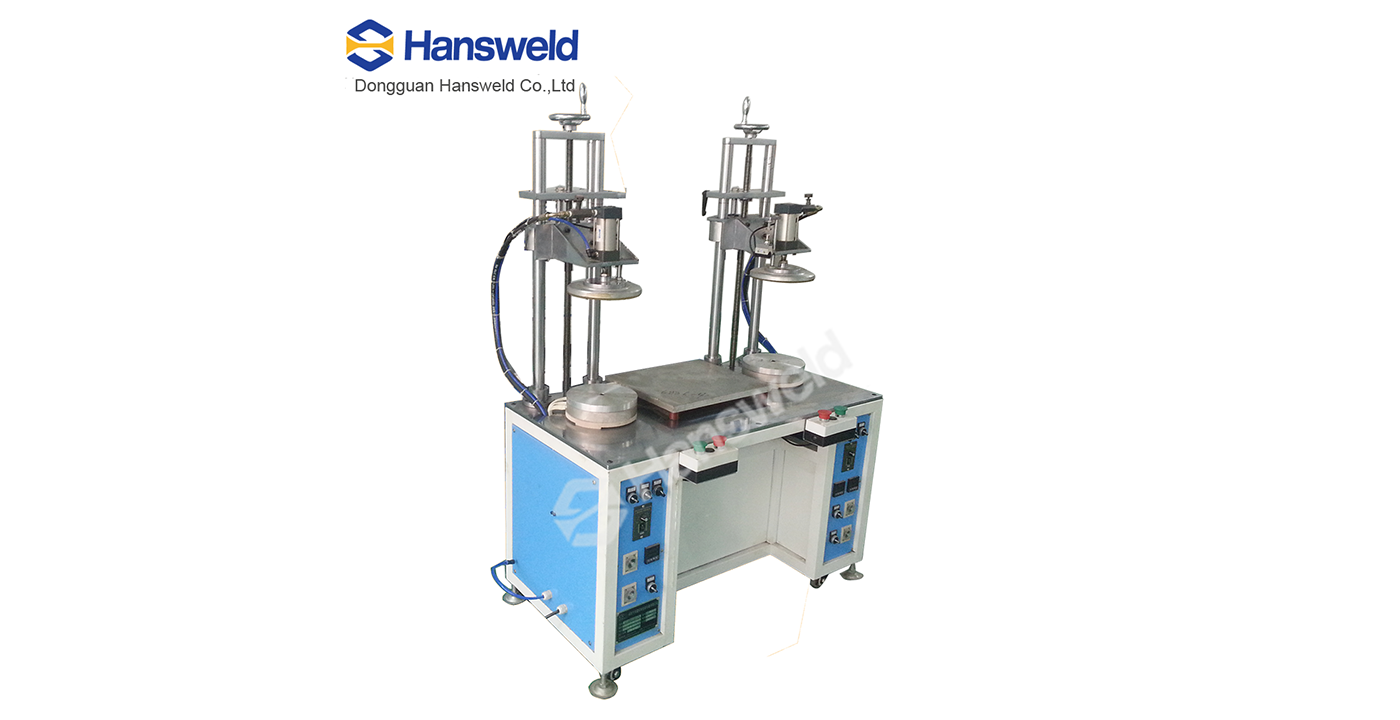

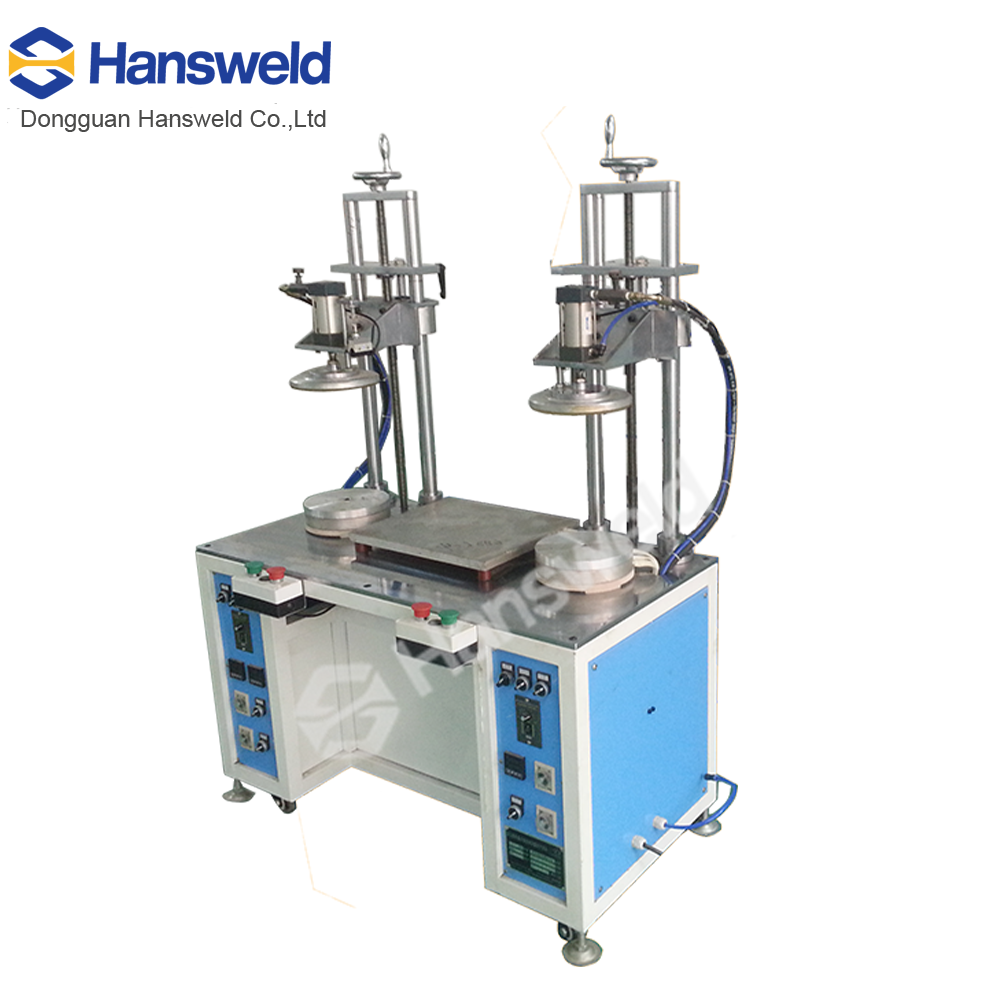

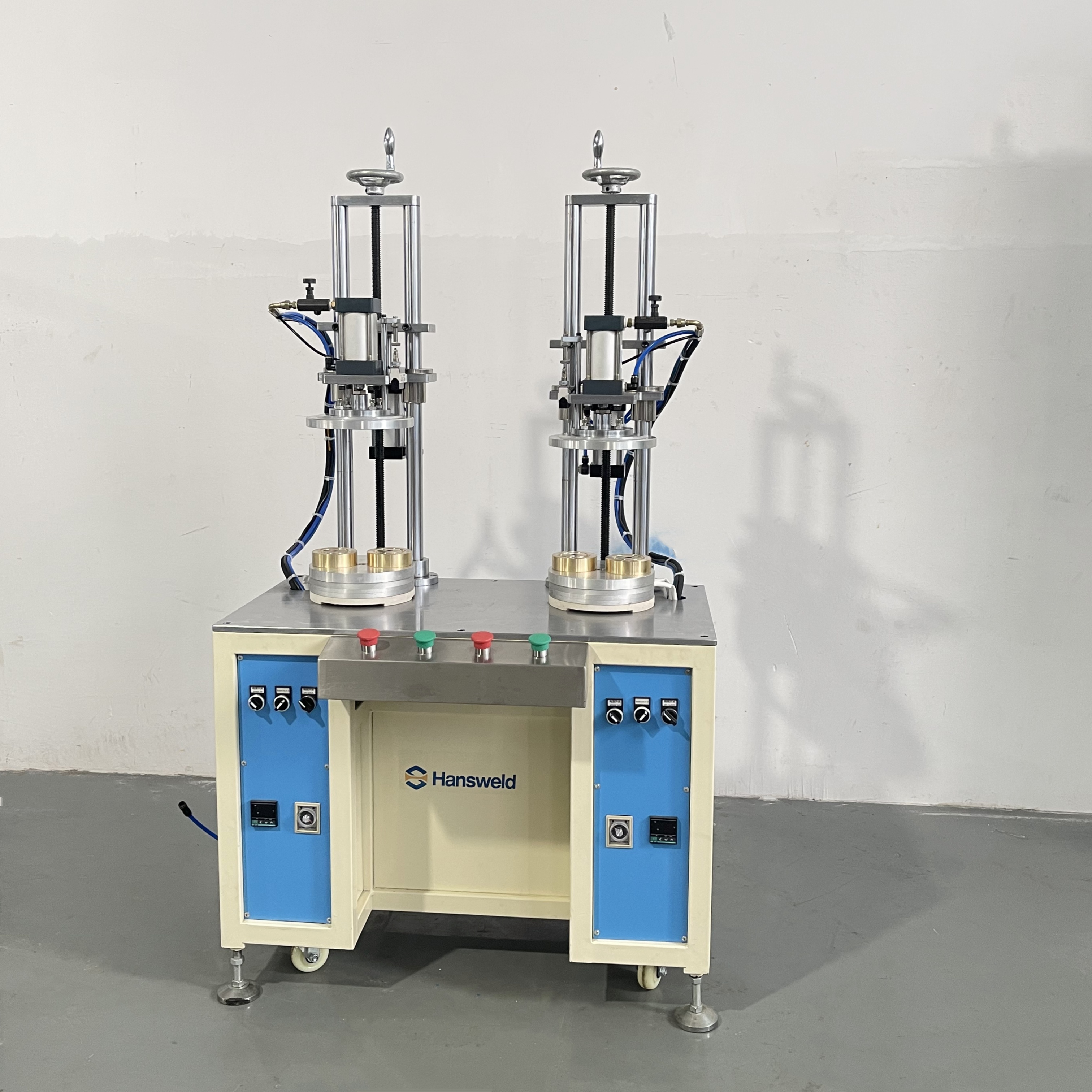

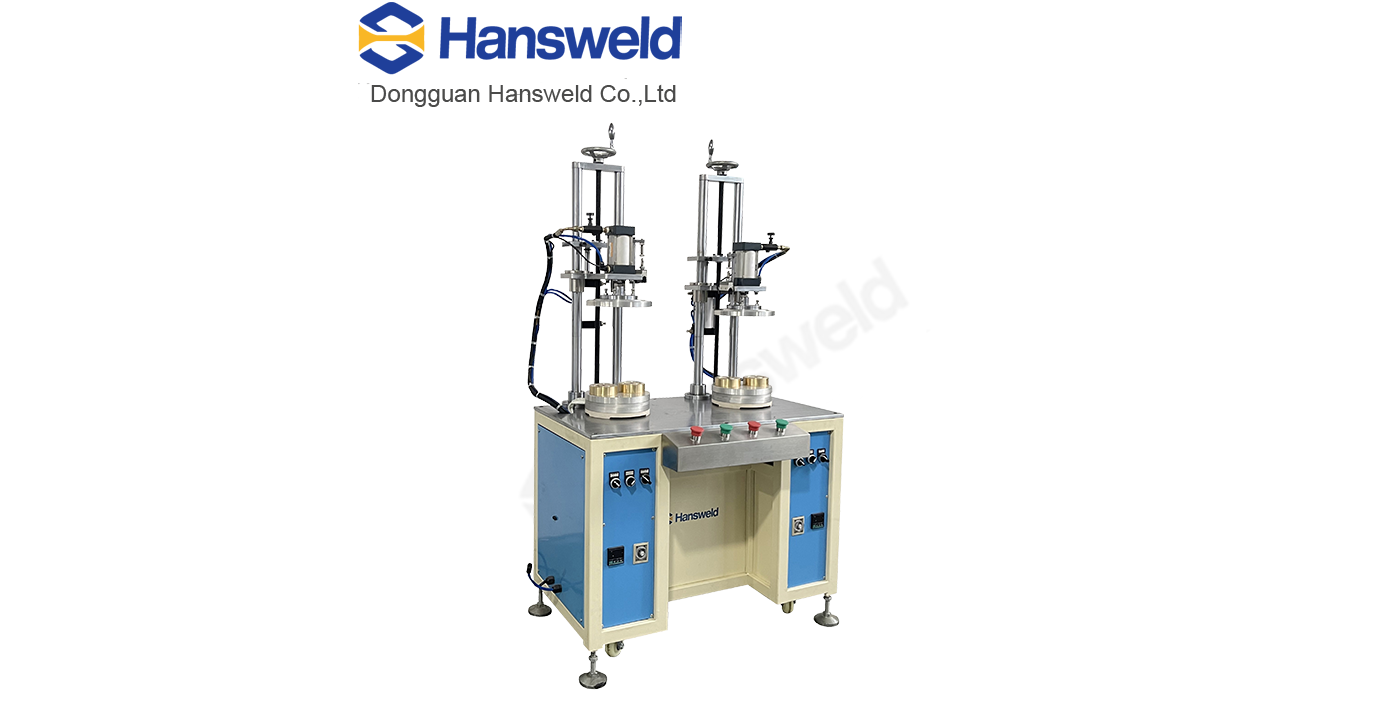

HSD-220A
PVC Cylinder Plastic Tubing Machine
HSD-220A
PVC Cylinder Plastic Tubing Machine
HSD-220A
PVC Cylinder Plastic Tubing Machine

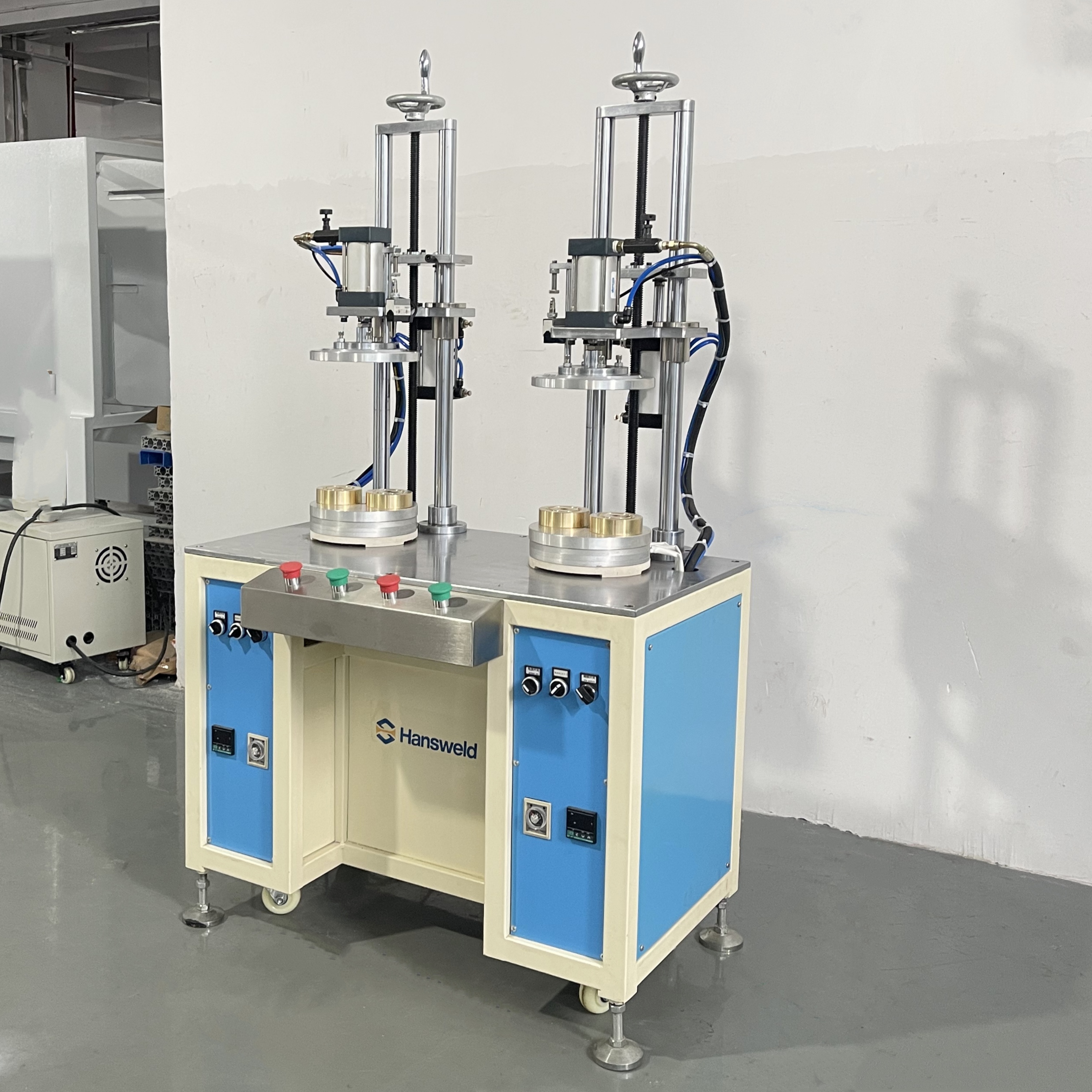

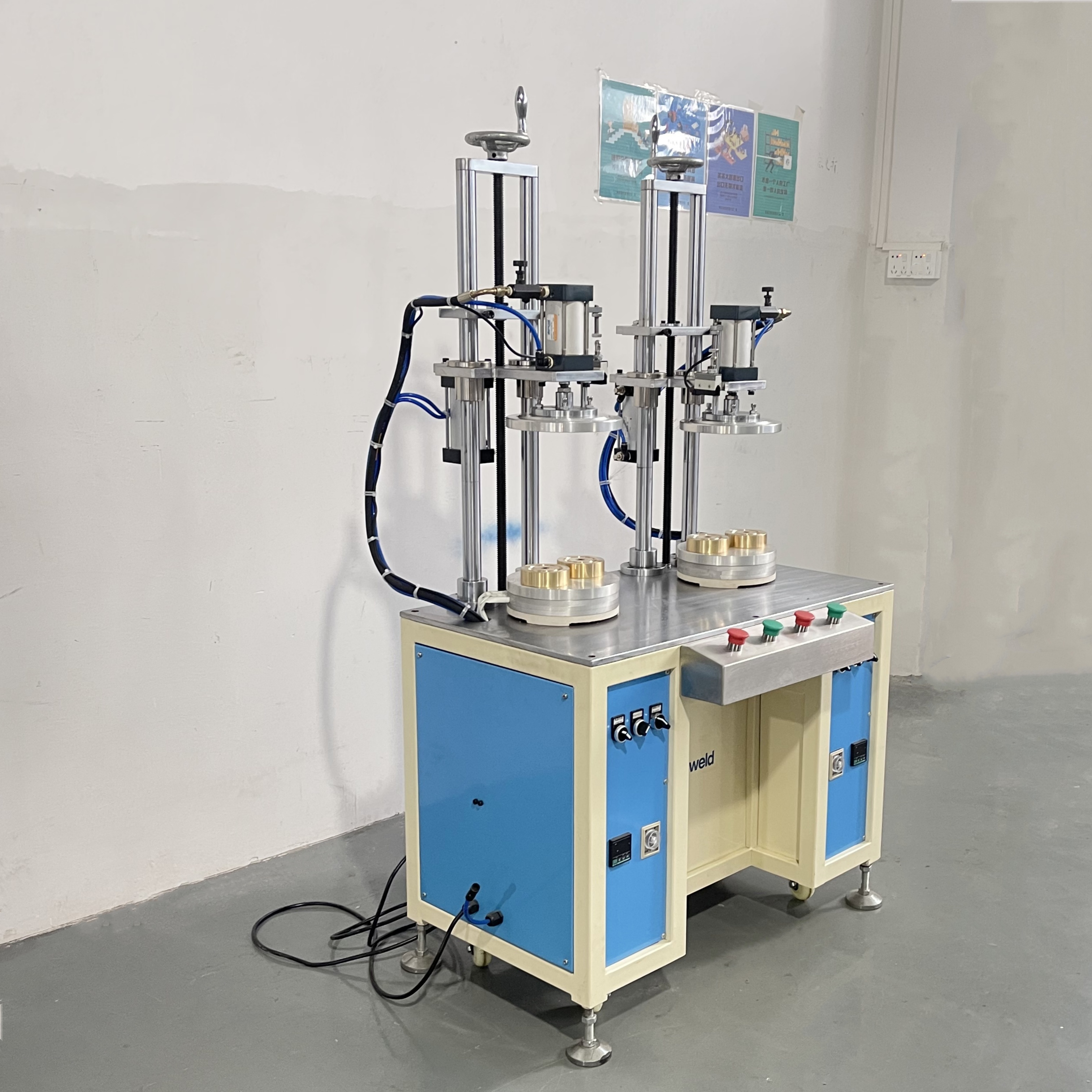

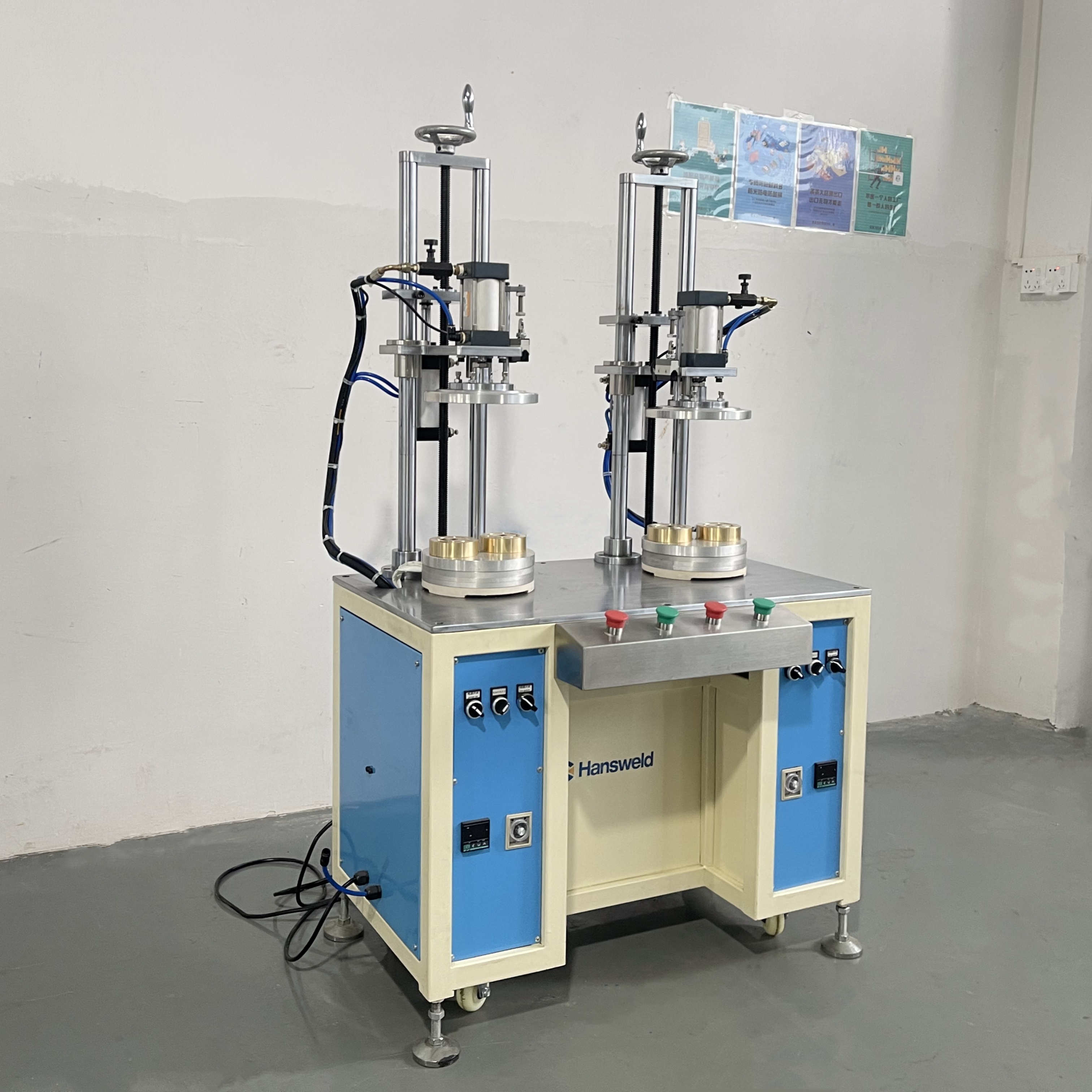

The 2-station cylinder curling machine is a semi-automatic packaging equipment, mainly used to make cylinder curling of various materials, such as PVC, APET, PETG transparent cylinder, PP cylinder, paper cylinder and paper cake box, etc.
The 2-station cylinder curling machine is an efficient, flexible and easy-to-operate semi-automatic packaging equipment, suitable for the curling needs of cylinders of various materials and specifications, and is widely used in multiple industries.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Suitable for mass production of PVC cylinder packaging, PP cylinder packaging, APET cylinder packaging, PETG cylinder packaging, plastic cylinder packaging, plastic cylinder packaging, paper cylinder packaging, paper cylinder packaging, paper cylinder packaging and other plastic transparent cylinders.


It is an ideal packaging container for candy packaging, gift packaging, toy packaging, stationery packaging, umbrella packaging, fishing gear packaging, badminton packaging, potato chips packaging, snack food packaging, cake packaging and other products....



1.Cylinder curling is fast and accurate: it can automatically complete the curling of cylinders to meet the curling requirements of cylinders of different lengths (80-350mm), diameters (30-200mm) and material thicknesses (0.3-0.5mm).


2.Applicable materials: it can be used to curl various plastic materials such as PVC, APET, PETG, as well as paper and PP materials.


3.Efficient and stable: equipped with automatic constant temperature control device and preheating function, the mold rotates at a constant speed during the curling process, which improves the curling efficiency and reduces the defective part rate.


4.Humanized design: the equipment automatically descends and automatically rises after curling. The operator only needs to load and unload materials continuously, reducing labor and improving efficiency.



 ModelHSD-200A
Work Positions2 Working Table
Voltage220V
Pneumatic range3-5kg/cm2
Diameter of air tube8mm
Diameter of heating tube210mm
Fold diameter30-200mm
Fold length15-420mm
Prodcution speed2-6sec/edge
Prodcution speed280kg
Overall dimension1100*550*1700mm
