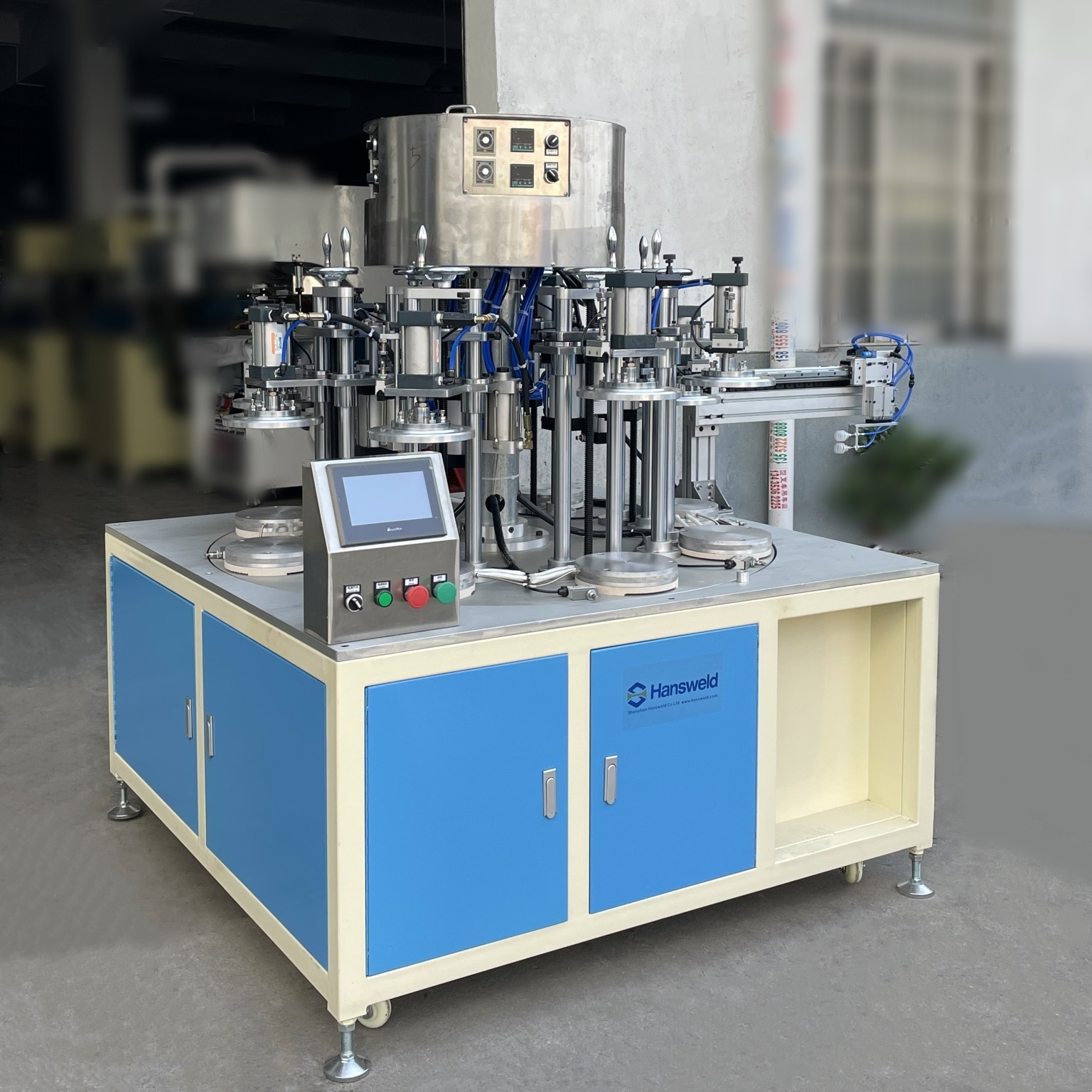

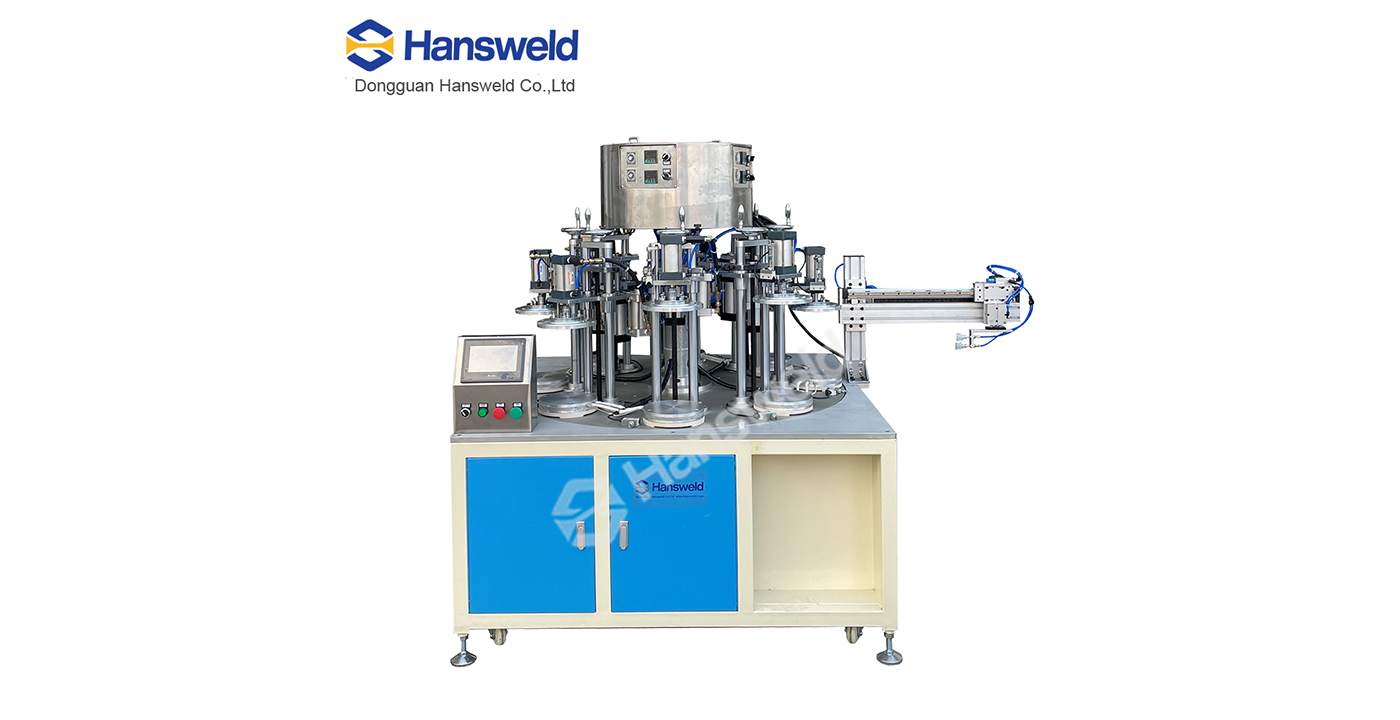

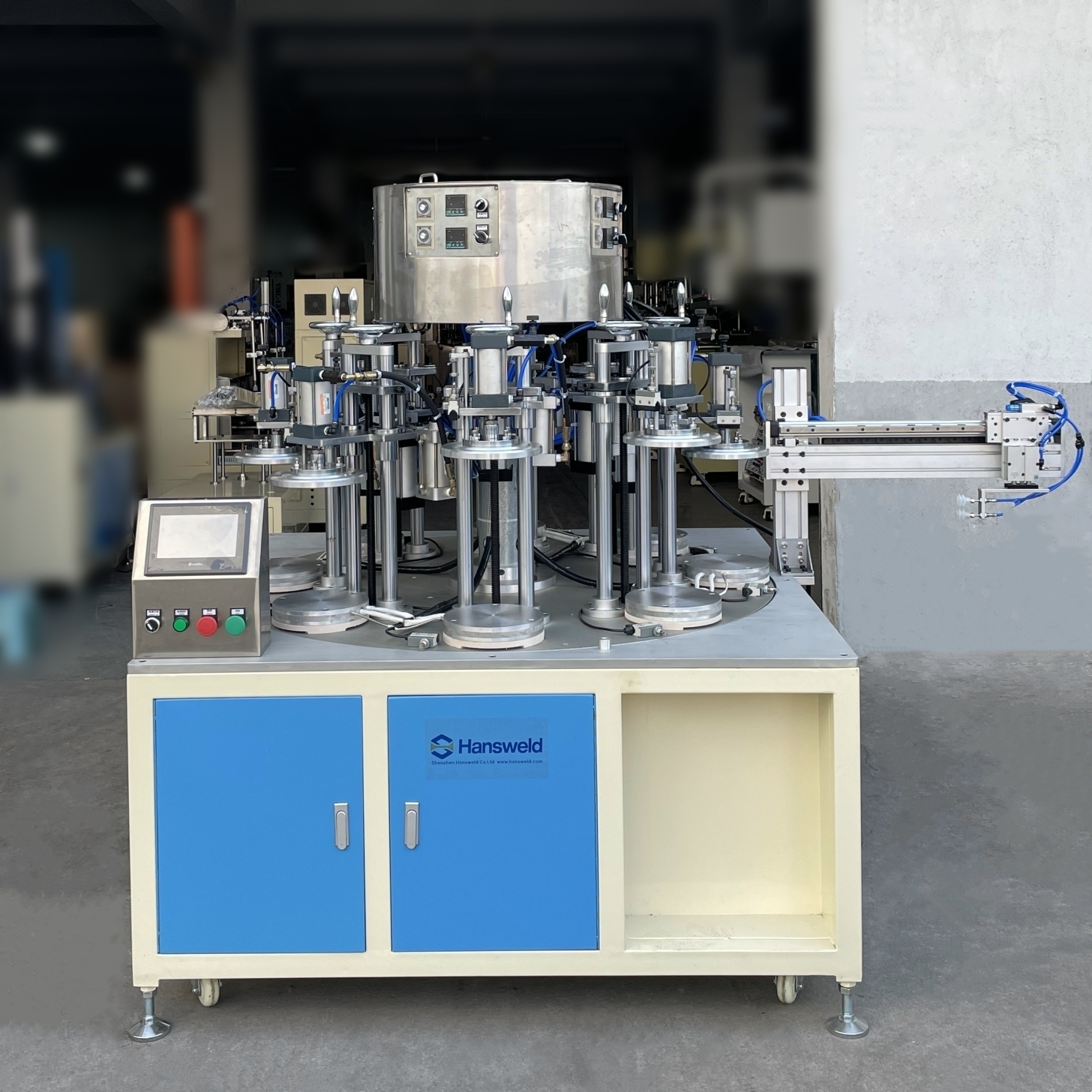

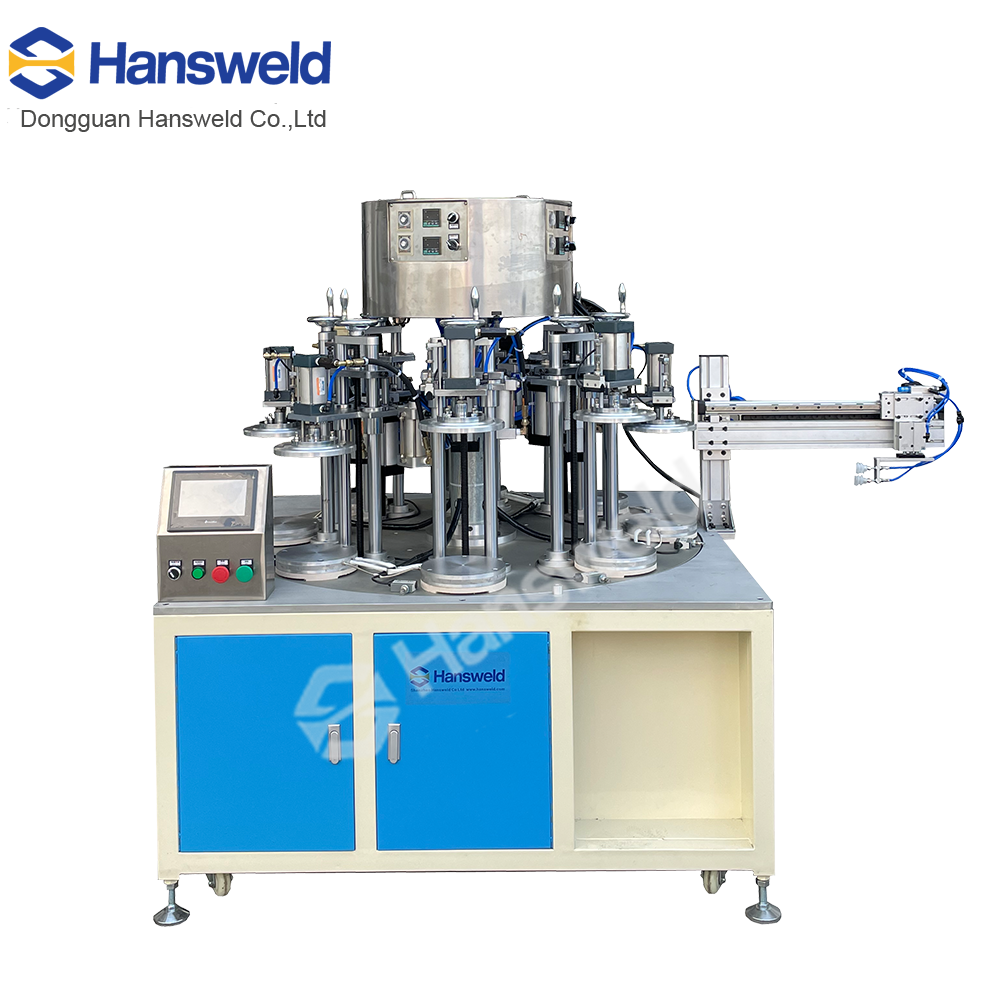

HSD-8C
Cylinder Plastic curling Machine
HSD-8C
Cylinder Plastic curling Machine
HSD-8C
Cylinder Plastic curling Machine
Product technology: cylinder inner curling machine, cylinder reverse curling machine, cylinder outer reverse curling, trapezoidal cylinder curling, bell-mouth cylinder machine, blister curling machine, plastic curling machine and other processes;
Humanized design of cylinder curling machine: the equipment will automatically descend, automatically curl the edge and then rise, and the operator only needs to load and unload materials continuously; the 8-station curling machine can be overlapped with the fully automatic forming machine to form an assembly line production. Reducing labor and greatly improving efficiency;
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Suitable for curling the edges of PVC, APET, PETG plastic transparent material cylinders, as well as cake boxes, paper tubes, and cake boxes. The product shape can be round, oval, or trapezoidal. Suitable for cosmetics packaging, tea packaging, food packaging, handicraft packaging, etc.


1. One-button automatic adjustment of height: It realizes professional mechanical cylinder curling of PVC/PET/PP materials with high work efficiency.

2. High-power speed-regulating motor: It provides power to meet the needs of high-efficiency curling.

3. Eight-station chassis rotation curling design: It can curl multiple cylinders at the same time to improve production efficiency.

4. Stable processed products: The curling is beautiful and the cylinder does not need to be preheated.

5. Automatic constant temperature control device: With preheating function, it improves the curling efficiency and reduces the bad parts rate.

6. The mold rotates at a uniform speed: The mold rotates at a uniform speed during the curling process, which greatly improves the curling efficiency and reduces the bad parts rate.

7. Convenient operation: The H-type main frame structure is firm and stable, and easy to operate.

8. Energy-saving and efficient: The combination of high-power speed-regulating motor and cylinder ensures stability and energy-saving and high efficiency.



 ModelHSD-8C
Work Positions8 Working  Table
Voltage220V
Pneumatic range3-6kg/m²
Diameter of air tube8mm
Diameter of heating tube210mm
Fold diameter35-200mm
Fold length10-600mm
Prodcution speed2-6sec/edge
