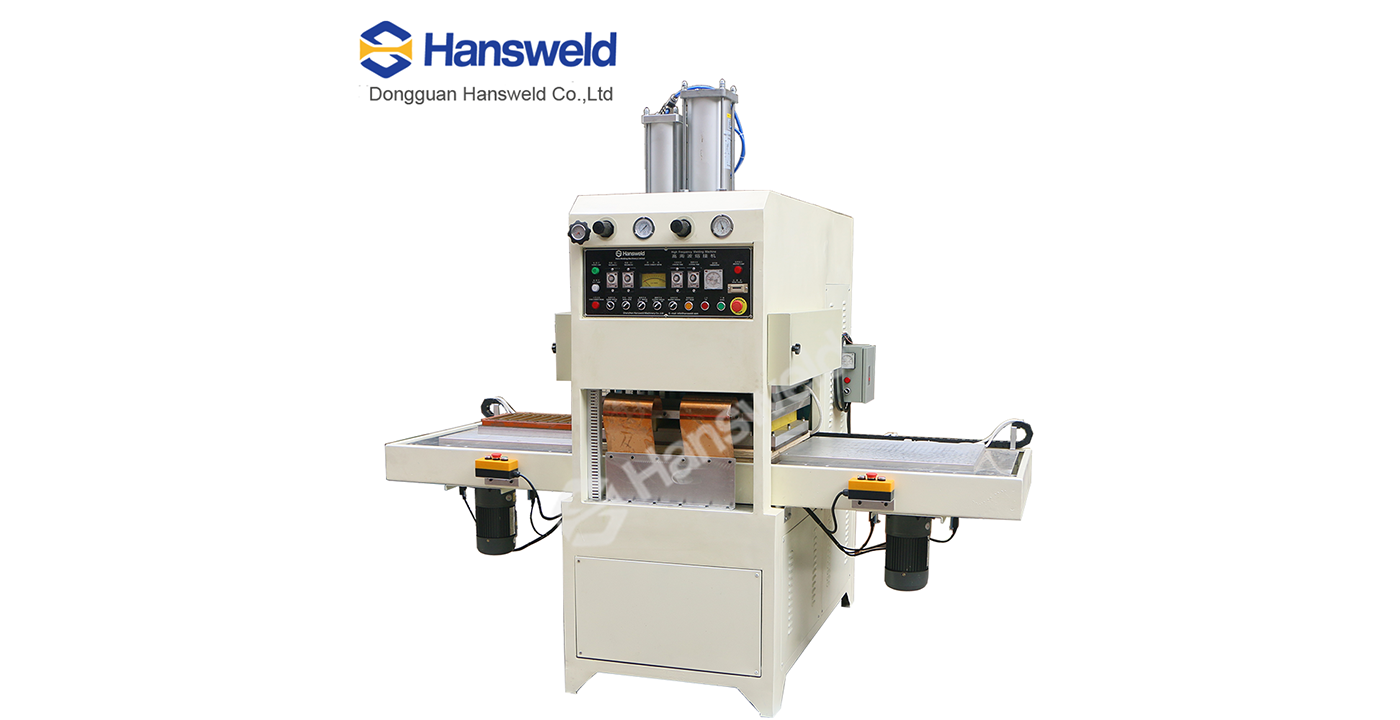

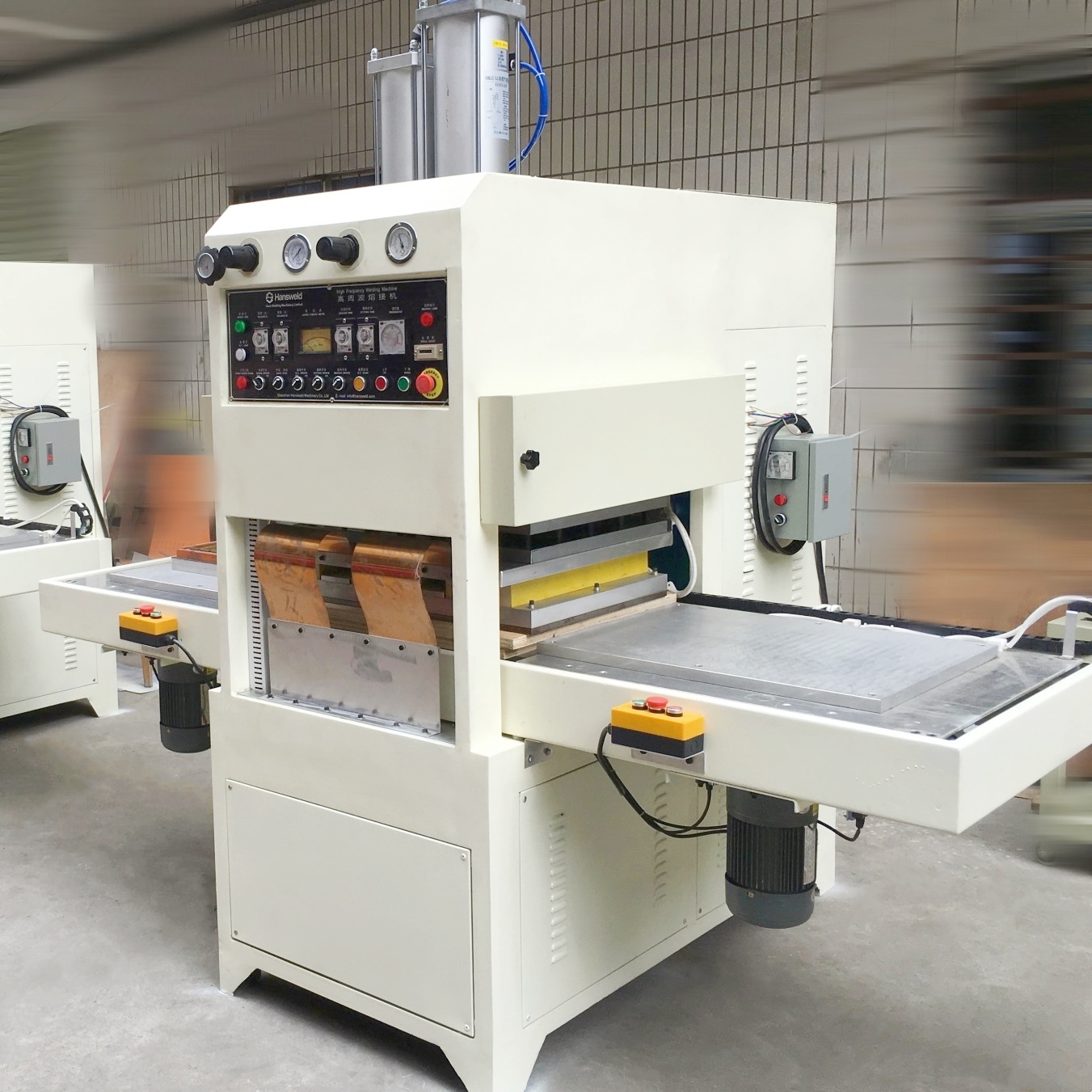

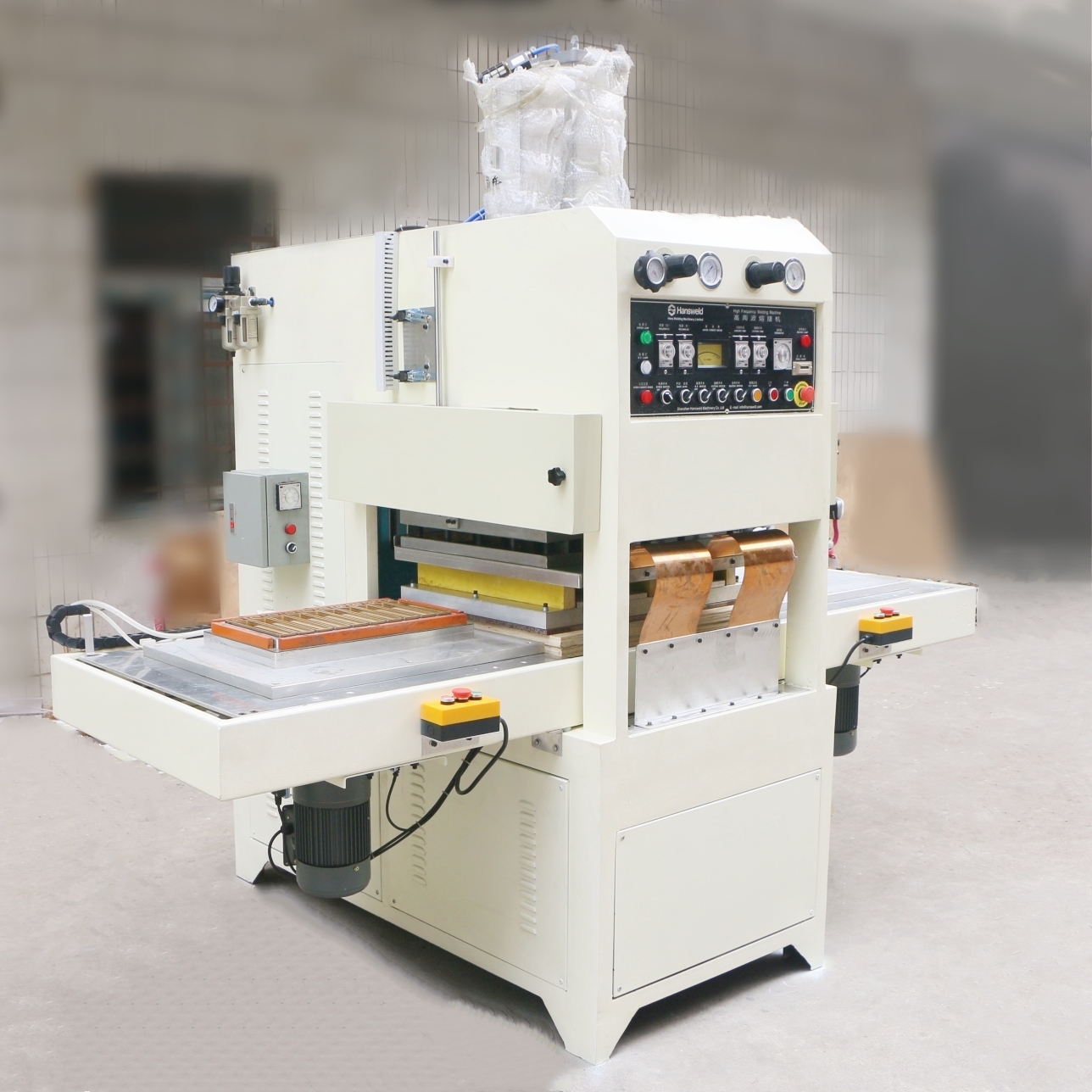

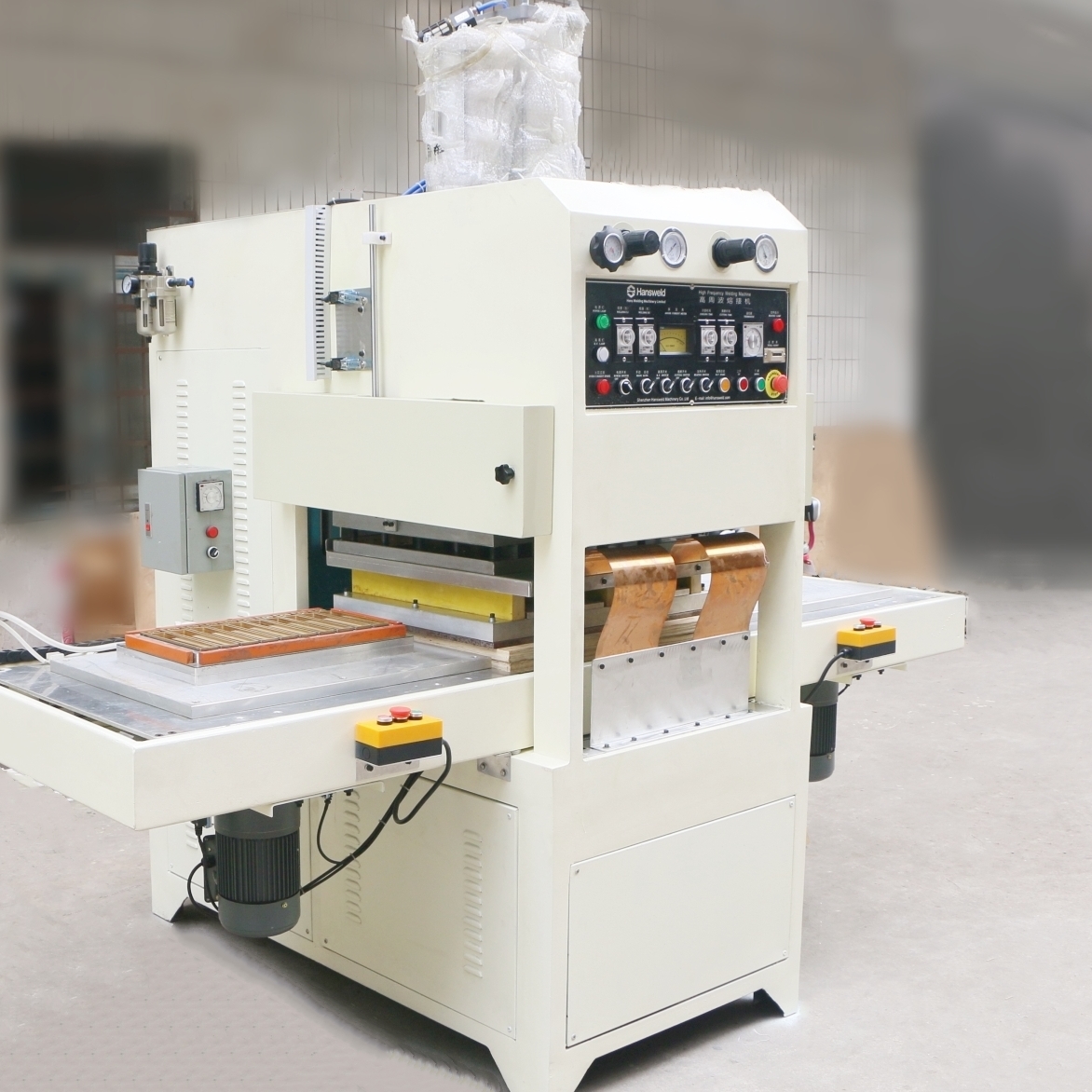

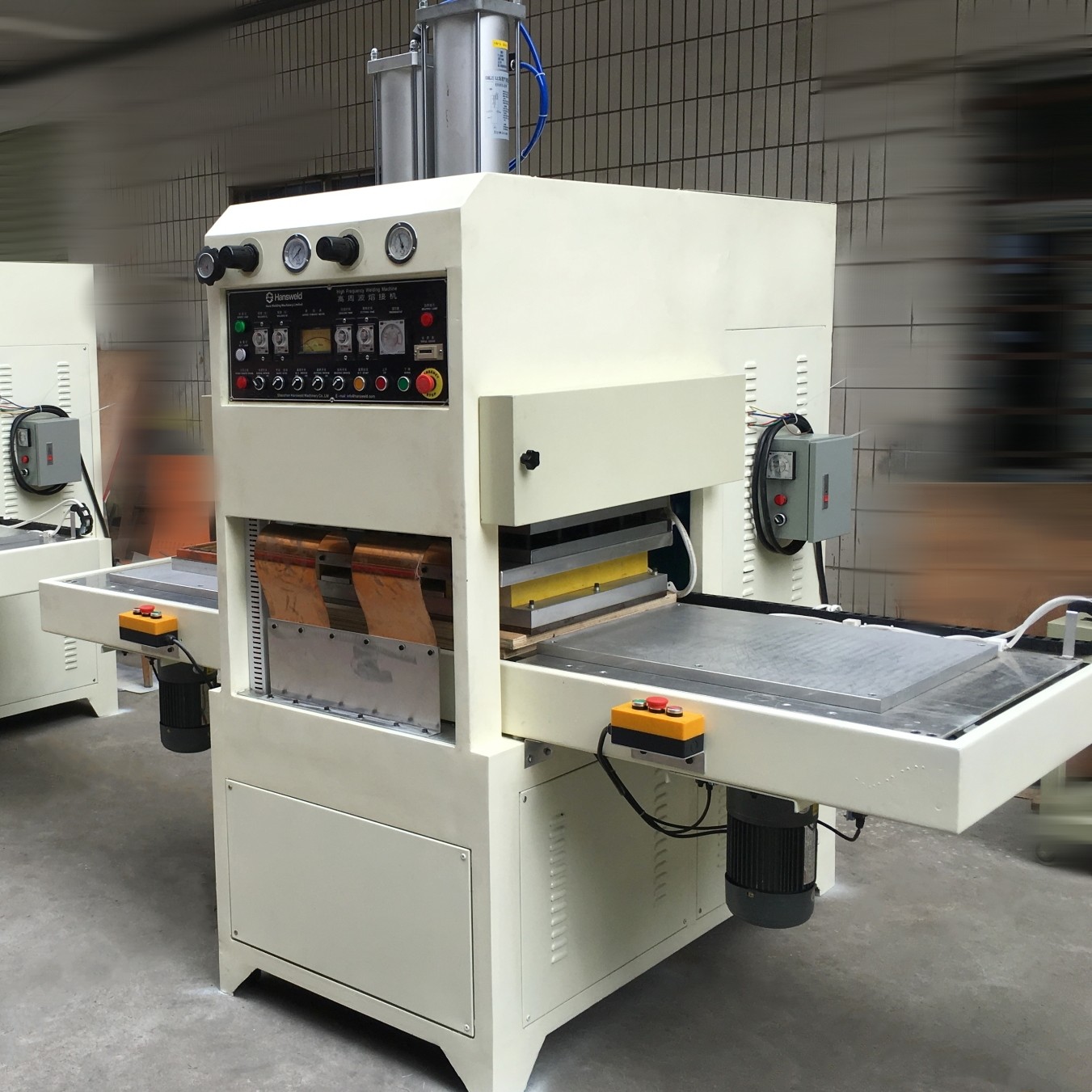

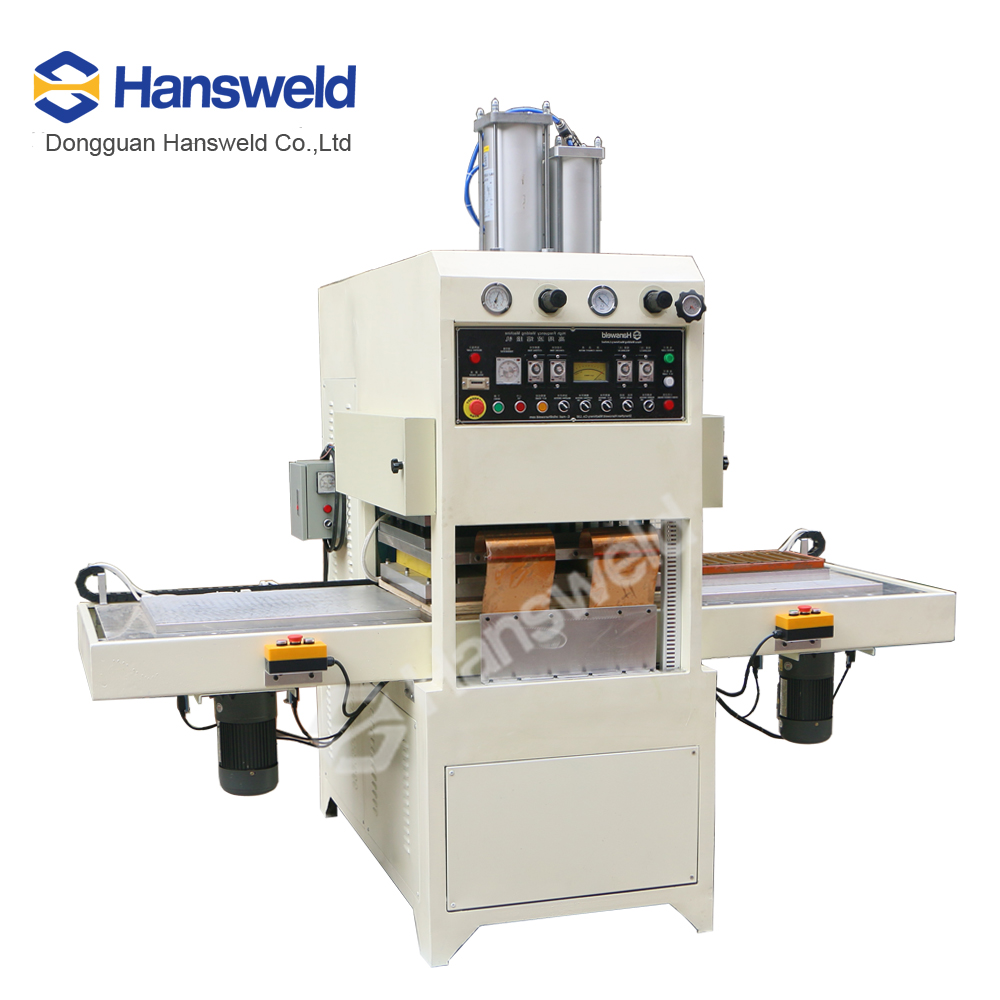

HSD-12KW-45T High-speed Rotating Plastic Packaging Blister Sealing Machine
HSD-12KW-45T High-speed Rotating Plastic Packaging Blister Sealing Machine
HSD-12KW-45T High-speed Rotating Plastic Packaging Blister Sealing Machine

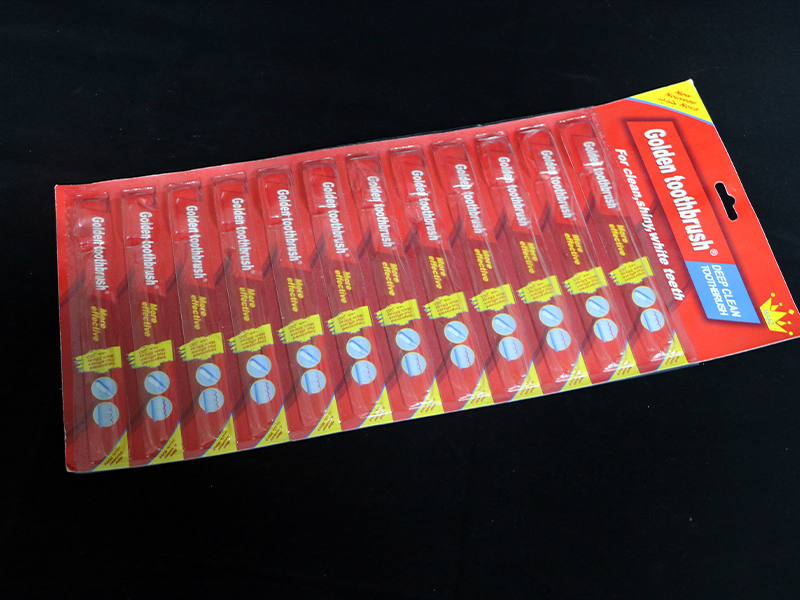

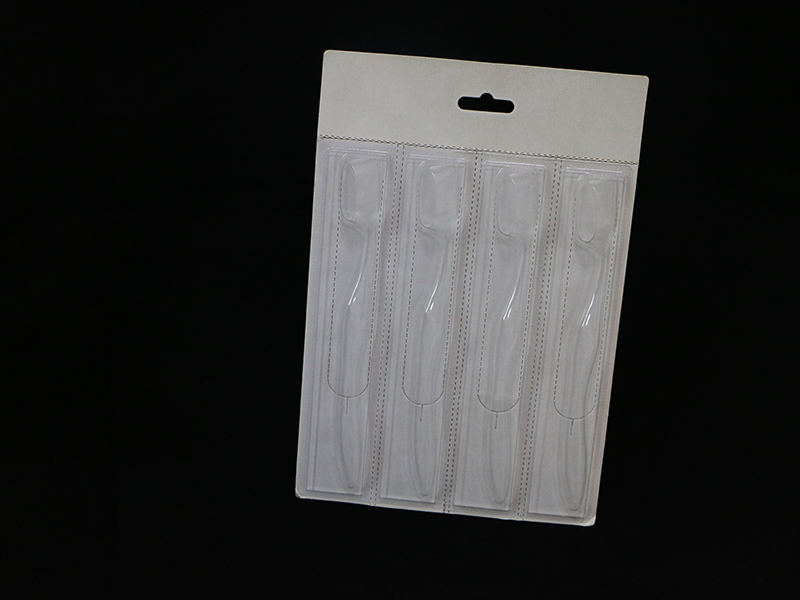

Blister packaging thermal sealing

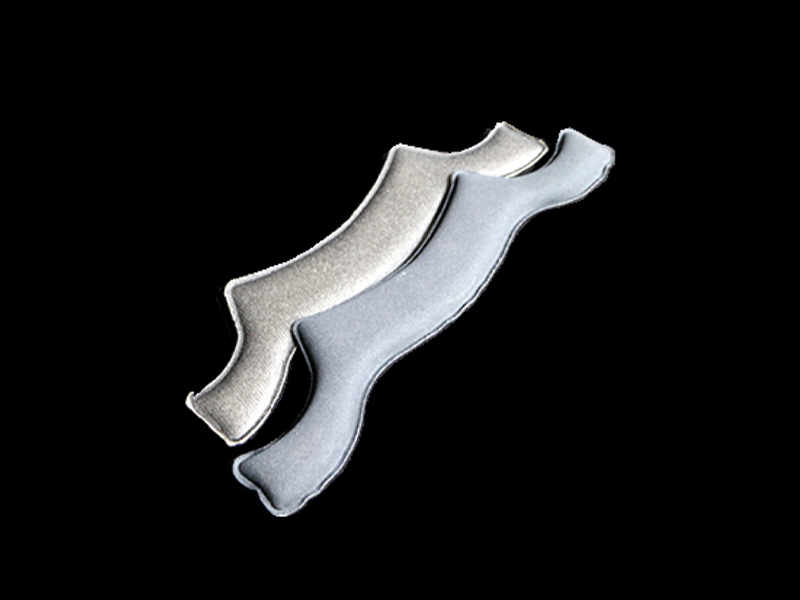

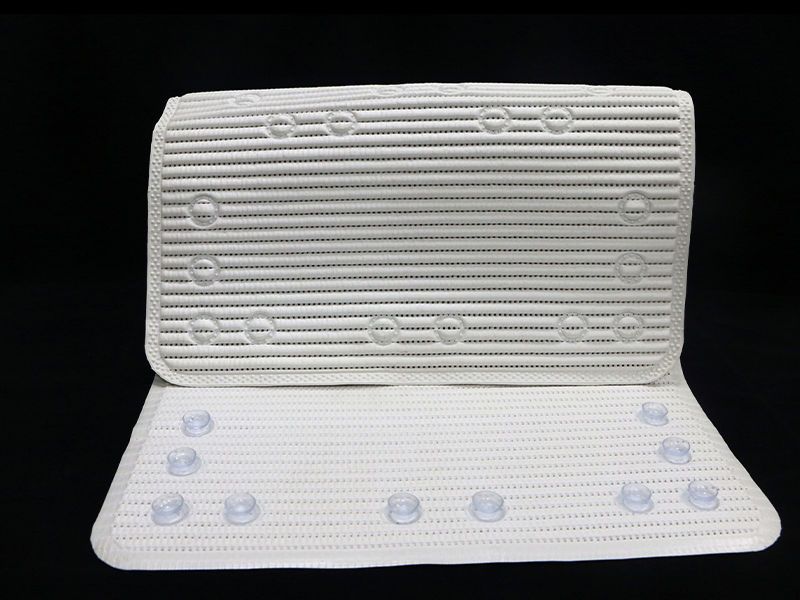

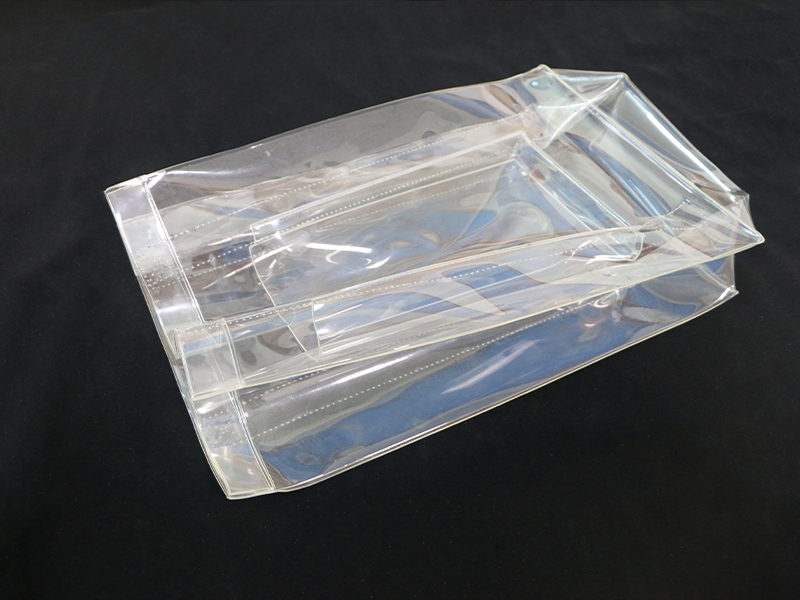

(including PVC upper and lower bubble shell thermal sealing, paper card and bubble shell thermal sealing); Trademarks, stationery, plastic covers, blow toys, footwear products, raincoats, leather goods, portable soft bags

And other pure PVC, TPU, EVA or containing more than 10% PVC products thermal processing;All kinds of concave and convex shape of the pattern pattern, alphabet text pressing.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

This machine belongs to high frequency equipment, which is generated by electronic tube self - excited oscillator.


The processed object is pressed between the upper and lower electrodes with high frequency electromagnetic field


And the internal molecules are intensified and the high speed motion friction with each other generates heat and melts, so as to achieve the purpose of welding or embossing under the pressure of the mold



>High Q value Oscillator



>Stable and reliable in sealing power output


>High Sensitive Arc-Suppresso



>Prevent the mould from damage


>CE rated and High Quality components are adopted




ModelHSD- 12KW-45T
Power12KW
Power Supply380V *3P *50HZ
Frequency27. 12MHz
Input power20KVA
RectifierSILICON DIODE
Oscillation tubeE3013
Max pressure45T
Gap of electrodes200MM
Cylinder Stroke100MM
Size of upper electrode400*600MM
Max Welding surface each work cycle220c ㎡
Welding time0~ 10S Adjustable
