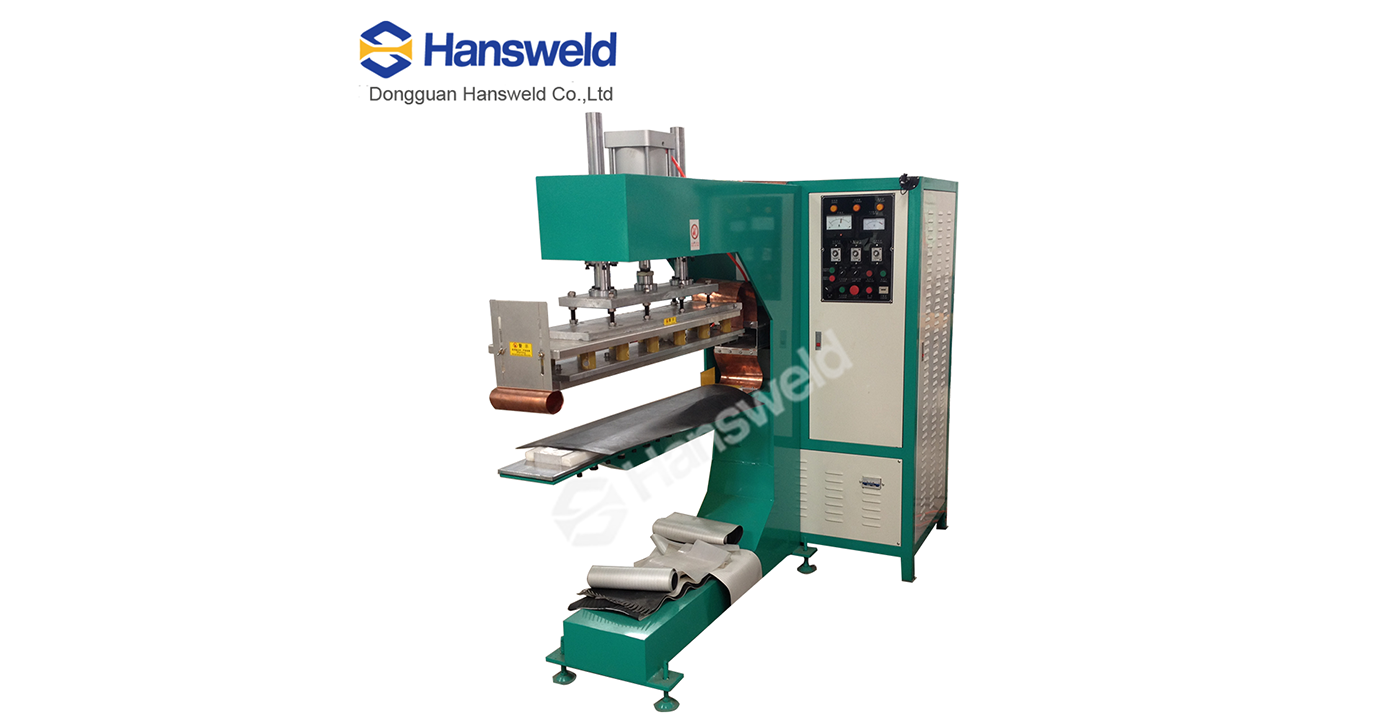

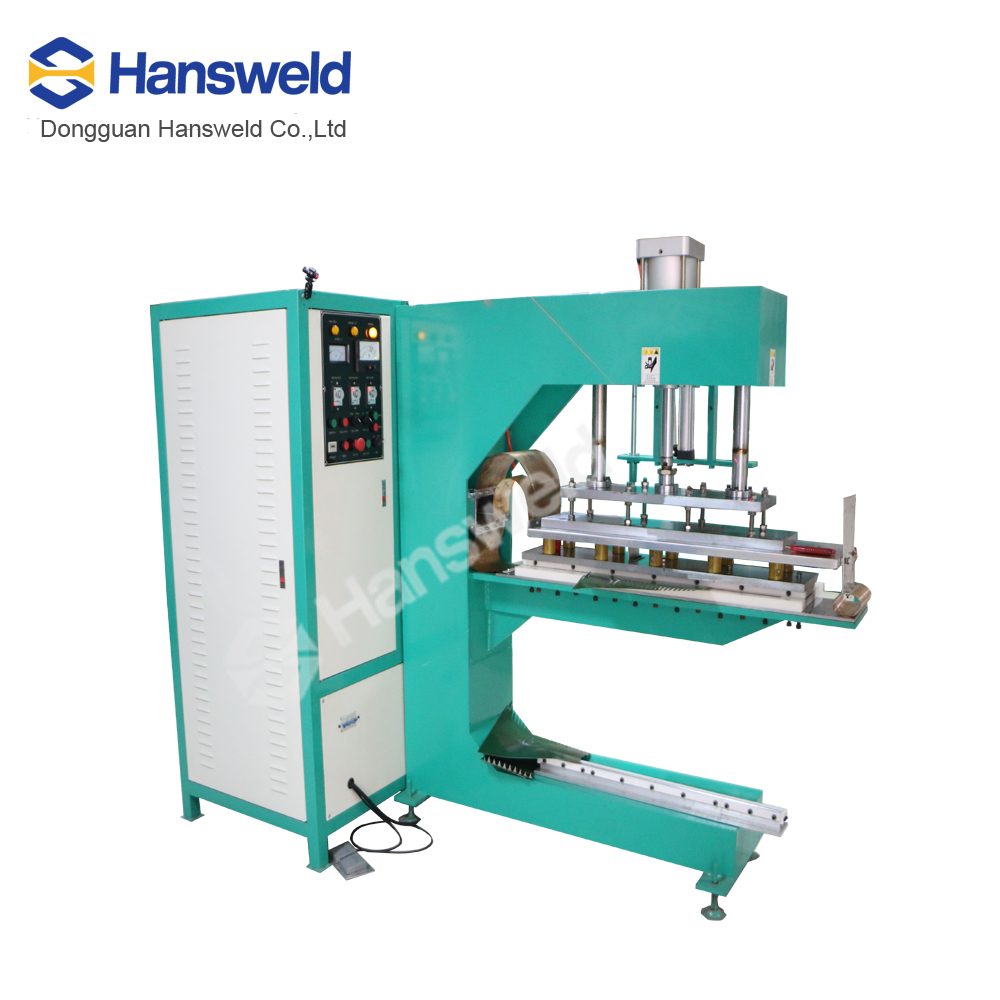

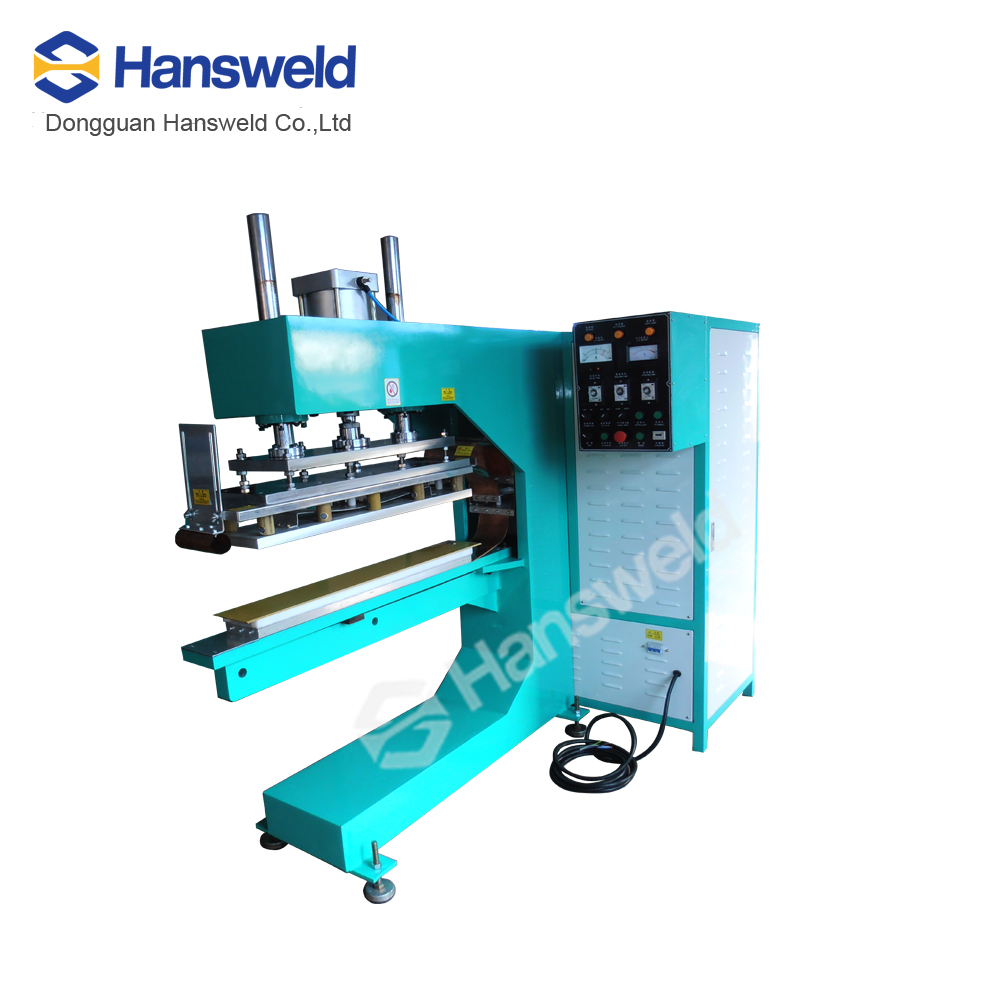

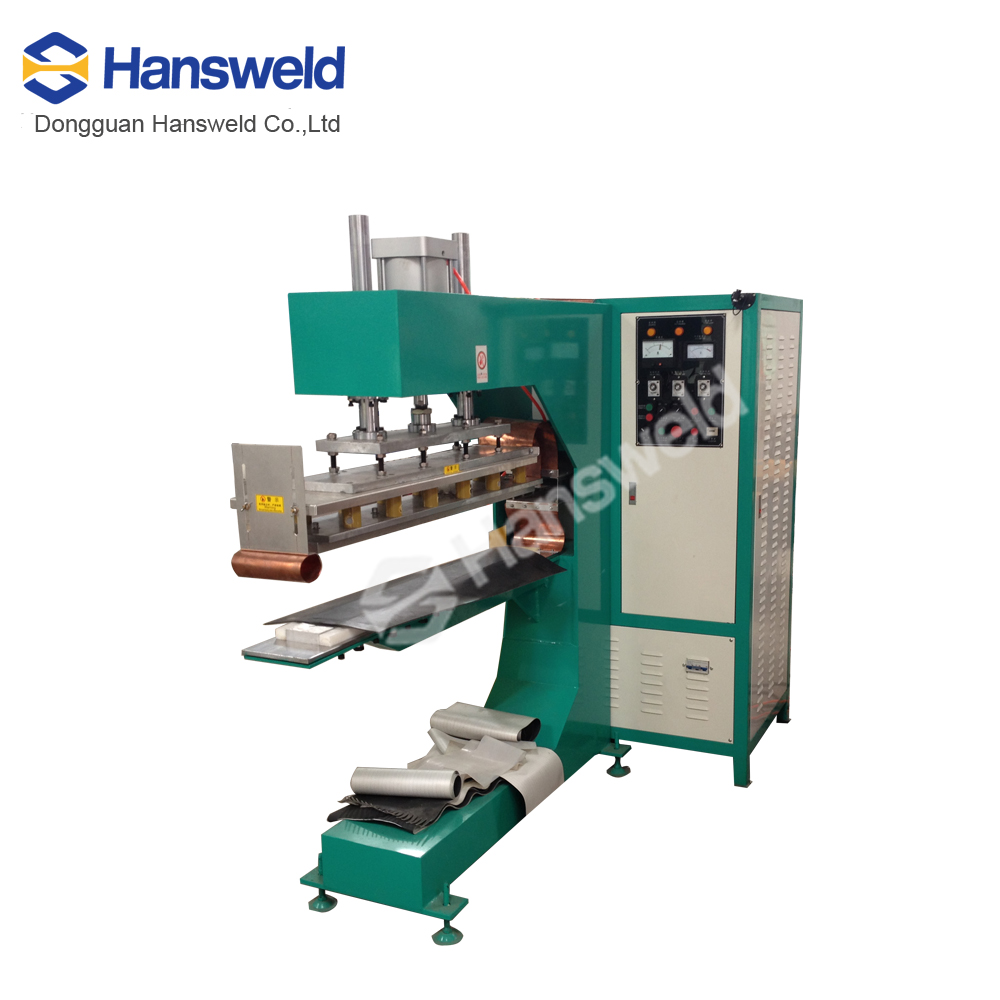

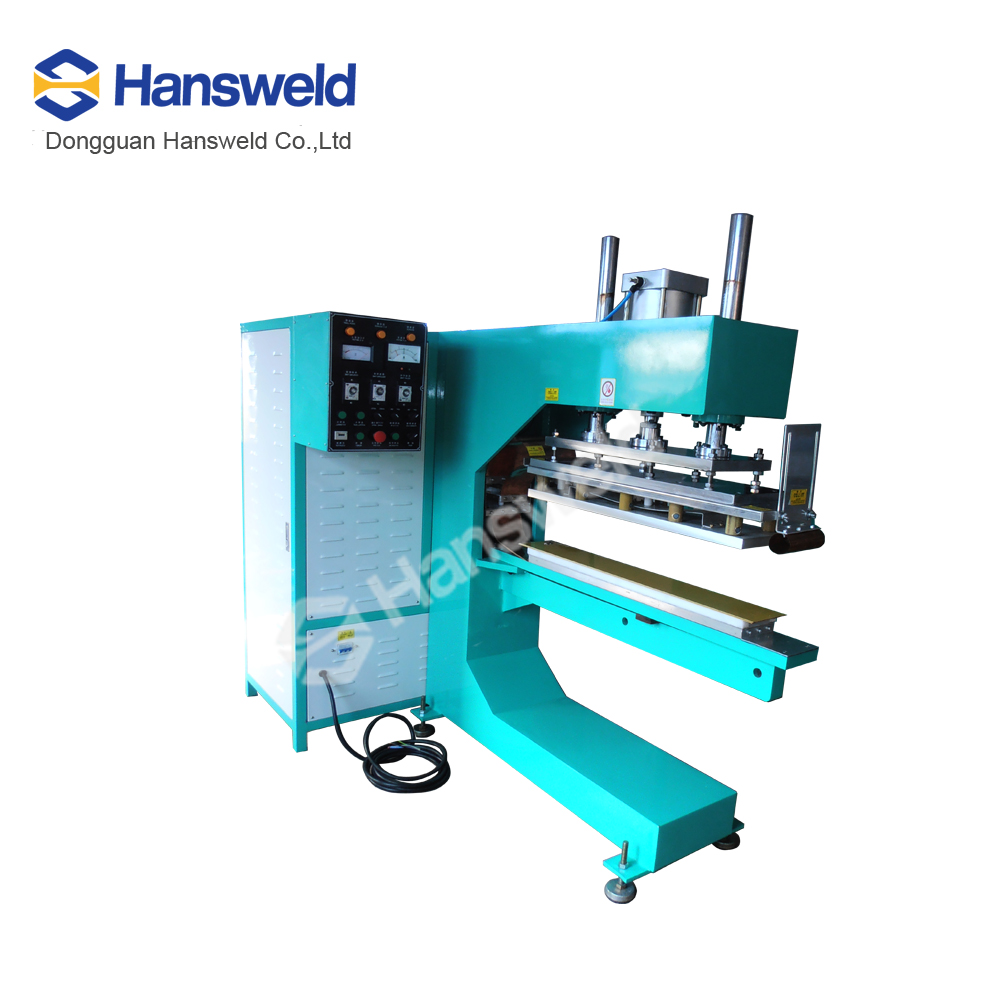

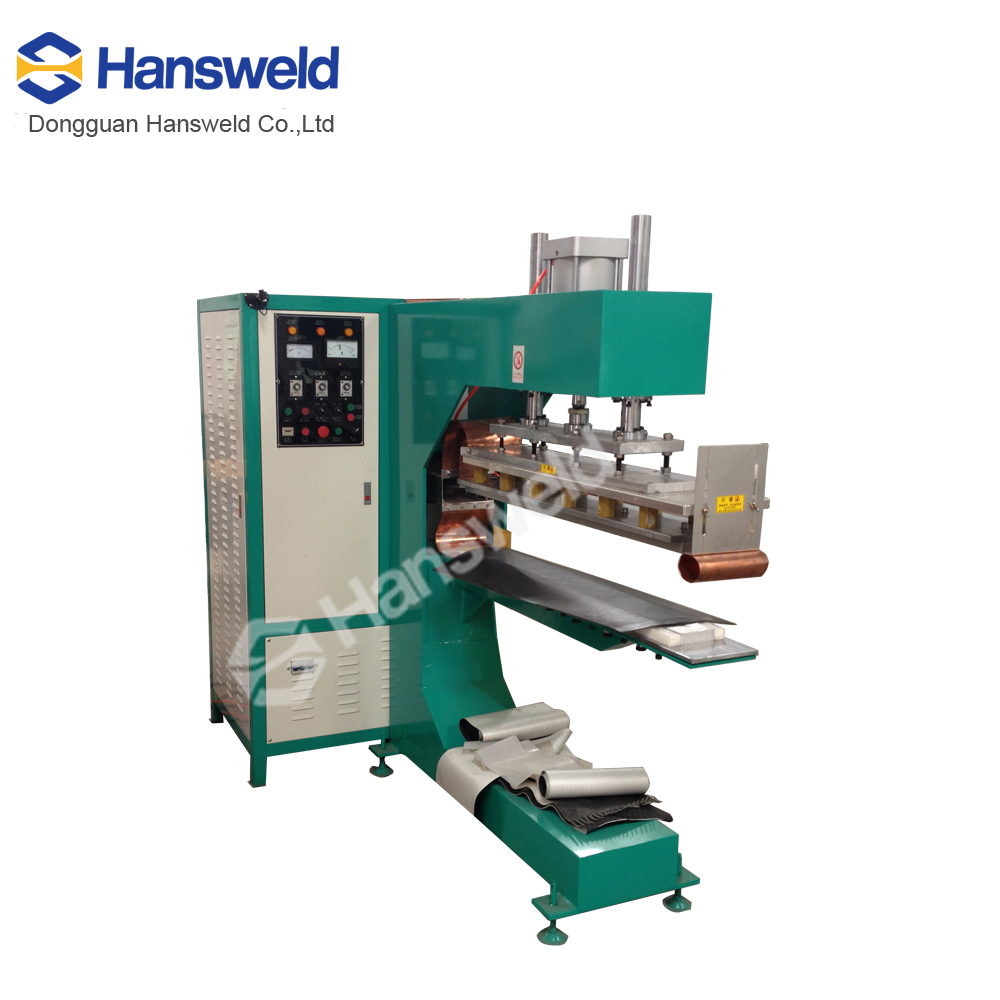

PVC TPU Conveyor Belt HF Welding Machine HSD-12KW
PVC TPU Conveyor Belt HF Welding Machine HSD-12KW
PVC TPU Conveyor Belt HF Welding Machine HSD-12KW
Industrial belt welding machine equipment is suitable for: skirt baffles, front guide bars, reinforced baffles, and PU for belt wrapping.

PVC TPU Conveyor Belt HF Welding Machine
HF Conveyor Belt Welder
PVC Belt Cleat Guide Welding Equipment PVC Treadmill Equipment
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

The high-frequency welding machine with skirt and baffle for running is designed based on product characteristics. The conveyor belt has a certain width, and the upper plate can also be used for welding of longer specifications.


1.High frequency running belt welding machine specilize for fixed sidewall , cleat and baffle.


2.Firmly welding, be well meeting with materials of thickor thin PVC,PU,PET or many other plastic products.


3.Specilize for connecting treadmill belt (running belt)、Conveyor belt 、Timing belt welding machine.



Model  HSD -12KW
Supply Voltage380V
Frequency27.12 Mhz
Input Power 20KVA
Rectifier TubeSilicon Diode
Electron Tube E3010
Maximum Pressure800KG
Electrode Stroke150MM
Maximum Electrode Spacing150MM
Upper Electrode Size500*700MM
Size of Platform Board1150*800MM
