It is suitable for all kinds of PVC,PET,PP,CPP,OPP plastic sheet, rubber magnetic sheet, paper magnetic sheet, paper, leather, sizing cloth, self-adhesive paper, trademark paper, copper foil, metal foil and other whole roll film to flatten, slice, strip, winding, laminating etc.

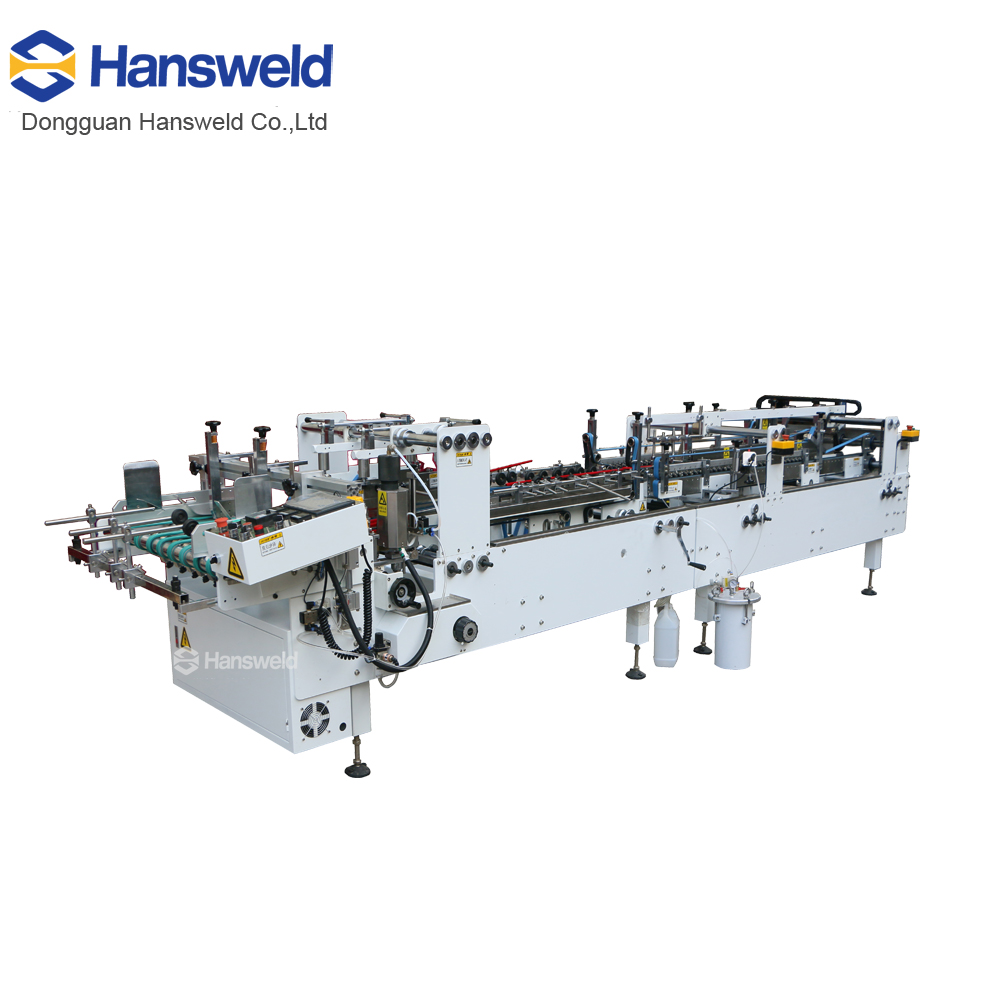

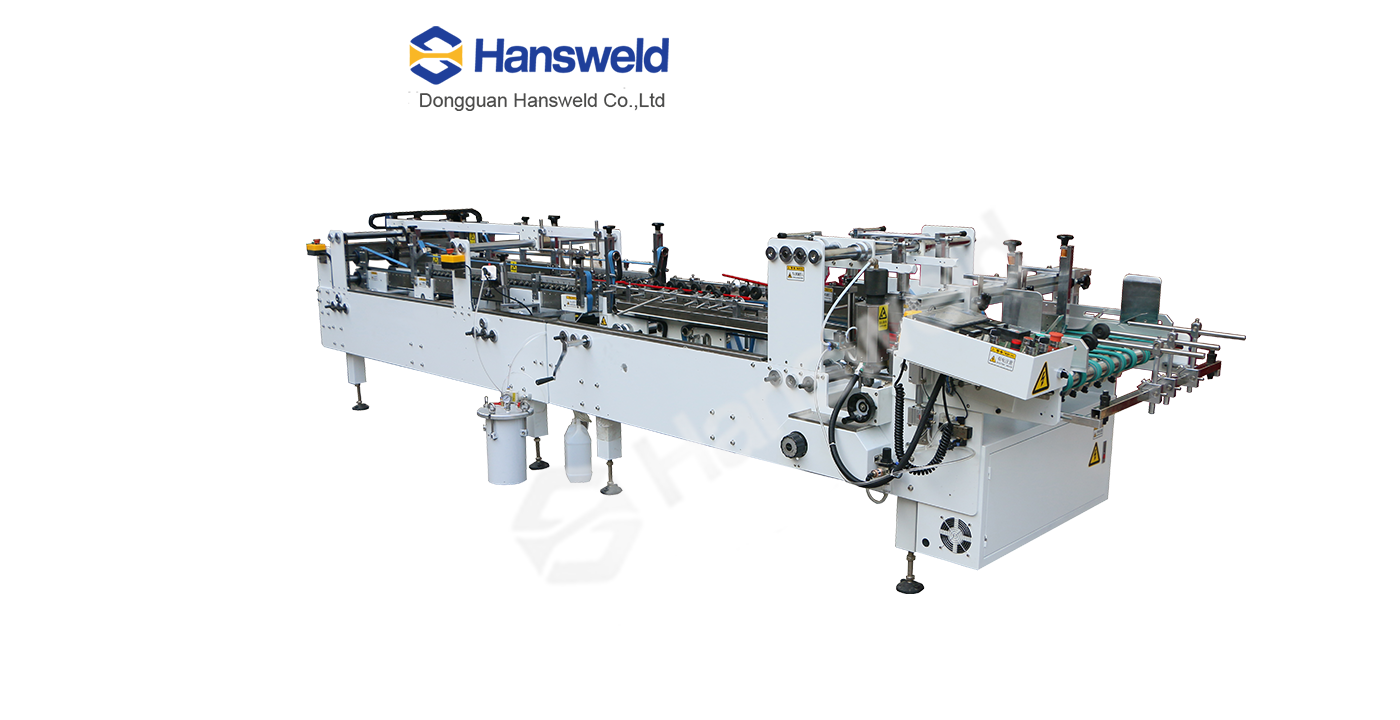

| Machine type | HSD-780MM automatic glue box gluing machine |
| motor | Taiwan Shengbang |
| Solenoid valve | American MAC |
| Frequency converter | Panasonic of Japan |
| Supply voltage | 380V 50-60Hz |
| Total power | 4500W |
| relay | Japanese Omron |
| PL | Panasonic |
| Maximum sticky box (unfolded) | A-60-780mm |
| Minimum sticky box (unfolded) | B-50-1300mm |
| Machine length | 6500mm |
| Machine height | 1100mm |
| Machine width | 1300(1500)mm |
| Maximum gas consumption | 0.7m /min |
| Gross weight | 3000KG(approx.) |
| Applicable material | PVC/PET/PP plastic transparent |
PET plastic box is made of electronic sensors, spray device, only after the box, will spray glue, very save glue. The adhesive pvc box is transparent and flawless, the size of any adjustment is easy to operate, economic and practical. Adopt man-machine and PLC operating system, equipped with photoelectric induction can stick 1-3.2-4 lines, stick inside and stick outside function, spray glue section is specially designed, using fine tuning control adjustment precision, using circulation device control and recovery of glue
