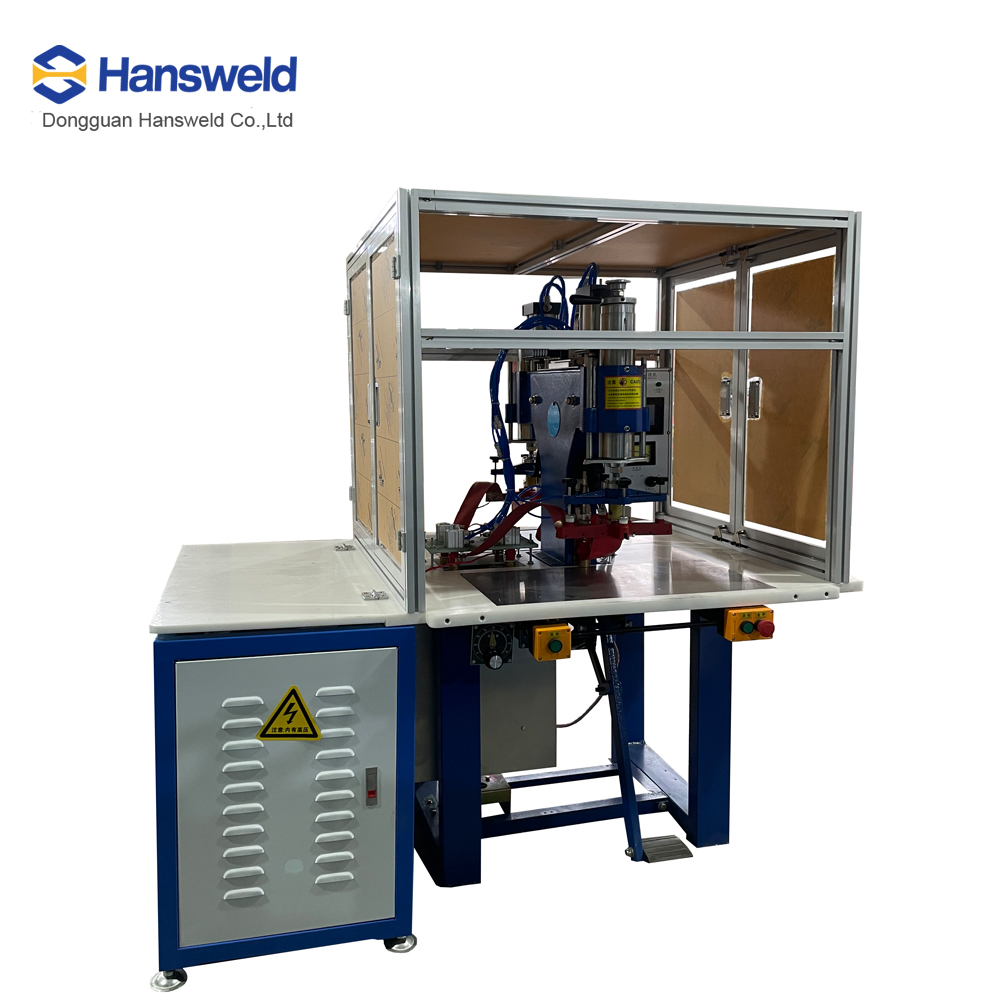

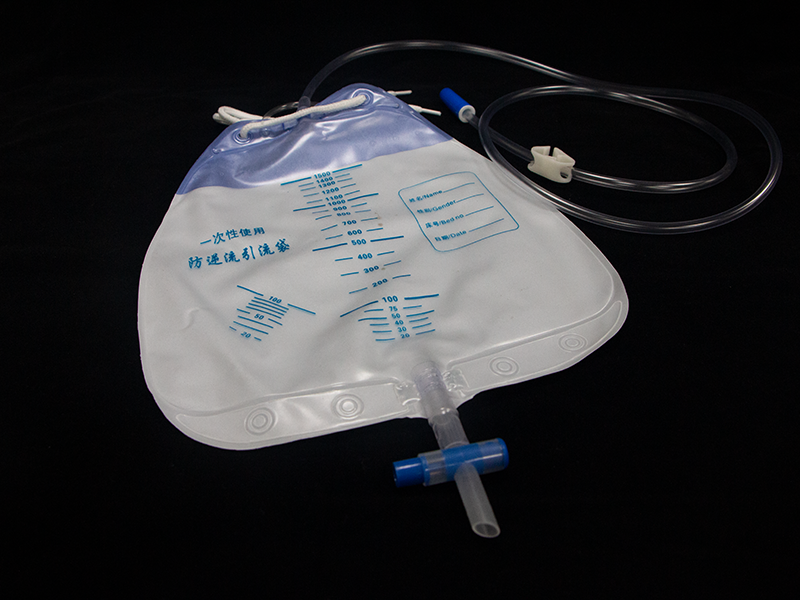

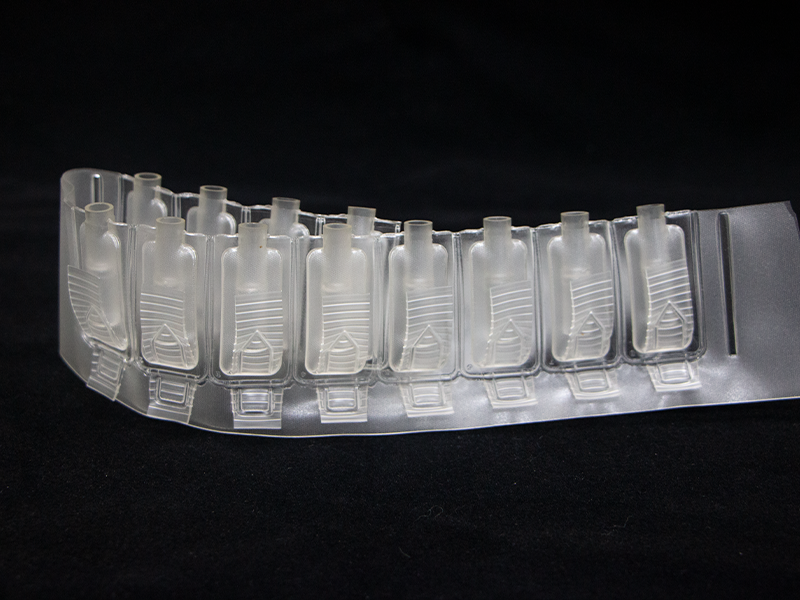

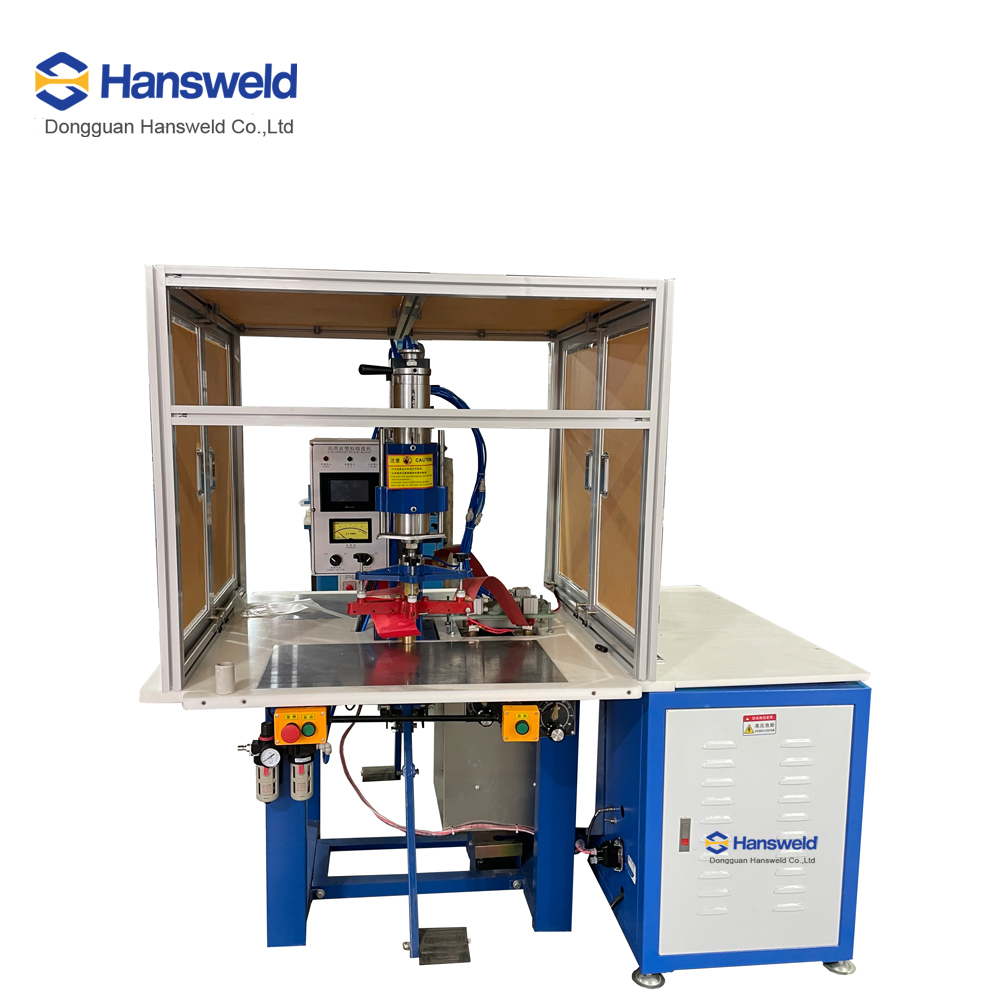

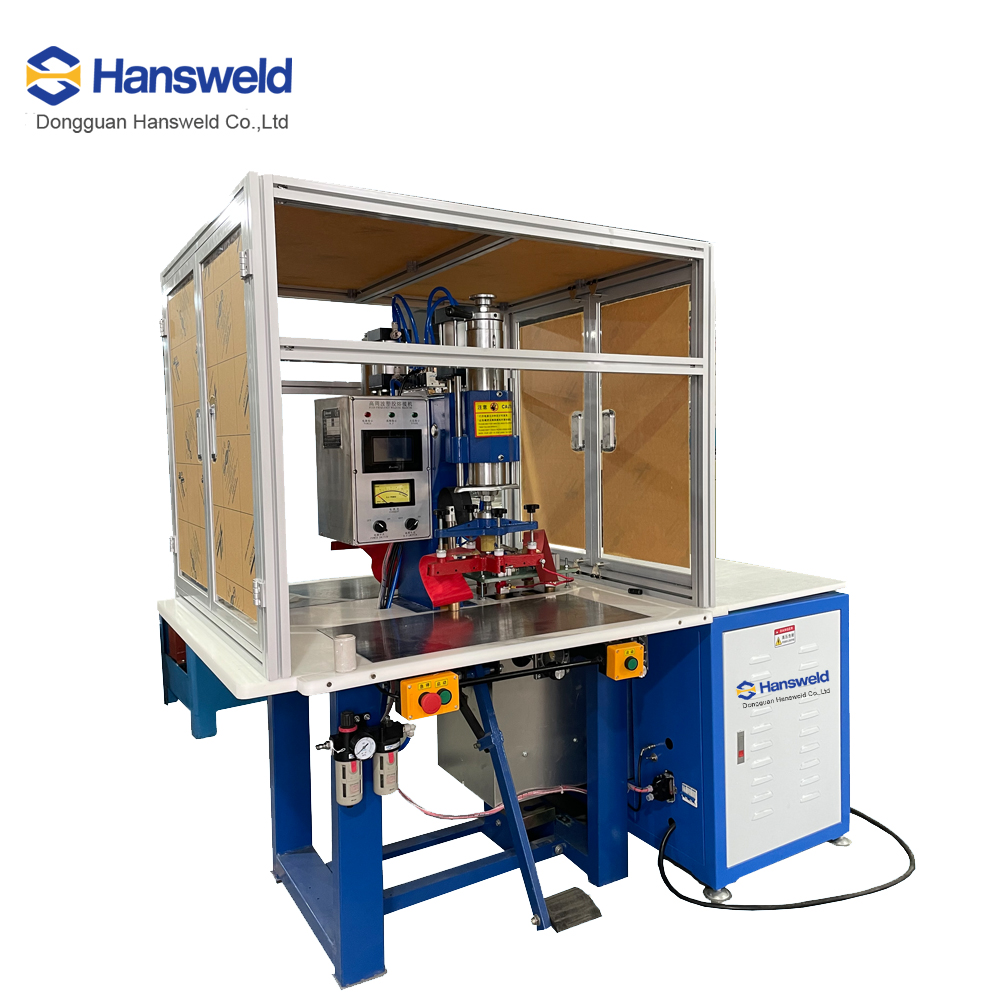

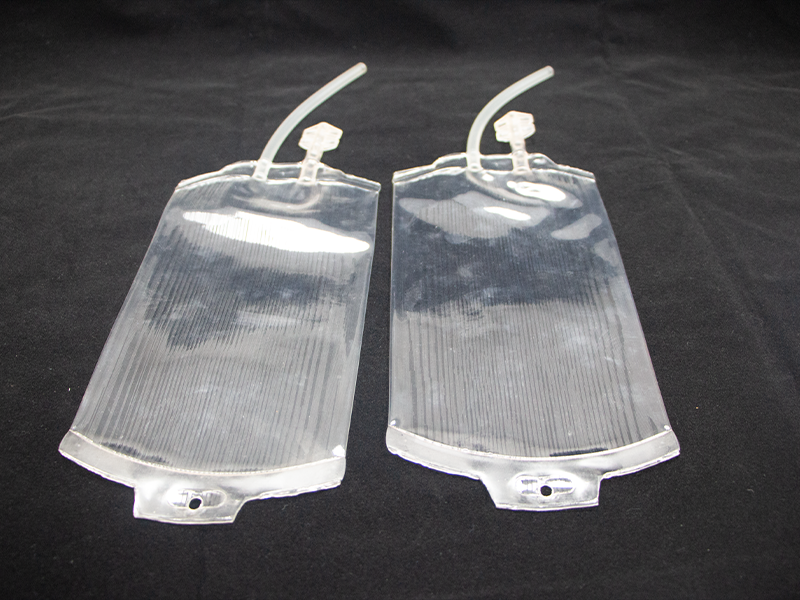

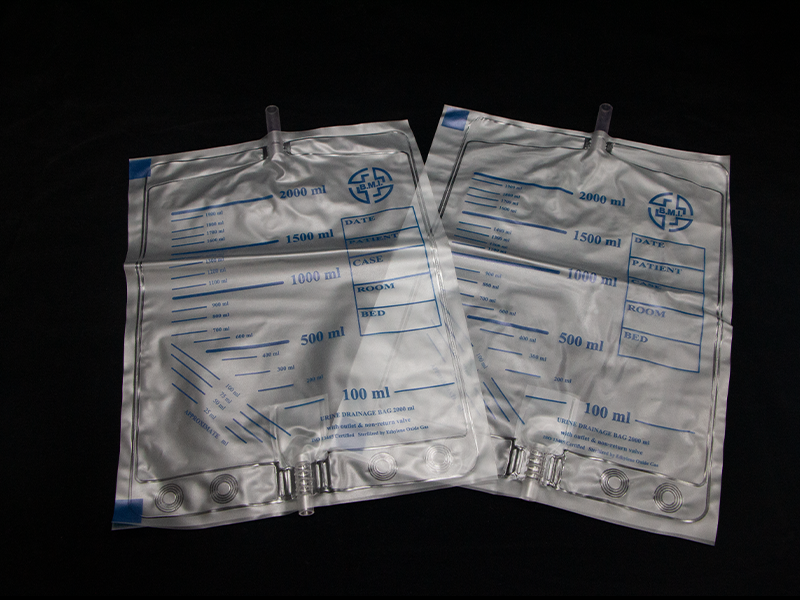

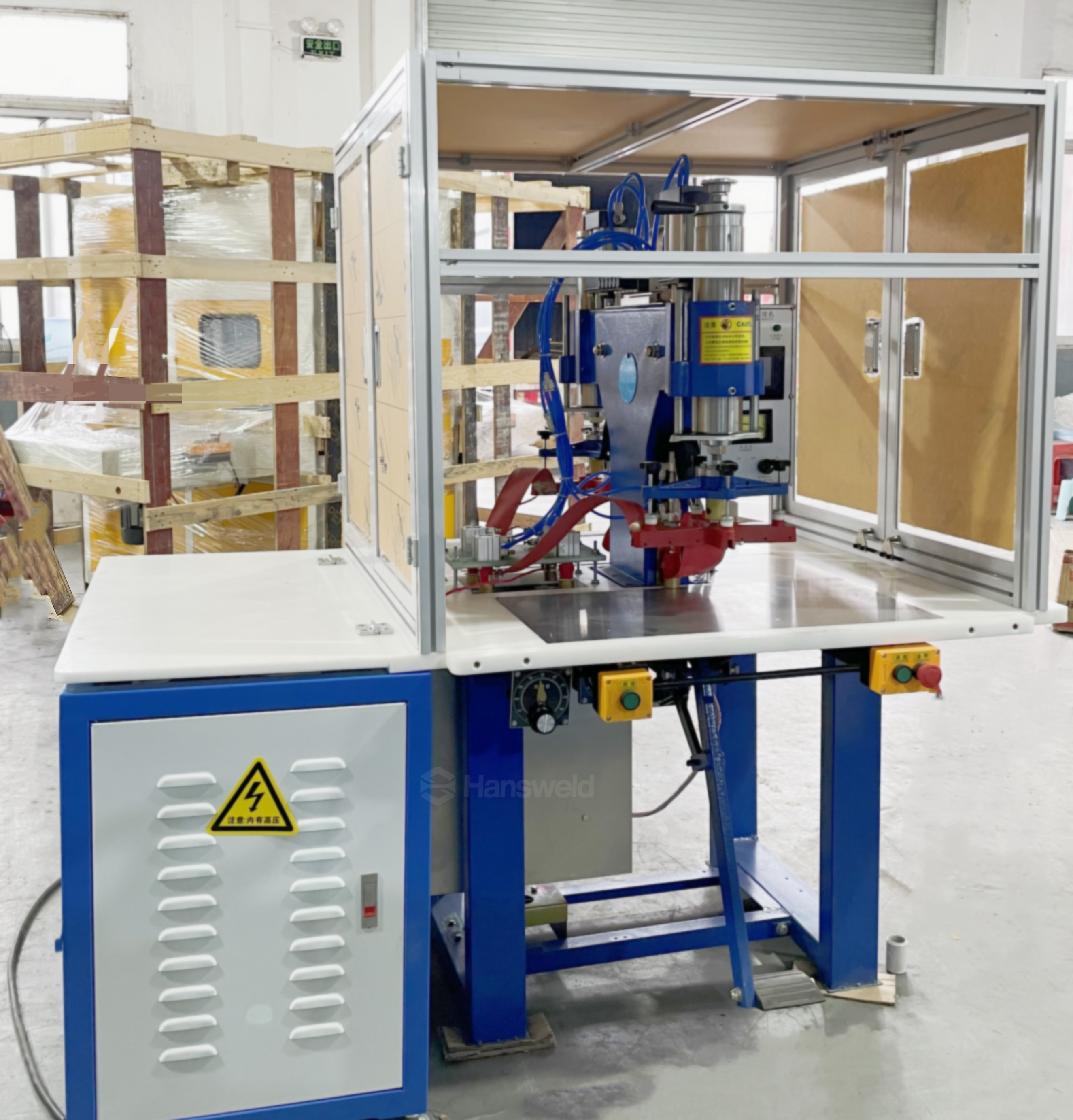

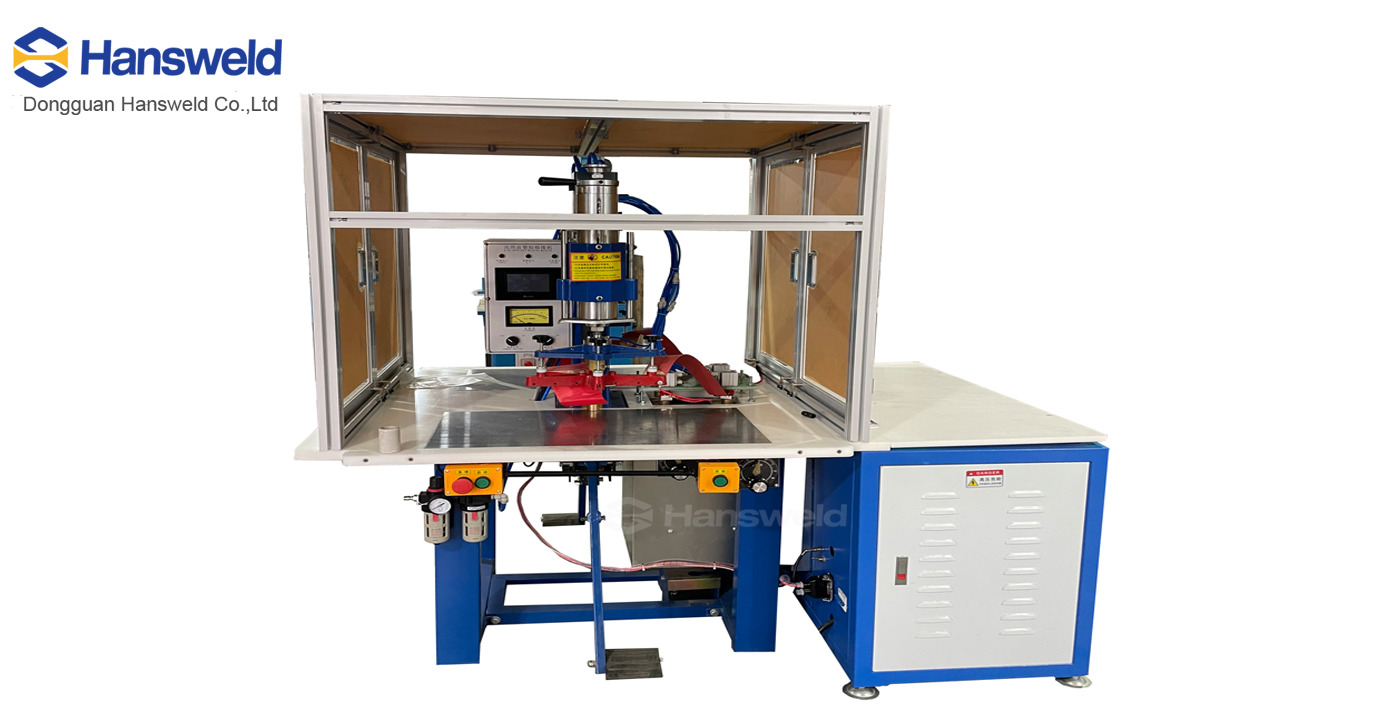

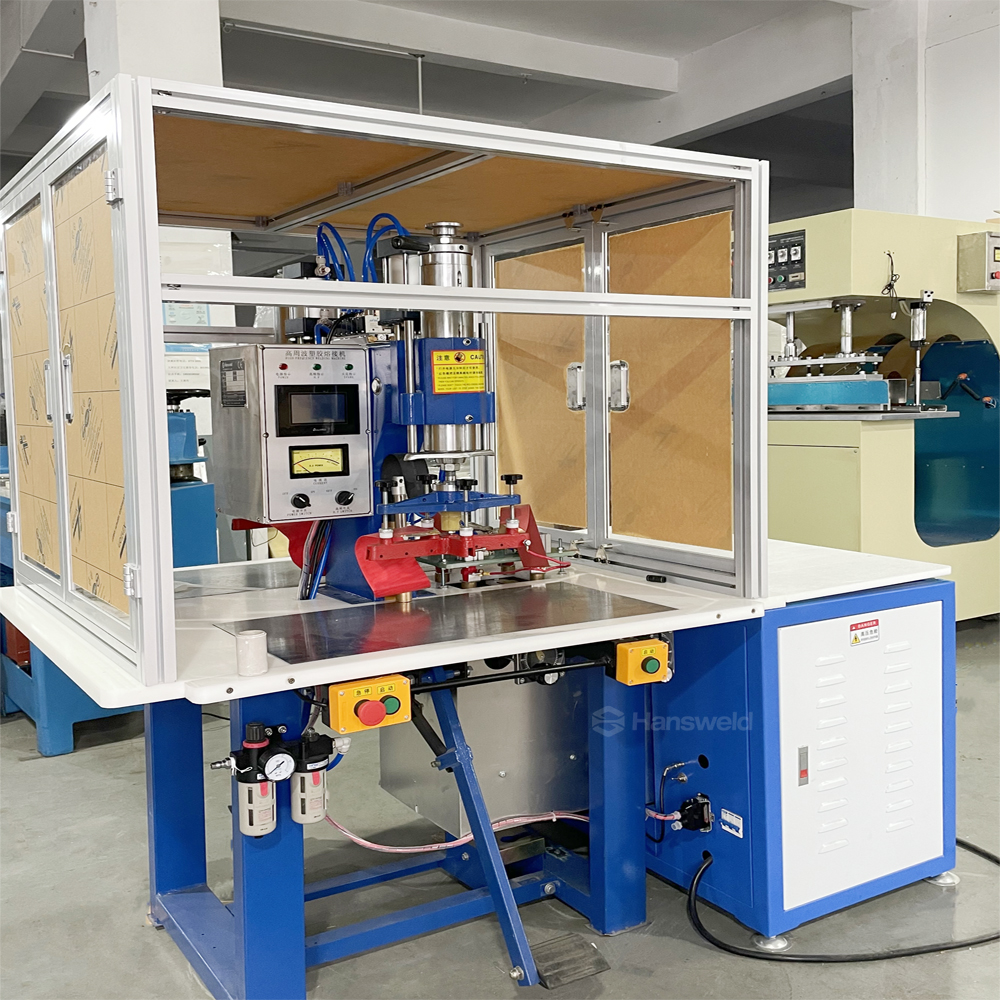

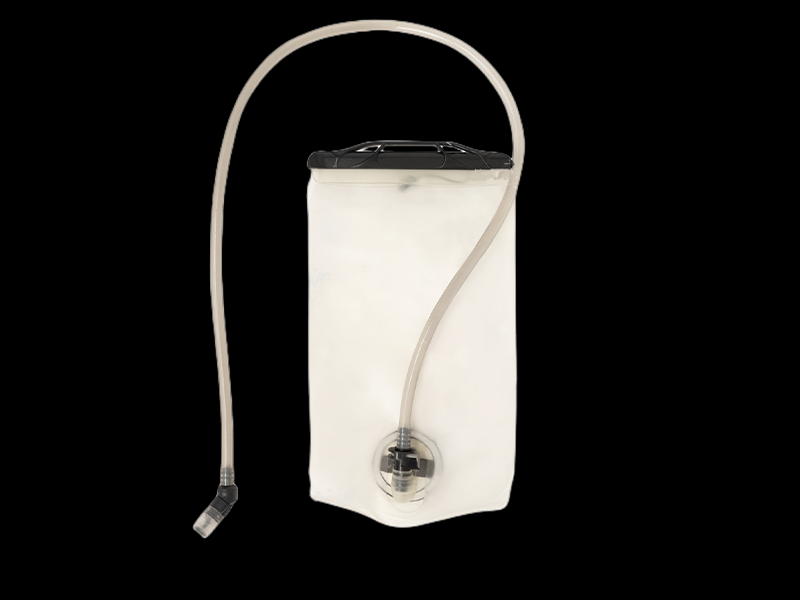

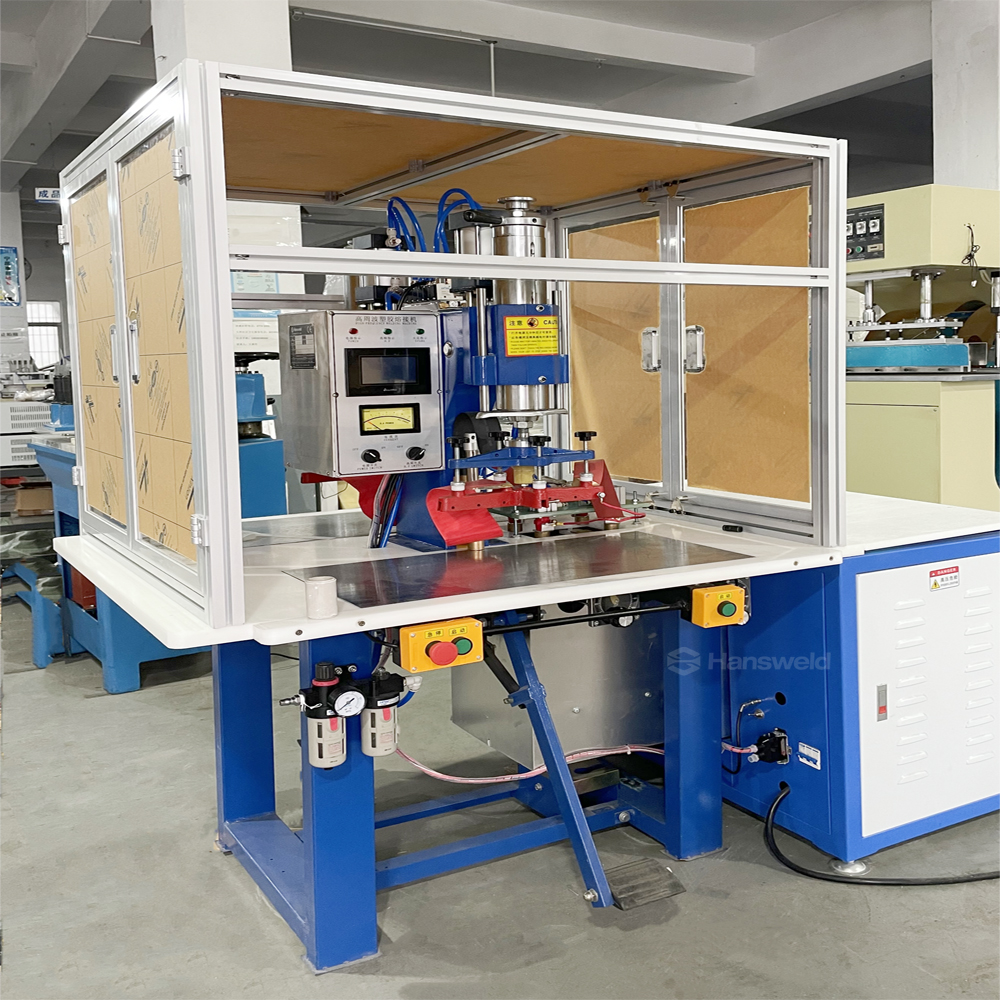

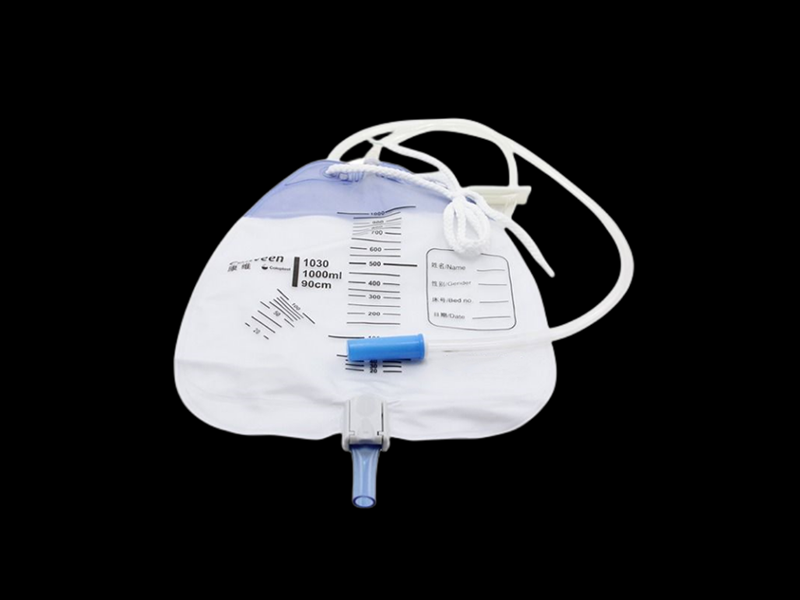

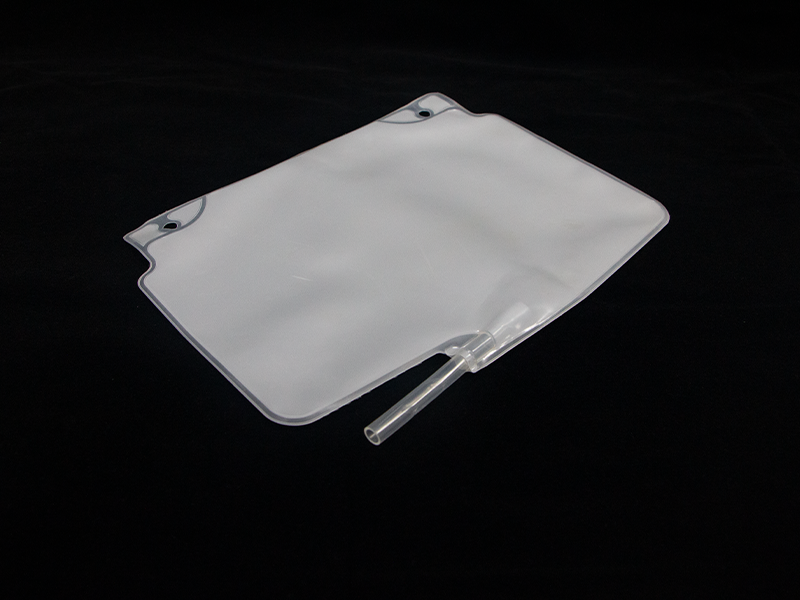

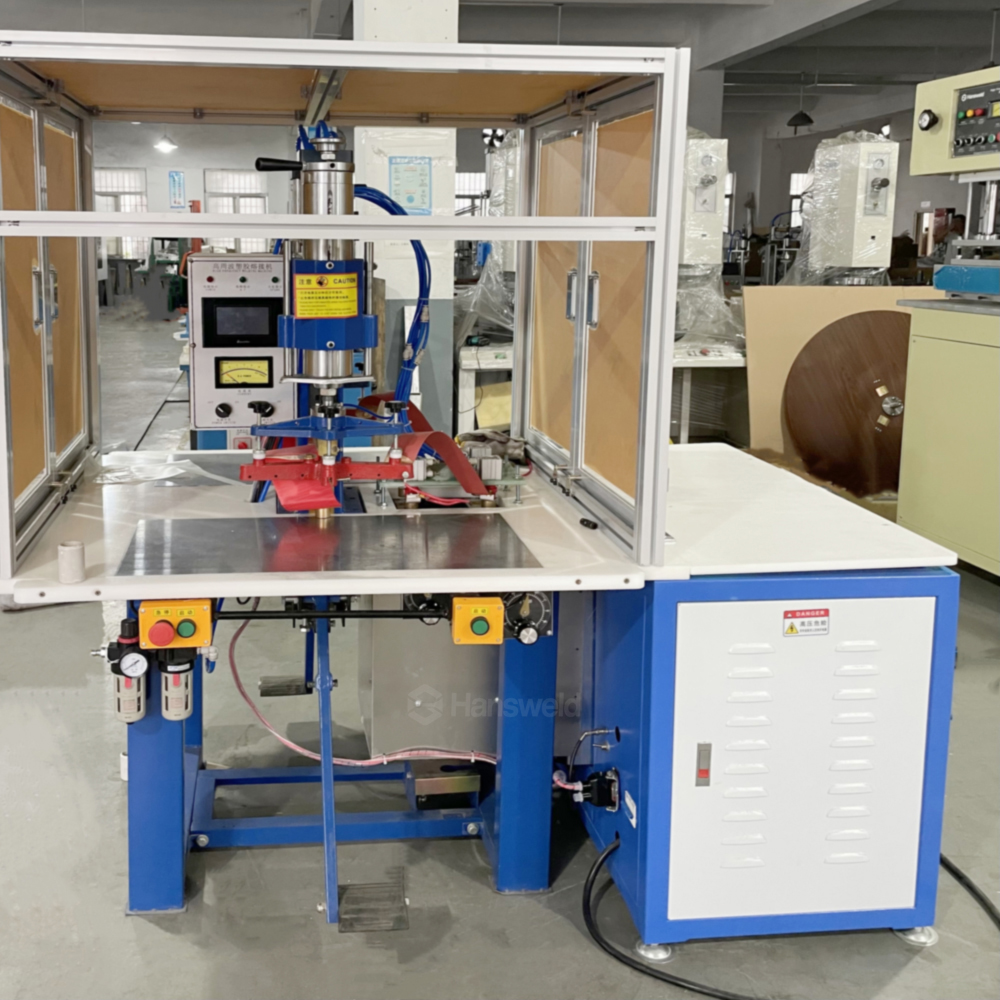

High frequency medical bag welding machine is widely used in medical industry, such as: medical infusion bag, medical blood transfusion bag, medical catheterization bag, irrigation bag, drainage bag, leg bag and other disposable medical supplies bags.
1. PLC program control system, precisely control machine action, simplify operate
2. It adopts high-sensitivity anti-spark device NL5557, making good quality PVC medical bag;
3. Shuttle-way automatic sliding table, reciprocating continuous feeding welding, accurate positioning.
| POWER Range : | 5KW |
| Input Power: | 8KVA |
| Suitable Welding Area | 100CM2 |
| Oscillation Tube | 7T85RB |
| Standard working table | 350*700MM |
| Power Supply | 3P * 380V * 50Hz & 3P * 220V * 60Hz |
| Working Frequency | 27.12Mhz |
| Rectifier | Silicon Diode |
| Drive Mode | Pneumatic ( Hydraulic optional at additional cost ) |
| Arc suppressor | High Sensibility NL-5557 |
| Suitable Material : | PVC or any fabric contents PVC . |
| Cylinder working stroke | 150mm ( customization offered ) |
| Welding Time | 0-30 S adjustable ( customization offered ) |
