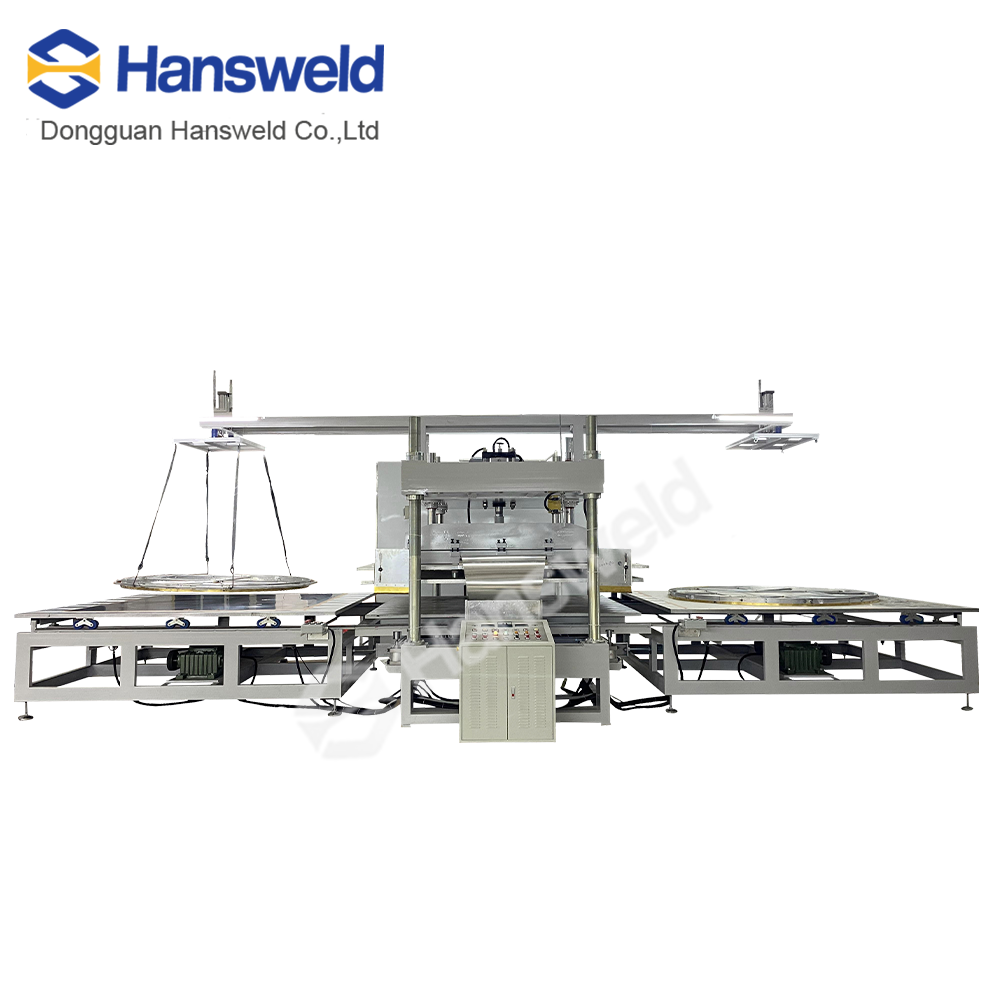

HSD-100KW -LM HF Large Gartry Machine
HSD-100KW -LM HF Large Gartry Machine
HSD-100KW -LM HF Large Gartry Machine
High power high frequency wave machine uses high pressure rectifier self-excited electron tube oscillation instantaneously to generate electromagnetic field to change plastic molecules.

Under the action of pressure external force and mold, it achieves the functions of welding, cutting, sealing, embedding and so on.

The operation is easy to understand and learn, the efficiency is many times of the ordinary small machine, suitable for welding and cutting large plastic products, the process is simpler, the effect is more perfect.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Application

inflating sofa,cushion with embossing,carpet,swimming pool,ait bed,electric hand warmer,PVC folding,etc.


Agriculture
> Automotive industry
Food industry
> Furniture Industry







Pneumatic control, easy to operate; Manual feeding and taking; Welding, cutting perfect fast, high efficiency, good technology; Suitable for large inflatable toys, car MATS, sports products and other products welding cutting.


1.Four-column gantry structure with high precision and good stability;

2. It adopts NL-5557 spark protection system to prevent mold damage;

3.European high -frequency output with strong power;


Type:

HSD-35KW

HSD-50KW

HSD-75KW

HSD-100KW

Frequency:

13.56MHz

13.56MHz

13.56MHz

13.56MHz

Voltage:

3x380V

3x380V

3x380V

3x380V

input power:

58kw

88kw

125kw

160kw

Output power:

35kw

50kw

75kw

100kw

Upper electode:

1800*1000mm

2000*1200mm

2200*1350mm

2300*1500mm

Upper electode:

1900*1050mm

2100*1300mm

2300*1410mm

2400*1600mm
