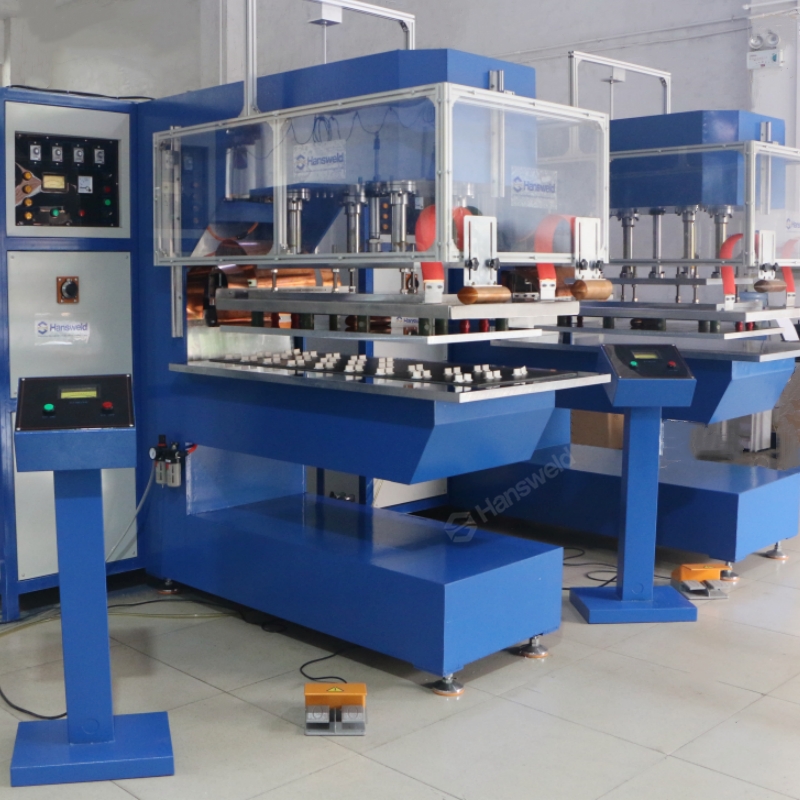

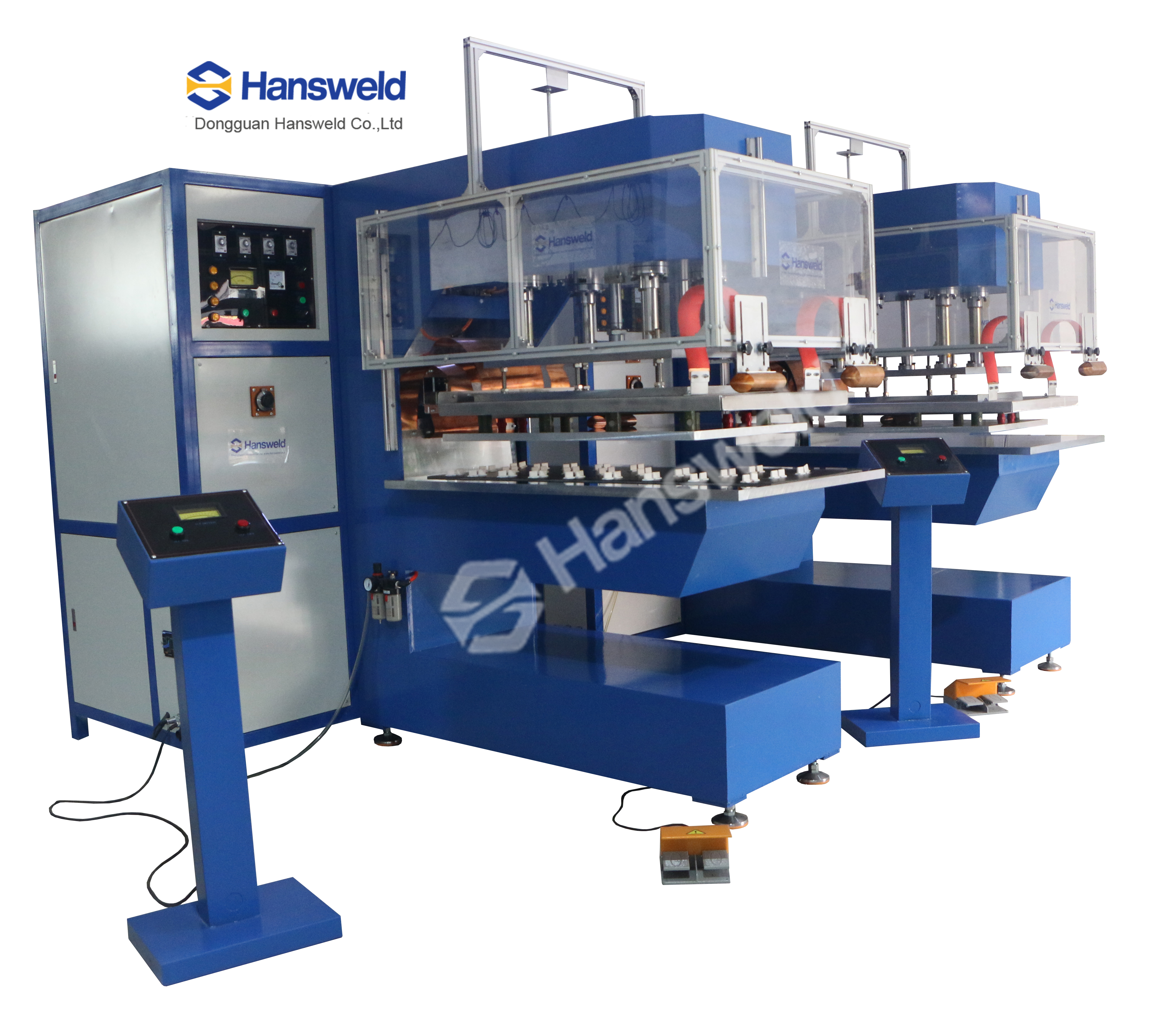

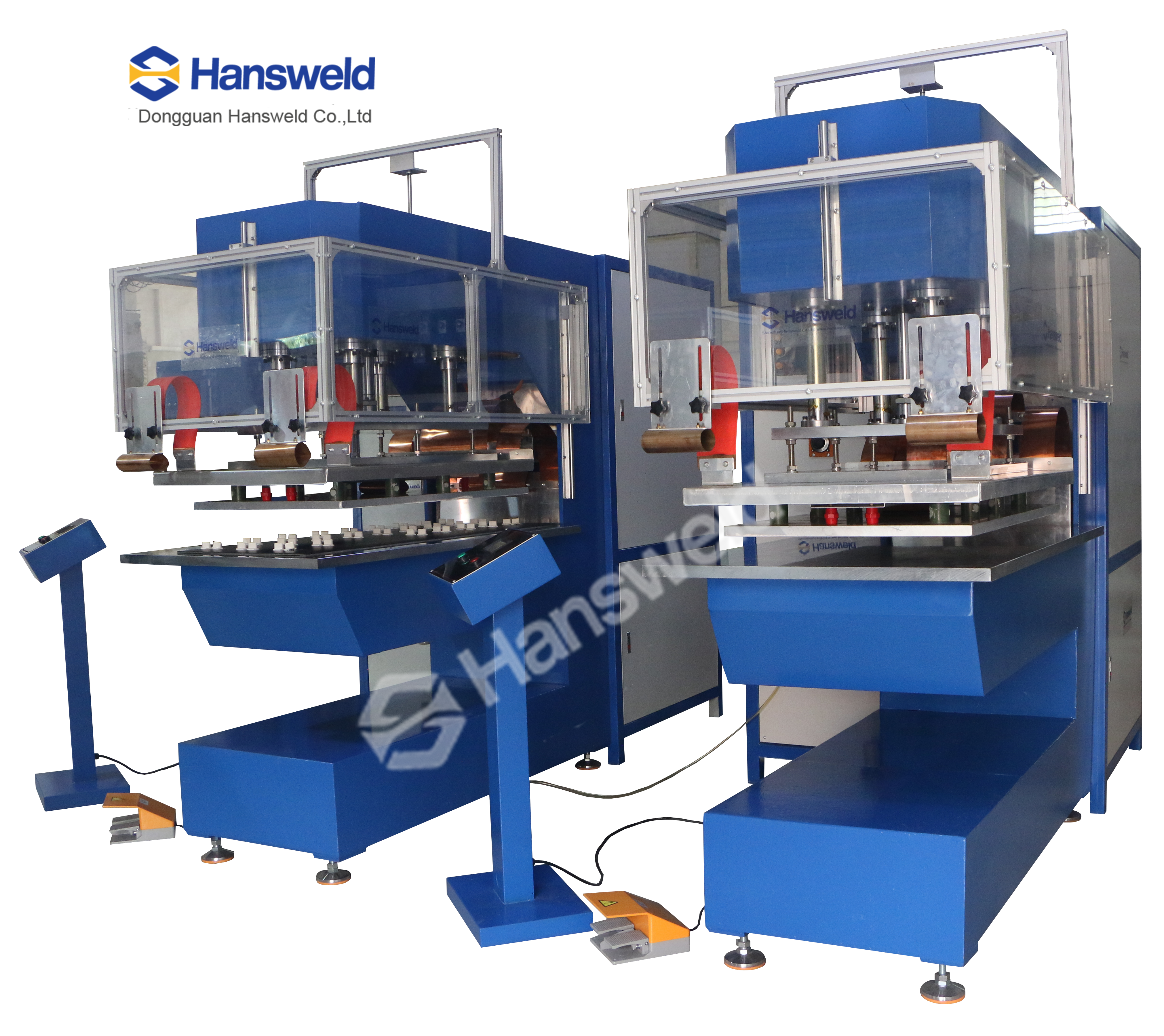

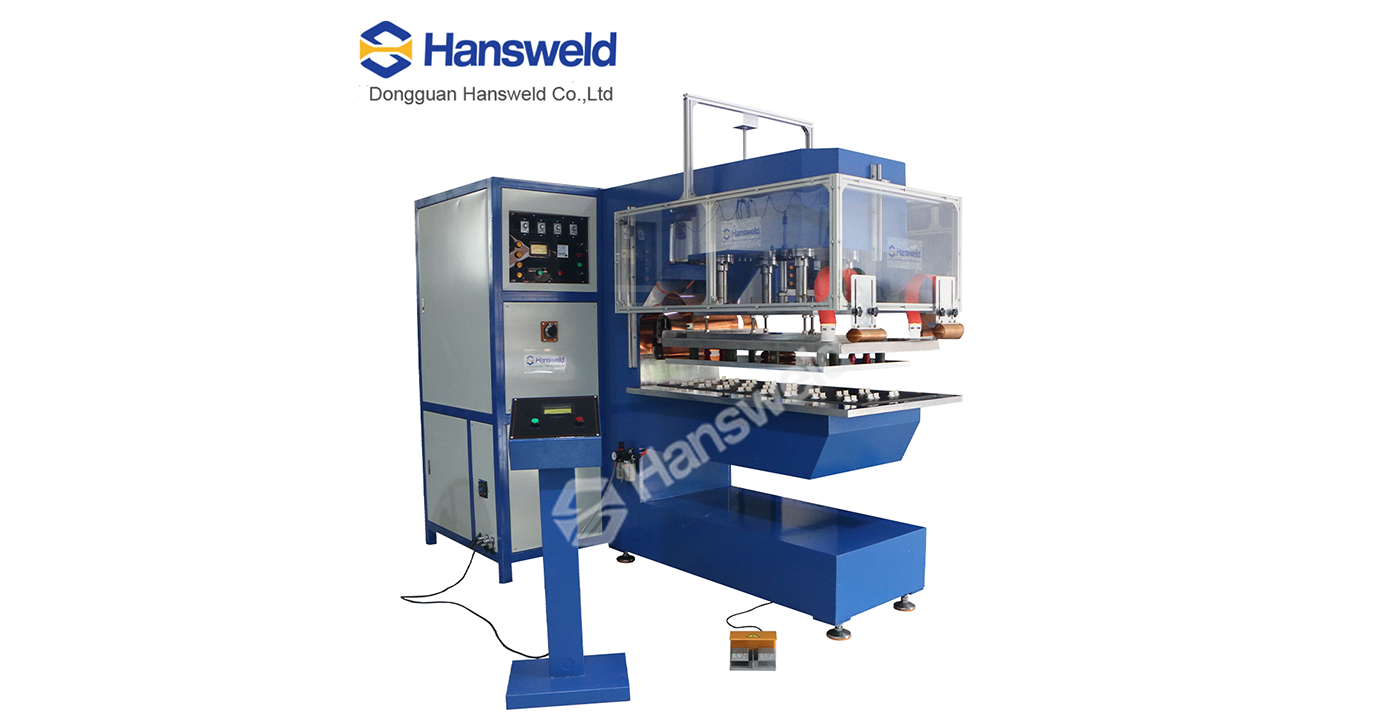

HSD-(15-25)KW
PVC TPU Conveyor Belt HF Welding Machine
HSD-(15-25)KW
PVC TPU Conveyor Belt HF Welding Machine
HSD-(15-25)KW
PVC TPU Conveyor Belt HF Welding Machine

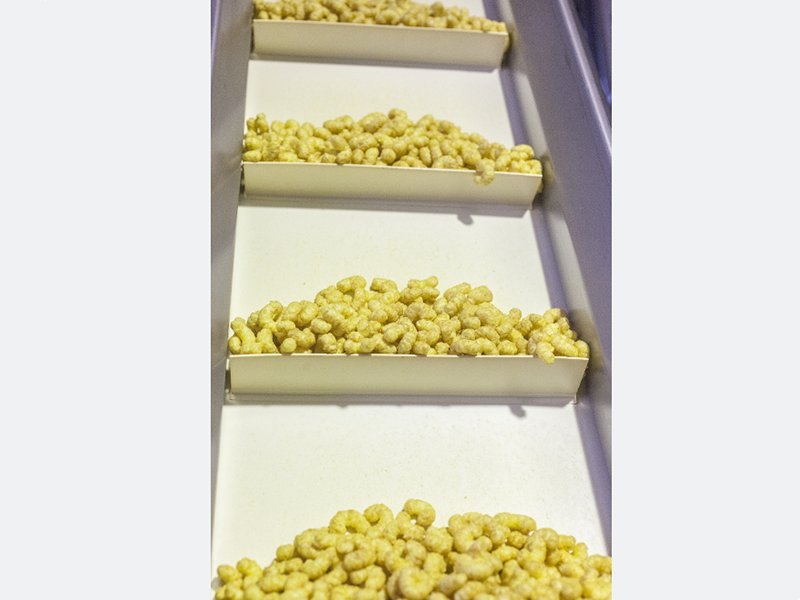

Industrial belt welding machine equipment is suitable for: skirt baffles, front guide plates, reinforced baffles, belt edge PU, conveyor belt welding machine, conveyor belt baffles, edge high-frequency PVC/PU welding machine.

The high-frequency welding machine for running belt skirt baffles is designed according to product characteristics. The conveyor belt has a certain width, and the upper plate can also be used for welding of longer specifications.

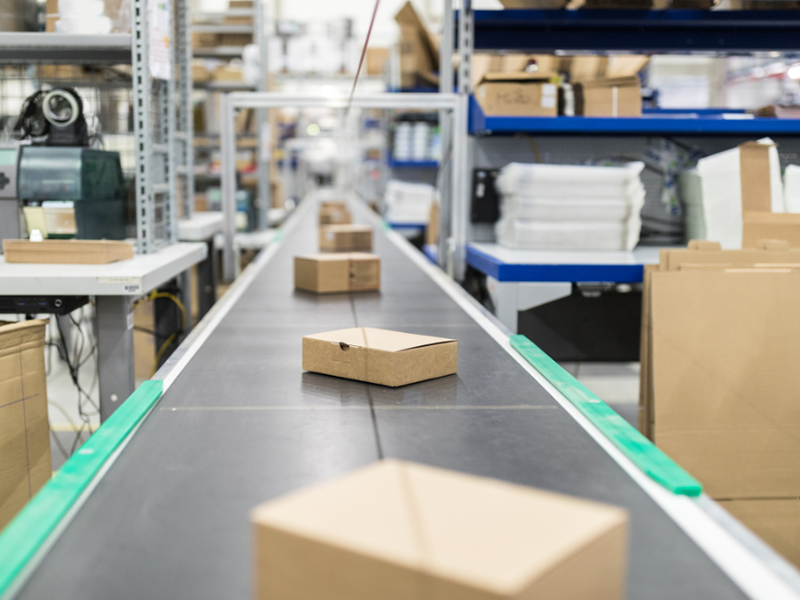

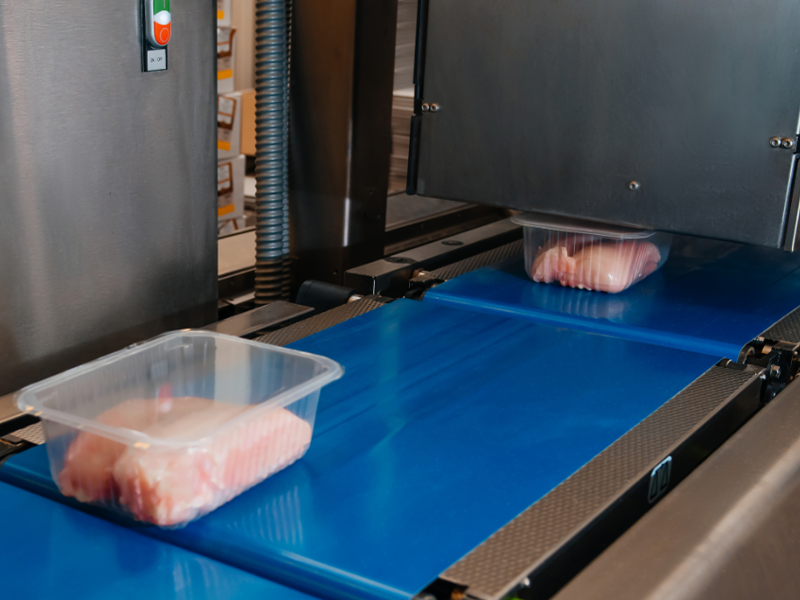

Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

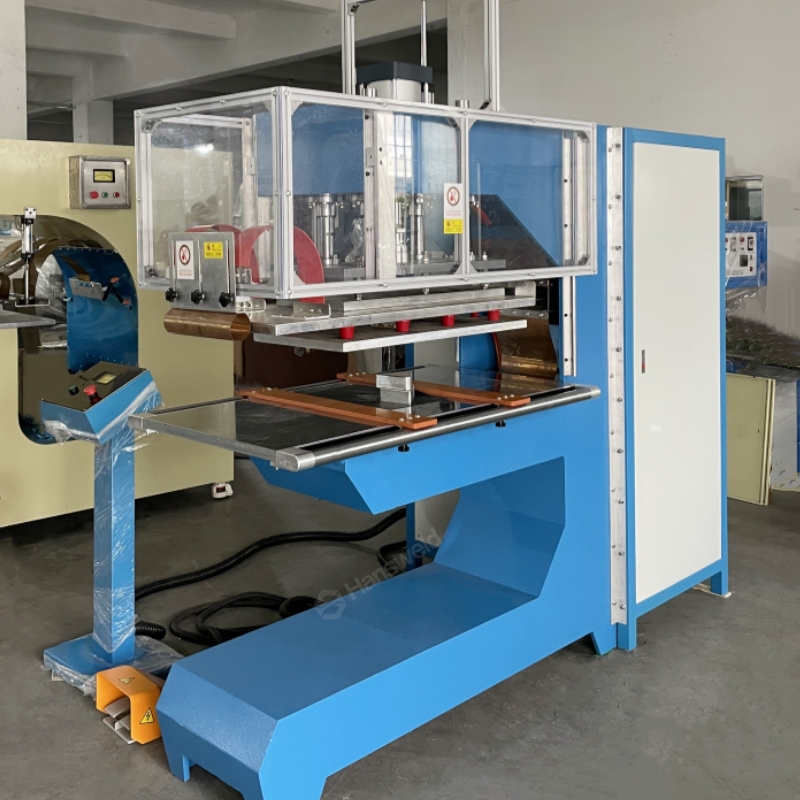

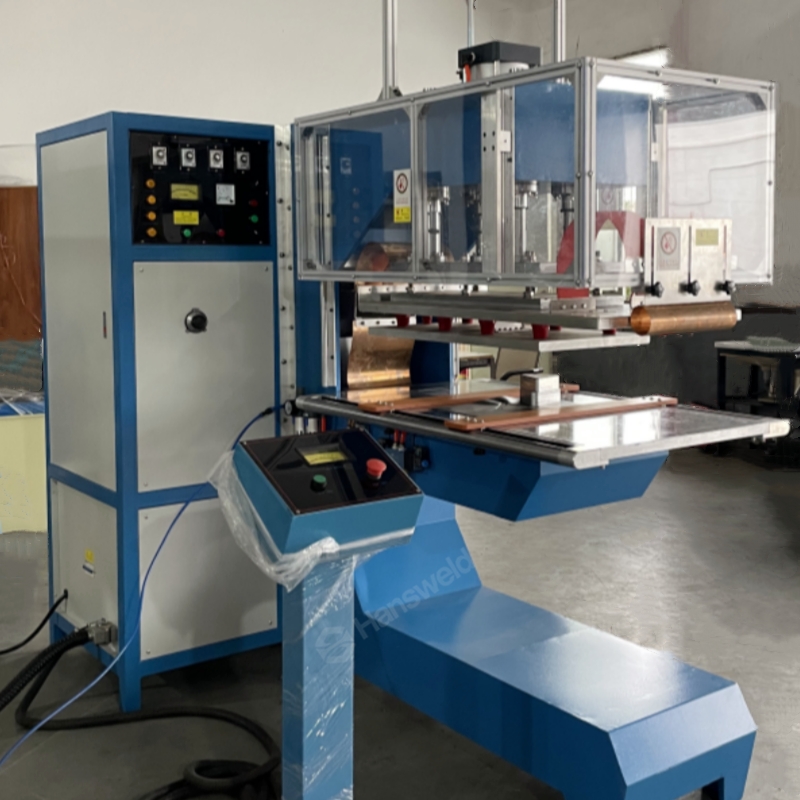

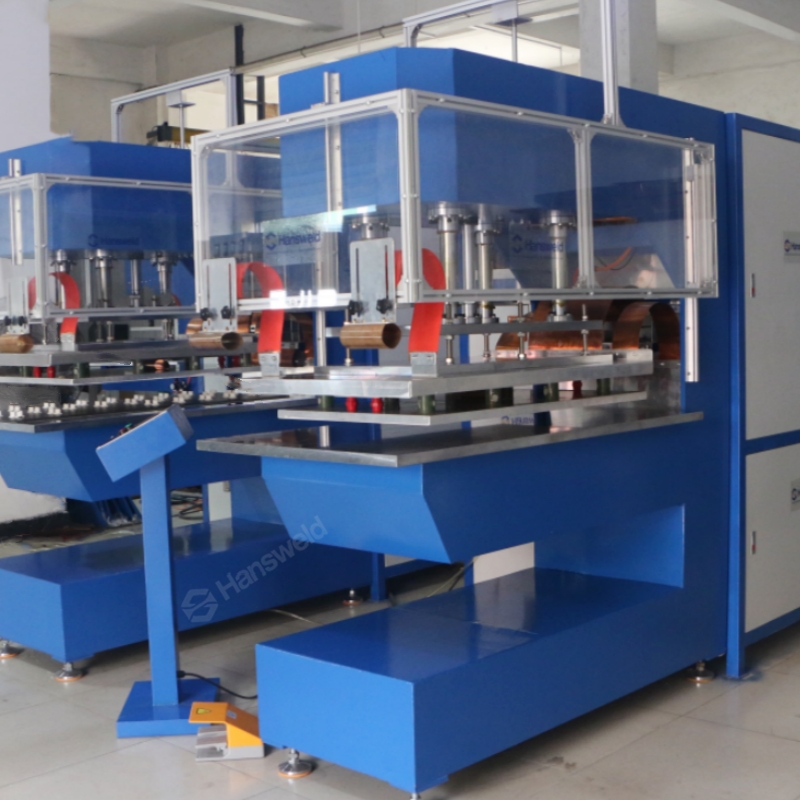

The E-type design and multi-purpose tabletop can be equipped with a variety of molds according to actual production needs, which is more flexible. According to the high-frequency principle, the PVC material is heated and softened, and the two ends of the belt are heat-sealed together through the pressure of the mold. Industrial belts are generally used for welding at both ends. The E-type high-frequency machine operating table is suspended on three sides to facilitate the connection of the belt.


It is suitable for welding and connecting various thick industrial belts, treadmill belts, and conveyor belts. It is specially used for high-frequency welding and welding of treadmill belts and conveyor belts, conveyor belt welding, and welding of various PVC or plastic products containing more than 10% PVC.



1.High frequency running belt welding machine specilize for fixed sidewall , cleat and baffle.


2.Firmly welding, be well meeting with materials of thickor thin PVC,PU,PET or many other plastic products.


3.Specilize for connecting treadmill belt (running belt)、Conveyor belt 、Timing belt welding machine.




Model  HSD -15KW
Supply Voltage380V
Frequency27.12 Mhz
Input Power 35KVA
Rectifier TubeSilicon Diode
Electron Tube8T85RA
Maximum Pressure1500KG
Electrode Stroke150MM
Maximum Electrode Spacing150MM
Upper Electrode Size350*900MM
Size of Platform Board600*1200MM
Welding time

0-30s
