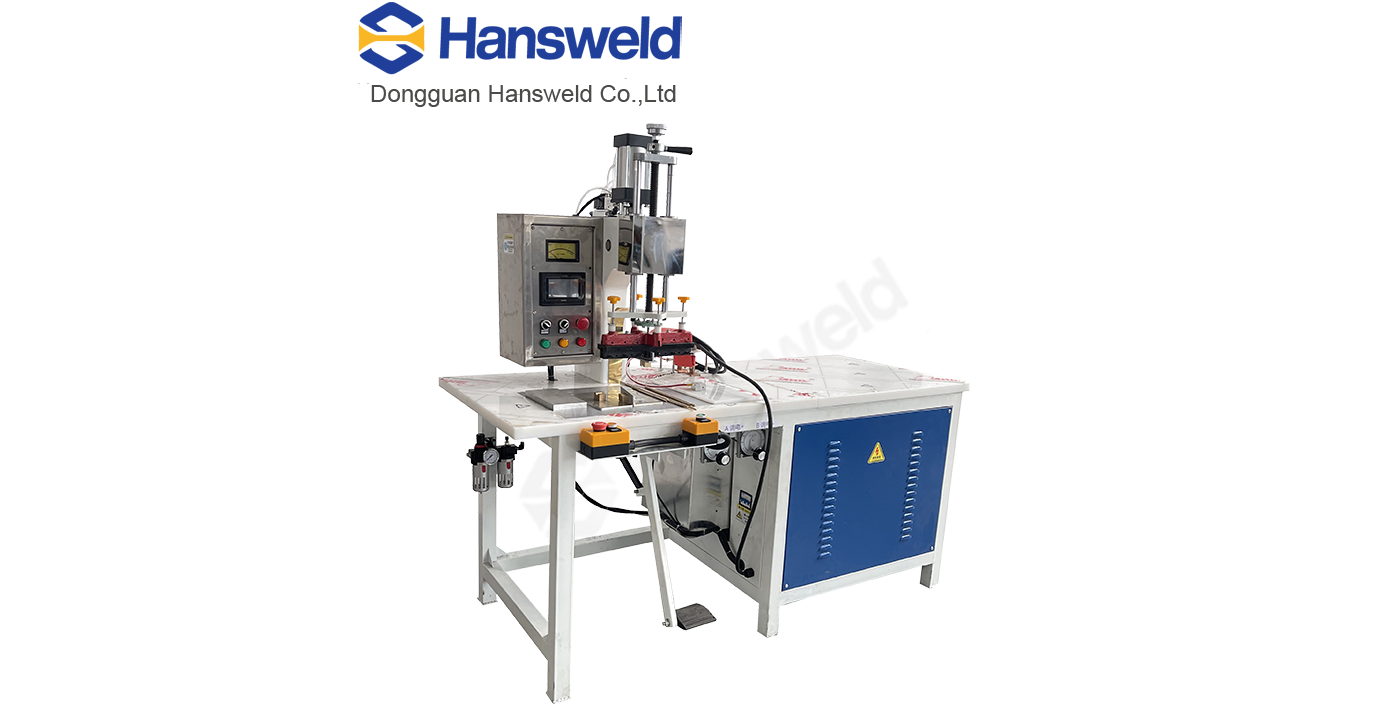

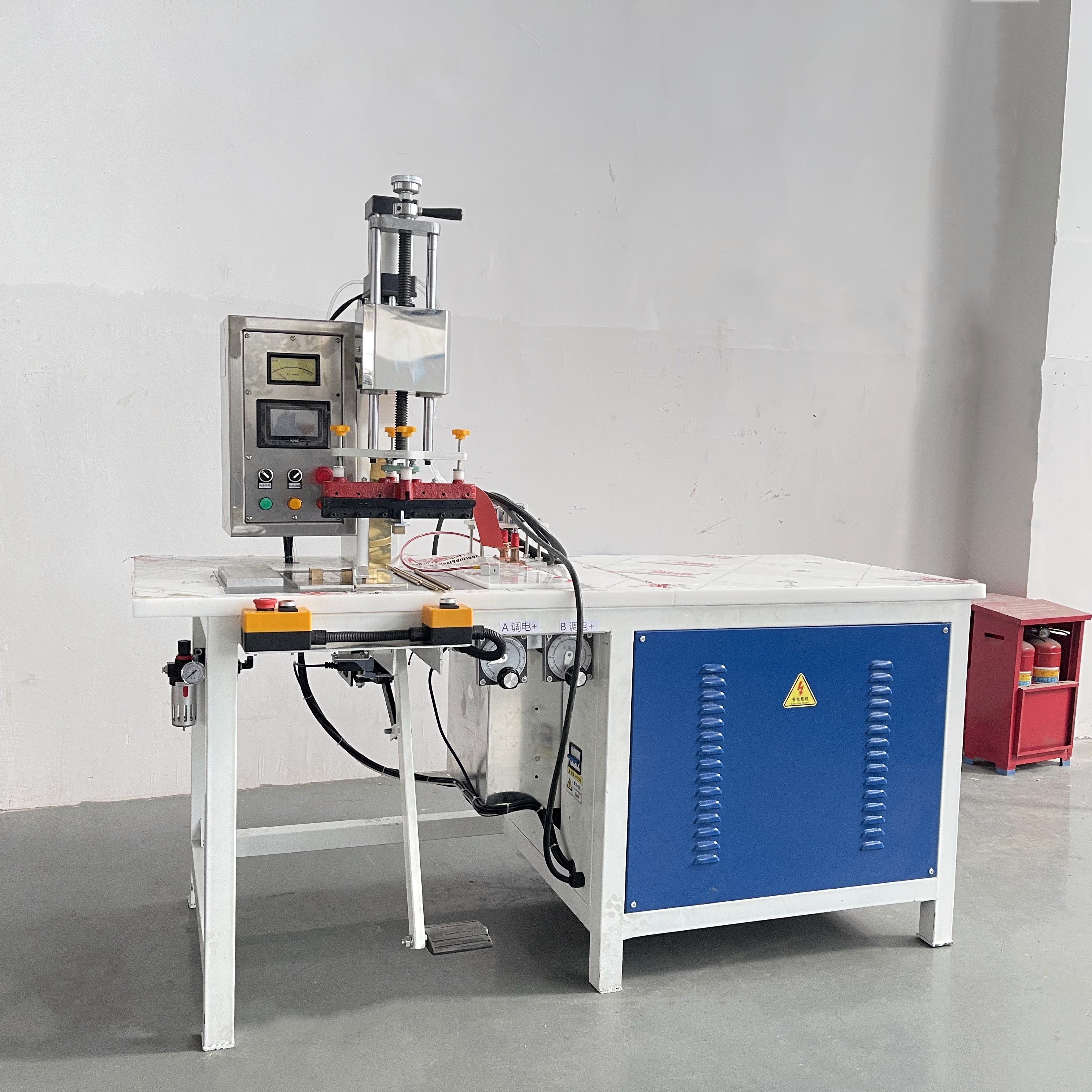

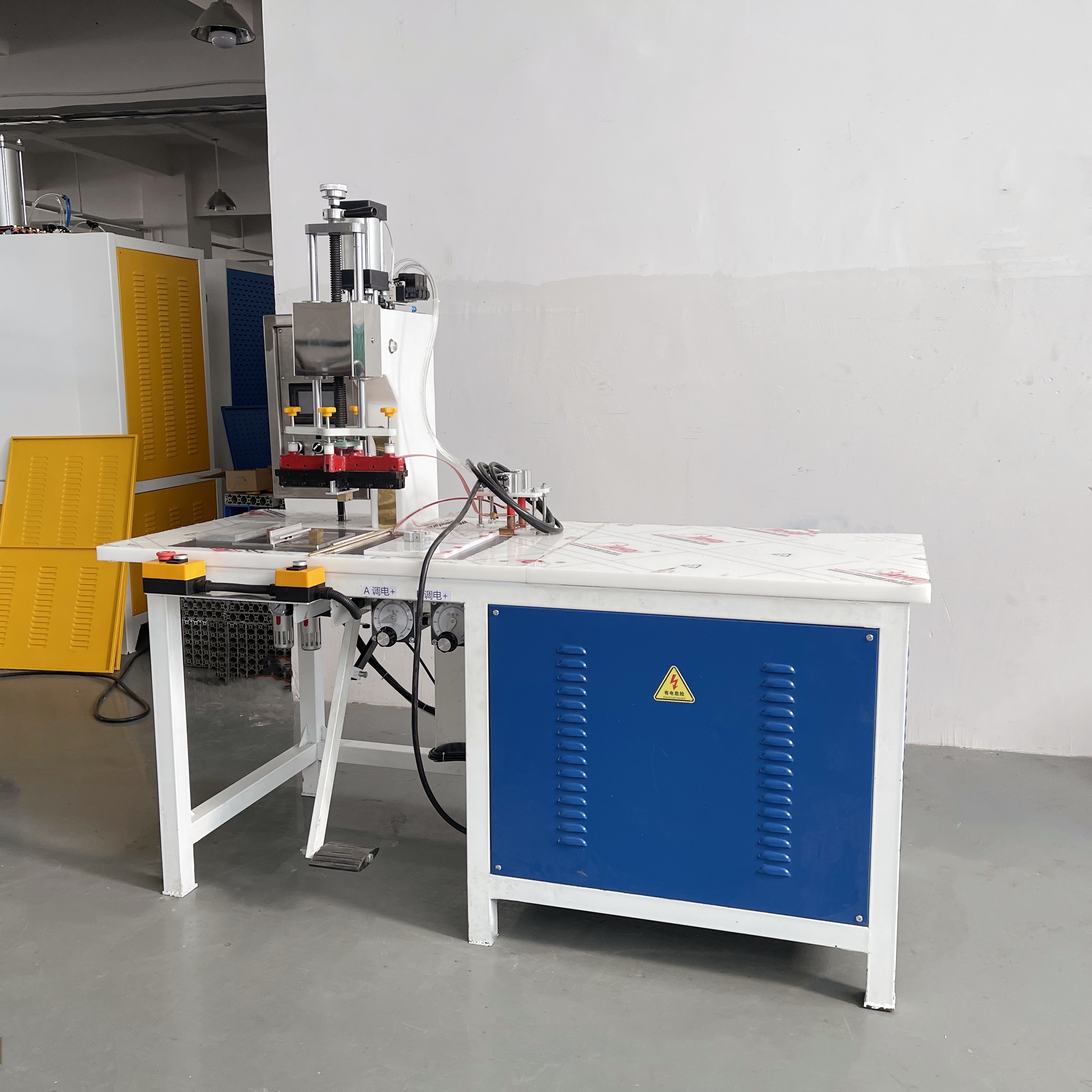

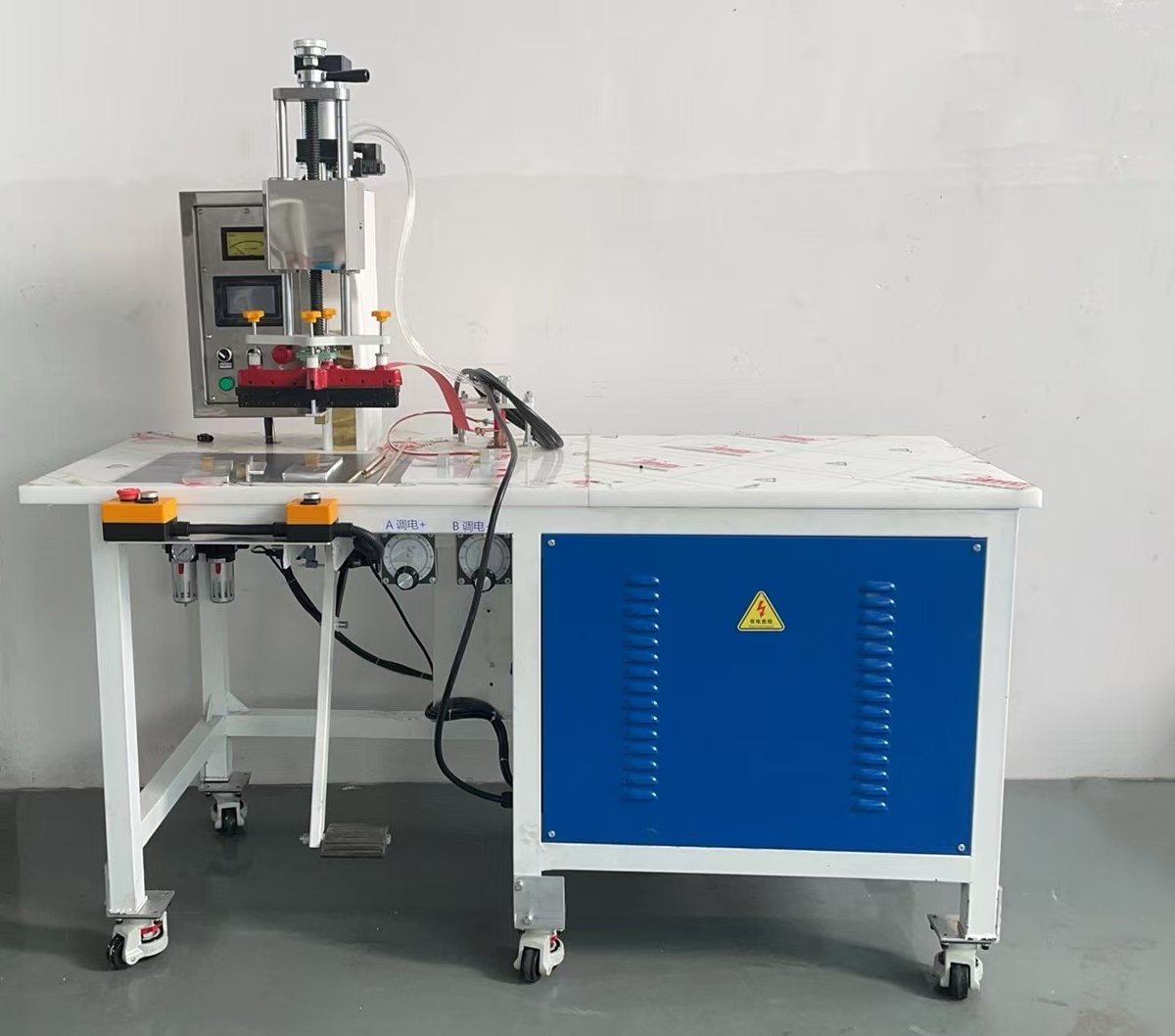

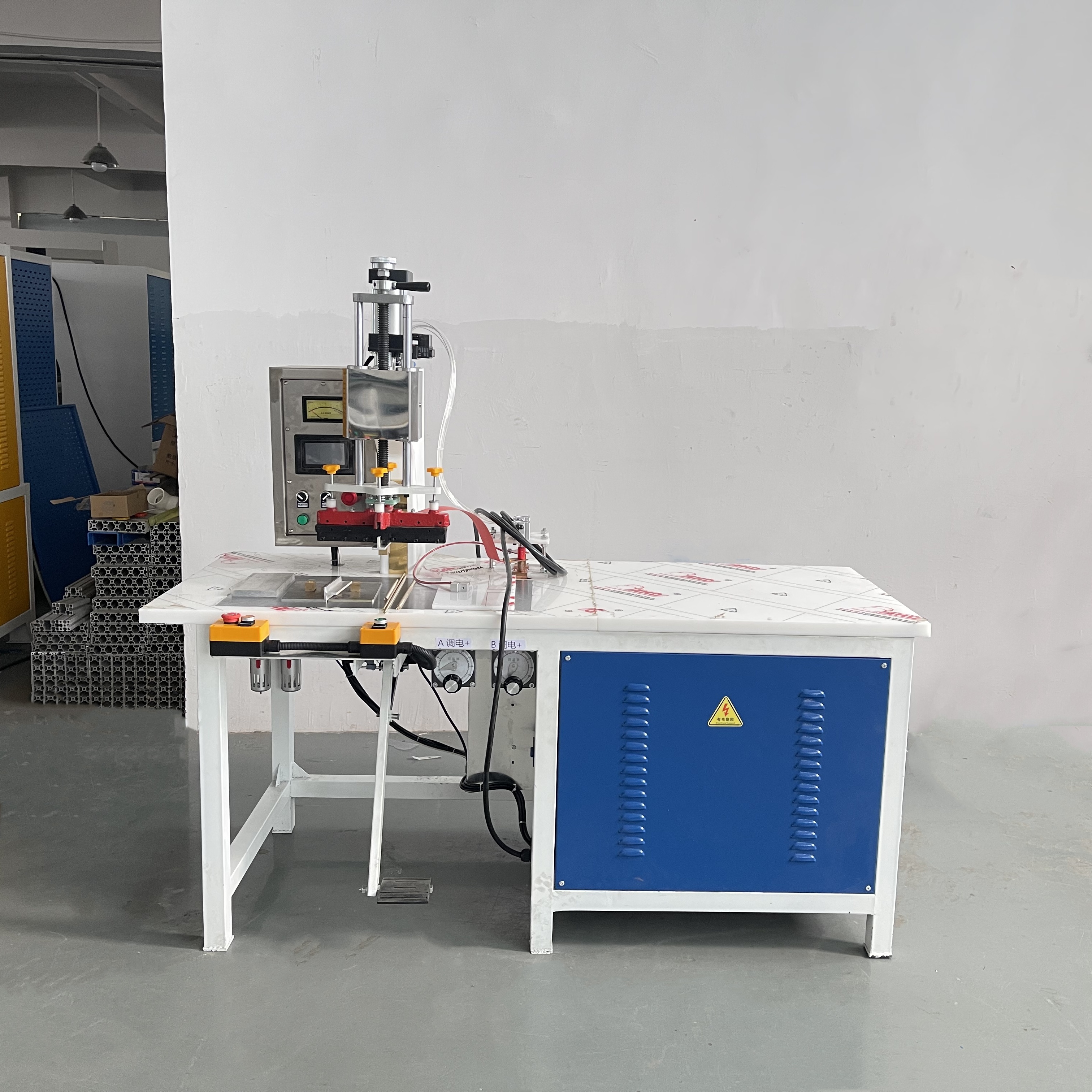

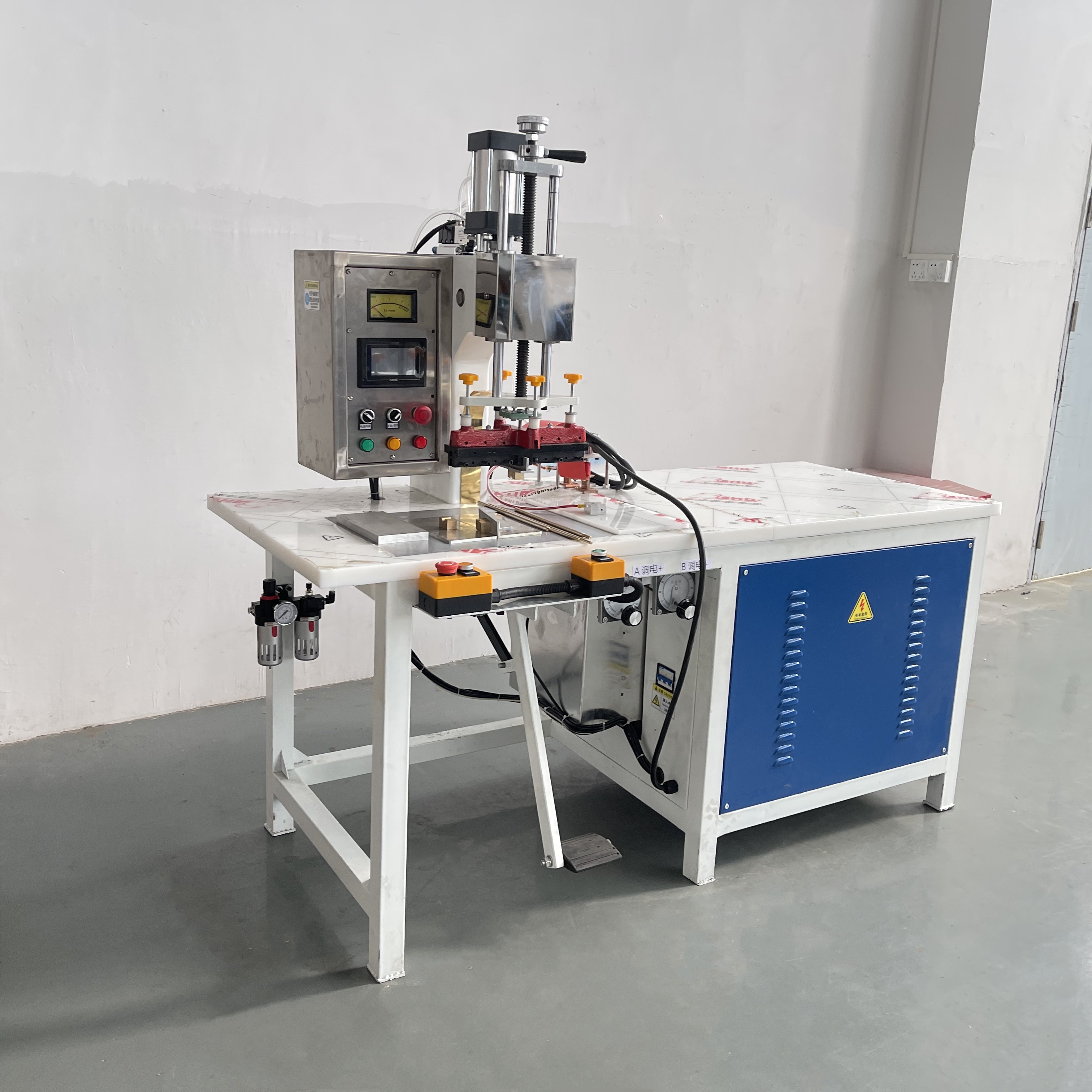

HSD-DT-5KW
Single head welding pipe special machine
HSD-DT-5KW
Single head welding pipe special machine
HSD-DT-5KW
Single head welding pipe special machine
This machine is a device that uses the principle of high-frequency electromagnetic field (high frequency) heating and is specially used for welding medical hoses such as blood bags and infusion bags. It has the characteristics of high welding strength and good sealing, and is suitable for the production industry of medical consumables. The high-frequency electromagnetic field heating is used to fuse the tube mouth to ensure sealing and meet the sterility requirements of the medical industry.
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

This equipment is a precision welding equipment designed for the medical industry. It is mainly used for sealing and welding the pipe openings of various medical plastic products. It is especially suitable for:


Blood bag products: whole blood bags, plasma bags, platelet storage bags

Infusion products: infusion bags, nutrient solution bags

Drainage products: drainage bags, urine bags

Other medical containers: peritoneal dialysis bags, cell culture bags


Single-head foot-operated control, easy to operate, free your hands, and improve operating efficiency.


High-frequency welding, strong sealing, no leakage.


Power, time, and pressure are adjusted independently to adapt to different pipe diameters and material thicknesses.


Single-head design, precise welding, suitable for single pipe mouth processing.


ModelHSD-DT-5KW
Power5KW
Input Power8KVA
Oscillation tube7T85RB
Power Supply3P * 380V * 50Hz & 3P * 220V * 60Hz
Frequency27.12Mhz
RectifierSilicon Diode
DrivePneumatic drive
Arc suppressorHigh Sensibility  NL-5557
Suitable Material :PVC or any fabric contents PVC .
Cylinder working stroke150mm ( customization offered )
Welding time0-30 S Adjustable
