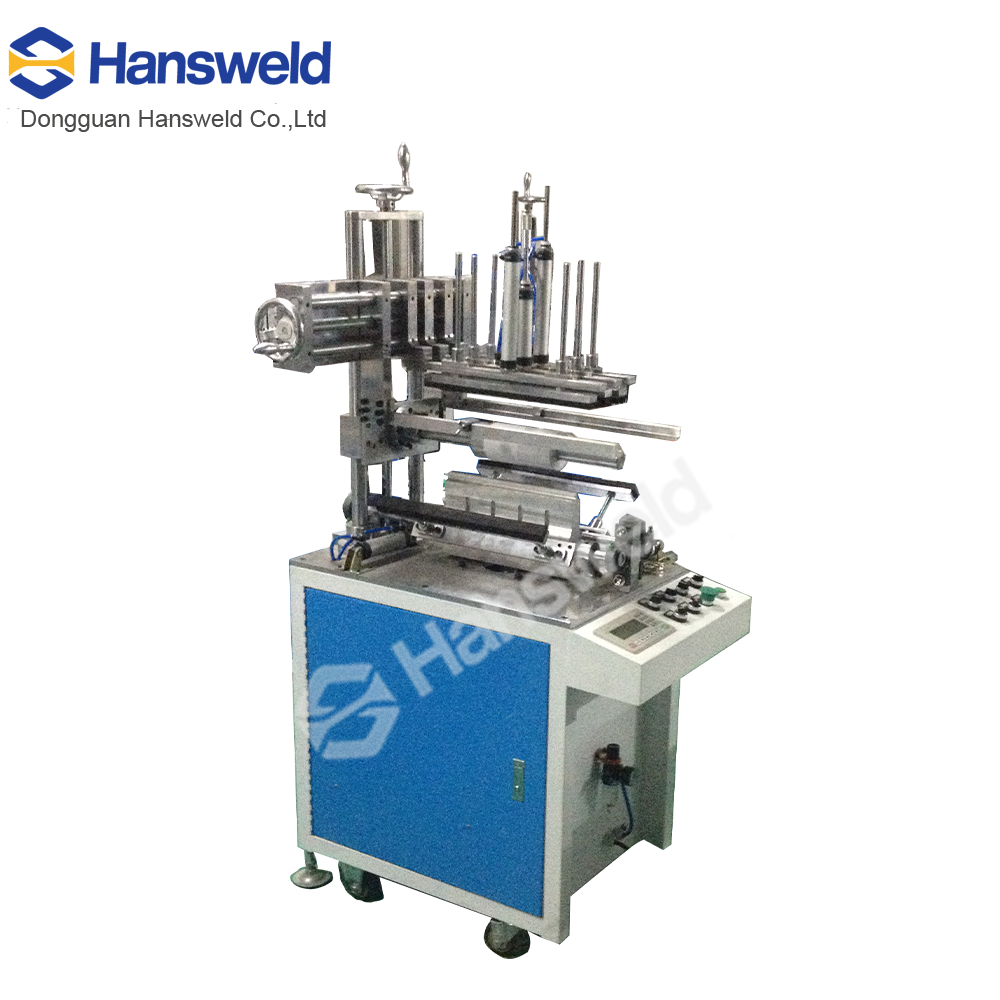

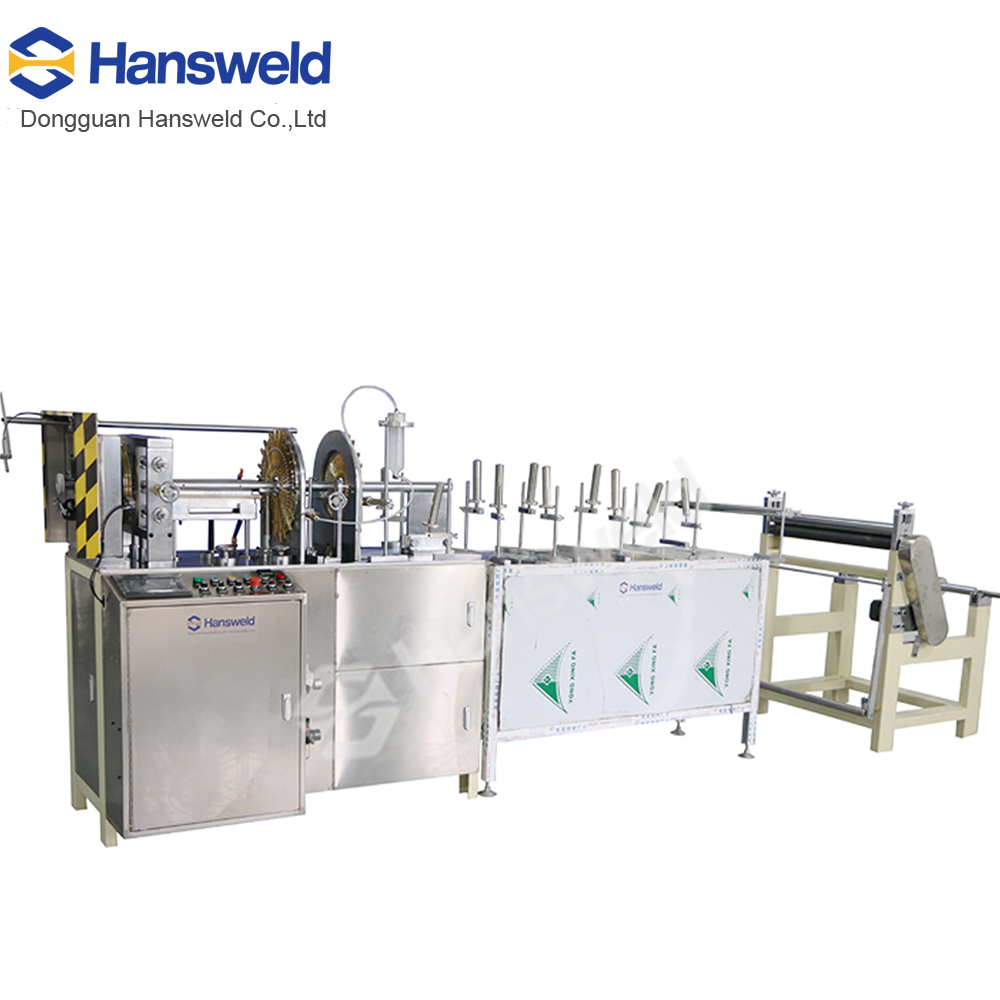

HSD-SC-4018 Cylinder Tube Forming Machine
HSD-SC-4018 Cylinder Tube Forming Machine
HSD-SC-4018 Cylinder Tube Forming Machine

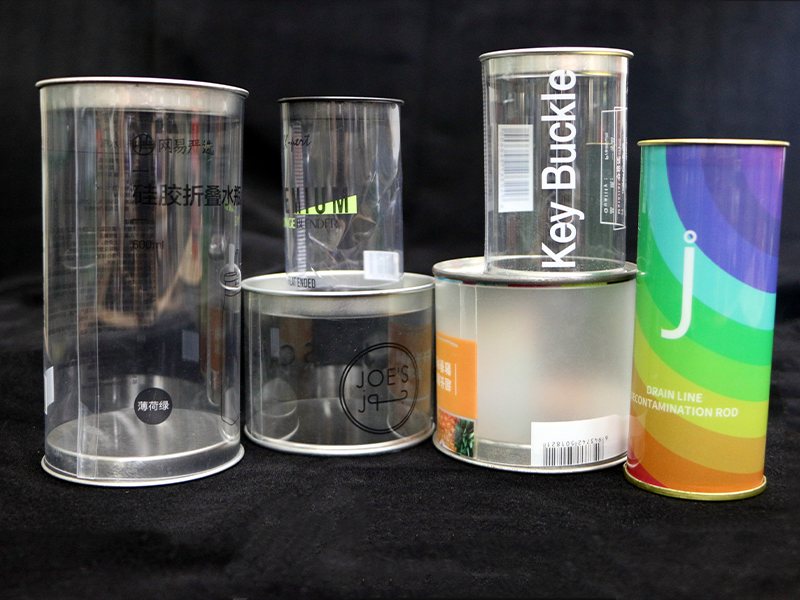

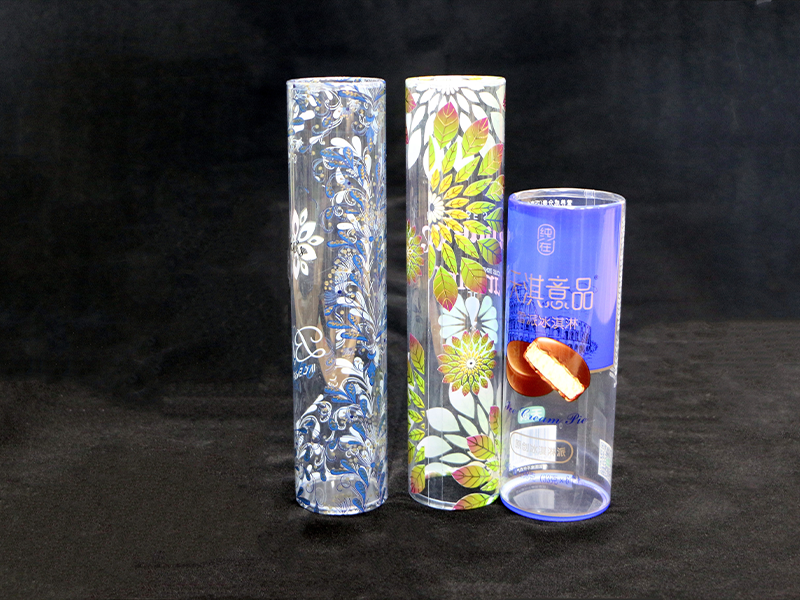

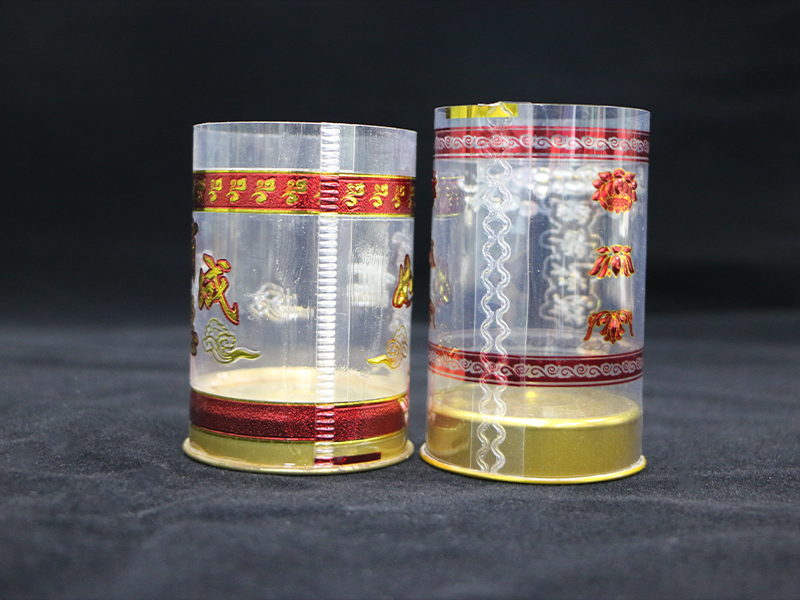

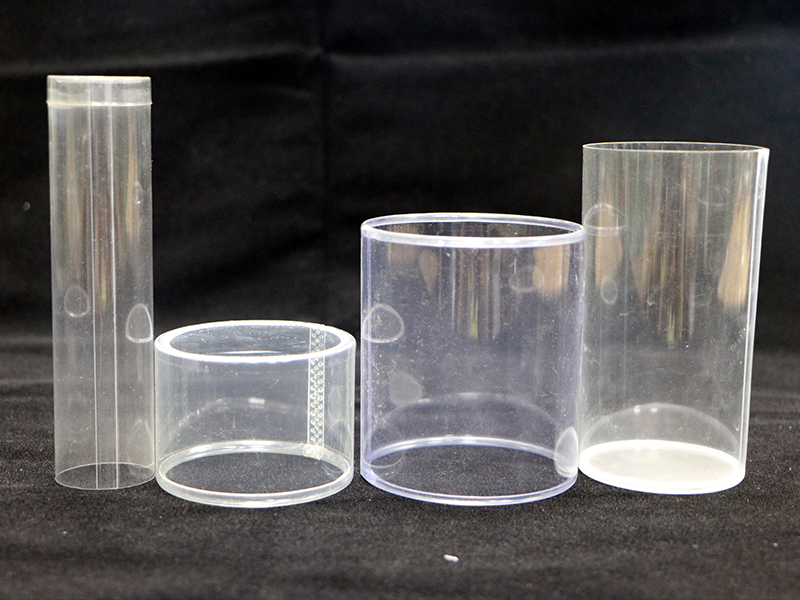

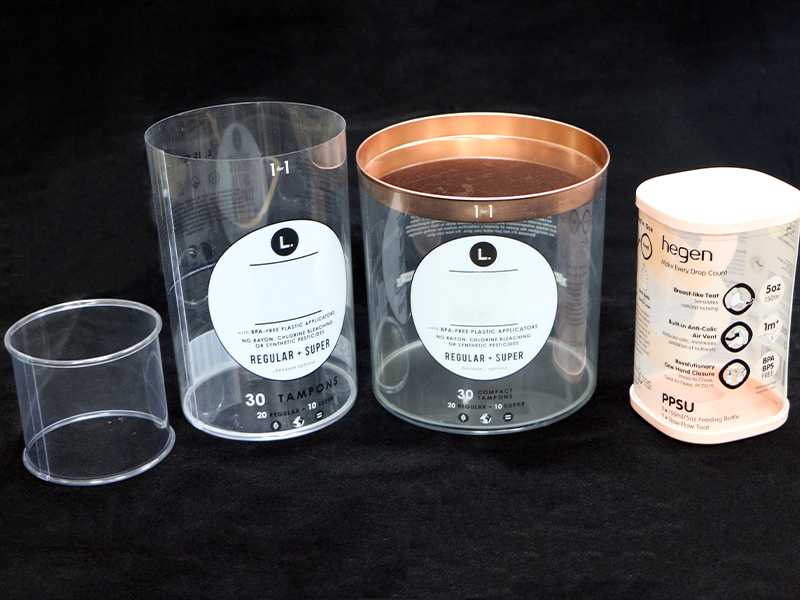

The machine is suitable for PVC-PET-PETG cylinder gluing, and the material does not need to be leveled and cut. After the flattened sheet is put on the machine, the adjustment system is automatically completed at one time according to the required length: automatic feeding, automatic reel, automatic glue brushing or ultrasonic welding, and automatic forming. Fast speed, accurate, time-saving, instead of the traditional single manufacturing method, the size of the finished product is consistent, the appearance is perfect without scratches, the equipment has ultrasonic welding (no glue required) and automatic adhesive two process options, a wide range of applications.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Fully automatic cylindrical sheet machine

1. Fast and accurate, automatic completion of cylinder forming, according to the size needs, can do different cylinder diameter and length of cylinders.

2. The diameter and length of the formed cylinder are consistent. The sheet machine can meet the drum rim of different lengths, diameters (30-200mm) and material thicknesses (0.3-0.6mm);

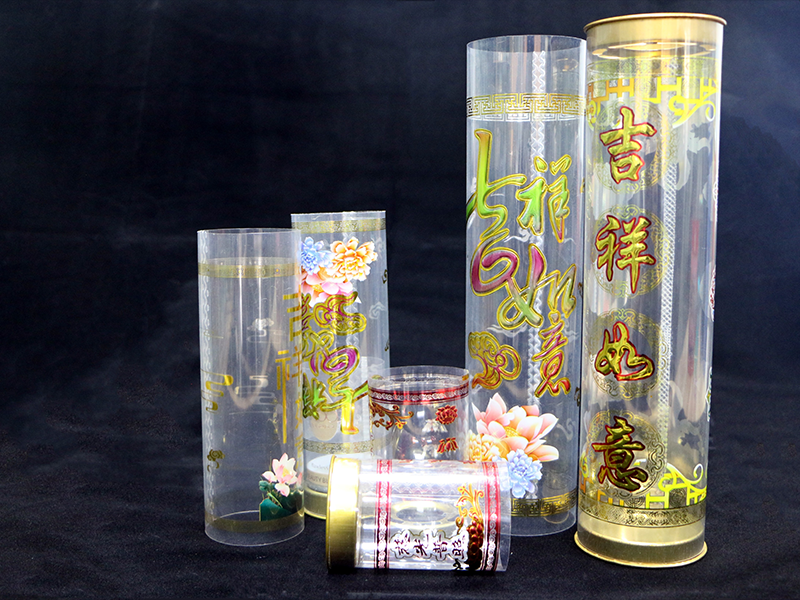

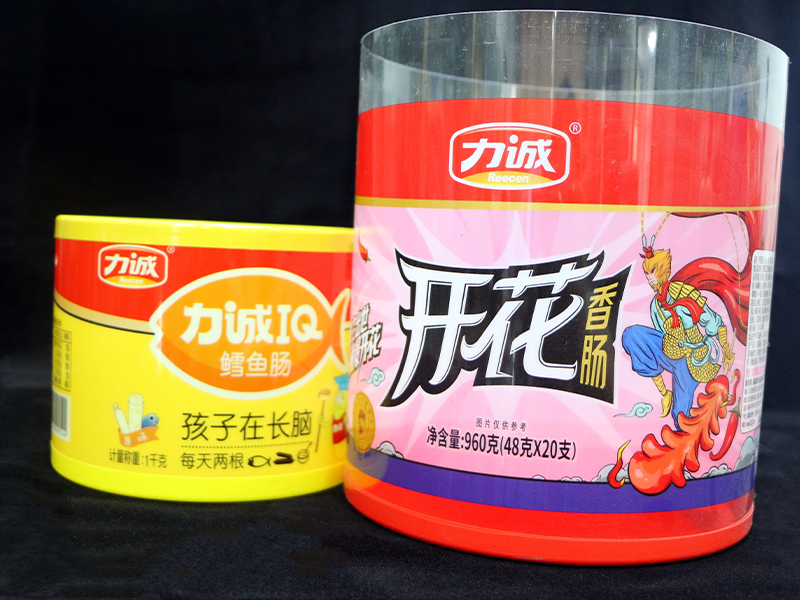

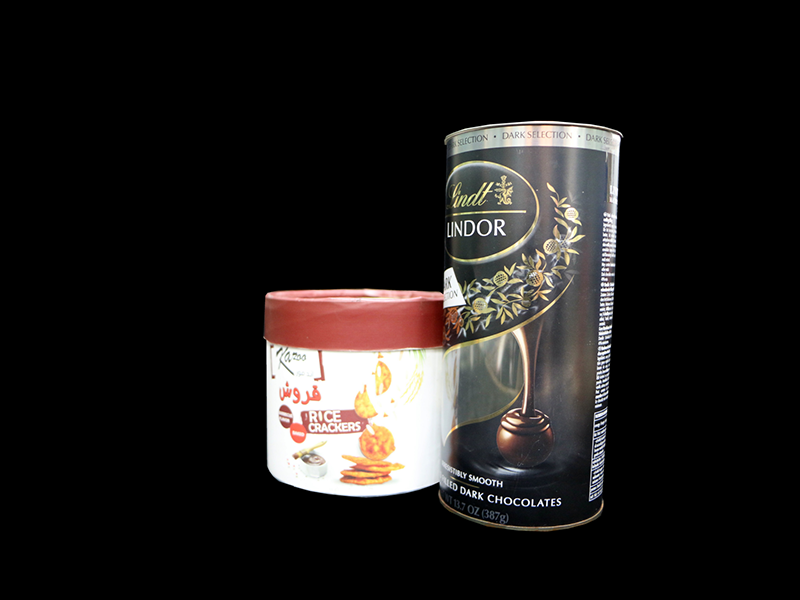

3. The cylinder forming effect is beautiful and round, and the quality is good


Agriculture                                  > Automotive industry

Food industry                             > Packing Industry


Machine features:
1. Automatic cylindrical machine without employing people, also known as automatic cylindrical sheeting machine, cylindrical forming sheet machine;


2. It is suitable for printing single sheet automatic forming cylinder to solve the difficulty of color matching; The PET cylinder does not turn white;


3. Adopt intelligent man-machine interface operating system, servo motor drive, fast and accurate cylinder forming;

4. It can be continuously and automatically formed, the size is customized, and the length is self-designed;


MODELHSD-SC-4018
OPTIONAL FUNCTION ULTRASONIC
CYLINDER  THICKNESS0.25-0.5mm
CYLINDER DIAMETER55-140MM
HEIGHT OF CYLINDER100-400MM(MAXIMUM CUSTOMIZABLE 650 MM)
 MACHINE SIZE2000mm*1100mm*1500mm(L*W*H)
