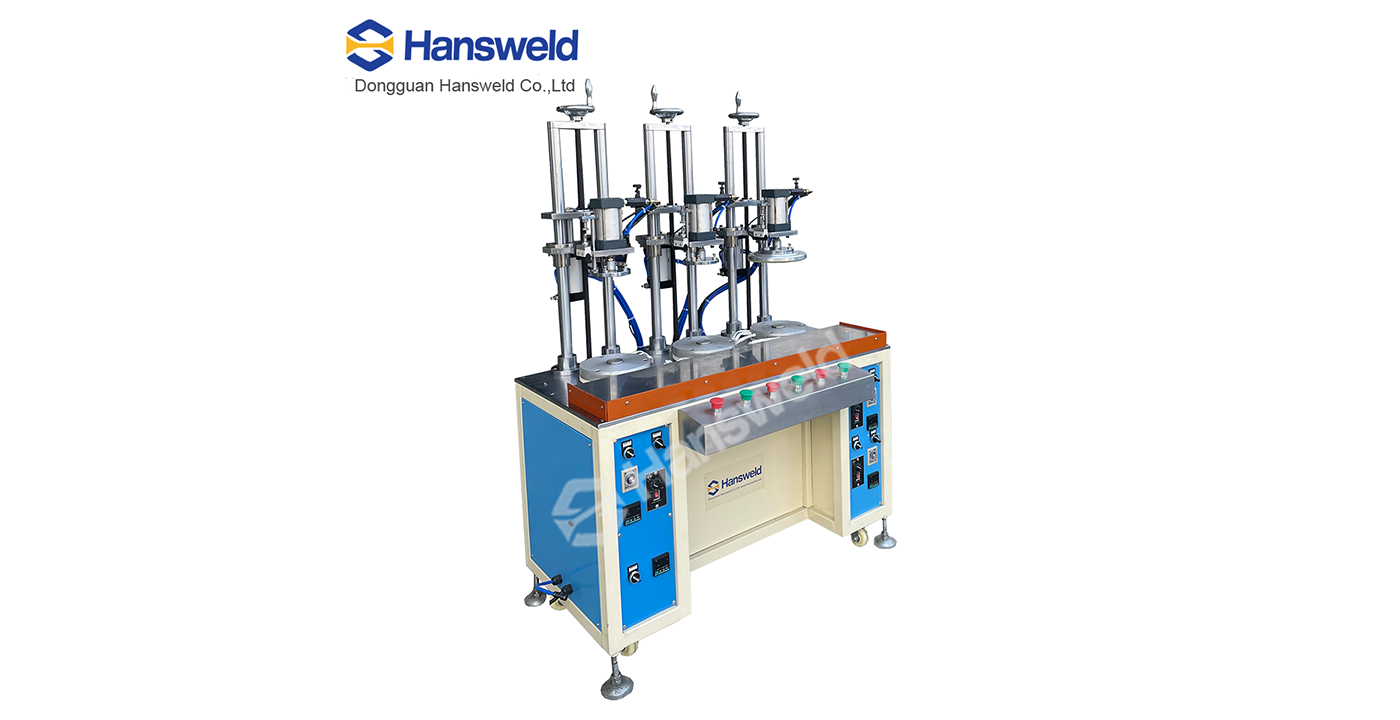

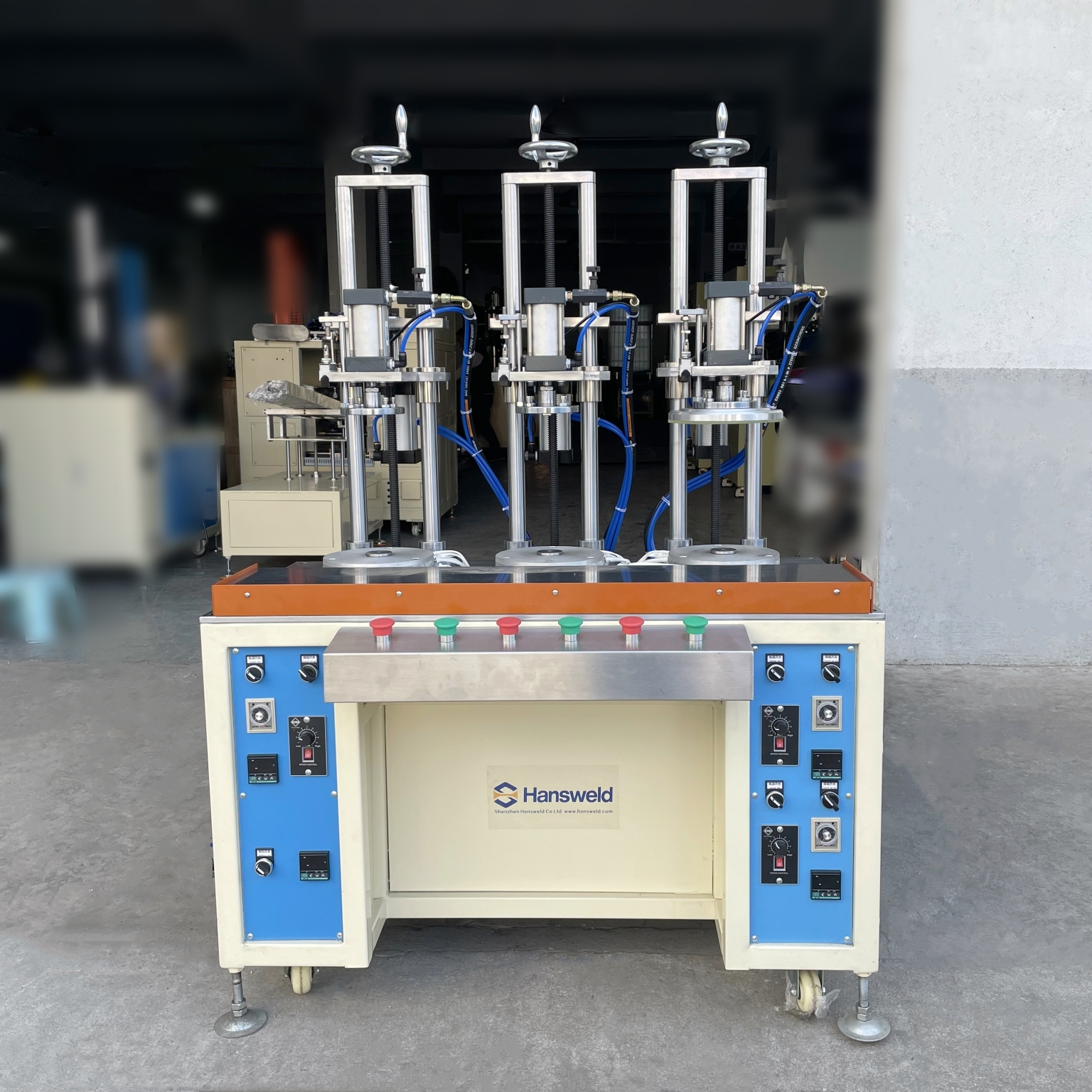

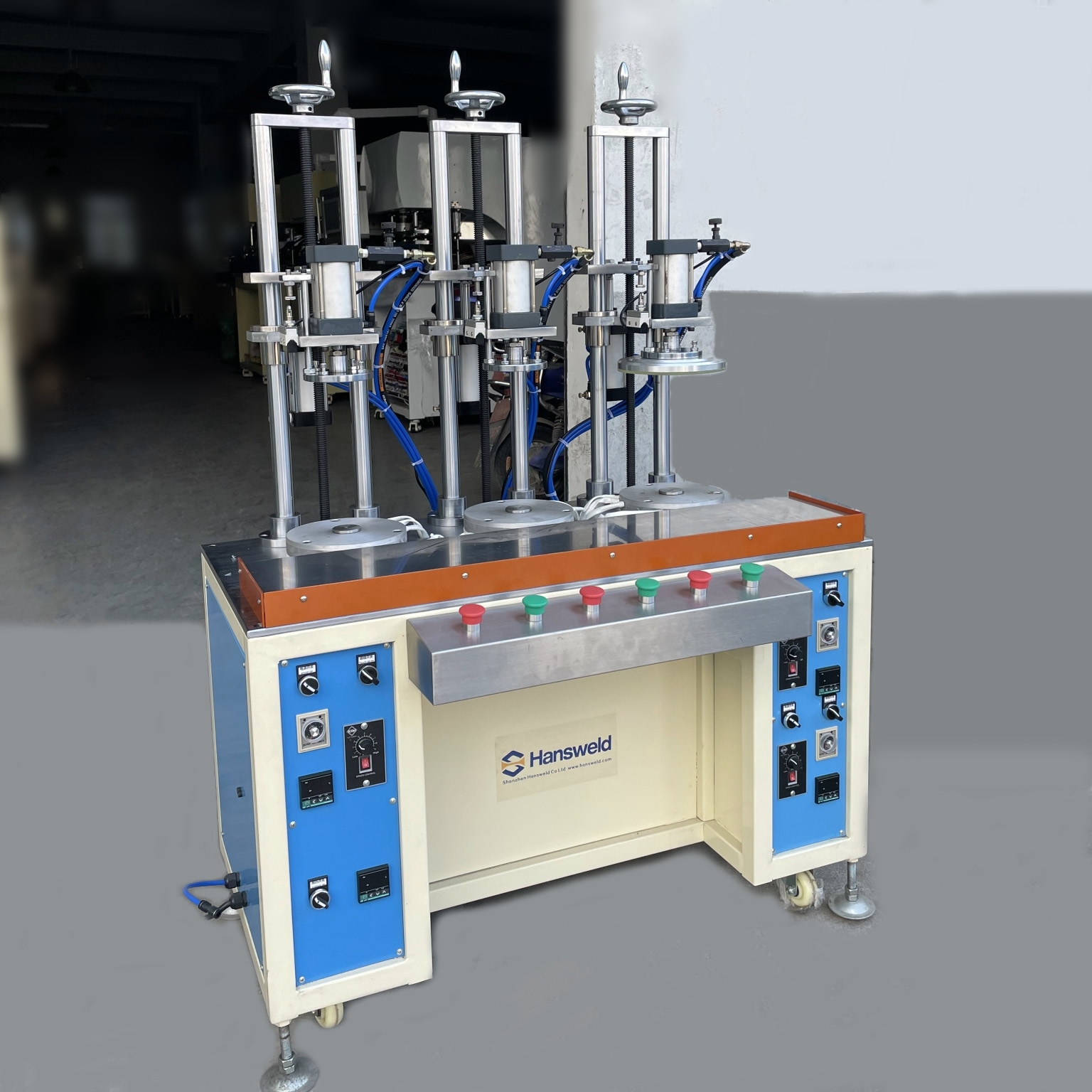

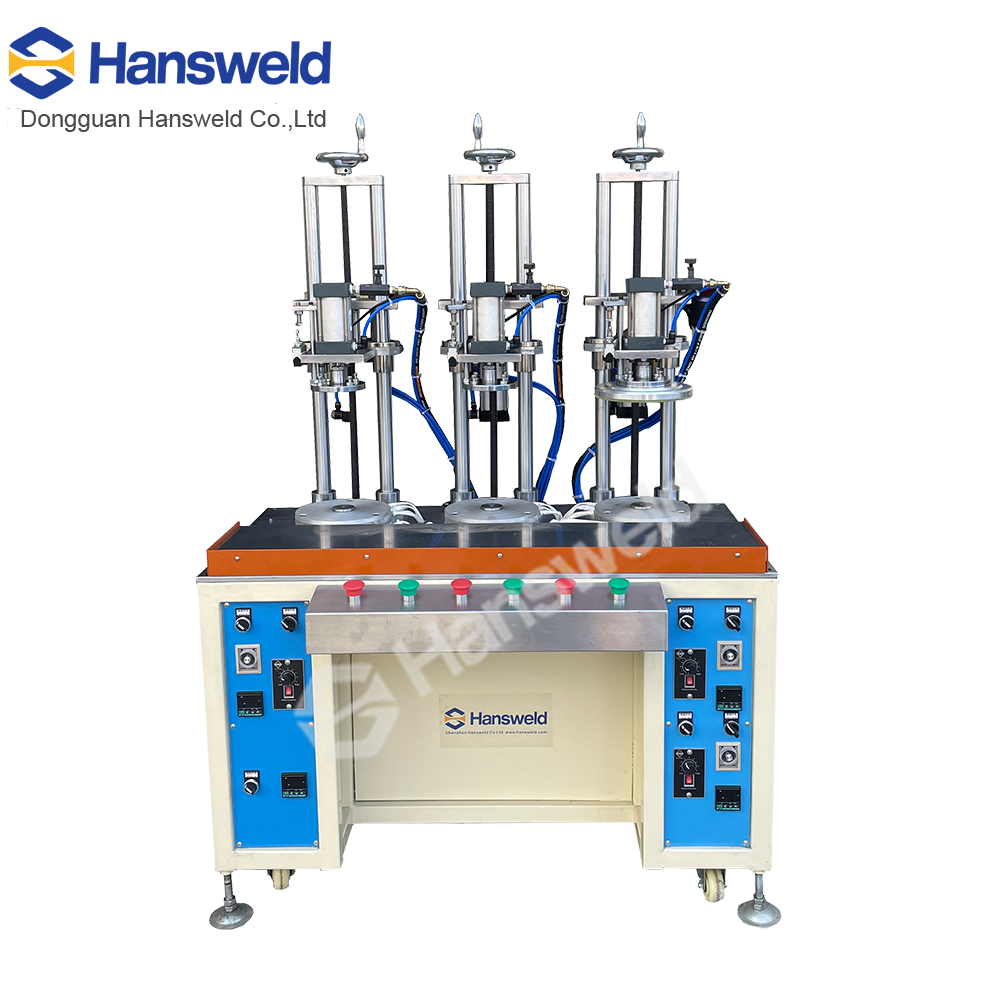

HSD-300A HF cylinder three-position curling machine
HSD-300A HF cylinder three-position curling machine
HSD-300A HF cylinder three-position curling machine
Automatic cylinder machine is mainly used to make PVC, APET, PETG, PP and other plastic cylinder automatic; It is divided into automatic cylinder machine and semi-automatic cylinder machine.

Also commonly known as PVC cylinder edging, APET transparent cylinder machine, PETG cylinder machine, PP cylinder machine, plastic cylinder machine, plastic cylinder machine, etc.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

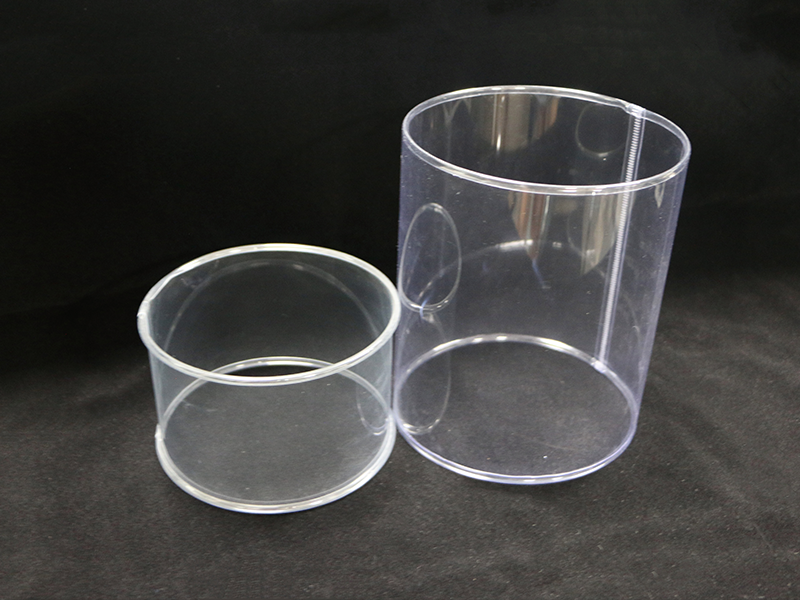

 Cylinder machine is mainly used to make PVC, APET, PETG, PP and other plastic cylinder automatic; It is divided into automatic cylinder machine and semi-automatic cylinder machine.


 Also commonly known as PVC cylinder edging, APET transparent cylinder machine, PETG cylinder machine, PP cylinder machine, plastic cylinder machine, plastic cylinder machine, etc.




1.Cylinder machine fast and accurate, automatic completion of cylinder forming, according to the size needs, can do different cylinder diameter and length of the cylinder. The diameter and length of the molded cylinder are consistent.


2.Cylinder machine can meet different lengths, diameters (30-200mm), and material thickness (0.3-0.6mm) of the cylinder rim; Cylinder forming effect beautiful round, cylinder high consistency is good.


 ModelHSD-300A
Work Positions3 WORKING TABLE
Voltage220V
Pneumatic range3-5kg/cm2
Diameter of air tube8mm
Diameter of heating tube210mm
Fold diameter30-200mm
Fold length15-420mm
Prodcution speed2-6sec/edge
