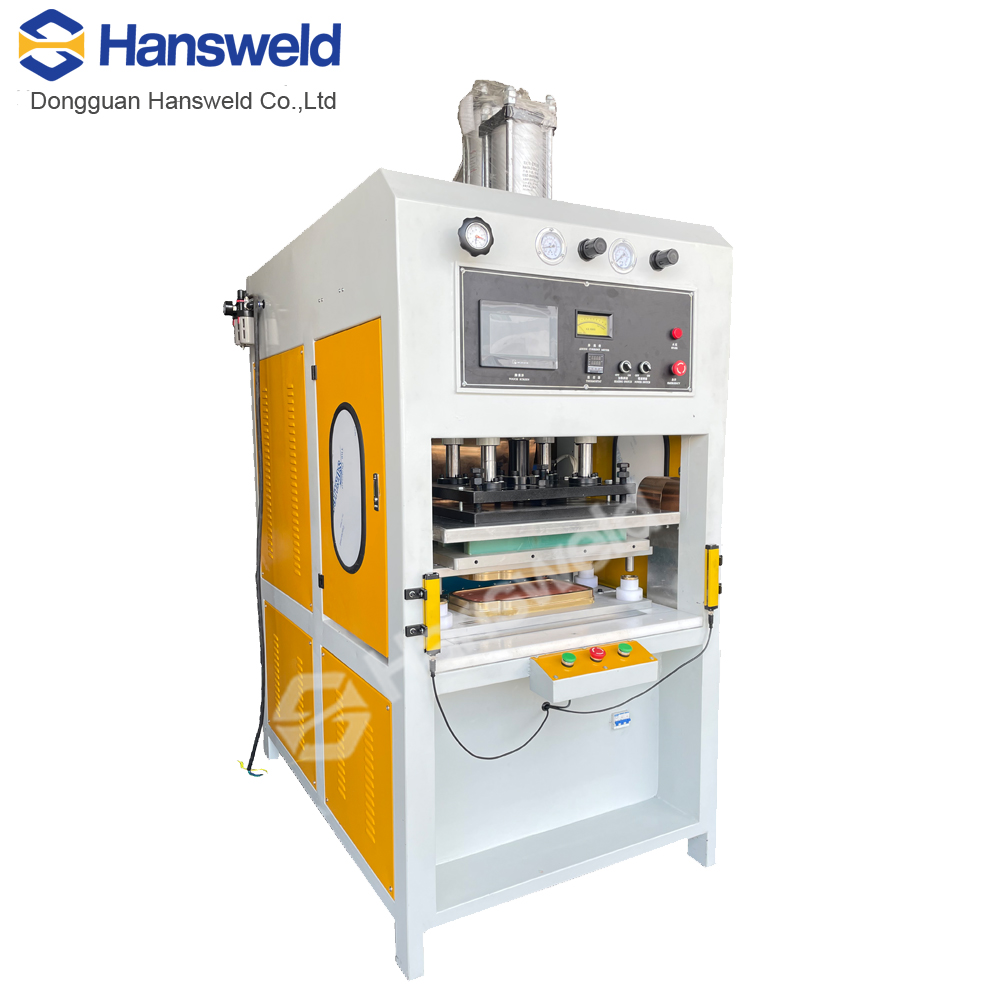

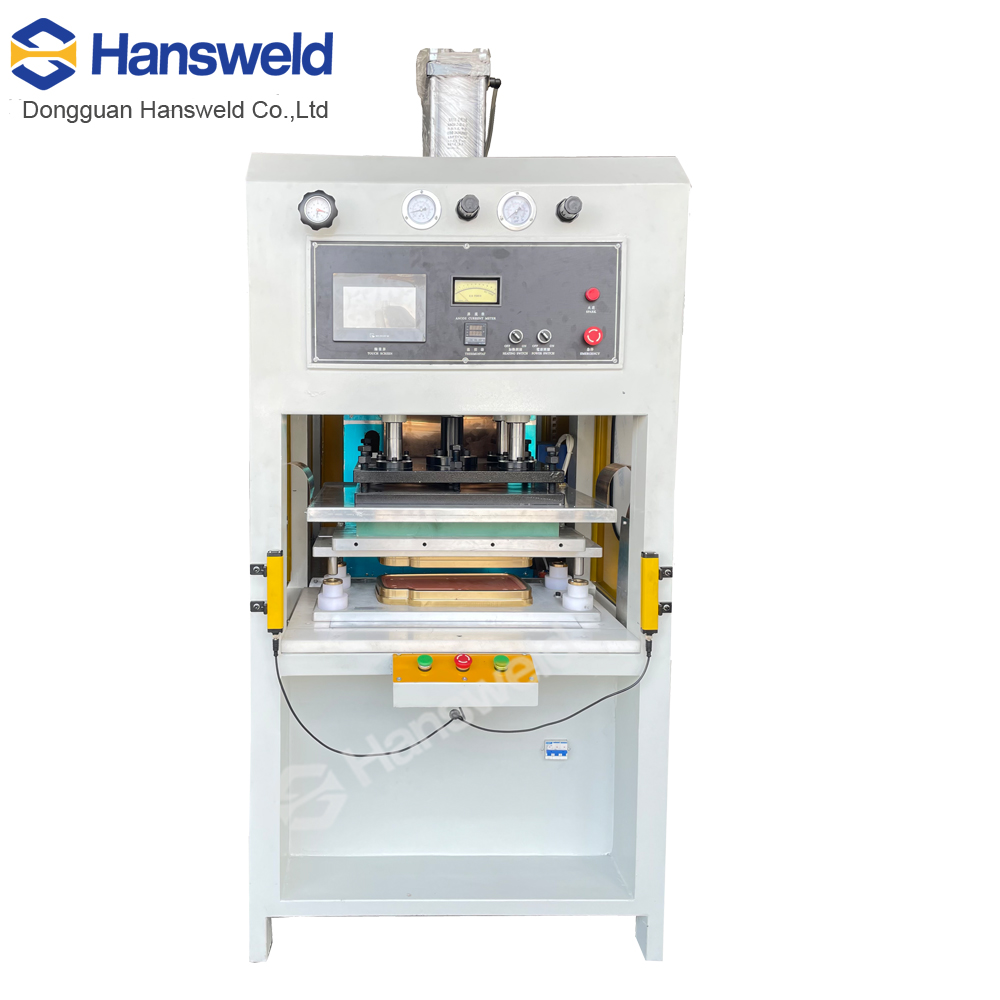

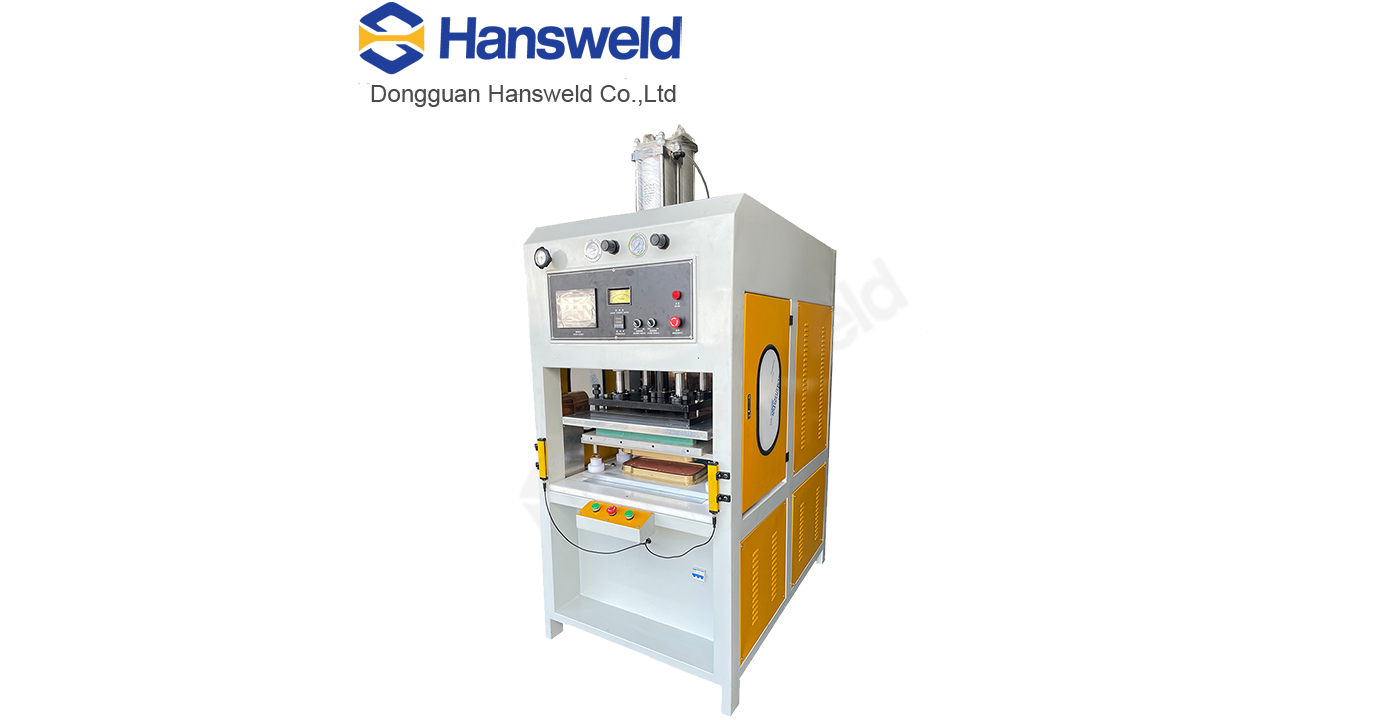

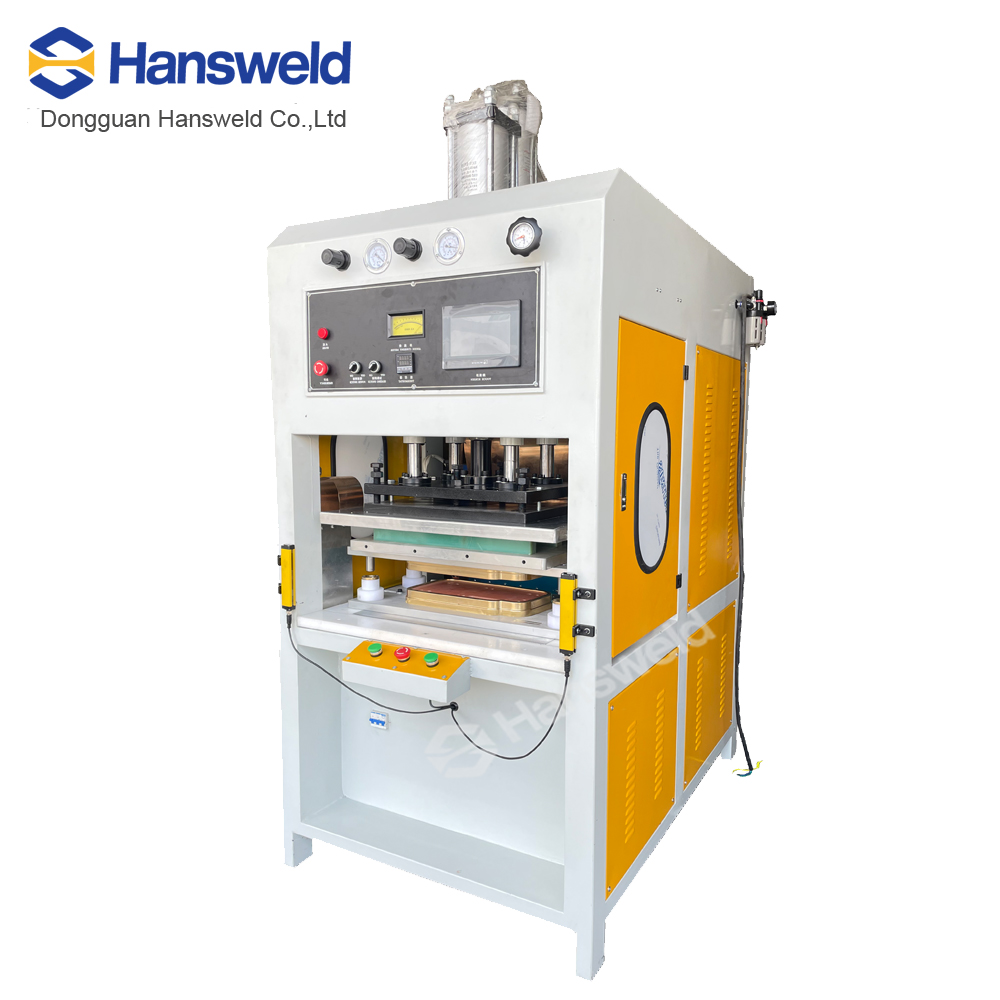

The main work flow of the high-frequency machine is to press the object to be processed between the upper and lower motors of the high-frequency electromagnetic field,
And then use its internal molecules to be excited and move at high speed to generate heat and penetrate each other, and finally achieve welding under the pressure of the mold ( For the purpose of welding) or embossing.
Main Feature
1. Using the touch screen operation interface, the operation is simple and easy to understand;
2. One-time welding and welding forming trimming, smooth welding, smooth tearing,
3. The operation port adopts a two-hand start device to ensure the safety of the operator;
4. It adopts NL-5557 spark protection system, it is safe and reliable.
Power Range | 8KW |
Input Power | 15KVA |
Current Meter Indicator | Included |
Oscillation Tube | 7T69RB |
Standard Working Table | 400*600MM |
Power Supply | 3P * 380V * 50Hz |
Working Frequency | 27. 12Mhz |
Rectifier | Silicon Diode |
Drive Mode | Pneumatic |
Arc Suppressor | High Sensibility NL-5557 |
Transformer Type | Dry Transformer |
Suitable Material | PVC or any fabric contents PVC . |
Cycle Time | 1- 10S |
Pressure Stroke | ≥200mm |
Cooling Method | Air Cooling |
Press Type | C type |
Safety | Spark protection |
