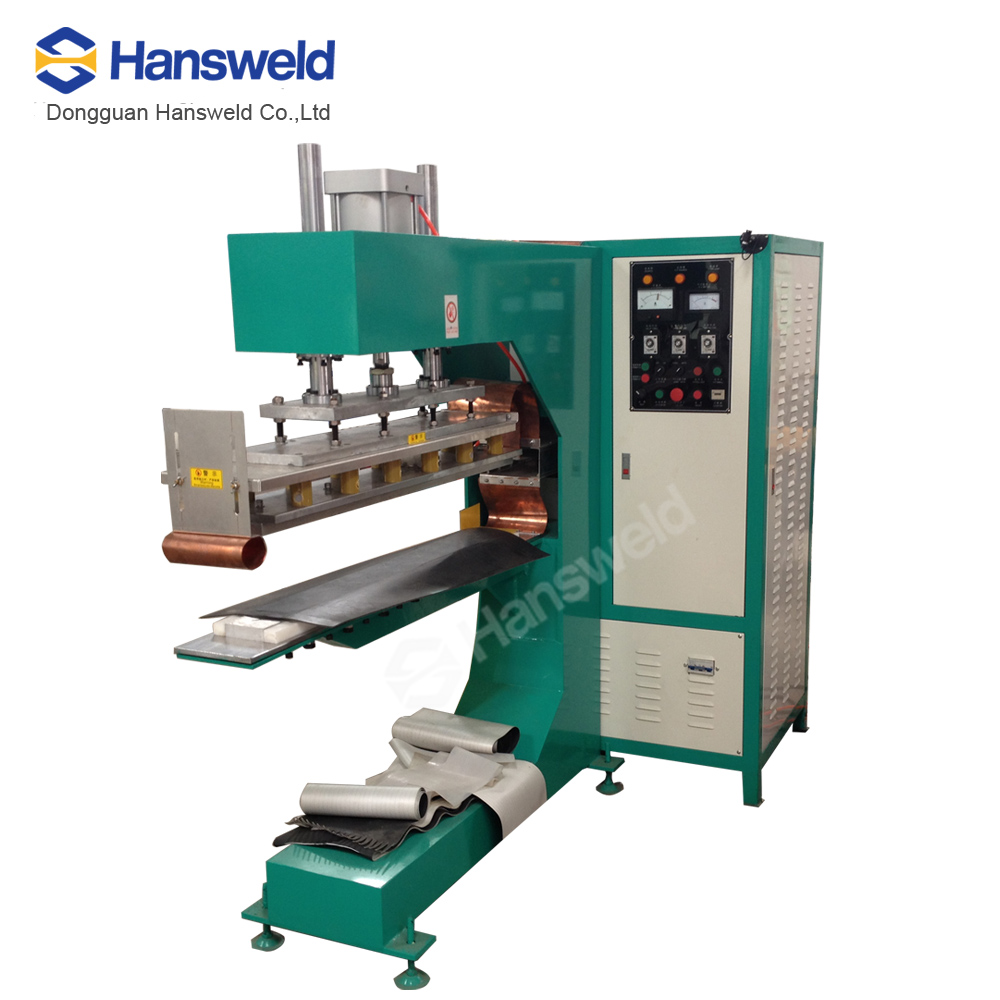

HSD-10kw HF Baffle Welding Machine Transmission Belt Welding Machine
HSD-10kw HF Baffle Welding Machine Transmission Belt Welding Machine
HSD-10kw HF Baffle Welding Machine Transmission Belt Welding Machine
Industrial belt welding machine equipment is suitable for: skirt baffles, front guide bars, reinforced baffles, and PU for belt wrapping.

PVC material coal welding is specially used for high-frequency welding and welding of running belts, conveyor belts, belt baffles, and industrial belt skirts. Skirt molds are used for welding various PVC or plastic products containing more than 10% PVC.

It is suitable for welding products of the same thickness and different heights (the height difference can be filled by filling in the middle). A baffle mold can be used universally as long as the base width is the same, and the welding equipment changes the traditional heating method in the past and adopts high-temperature heating. Frequent welding for better results
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

 Adopting NL-5557 high sensitive anti sparkle device,avoid damaging the mould.


European model square high frequency vibration box,more realible and stable in output.


Firmly welding, be well meeting with materials of thickor thin PVC,PU,PET or many other plastic products.







1.High frequency running belt welding machine specilize for fixed sidewall , cleat and baffle.


2.Firmly welding, be well meeting with materials of thickor thin PVC,PU,PET or many other plastic products.


3.Specilize for connecting treadmill belt (running belt)、Conveyor belt 、Timing belt welding machine.



Model Number HSD -10KW
Supply VoltageAC 380V
Frequency27.12 Mhz
Input Power18KVA
Rectifier TubeSilicon Diode
Electron TubeE3069
Maximum Pressure800KG
Electrode Stroke150MM
Maximum Electrode Spacing150MM
Upper Electrode Size400*600MM
Size of Platform Board700*700MM
