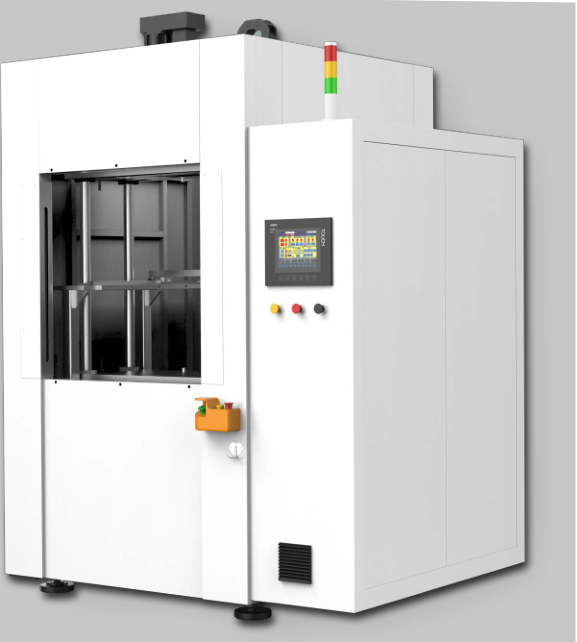

XY Vibration friction welding machine
XY Vibration friction welding machine
XY Vibration friction welding machine
* Use high frequency, good friction effect;* Automatically keeps the amplitude constant;
* Can control the output power;* Welding mode setting; depth and time'
* Automatic resonance function;
* Multi-stage welding;* Easy to operate touch screen;
* Multilingual interface;* Storage operating conditions;
* Convenient replacement fixture;* Equipped with sound insulation
Inquiry

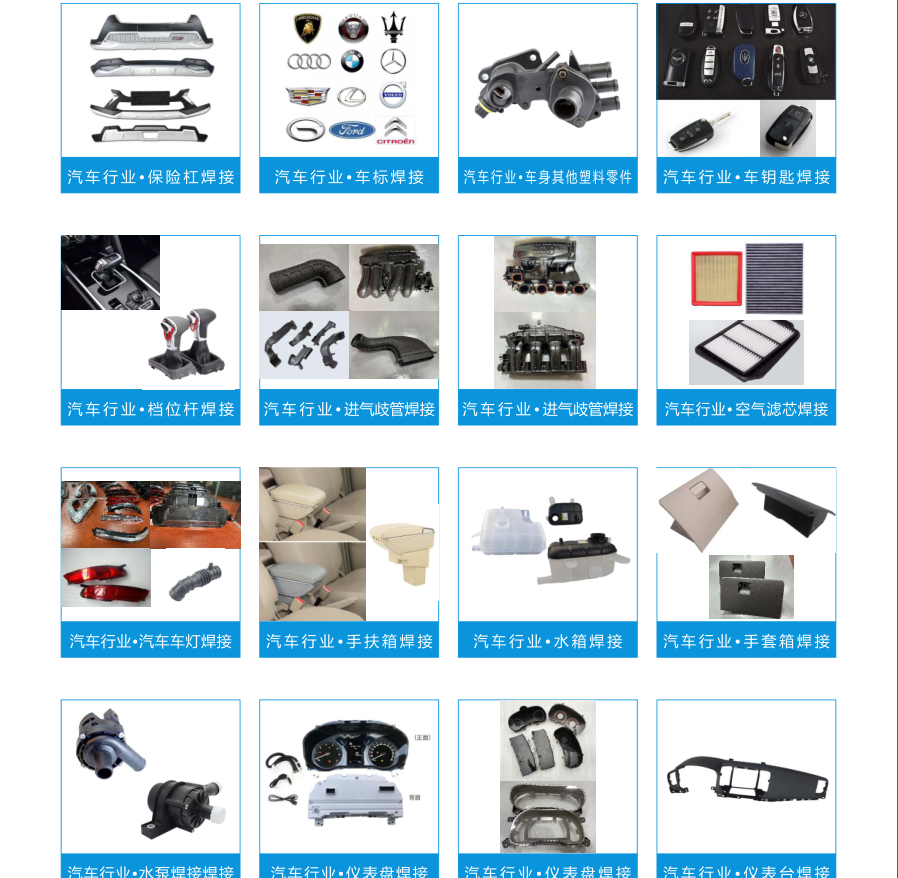

Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

* Use high frequency, good friction effect;

* Automatically keeps the amplitude constant;
* Can control the output power;
ModelXY-15
Overall Size960mm*1650mm*1955mm
（L*W*H)
Weight of upper mold5-15KG
Driver Board SizeWidth 310mm Length 360mm
Welding Area20-60 cm³
Amplitude0.1-1.8mm
Vibration Frequency220-260HZ
Load Vibration Output5.5KW
VoltsAC380V,3P
Input Capacity13 KVA
Systems ControlPLC Siemens
Touch ScreenSiemens
Welding MannerTime Mode Deep Mode
Store Result190pcs
Ambient Temperature0-50℃
Mesa Trip300 mm
Table Speed250mm/s(Max)
Mesa Pressure10-500kg
Safety Door Opening SpaceSafety Door Opening Space
Gross Weight1680KG


* Use high frequency, good friction effect;

* Automatically keeps the amplitude constant;
* Can control the output power;
* Welding mode setting; depth and time'
* Automatic resonance function;
* Multi-stage welding;
* Easy to operate touch screen;
* Multilingual interface;
* Storage operating conditions;

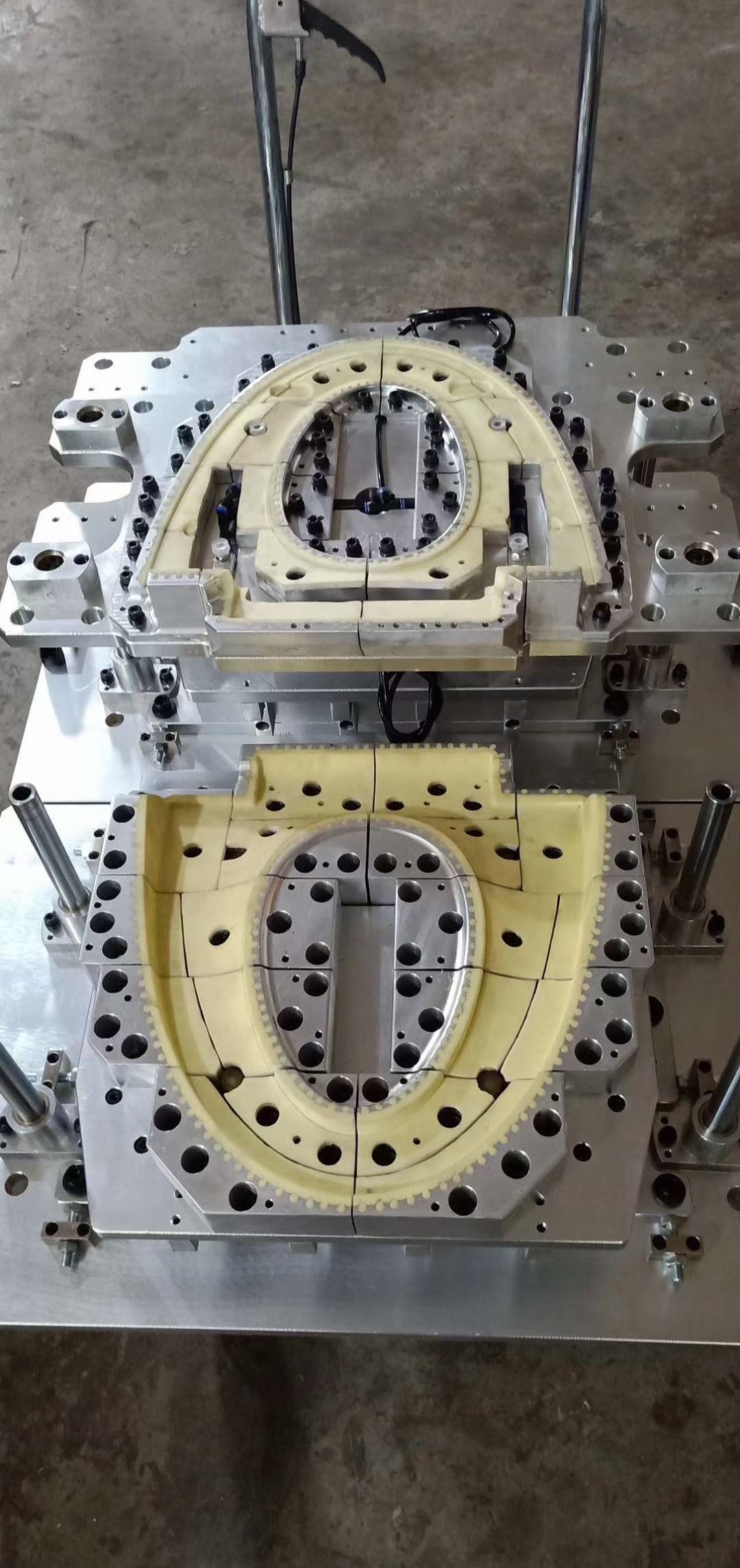

* Convenient replacement fixture;
* Equipped with sound insulation
