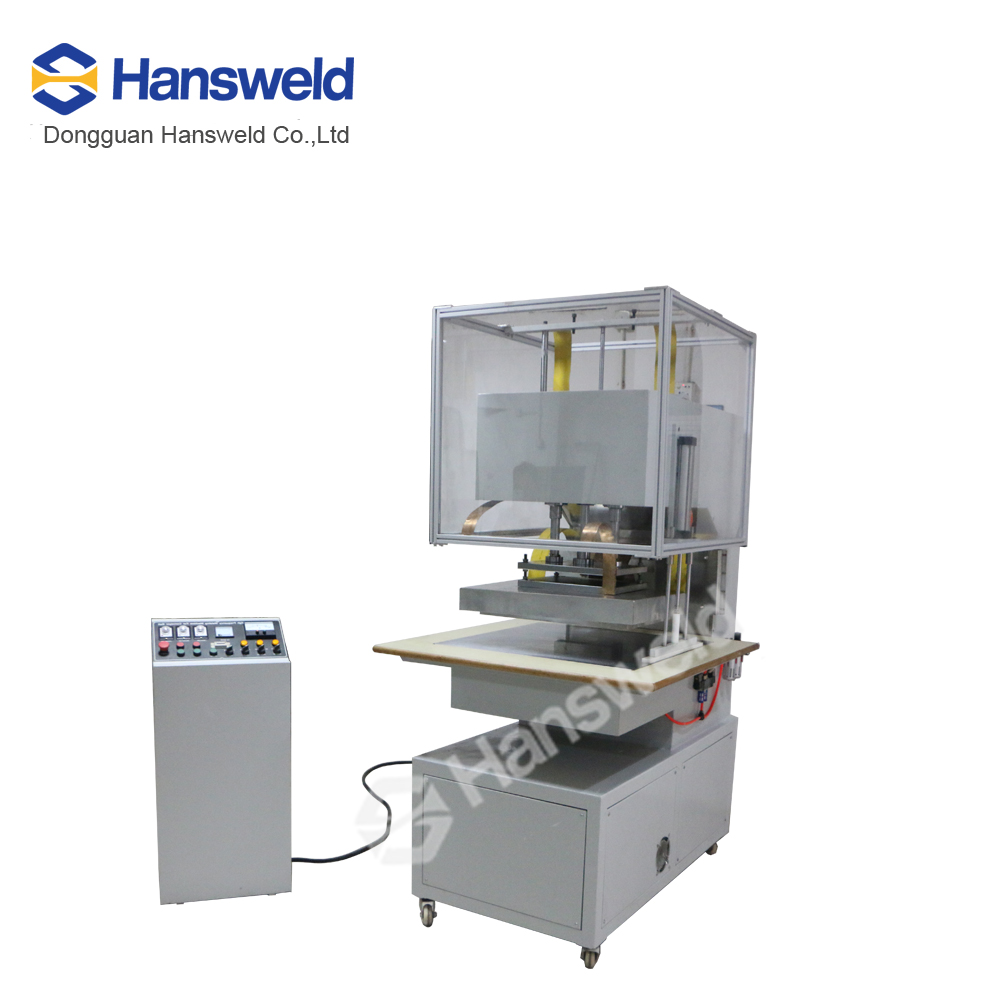

HSD-12KW Single Head HF Baffle Machine
HSD-12KW Single Head HF Baffle Machine
HSD-12KW Single Head HF Baffle Machine
Industrial belt welding machine equipment is suitable for: skirt baffles, front guide bars, reinforced baffles, and PU for belt wrapping.

PVC material coal welding is specially used for high-frequency welding and welding of running belts, conveyor belts, belt baffles, and industrial belt skirts. Skirt molds are used for welding various PVC or plastic products containing more than 10% PVC.

It is suitable for welding products of the same thickness and different heights (the height difference can be filled by filling in the middle). A baffle mold can be used universally as long as the base width is the same, and the welding equipment changes the traditional heating method in the past and adopts high-temperature heating. Frequent welding for better results
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

The high-frequency welding machine with skirt and baffle for running is designed based on product characteristics.


The conveyor belt has a certain width, and the upper plate can also be used for welding of longer specifications.






1.High frequency running belt welding machine specilize for fixed sidewall , cleat and baffle.


2.Firmly welding, be well meeting with materials of thickor thin PVC,PU,PET or many other plastic products.


3.Specilize for connecting treadmill belt (running belt)、Conveyor belt 、Timing belt welding machine.





Model  HSD -12KW
Supply VoltageAC 380V
Frequency27.12 Mhz
Input Power 20KVA
Rectifier TubeSilicon Diode
Electron Tube E3010
Maximum Pressure800KG
Electrode Stroke150MM
Maximum Electrode Spacing150MM
Upper Electrode Size500*700MM
Size of Platform Board1150*800MM
