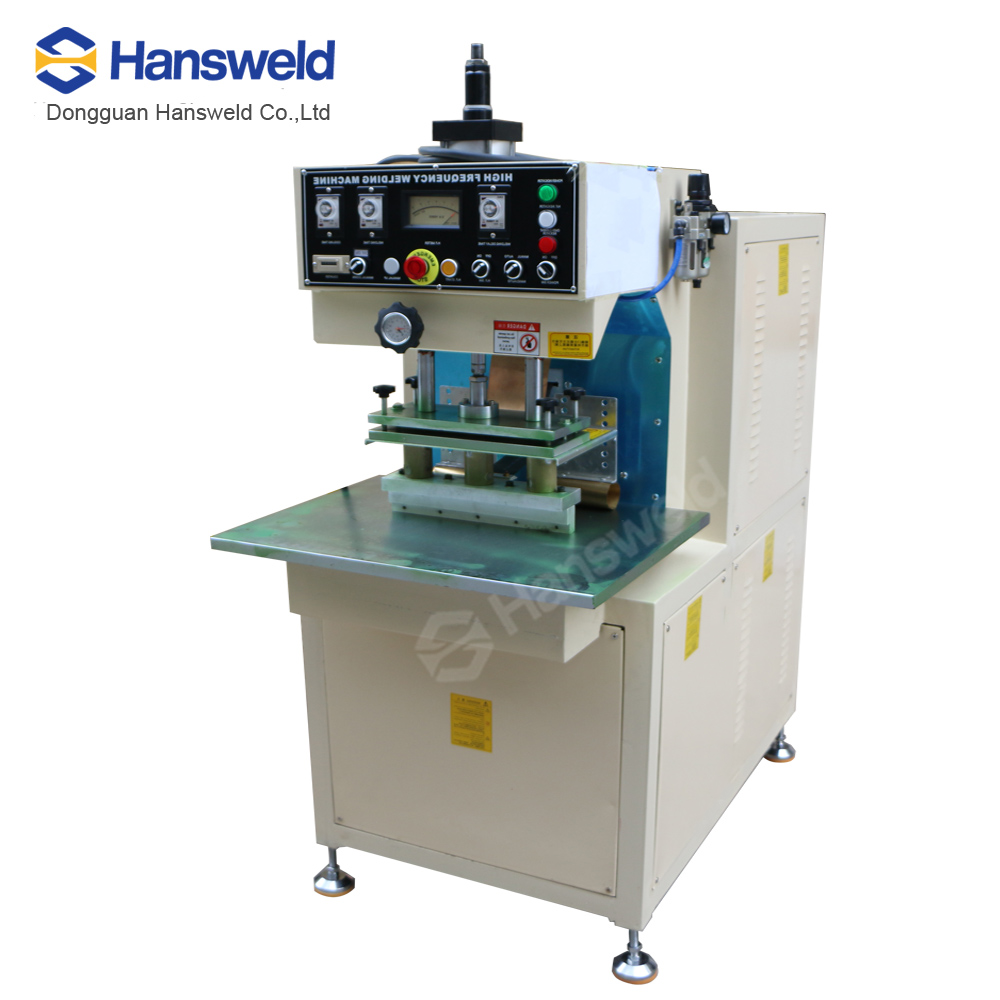

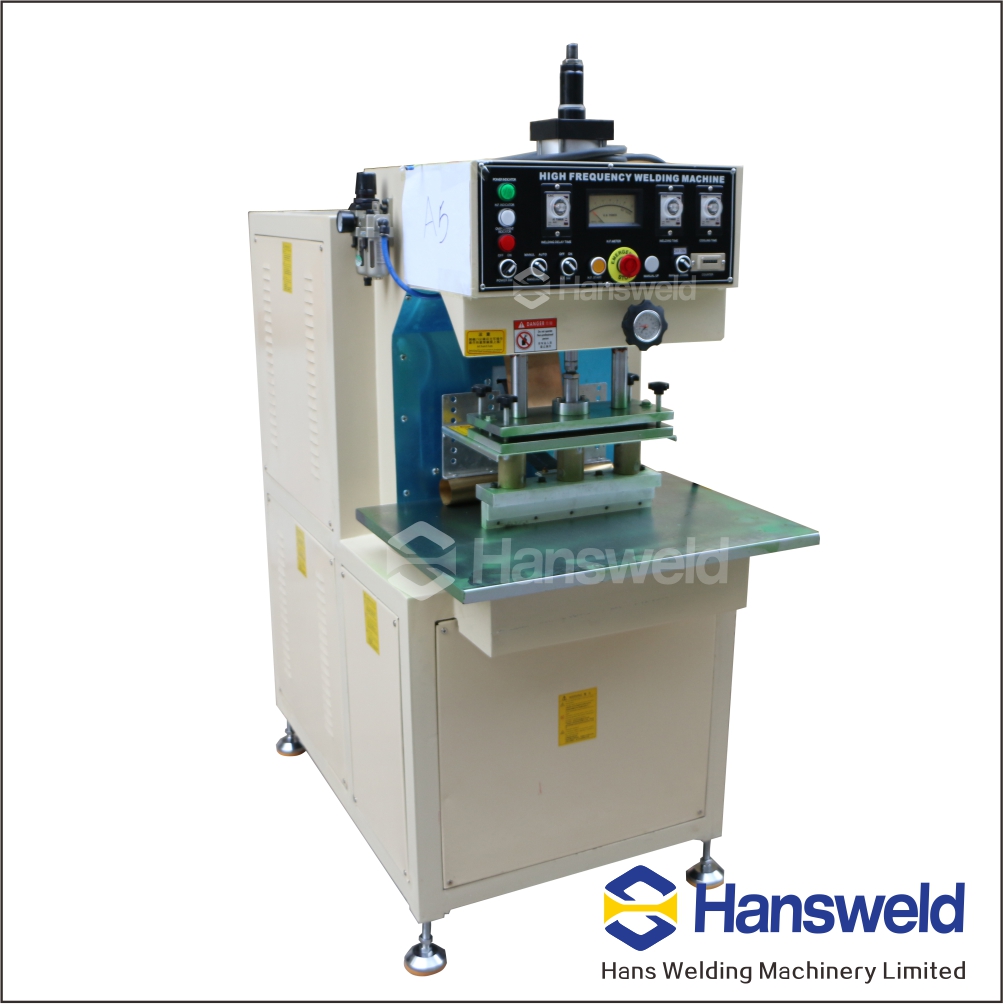

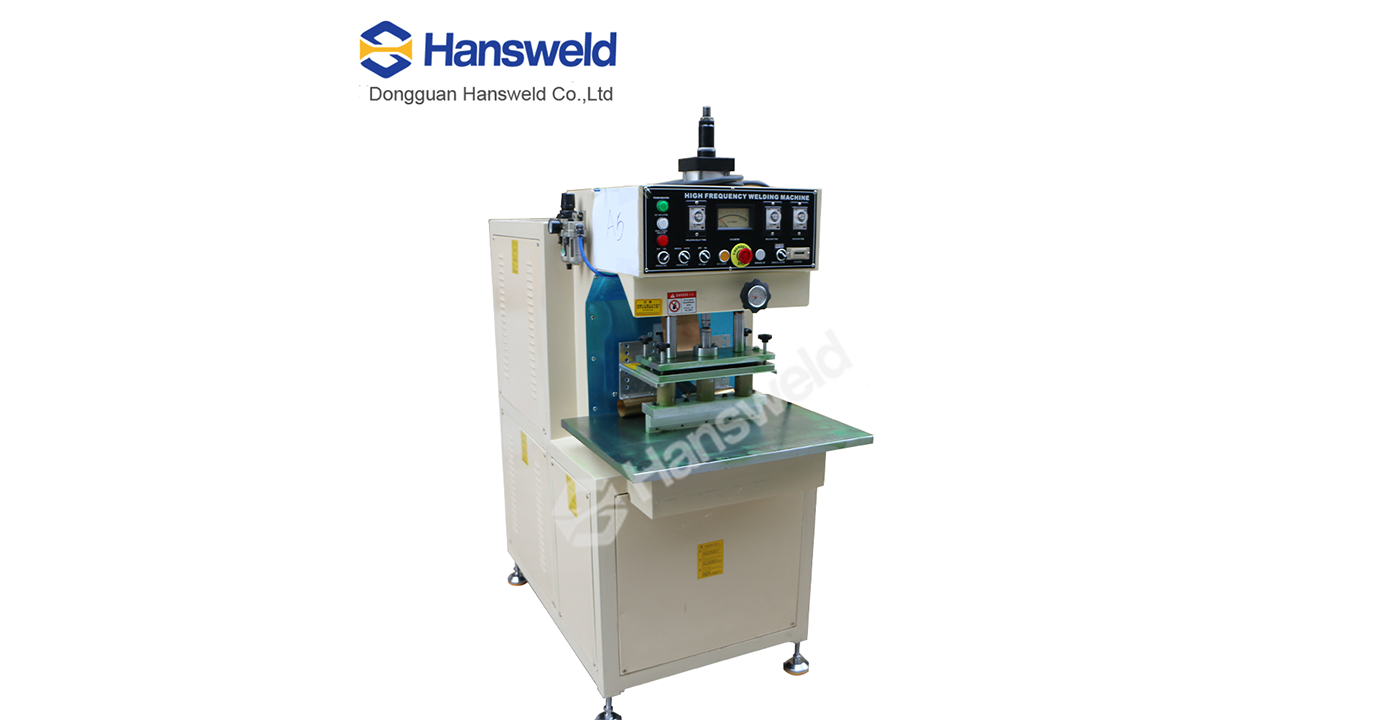

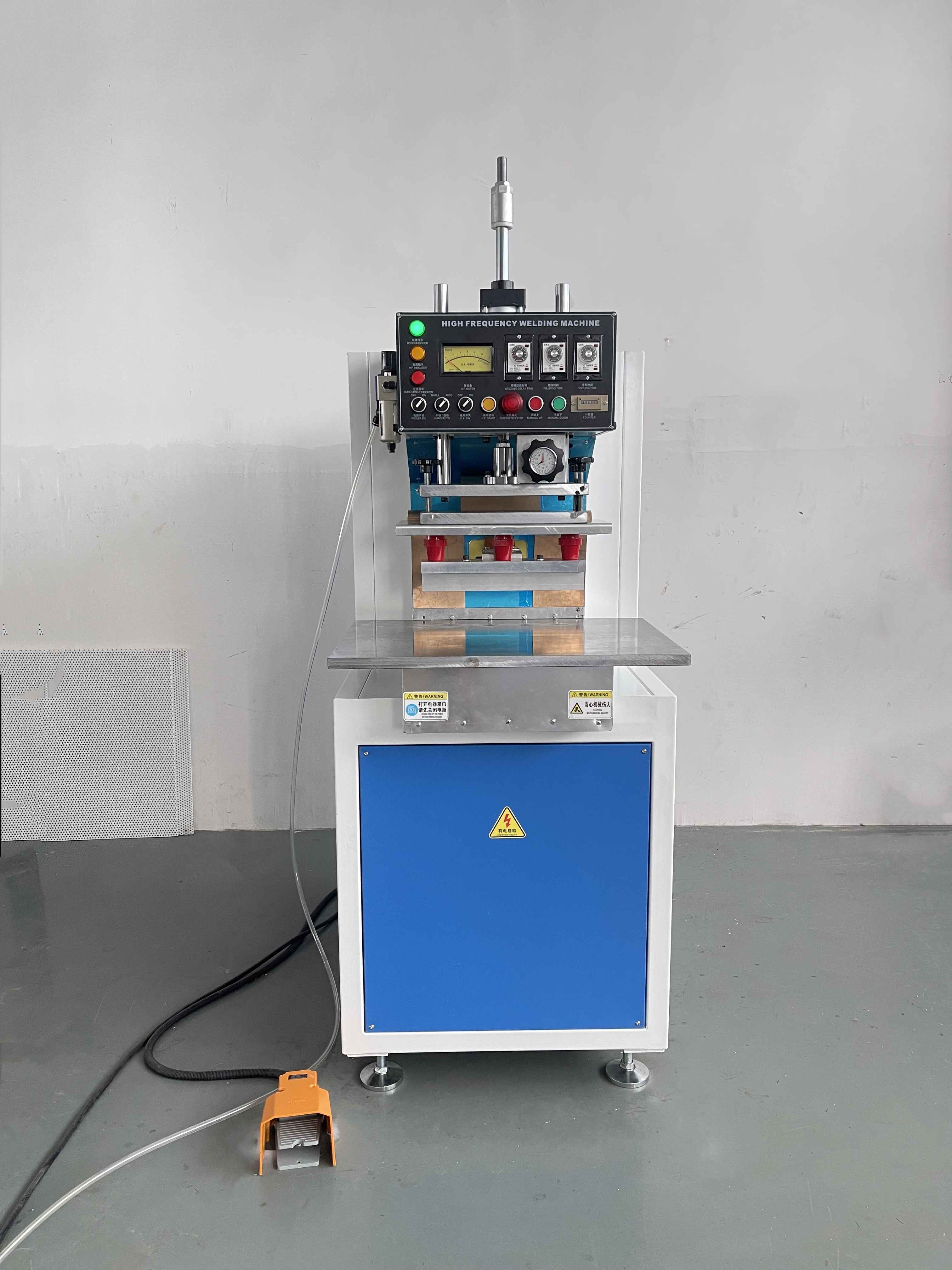

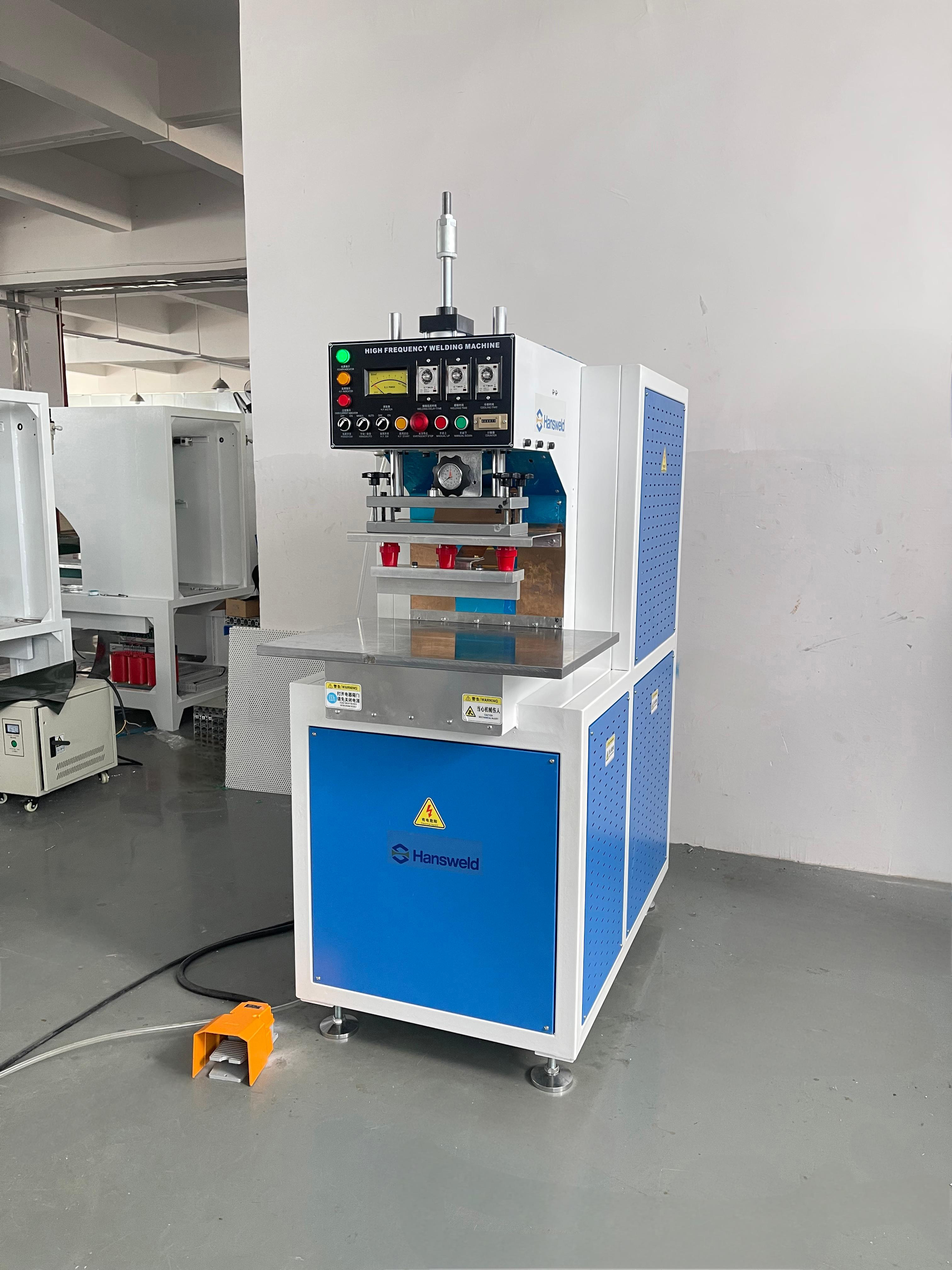

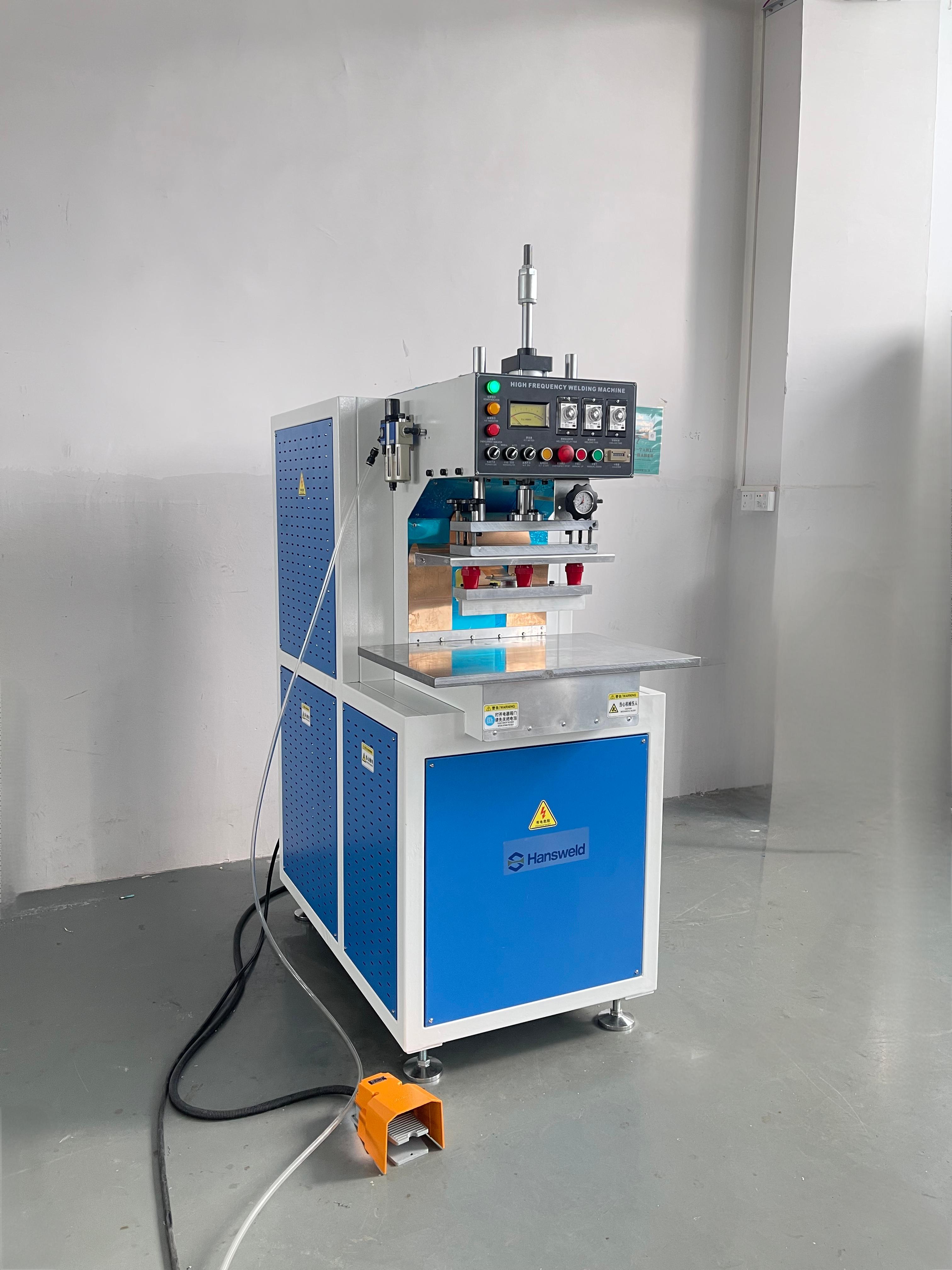

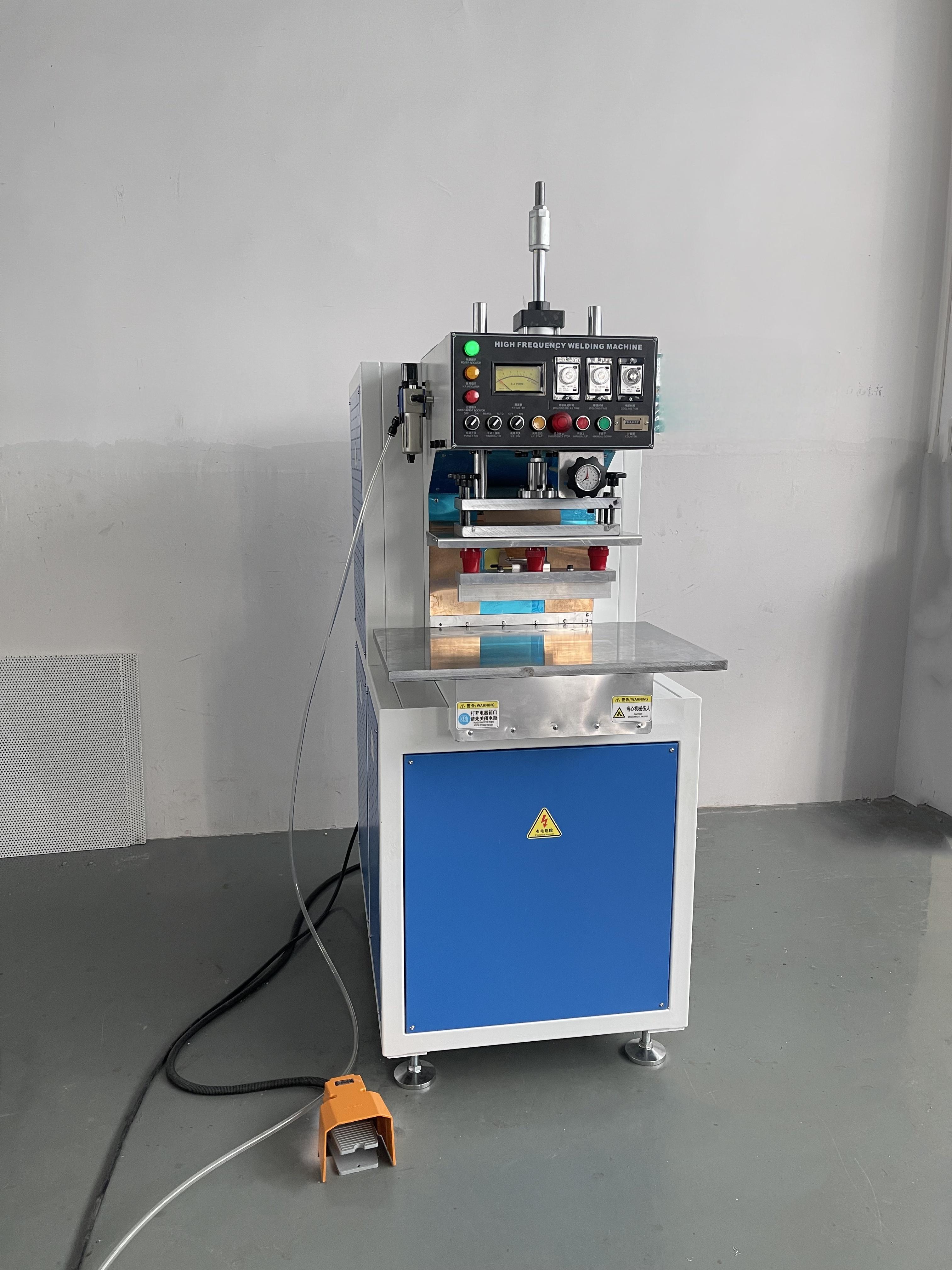

HSD-TU-5KW Single head 5KW high frequency machine
HSD-TU-5KW Single head 5KW high frequency machine
HSD-TU-5KW Single head 5KW high frequency machine
This machine can be all kinds of film(PET, APET, PETG, PVC, PS, PP)plastic into different shapes of plastic cover. Such as toys, hardware, food, electronics, pharmaceuticals and other form dense Department of packaging, and can produce three-dimensional embossed pattern, plastic ceiling, siding, cake boxes, automobile materials and sanitary equipment to form a fine liner shell packaging.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

Scope of application: Mainly suitable for: PVC products or containing more than 30% PVC material welding;

Soft plastic products: PVC soft plastic bag, waterproof bag, waterproof bag, inflatable products, raincoat and rain shoes, PVC folder, photo album, coin collection book, smallpox soft film/light box, etc.

Blister packaging: PVC double-sided blister packaging, paper card blister packaging, PVC sheet welding;

Other: wire hot piece, inflatable mouth, inflatable mark, sand hairpin and other accessories, leather press logo, ribbon embossing and embossing, TPU product welding, PU earphone holster, protein ear muffs, eye mask, Tesla mesh cloth beach chair and other pressing edge welding.



1.High Q value Oscillator ,Stable and reliable in sealing power output; 2.High Sensitive Arc-Suppressor,Prevent the mould from damage ;

3.High Precision guide,easy Operation ;

4.Pneumatic pressure and Hydraulic pressure at option;





Power Range5KW
Input Power8KVA
Suitable Welding Area100Sqcm
Oscillation Tube7T85RB
Standard Working Table350mm*700mm
Power Supply3P*380V*50Hz&3P*220V*60Hz
Working Frequency27.12Mhz
RectiferSilicon Diode
Drive MovePneumatic( Hydraulic optional at additional cost)
Arc Suppressor SuitableHigh Sensibility NL-5557
MaterialPVC or any fabric contents PVC
Cylinder Working Stroke150mm(customization offered)
Welding Time0-30S adjustable (customization offered)
Weight450KG
