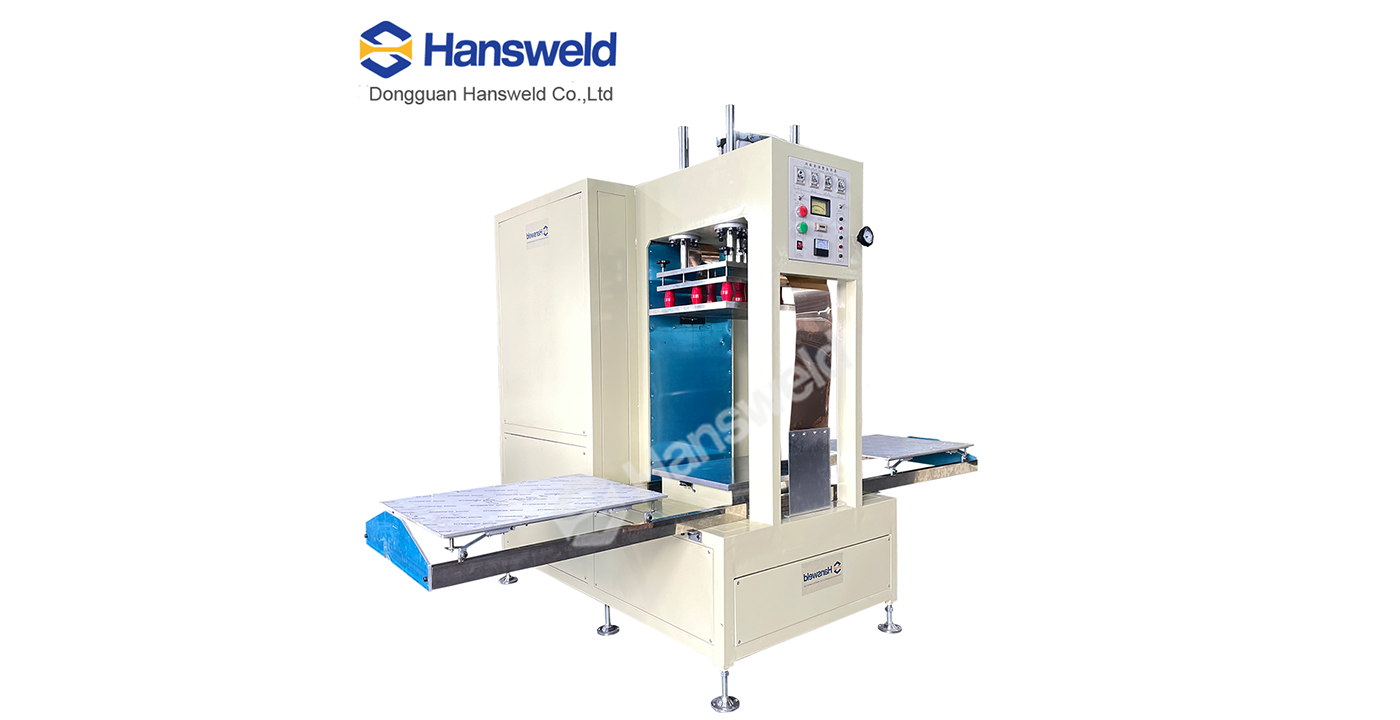

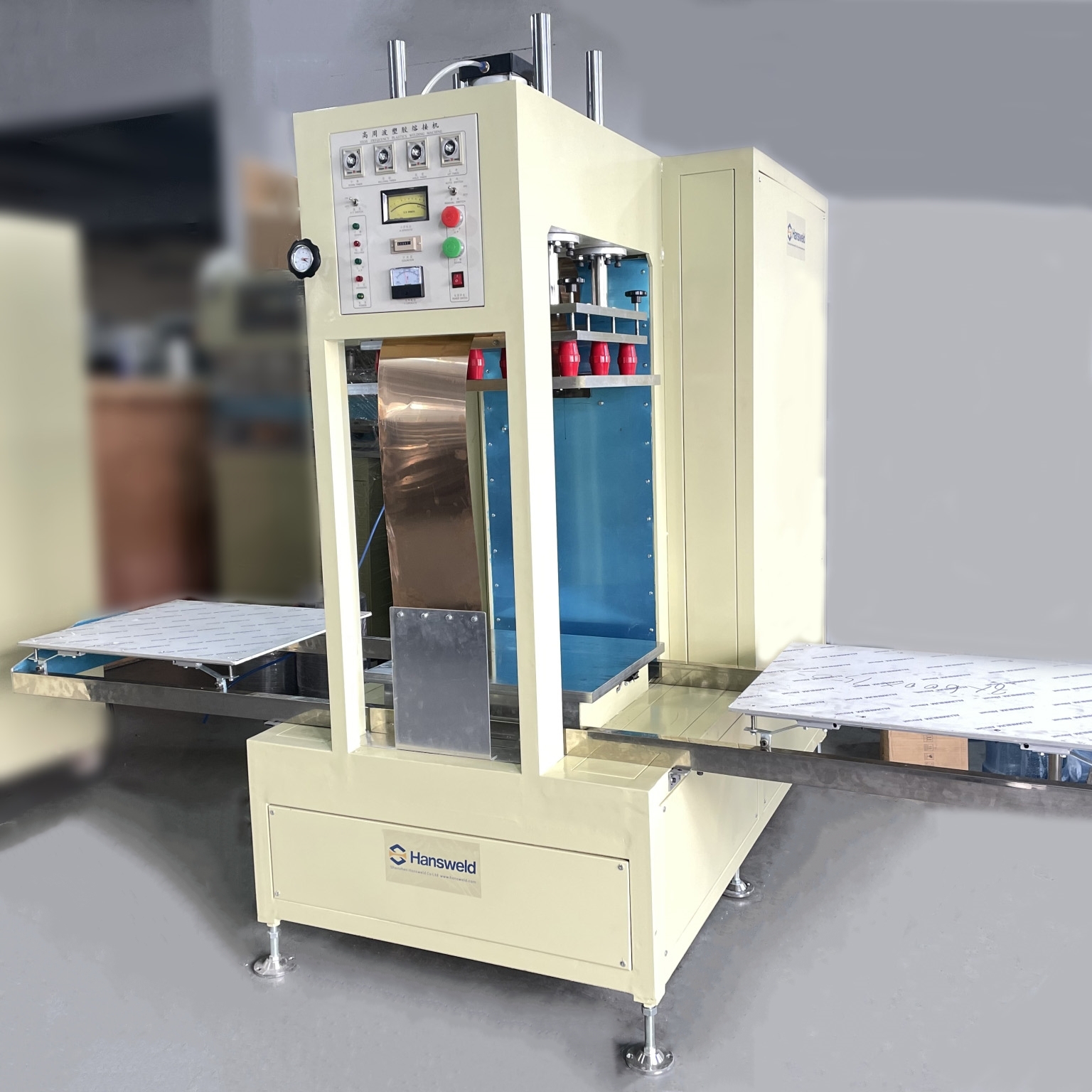

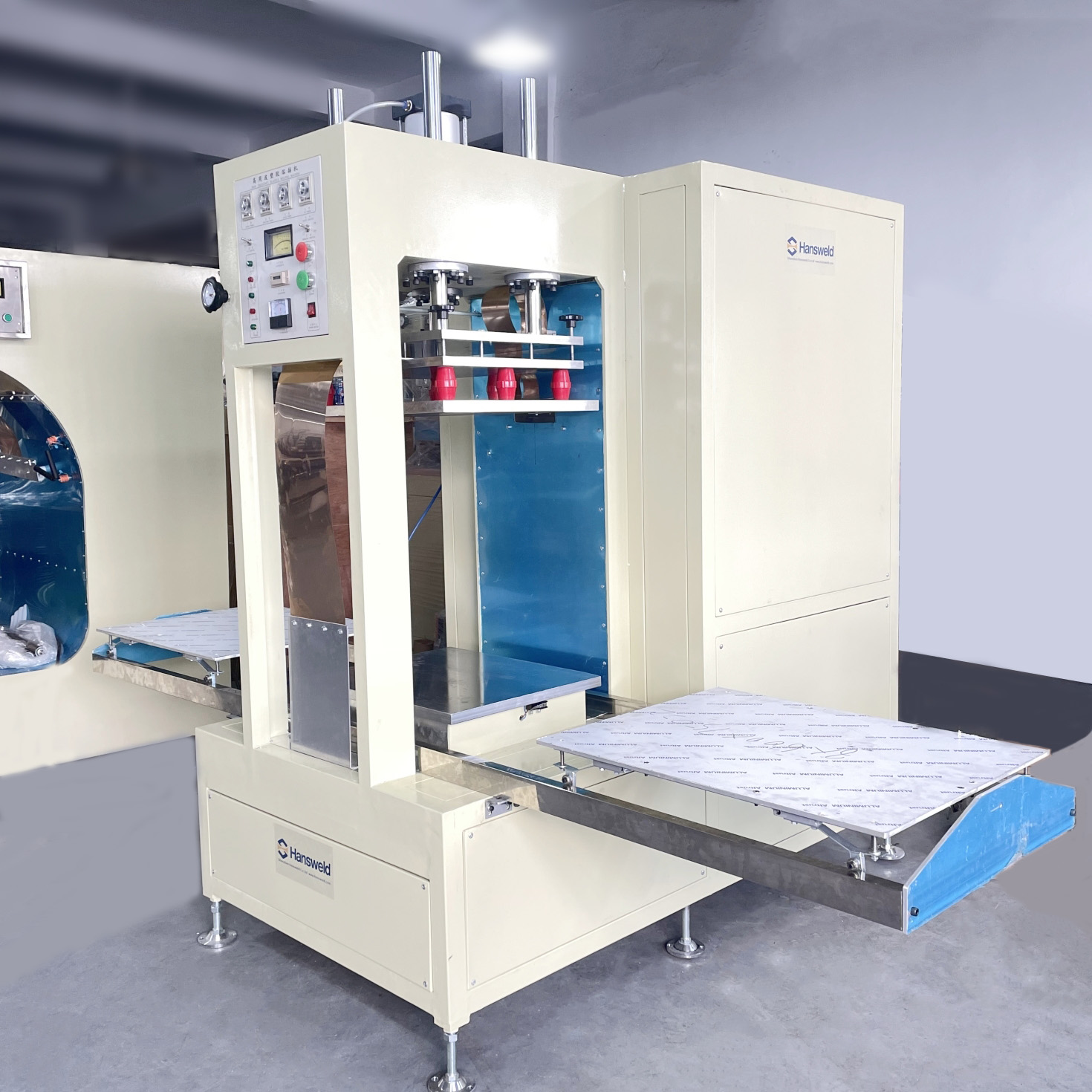

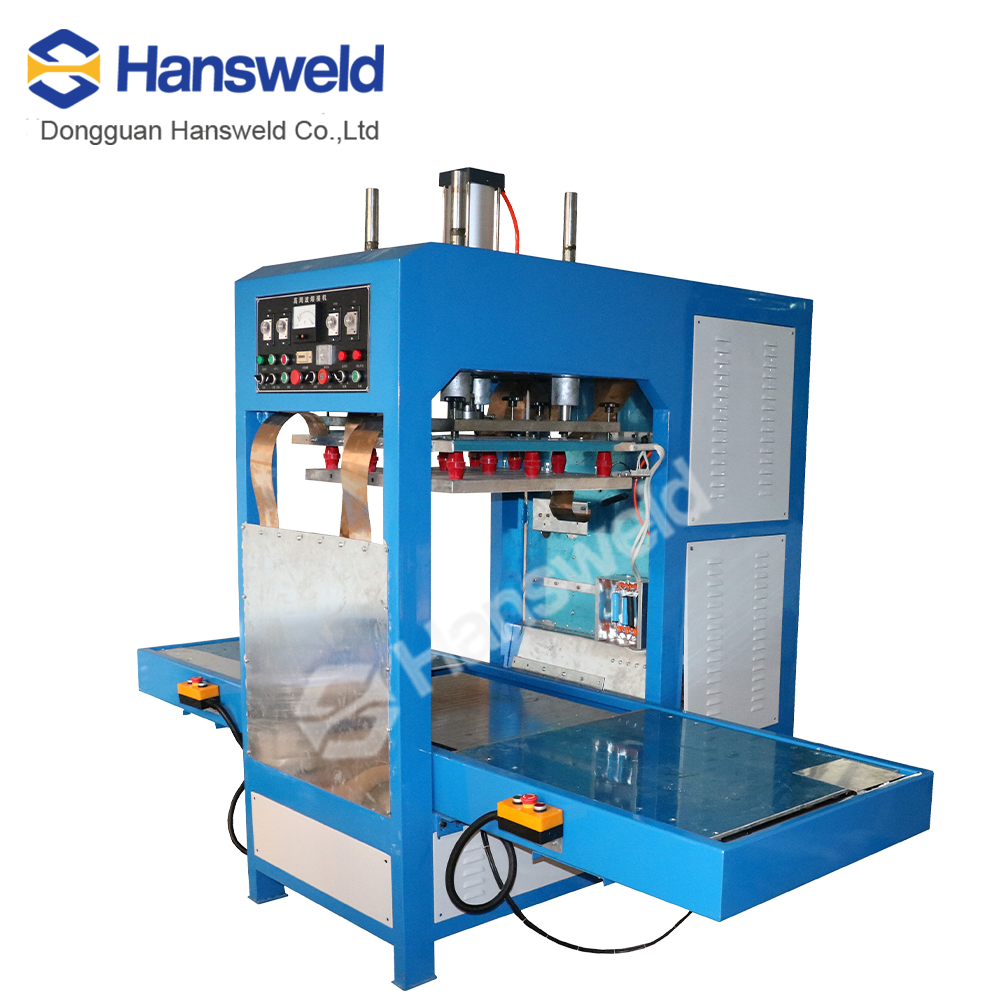

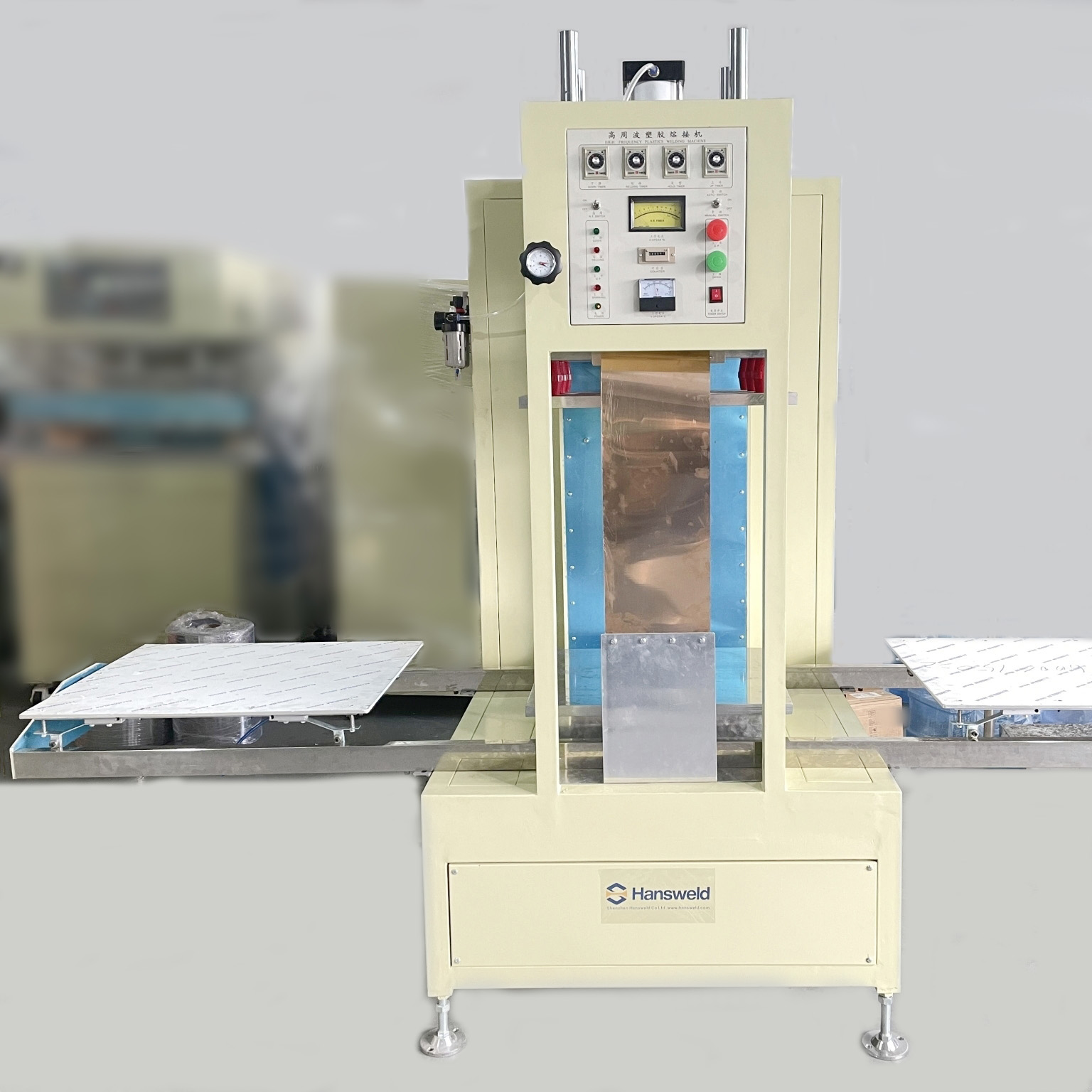

HSD-10KW HF left and right slide welding machine
HSD-10KW HF left and right slide welding machine
HSD-10KW HF left and right slide welding machine
The left and right slide high frequency plastic splicing machine is used for the thermal bonding of small area products. It uses a high-frequency electric field to oscillate the internal components of the plastic and generate heat energy for the fusion of various products.
Mainly used for:
The processing of all composite materials including EVA, TPU, PVC coated cloth, etc. containing PVC10 or more, including vacuum double bubble heat sealing, bubble cover and cardboard heat sealing, embossing, 10G0 (trademark) embossing, stationery stickers, ice bags, medical identification tapes, balls, inflatable toys, etc.
Applications
Description
Features
Safety
Control Panel
Description
Features
Safety
Control Panel

The main uses of high-frequency machines are:

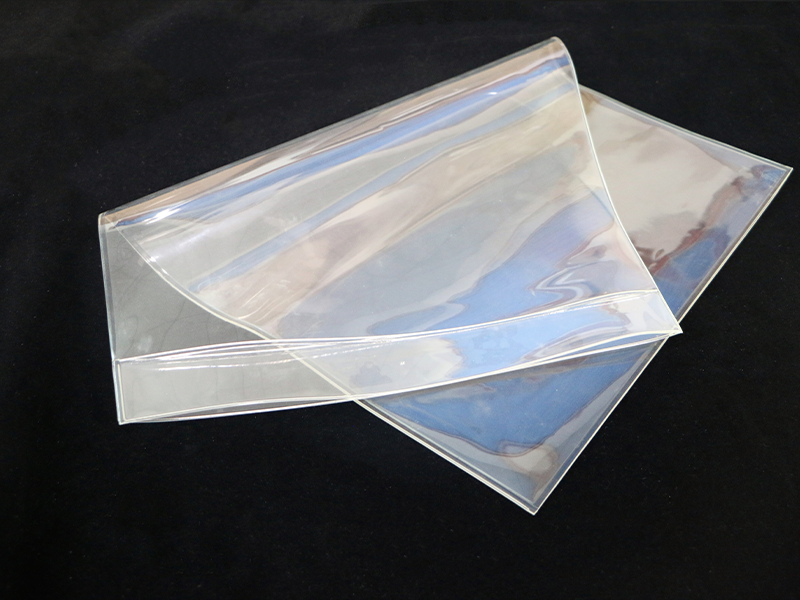

PVC, PU, TPU, EVA, PE, PET, PA or PP, and any other soft and hard rubber materials, as well as special purpose processing or vacuum packaging sealing of leather or woolen fabrics, are widely used.


Scope of use:


Such as embossed shoes, hats, clothing, craft accessories, inflatable toys, air cushion beds, car sunshades, foot cushions, cushions, car oil pots, and various automotive products, trademarks, bags, shower curtains, carpets, packaging bags, hot water bags, medical equipment, stationery, photo albums, albums, sports products, PVC folding boxes, eyeglass boxes, tents, motorcycle cushions, vacuum packaging and sealing of tools, electronics, and electrical appliances.

High Q value Oscillator ,Stable and reliable in sealing power output;

High Sensitive Arc-Suppressor,Prevent the mould from damage ;

High Precision guide,easy Operation

Pneumatic pressure and Hydraulic pressure at option


Mainly Application:

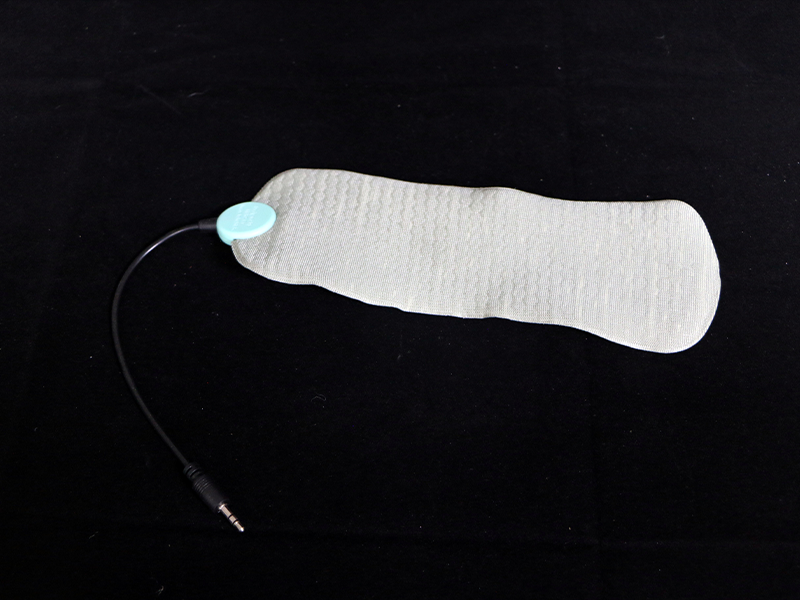

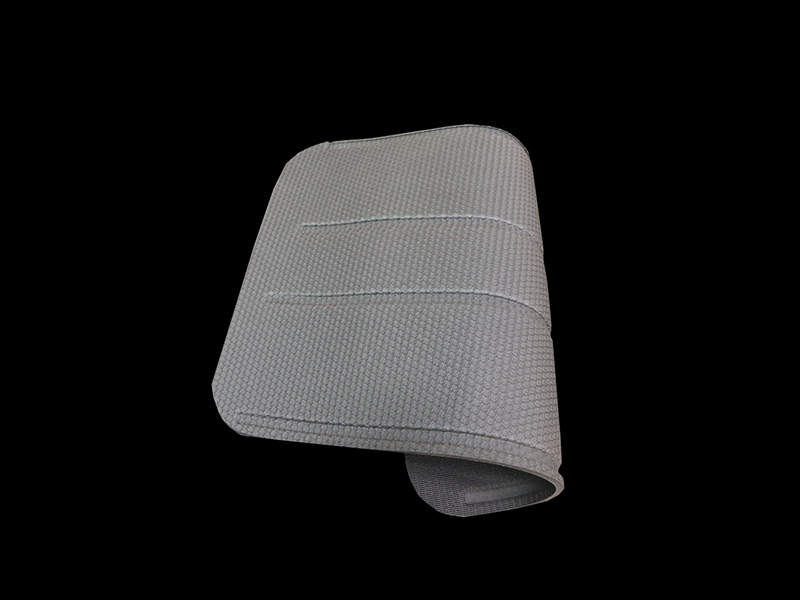

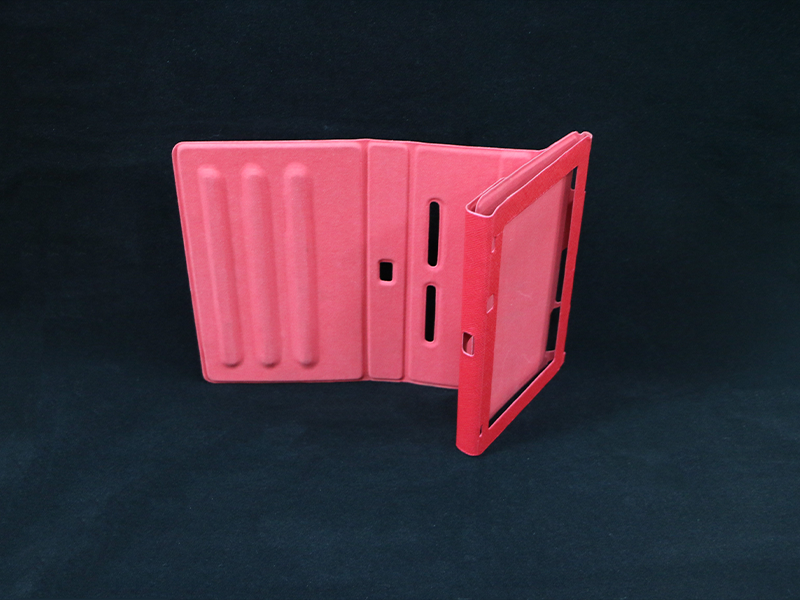

1) Synthetic leather products;

2)Various car decorations;

3)Various clothing, footwear, trademarks, belts, watch straps and other products;

4) CD cases;

5) Blister and paper cards, blister+ blister products and so on;









Power10000W
Power Supply380V 3P 50HZ
Frequency27.12MHz
Input power15KVA
RectifierSILICON DIODE
Max pressureE3069
Oscillation tube700KG
Cylinder Stroke250MM
Size of upper electrode150MM
Size of bottom electrode400*600MM
Max Welding surface each work cycle500*700MM
Welding time240c㎡
Time0-60s
